ZGR21L-GWXEKC (2011)
Toyota E'Z
Production
Jun 2011
-
Dec 2016
Engine
2ZRFE
Transmission
CVFC ATM
Displacement
2500cc
Power
168 HP (125 kW)

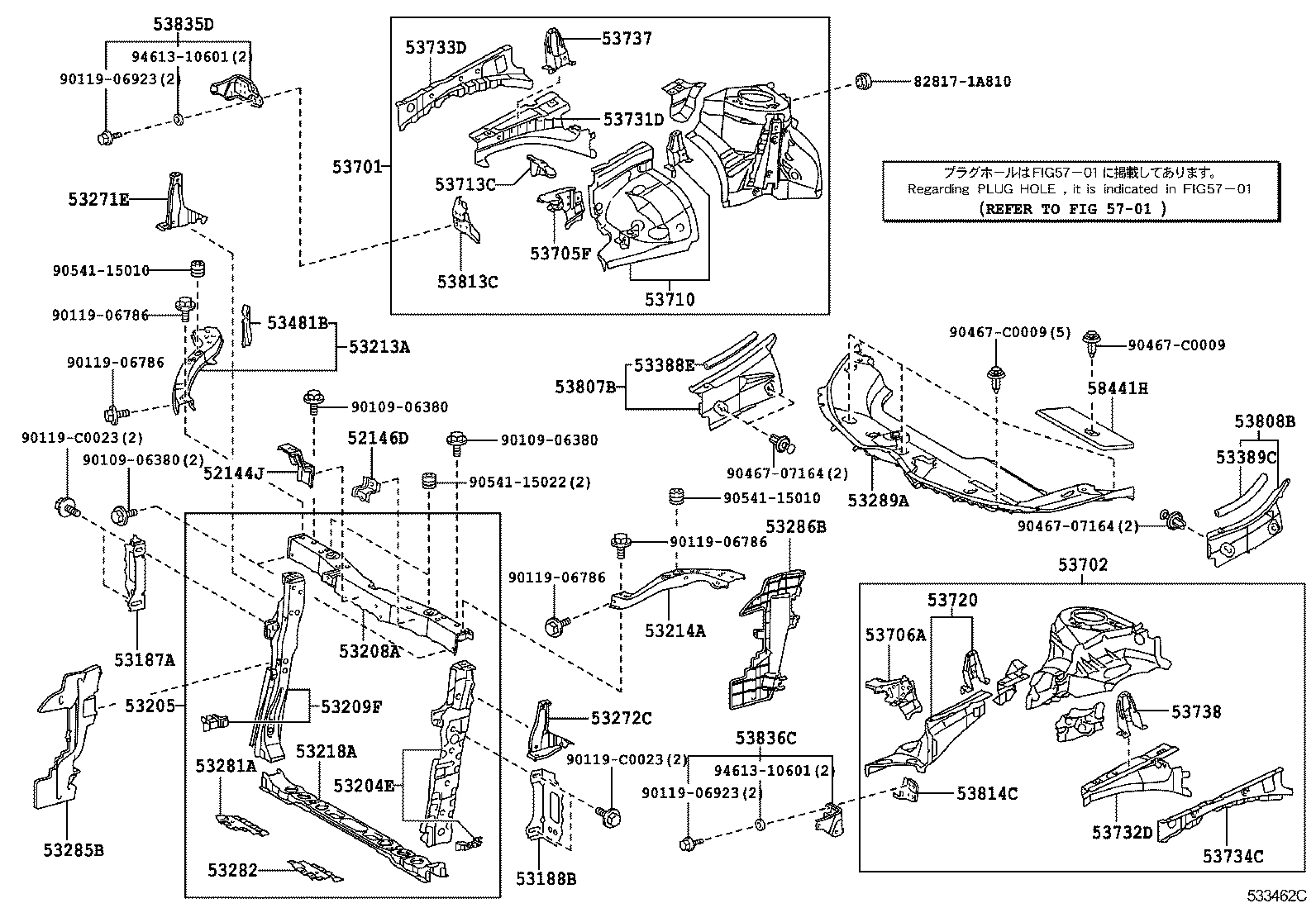

ILLUST NO. 1 OF 2(1106-1307)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52144J - STAY, FRONT BUMPER, CENTER | ||||
| 52085-0F020 |
ZGR2# |
1 | ||
| 52146D - BRACKET, FRONT BUMPER SIDE MOUNTING, LH | ||||
| 52146-0F030 |
ZGR2# |
1 | ||
| 53187A - STAY, RADIATOR SUPPORT, RH | ||||
| 53187-02030 |
ZGR2# |
1 | ||
| 53188B - STAY, RADIATOR SUPPORT, LH | ||||
| 53188-02030 |
ZGR2# |
1 | ||
| 53204E - BRACE SUB-ASSY, RADIATOR SUPPORT TO CROSS MEMBER, LH | ||||
| 53204-02020 |
ZGR2# |
1 | ||
| 53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER | ||||
| 53205-02140 |
ZGR2# |
1 | ||
| 53208A - SUPPORT SUB-ASSY, HOOD LOCK | ||||
| 53208-02150 |
ZGR2# |
1 | ||
| 53209F - BRACE SUB-ASSY, RADIATOR SUPPORT TO CROSS MEMBER, RH | ||||
| 53209-02050 |
ZGR2# |
1 | ||
| 53213A - SUPPORT, RADIATOR, UPPER RH | ||||
| 53202-0F040 |
ZGR2# |
1 | ||
| 53214A - SUPPORT, RADIATOR, UPPER LH | ||||
| 53214-0F040 |
ZGR2# |
1 | ||
| 53218A - SUPPORT, RADIATOR, LOWER | ||||
| 53218-02030 |
ZGR2# |
1 | ||
| 53271E - BRACKET, HEADLAMP MOUNTING, RH | ||||
| 53271-0F020 |
ZGR2# |
1 | ||
| 53272C - BRACKET, HEADLAMP MOUNTING, LH | ||||
| 53272-0F060 |
ZGR2# |
1 | ||
| 53281A - REINFORCEMENT, FRONT BODY MOUNTING, RH | ||||
| 53281-02030 |
ZGR2# |
1 | ||
| 53282 - REINFORCEMENT, FRONT BODY MOUNTING, LH | ||||
| 53282-02030 |
ZGR2# |
1 | ||
| 53285B - SEAL, RADIATOR SIDE AIR, NO.1 | ||||
| 53285-0F060 |
ZGR2# |
1 | ||
| 53286B - SEAL, RADIATOR SIDE AIR, NO.2 | ||||
| 53286-0F060 |
ZGR2# |
1 | ||
| 53289A - COVER, RADIATOR SUPPORT OPENING | ||||
| 53289-0F040 |
ZGR2# |
1 | ||
| 53388E - SEAL, HOOD TO FRONT FENDER, RH | ||||
| 53388-0F020 |
ZGR2# |
1 | ||
| 53389C - SEAL, HOOD TO FRONT FENDER, LH | ||||
| 53388-0F020 |
ZGR2# |
1 | ||
| 53481B - BRACKET, HOOD SUPPORT, RH | ||||
| 53481-0F020 |
ZGR2# |
1 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-0F040 |
ZGR2# |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-0F030 |
ZGR2# |
1 | ||
| 53705F - BRACE SUB-ASSY, FENDER APRON, RH | ||||
| 53705-0F040 |
ZGR2# |
1 | ||
| 53706A - BRACE SUB-ASSY, FENDER APRON, LH | ||||
| 53706-0F030 |
ZGR2# |
1 | ||
| 53710 - APRON ASSY, W/FRONT SIDE MEMBER, RH | ||||
| 53710-0F902 |
ZGR2# |
1 | ||
| 53713C - EXTENSION, FRONT FENDER APRON, FRONT RH | ||||
| 53713-02050 |
ZGR2# |
1 | ||
| 53720 - APRON ASSY, W/FRONT SIDE MEMBER, LH | ||||
| 53720-0F020 |
ZGR2# |
1 | ||
| 53731D - MEMBER, FRONT APRON TO COWL SIDE, UPPER RH | ||||
| 53731-02070 |
ZGR2# |
1 | ||
| 53732D - MEMBER, FRONT APRON TO COWL SIDE, UPPER LH | ||||
| 53732-02080 |
ZGR2# |
1 | ||
| 53733D - MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH | ||||
| 53733-02030 |
ZGR2# |
1 | ||
| 53734C - MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH | ||||
| 53734-02030 |
ZGR2# |
1 | ||
| 53737 - PLATE, FRONT APRON TO COWL SIDE MEMBER, RH | ||||
| 53737-0F040 |
ZGR2# |
1 | ||
| 53738 - PLATE, FRONT APRON TO COWL SIDE MEMBER, LH | ||||
| 53738-0F030 |
ZGR2# |
1 | ||
| 53807B - REINFORCEMENT SUB-ASSY, FRONT FENDER, TOP RH | ||||
| 53807-0F020 |
ZGR2# |
1 | ||
| 53808B - REINFORCEMENT SUB-ASSY, FRONT FENDER, TOP LH | ||||
| 53808-0F020 |
ZGR2# |
1 | ||
| 53813C - EXTENSION, FRONT FENDER, RH | ||||
| 53813-0F020 |
ZGR2# |
1 | ||
| 53814C - EXTENSION, FRONT FENDER, LH | ||||
| 53814-0F020 |
ZGR2# |
1 | ||
| 53835D - BRACKET, FRONT SIDE PANEL, RH | ||||
| 53803-0F020 |
ZGR20,21 |
1 | ||
| 53836C - BRACKET, FRONT SIDE PANEL, LH | ||||
| 53804-0F020 |
ZGR20,21 |
1 | ||
| 58441H - COVER, BATTERY SERVICE HOLE | ||||
| 58441-0F010 |
ZGR2# |
1 | ||
| Common parts | ||||
| 82817-1A810 | ||||
| 90109-06380 | ||||
| 90119-06786 | ||||
| 90119-06923 | ||||
| 90119-C0023 | ||||
| 90467-07164 | ||||
| 90467-C0009 | ||||
| 90541-15010 | ||||
| 90541-15022 | ||||
| 94613-10601 | ||||
| Linked diagrams | ||||
| 5701 | ||||

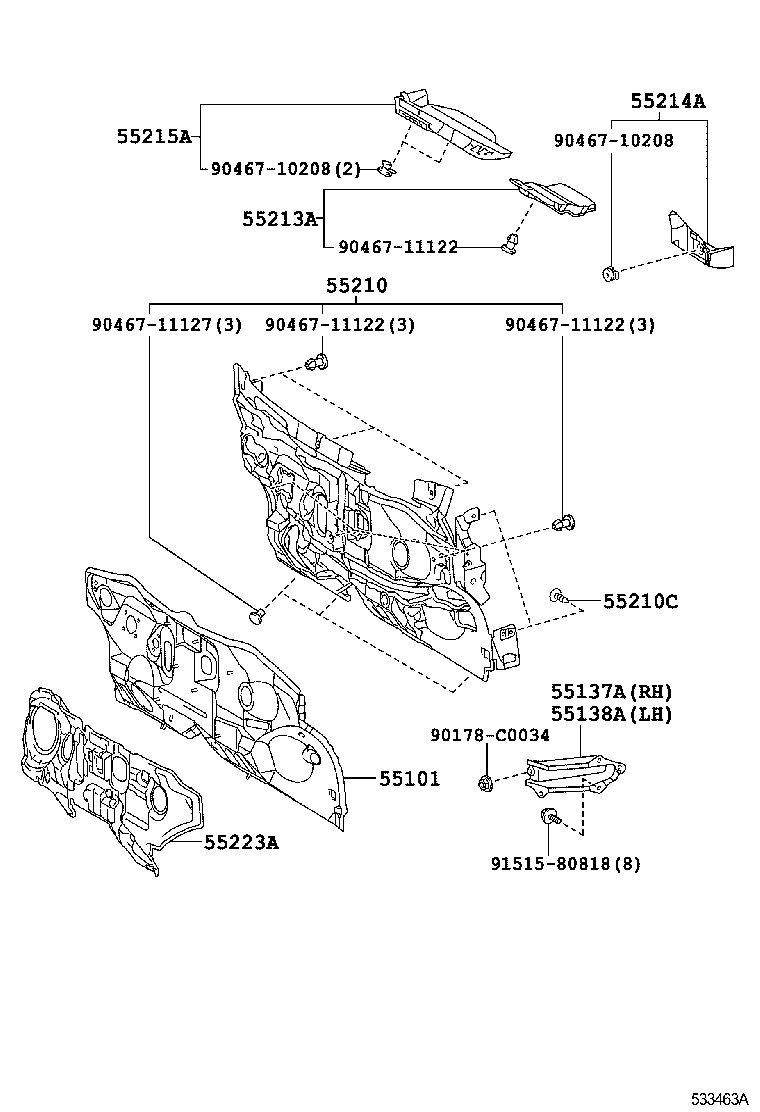

ILLUST NO. 2 OF 2(1106-1307)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55101 - PANEL SUB-ASSY, DASH | ||||
| 55101-0F060 |
ZGR21,22..CVFC |
1 | ||
| 55137A - BRACE, DASH TO FRAME, RH | ||||
| 55137-0F010 |
ZGR2# |
1 | ||
| 55138A - BRACE, DASH TO FRAME, LH | ||||
| 55138-0F020 |
ZGR2# |
1 | ||
| 55210 - INSULATOR ASSY, DASH PANEL | ||||
| 55210-0F050 |
ZGR2# |
1 | ||
| 55210-0F051 |
ZGR2# |
1 | ||
| 55210C - CLIP | ||||
| 90467-C0012C0 |
ZGR2# BLACK |
4 | ||
| 90467-08186C0 |
ZGR2# BLACK |
4 | ||
| 55213A - PAD, DASH PANEL SILENCER | ||||
| 55213-0F050 |
ZGR2# |
1 | ||
| 55214A - PAD, DASH PANEL INSULATOR, NO.2 | ||||
| 55214-0F030 |
ZGR2# |
1 | ||
| 55215A - PAD, DASH PANEL INSULATOR, NO.3 | ||||
| 55215-0F010 |
ZGR2# |
1 | ||
| 55223A - INSULATOR, DASH PANEL, OUTER | ||||
| 55223-02200 |
ZGR2# |
1 | ||
| 55223-02201 |
ZGR2# |
1 | ||
| Common parts | ||||
| 90178-C0034 | ||||
| 90467-10208 | ||||
| 90467-11122 | ||||
| 90467-11127 | ||||
| 91515-80818 | ||||

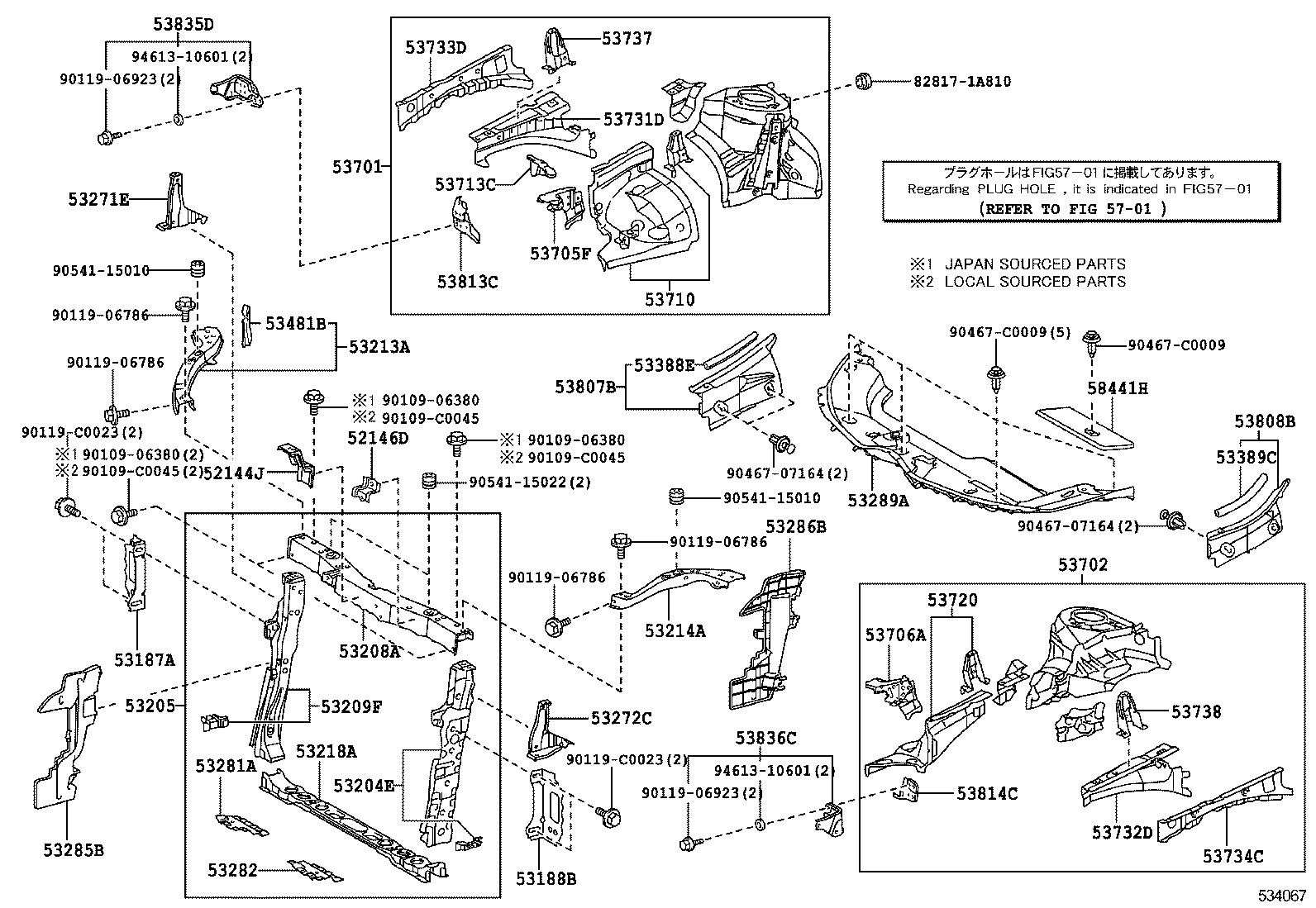

ILLUST NO. 1 OF 2(1307- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52144J - STAY, FRONT BUMPER, CENTER | ||||
| 52085-0F020 |
ZGR2# |
1 | ||
| 52146D - BRACKET, FRONT BUMPER SIDE MOUNTING, LH | ||||
| 52146-0F030 |
ZGR2# |
1 | ||
| 53187A - STAY, RADIATOR SUPPORT, RH | ||||
| 53187-02030 |
ZGR2# |
1 | ||
| 53188B - STAY, RADIATOR SUPPORT, LH | ||||
| 53188-02030 |
ZGR2# |
1 | ||
| 53204E - BRACE SUB-ASSY, RADIATOR SUPPORT TO CROSS MEMBER, LH | ||||
| 53204-02020 |
ZGR2# |
1 | ||
| 53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER | ||||
| 53205-02140 |
ZGR2# |
1 | ||
| 53208A - SUPPORT SUB-ASSY, HOOD LOCK | ||||
| 53208-02150 |
ZGR2# |
1 | ||
| 53209F - BRACE SUB-ASSY, RADIATOR SUPPORT TO CROSS MEMBER, RH | ||||
| 53209-02050 |
ZGR2# |
1 | ||
| 53213A - SUPPORT, RADIATOR, UPPER RH | ||||
| 53202-0F040 |
ZGR2# |
1 | ||
| 53214A - SUPPORT, RADIATOR, UPPER LH | ||||
| 53214-0F040 |
ZGR2# |
1 | ||
| 53218A - SUPPORT, RADIATOR, LOWER | ||||
| 53218-02030 |
ZGR2# |
1 | ||
| 53271E - BRACKET, HEADLAMP MOUNTING, RH | ||||
| 53271-0F020 |
ZGR2# |
1 | ||
| 53272C - BRACKET, HEADLAMP MOUNTING, LH | ||||
| 53272-0F060 |
ZGR2# |
1 | ||
| 53281A - REINFORCEMENT, FRONT BODY MOUNTING, RH | ||||
| 53281-02030 |
ZGR2# |
1 | ||
| 53282 - REINFORCEMENT, FRONT BODY MOUNTING, LH | ||||
| 53282-02030 |
ZGR2# |
1 | ||
| 53285B - SEAL, RADIATOR SIDE AIR, NO.1 | ||||
| 53285-0F060 |
ZGR2# |
1 | ||
| 53286B - SEAL, RADIATOR SIDE AIR, NO.2 | ||||
| 53286-0F060 |
ZGR2# |
1 | ||
| 53289A - COVER, RADIATOR SUPPORT OPENING | ||||
| 53289-0F040 |
ZGR2# |
1 | ||
| 53388E - SEAL, HOOD TO FRONT FENDER, RH | ||||
| 53388-0F020 |
ZGR2# |
1 | ||
| 53389C - SEAL, HOOD TO FRONT FENDER, LH | ||||
| 53388-0F020 |
ZGR2# |
1 | ||
| 53481B - BRACKET, HOOD SUPPORT, RH | ||||
| 53481-0F020 |
ZGR2# |
1 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-0F040 |
ZGR2# |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-0F030 |
ZGR2# |
1 | ||
| 53705F - BRACE SUB-ASSY, FENDER APRON, RH | ||||
| 53705-0F040 |
ZGR2# |
1 | ||
| 53706A - BRACE SUB-ASSY, FENDER APRON, LH | ||||
| 53706-0F030 |
ZGR2# |
1 | ||
| 53710 - APRON ASSY, W/FRONT SIDE MEMBER, RH | ||||
| 53710-0F902 |
ZGR2# |
1 | ||
| 53713C - EXTENSION, FRONT FENDER APRON, FRONT RH | ||||
| 53713-02050 |
ZGR2# |
1 | ||
| 53720 - APRON ASSY, W/FRONT SIDE MEMBER, LH | ||||
| 53720-0F020 |
ZGR2# |
1 | ||
| 53731D - MEMBER, FRONT APRON TO COWL SIDE, UPPER RH | ||||
| 53731-02070 |
ZGR2# |
1 | ||
| 53732D - MEMBER, FRONT APRON TO COWL SIDE, UPPER LH | ||||
| 53732-02080 |
ZGR2# |
1 | ||
| 53733D - MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH | ||||
| 53733-02030 |
ZGR2# |
1 | ||
| 53734C - MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH | ||||
| 53734-02030 |
ZGR2# |
1 | ||
| 53737 - PLATE, FRONT APRON TO COWL SIDE MEMBER, RH | ||||
| 53737-0F040 |
ZGR2# |
1 | ||
| 53738 - PLATE, FRONT APRON TO COWL SIDE MEMBER, LH | ||||
| 53738-0F030 |
ZGR2# |
1 | ||
| 53807B - REINFORCEMENT SUB-ASSY, FRONT FENDER, TOP RH | ||||
| 53807-0F020 |
ZGR2# |
1 | ||
| 53808B - REINFORCEMENT SUB-ASSY, FRONT FENDER, TOP LH | ||||
| 53808-0F020 |
ZGR2# |
1 | ||
| 53813C - EXTENSION, FRONT FENDER, RH | ||||
| 53813-0F020 |
ZGR2# |
1 | ||
| 53814C - EXTENSION, FRONT FENDER, LH | ||||
| 53814-0F020 |
ZGR2# |
1 | ||
| 53835D - BRACKET, FRONT SIDE PANEL, RH | ||||
| 53803-0F020 |
ZGR20,21 |
1 | ||
| 53836C - BRACKET, FRONT SIDE PANEL, LH | ||||
| 53804-0F020 |
ZGR20,21 |
1 | ||
| 58441H - COVER, BATTERY SERVICE HOLE | ||||
| 58441-0F010 |
ZGR2# |
1 | ||
| Common parts | ||||
| 82817-1A810 | ||||
| 90109-06380 | ||||
| 90109-C0045 | ||||
| 90119-06786 | ||||
| 90119-06923 | ||||
| 90119-C0023 | ||||
| 90467-07164 | ||||
| 90467-C0009 | ||||
| 90541-15010 | ||||
| 90541-15022 | ||||
| 94613-10601 | ||||
| Linked diagrams | ||||
| 5701 | ||||

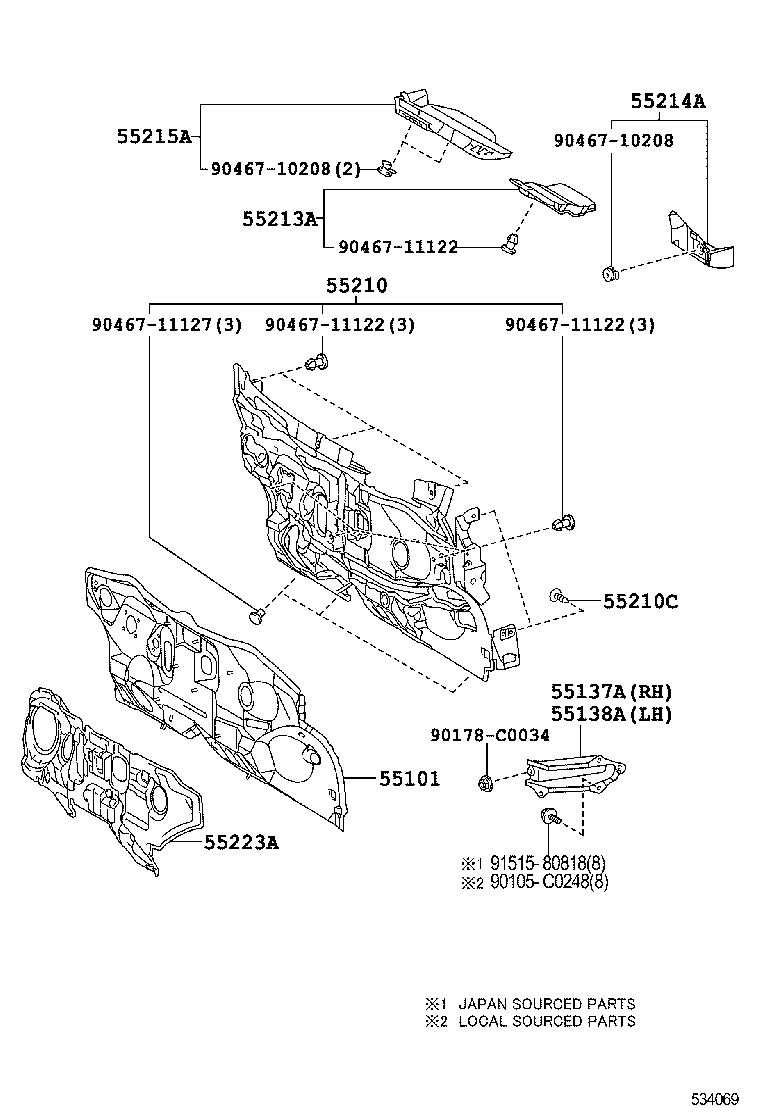

(1307- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55101 - PANEL SUB-ASSY, DASH | ||||
| 55101-0F060 |
ZGR21,22..CVFC |
1 | ||
| 55137A - BRACE, DASH TO FRAME, RH | ||||
| 55137-0F010 |
ZGR2# |
1 | ||
| 55138A - BRACE, DASH TO FRAME, LH | ||||
| 55138-0F020 |
ZGR2# |
1 | ||
| 55210 - INSULATOR ASSY, DASH PANEL | ||||
| 55210-0F050 |
ZGR2# |
1 | ||
| 55210-0F051 |
ZGR2# |
1 | ||
| 55210C - CLIP | ||||
| 90467-C0012C0 |
ZGR2# BLACK |
4 | ||
| 90467-08186C0 |
ZGR2# BLACK |
4 | ||
| 55213A - PAD, DASH PANEL SILENCER | ||||
| 55213-0F050 |
ZGR2# |
1 | ||
| 55214A - PAD, DASH PANEL INSULATOR, NO.2 | ||||
| 55214-0F030 |
ZGR2# |
1 | ||
| 55215A - PAD, DASH PANEL INSULATOR, NO.3 | ||||
| 55215-0F010 |
ZGR2# |
1 | ||
| 55223A - INSULATOR, DASH PANEL, OUTER | ||||
| 55223-02200 |
ZGR2# |
1 | ||
| 55223-02201 |
ZGR2# |
1 | ||
| Common parts | ||||
| 90105-C0248 | ||||
| 90178-C0034 | ||||
| 90467-10208 | ||||
| 90467-11122 | ||||
| 90467-11127 | ||||
| 91515-80818 | ||||
