ZGR21L-GWXEKC (2011)

Toyota E'Z

Production Jun 2011 - Dec 2016
Engine 2ZRFE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1106- )

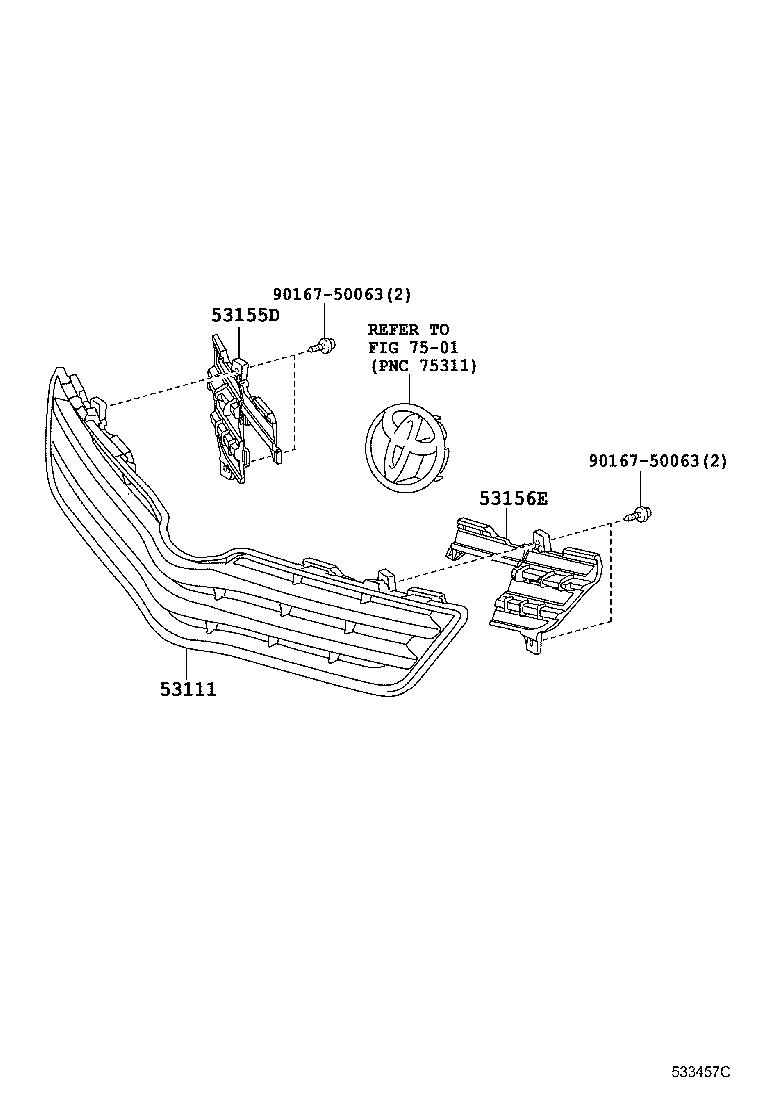

Click highlighted areas on diagram

diagram 53111 53155D 53156E 7501 9016750063 9016750063
Part # Description Qty Price
53111 - GRILLE, RADIATOR
53111-0F050

ZGR2#

PLATED

 1
53155D - SEAL, RADIATOR GRILLE, NO.1
53155-0F020

ZGR2#

 1
53156E - SEAL, RADIATOR GRILLE, NO.2
53156-0F020

ZGR2#

 1
Common parts
90167-50063
Linked diagrams
7501
