ZGR21L-GWXEKC (2011)
Toyota E'Z
Production
Jun 2011
-
Dec 2016
Engine
2ZRFE
Transmission
CVFC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1106- )

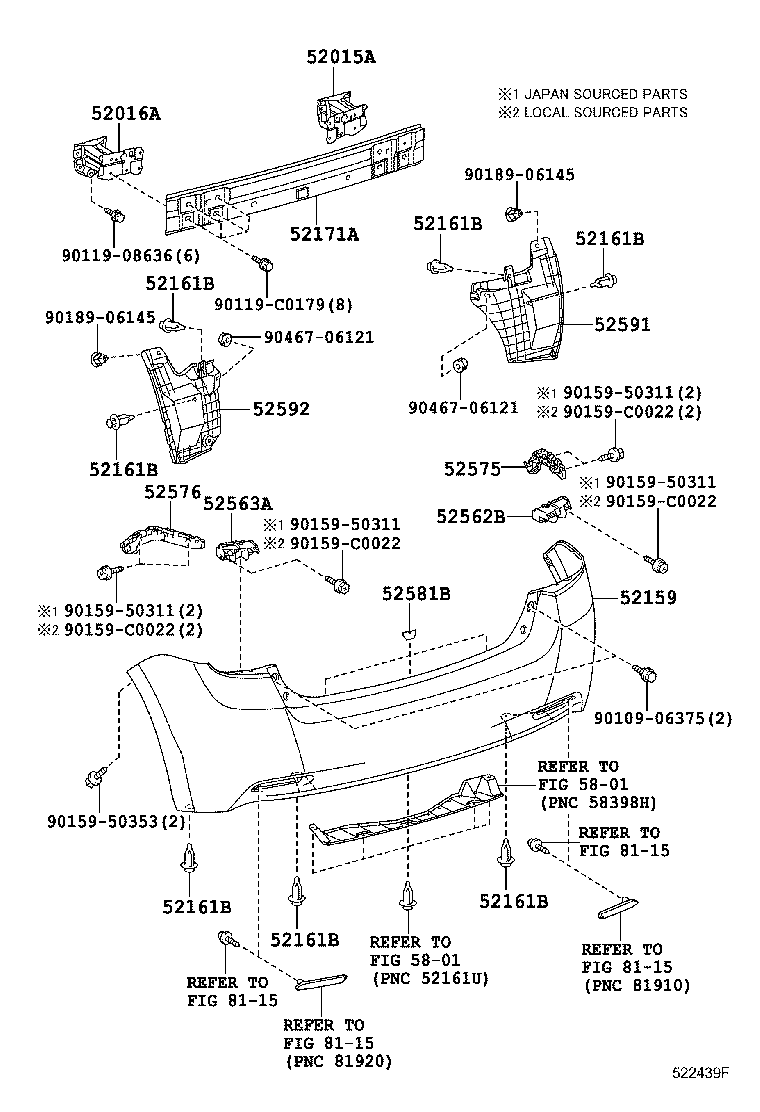

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52015A - ARM SUB-ASSY, REAR BUMPER, RH | ||||
| 52015-0F030 |
ZGR2# |
1 | ||
| 52016A - ARM SUB-ASSY, REAR BUMPER, LH | ||||
| 52016-0F030 |
ZGR2# |
1 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-0F910 |
ZGR20,21..G PAINT REQ. |
1 | ||
| 52159-0F910 |
ZGR22;ZGR21..V PAINT REQ. |
1 | ||
| 52159-0F909 |
ZGR2#..G PAINT REQ. |
1 | ||
| 52159-0F909 |
ZGR20,21..E PAINT REQ. |
1 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
ZGR2# |
8 | ||
| 52161-02040 |
ZGR2# (L) |
8 | ||
| 52161-16010 |
ZGR2# (J) |
8 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
ZGR2# |
8 | ||
| 52161-02040 |
ZGR2# (L) |
8 | ||
| 52161-16010 |
ZGR2# (J) |
8 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
ZGR2# |
8 | ||
| 52161-02040 |
ZGR2# (L) |
8 | ||
| 52161-16010 |
ZGR2# (J) |
8 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
ZGR2# |
8 | ||
| 52161-02040 |
ZGR2# (L) |
8 | ||
| 52161-16010 |
ZGR2# (J) |
8 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
ZGR2# |
8 | ||
| 52161-02040 |
ZGR2# (L) |
8 | ||
| 52161-16010 |
ZGR2# (J) |
8 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
ZGR2# |
8 | ||
| 52161-02040 |
ZGR2# (L) |
8 | ||
| 52161-16010 |
ZGR2# (J) |
8 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
ZGR2# |
8 | ||
| 52161-02040 |
ZGR2# (L) |
8 | ||
| 52161-16010 |
ZGR2# (J) |
8 | ||
| 52171A - REINFORCEMENT, REAR BUMPER, NO.1 | ||||
| 52023-0F020 |
ZGR2# |
1 | ||
| 52562B - RETAINER, REAR BUMPER, UPPER RH | ||||
| 52562-0F030 |
ZGR2# |
1 | ||
| 52563A - RETAINER, REAR BUMPER, UPPER LH | ||||
| 52563-0F030 |
ZGR2# |
1 | ||
| 52575 - RETAINER, REAR BUMPER SIDE, RH | ||||
| 52575-0F030 |
ZGR2# |
1 | ||
| 52576 - RETAINER, REAR BUMPER SIDE, LH | ||||
| 52576-0F030 |
ZGR2# |
1 | ||
| 52581B - PROTECTOR, REAR BUMPER | ||||
| 52581-0F010 |
ZGR2# |
3 | ||
| 52591 - SEAL, REAR BUMPER SIDE, RH | ||||
| 52591-0F020 |
ZGR2# |
1 | ||
| 52592 - SEAL, REAR BUMPER SIDE, LH | ||||
| 52592-0F020 |
ZGR2# |
1 | ||
| Common parts | ||||
| 90109-06375 | ||||
| 90119-08636 | ||||
| 90119-C0179 | ||||
| 90159-50311 | ||||
| 90159-50353 | ||||
| 90159-C0022 | ||||
| 90189-06145 | ||||
| 90467-06121 | ||||
| Linked diagrams | ||||
| 5801 | ||||
| 8115 | ||||
