ZGR21L-GWXEKC (2011)
Toyota E'Z
Production
Jun 2011
-
Dec 2016
Engine
2ZRFE
Transmission
CVFC ATM
Displacement
2500cc
Power
168 HP (125 kW)

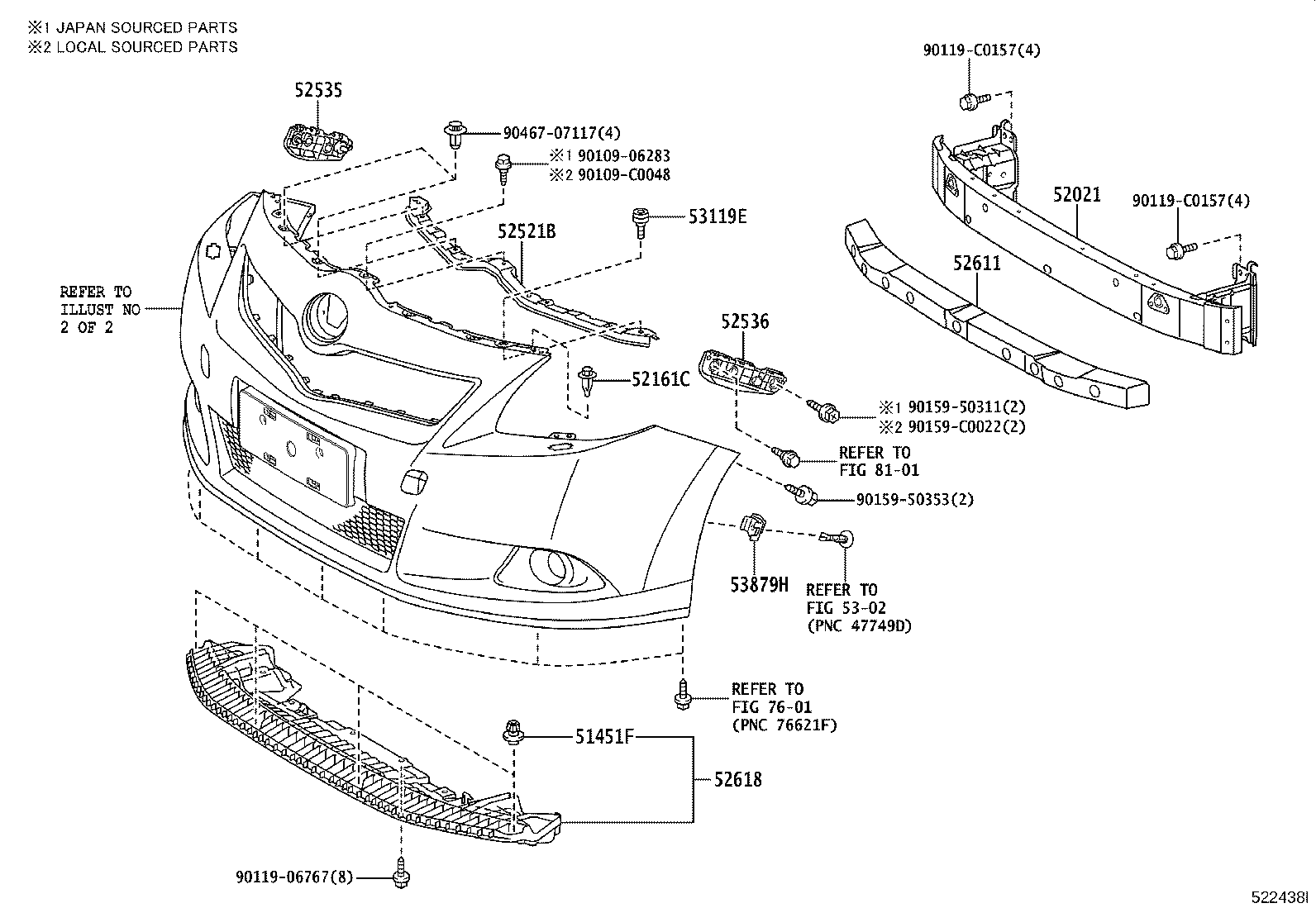

ILLUST NO. 1 OF 2(1106- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51451F - GROMMET, NO.1 | ||||
| 90189-05144 |
ZGR2# |
4 | ||
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-0F030 |
ZGR2# |
1 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-02040 |
ZGR2#..G (L) |
2 | ||
| 52161-16010 |
ZGR2#..E,V (J) |
2 | ||
| 52161-02040 |
ZGR2#..E,V (L) |
2 | ||
| 52161-16010 |
ZGR2#..G (J) |
2 | ||
| 52161-16010 |
ZGR2#..G |
2 | ||
| 52161-16010 |
ZGR2#..E,V |
2 | ||
| 52521B - RETAINER, FRONT BUMPER, UPPER | ||||
| 52521-0F020 |
ZGR2# |
1 | ||
| 52535 - RETAINER, FRONT BUMPER SIDE, RH | ||||
| 52535-0F030 |
ZGR2# |
1 | ||
| 52536 - RETAINER, FRONT BUMPER SIDE, LH | ||||
| 52536-0F030 |
ZGR2# |
1 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-0F020 |
ZGR2# |
1 | ||
| 52618 - ABSORBER, FRONT BUMPER, LOWER | ||||
| 52618-0F020 |
ZGR2# |
1 | ||
| 53119E - PROTECTOR, RADIATOR GRILLE | ||||
| 53119-20120 |
ZGR2# |
2 | ||
| 53879H - RETAINER, FRONT FENDER LINER | ||||
| 53879-0F010 |
ZGR2# |
2 | ||
| Common parts | ||||
| 90109-06283 | ||||
| 90109-C0048 | ||||
| 90119-06767 | ||||
| 90119-C0157 | ||||
| 90159-50311 | ||||
| 90159-50353 | ||||
| 90159-C0022 | ||||
| 90467-07117 | ||||
| Linked diagrams | ||||
| 5302 | ||||
| 7601 | ||||
| 8101 | ||||

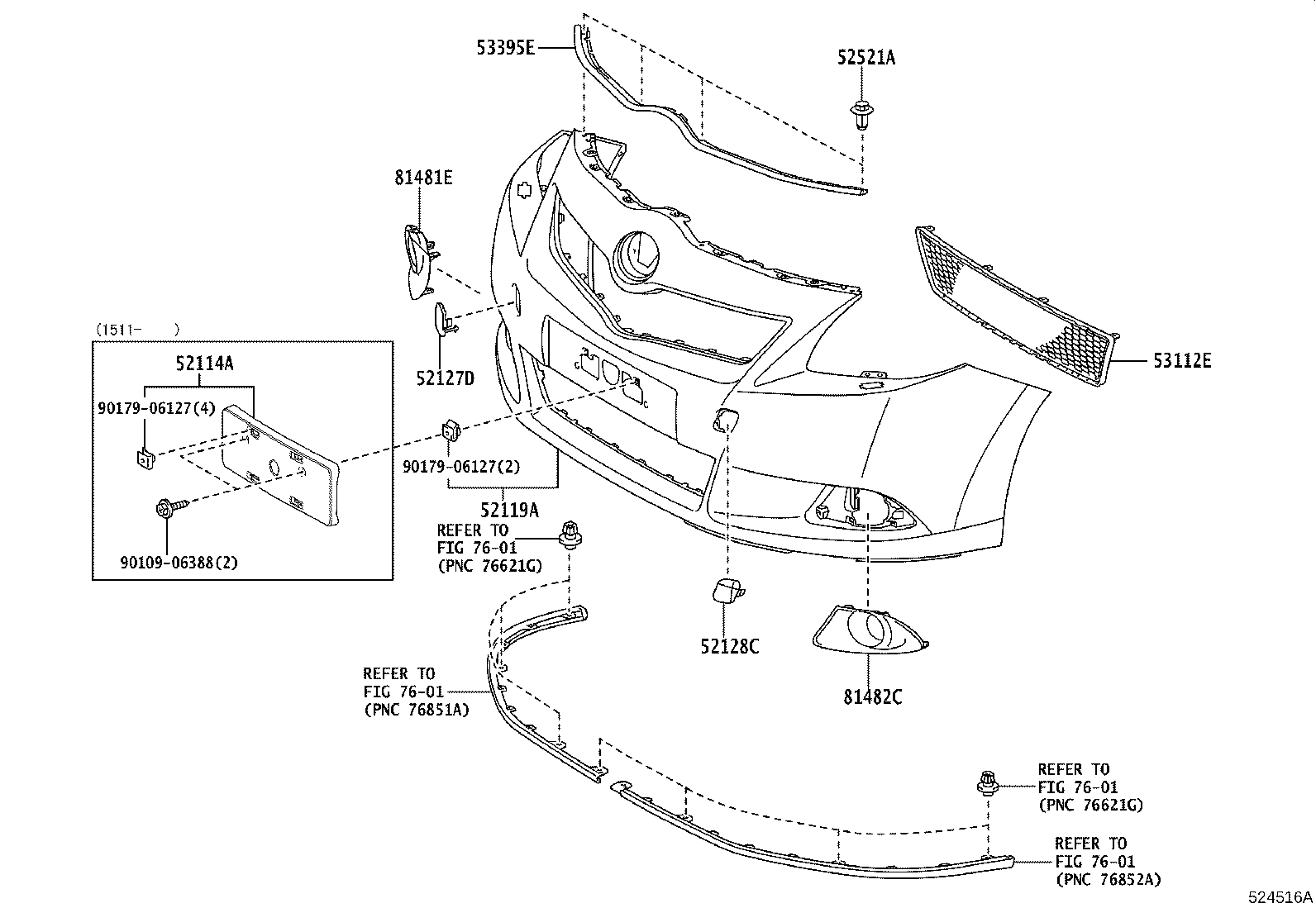

ILLUST NO. 2 OF 2(1106- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING | ||||
| 52114-0F010 |
ZGR2# |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-0F928 |
ZGR21..V PAINT REQ |
1 | ||
| 52119-0F922 |
ZGR20,21..E PAINT REQ |
1 | ||
| 52119-0F922 |
ZGR2#..G PAINT REQ |
1 | ||
| 52119-0F921 |
ZGR21,22..V PAINT REQ |
1 | ||
| 52119-0F920 |
ZGR2#..G PAINT REQ |
1 | ||
| 52119-0F927 |
ZGR2#..E,G PAINT REQ |
1 | ||
| 52127D - COVER, FRONT BUMPER HOLE, RH | ||||
| 52127-0F901 |
ZGR2# |
1 | ||
| 52128C - COVER, FRONT BUMPER HOLE, LH | ||||
| 52128-0F901 |
ZGR2# |
1 | ||
| 52521A - CLIP(FOR FRONT BUMPER RETAINER) | ||||
| 90467-05063C0 |
ZGR2# BLACK |
4 | ||
| 53112E - GRILLE, RADIATOR, LOWER NO.1 | ||||
| 53112-0F050 |
ZGR2# NO PAINT REQ. |
1 | ||
| 53395E - SEAL, HOOD TO FRONT END PANEL | ||||
| 53395-0F020 |
ZGR2# |
1 | ||
| 81481E - COVER, FOG LAMP, RH | ||||
| 81481-0F040 |
ZGR20,21..E |
1 | ||
| 81481-0F030 |
ZGR2#..G,V |
1 | ||
| 81482C - COVER, FOG LAMP, LH | ||||
| 81482-0F040 |
ZGR2#..G,V |
1 | ||
| 81482-0F050 |
ZGR20,21..E |
1 | ||
| Common parts | ||||
| 90109-06388 | ||||
| 90179-06127 | ||||
| Linked diagrams | ||||
| 7601 | ||||
