ZGR21L-GWXEKC (2011)

Toyota E'Z

Production Jun 2011 - Dec 2016
Engine 2ZRFE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1106- )

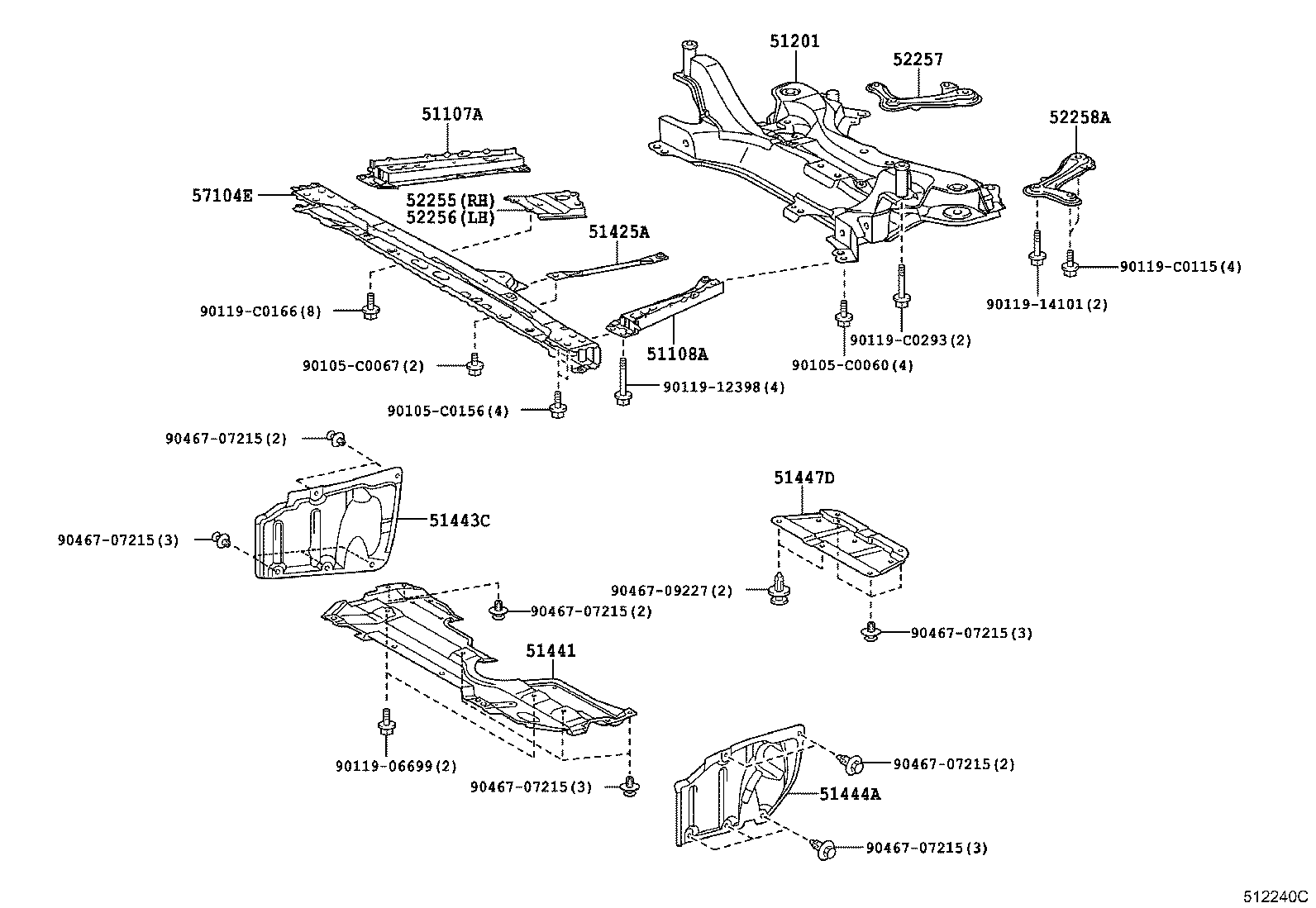

Click highlighted areas on diagram

diagram 51107A 51108A 51201 51425A 51441 51443C 51444A 51447D 52255 52256 52257 52258A 57104E 90105C0060 90105C0067 90105C0156 9011906699 9011912398 9011914101 90119C0115 90119C0166 90119C0293 9046707215 9046707215 9046707215 9046707215 9046707215 9046707215 9046707215 9046709227
Part # Description Qty Price
51107A - REINFORCEMENT SUB-ASSY, SIDE RAIL, REAR RH
51107-0F010

ZGR2#

 1
51108A - REINFORCEMENT SUB-ASSY, SIDE RAIL, REAR LH
51108-0F010

ZGR2#

 1
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51201-0F030

ZGR2#

 1
51201-02190

ZGR2#

 1
51425A - REINFORCEMENT, ENGINE FRONT MOUNTING BRACKET, LOWER
51425-02040

ZGR2#

 1
51441 - COVER, ENGINE UNDER, NO.1
51441-0F030

ZGR2#

 1
51443C - COVER, ENGINE UNDER, REAR RH
51443-02070

ZGR2#

 1
51444A - COVER, ENGINE UNDER, REAR LH
51444-02060

ZGR2#

 1
51447D - COVER, ENGINE UNDER, NO.4 CENTER
51447-02030

ZGR2#

 1
52255 - BRACE, FRONT SUSPENSION MEMBER, FRONT RH
52255-02030

ZGR2#

 1
52256 - BRACE, FRONT SUSPENSION MEMBER, FRONT LH
52256-02030

ZGR2#

 1
52257 - BRACE, FRONT SUSPENSION MEMBER, REAR RH
52257-02051

ZGR2#

 1
52258A - BRACE, FRONT SUSPENSION MEMBER, REAR LH
52258-02051

ZGR2#

 1
57104E - MEMBER SUB-ASSY, FRONT CROSS
57104-0F050

ZGR2#

 1
Common parts
90105-C0060
90105-C0067
90105-C0156
90119-06699
90119-12398
90119-14101
90119-C0115
90119-C0166
90119-C0293
90467-07215
90467-09227
