ZGR21L-GWXEKC (2011)

Toyota E'Z

Production Jun 2011 - Dec 2016
Engine 2ZRFE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1106- )

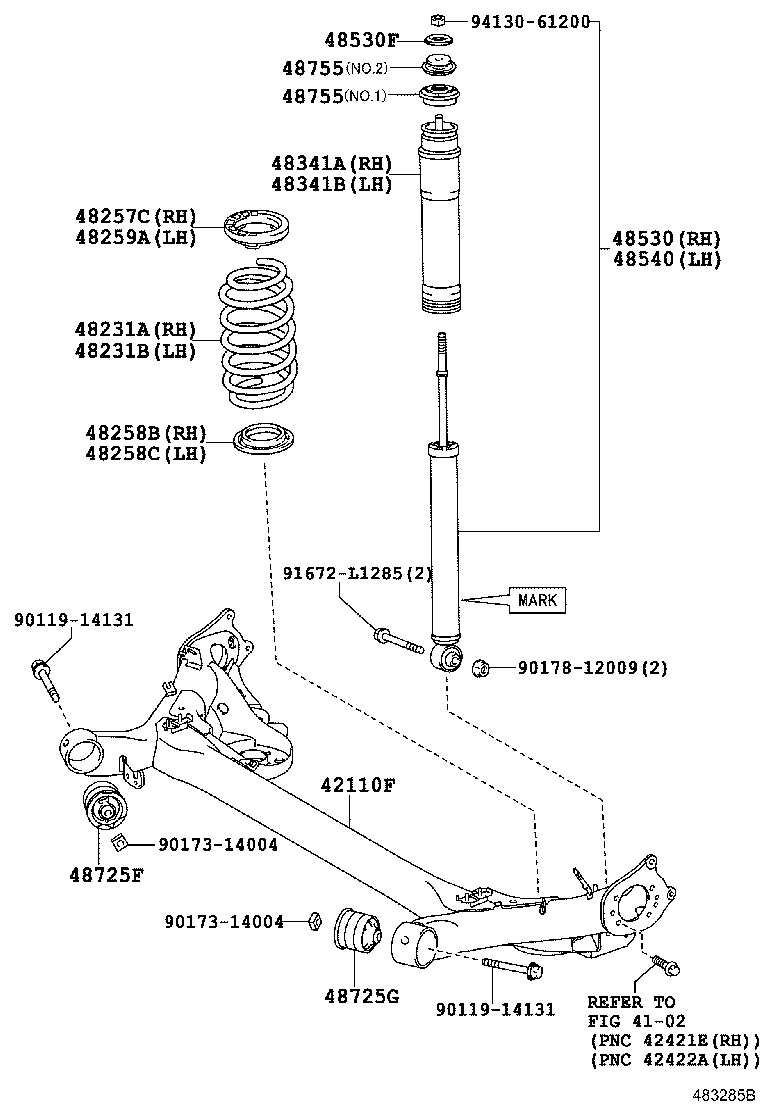

Click highlighted areas on diagram

diagram 4102 42110F 48231A 48231B 48257C 48258B 48258C 48259A 48341A 48341B 48530 48530F 48540 48725F 48725G 48755 48755 9011914131 9011914131 9017314004 9017314004 9017812009 91672L1285 9413061200
Part # Description Qty Price
42110F - BEAM ASSY, REAR AXLE
42101-64010

ZGR2#

(J)

 1
42101-0F030

ZGR2#

(L)

 1
48231A - SPRING, COIL, REAR RH
48231-0F100

ZGR20,21..05S

 1
48231-0F110

ZGR20,21..05S

 1
48231B - SPRING, COIL, REAR LH
48231-0F110

ZGR20,21..05S

 1
48231-0F100

ZGR20,21..05S

 1
48257C - INSULATOR, REAR COIL SPRING, UPPER RH
48257-0D070

ZGR2#

 1
48258B - INSULATOR, REAR COIL SPRING, LOWER RH
48258-0D090

ZGR2#

 1
48258C - INSULATOR, REAR COIL SPRING, LOWER LH
48258-0D090

ZGR2#

 1
48259A - INSULATOR, REAR COIL SPRING, UPPER LH
48257-0D070

ZGR2#

 1
48341A - BUMPER, REAR SPRING, NO.1 RH
48341-64010

ZGR2#

 1
48341B - BUMPER, REAR SPRING, NO.1 LH
48341-64010

ZGR2#

 1
48530 - ABSORBER ASSY, SHOCK, REAR RH
48530-09T80

ZGR20,21

MARK 48530-0F010

 1
48530-09T81

ZGR20,21

MARK 48530-0F071

 1
48530-09X40

ZGR20,21

MARK 48530-0F100

 1
48530F - RETAINER, SHOCK ABSORBER CUSHION(FOR REAR)
90948-02159

ZGR2#

 2
48540 - ABSORBER ASSY, SHOCK, REAR LH
48530-09T80

ZGR20,21

MARK 48530-0F010

 1
48530-09X40

ZGR20,21

MARK 48530-0F100

 1
48530-09T81

ZGR20,21

MARK 48530-0F071

 1
48725F - BUSH, REAR AXLE CARRIER, RH
48725-0F020

ZGR2#

 2
48725-0F020

ZGR20,21

 1
48725-0F020

ZGR2#

 1
48725G - BUSH, REAR AXLE CARRIER, LH
48725-0F020

ZGR2#

 2
48725-0F020

ZGR20,21

 1
48725-0F020

ZGR2#

 1
48755 - SUPPORT, REAR SUSPENSION
48755-0F030

ZGR2#

NO.1

 2
48755-0F040

ZGR2#

NO.2

 2
48755 - SUPPORT, REAR SUSPENSION
48755-0F030

ZGR2#

NO.1

 2
48755-0F040

ZGR2#

NO.2

 2
Common parts
90119-14131
90173-14004
90178-12009
91672-L1285
94130-61200
Linked diagrams
4102
