ZGR21L-GWXEKC (2011)
Toyota E'Z
Production
Jun 2011
-
Dec 2016
Engine
2ZRFE
Transmission
CVFC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1106- )

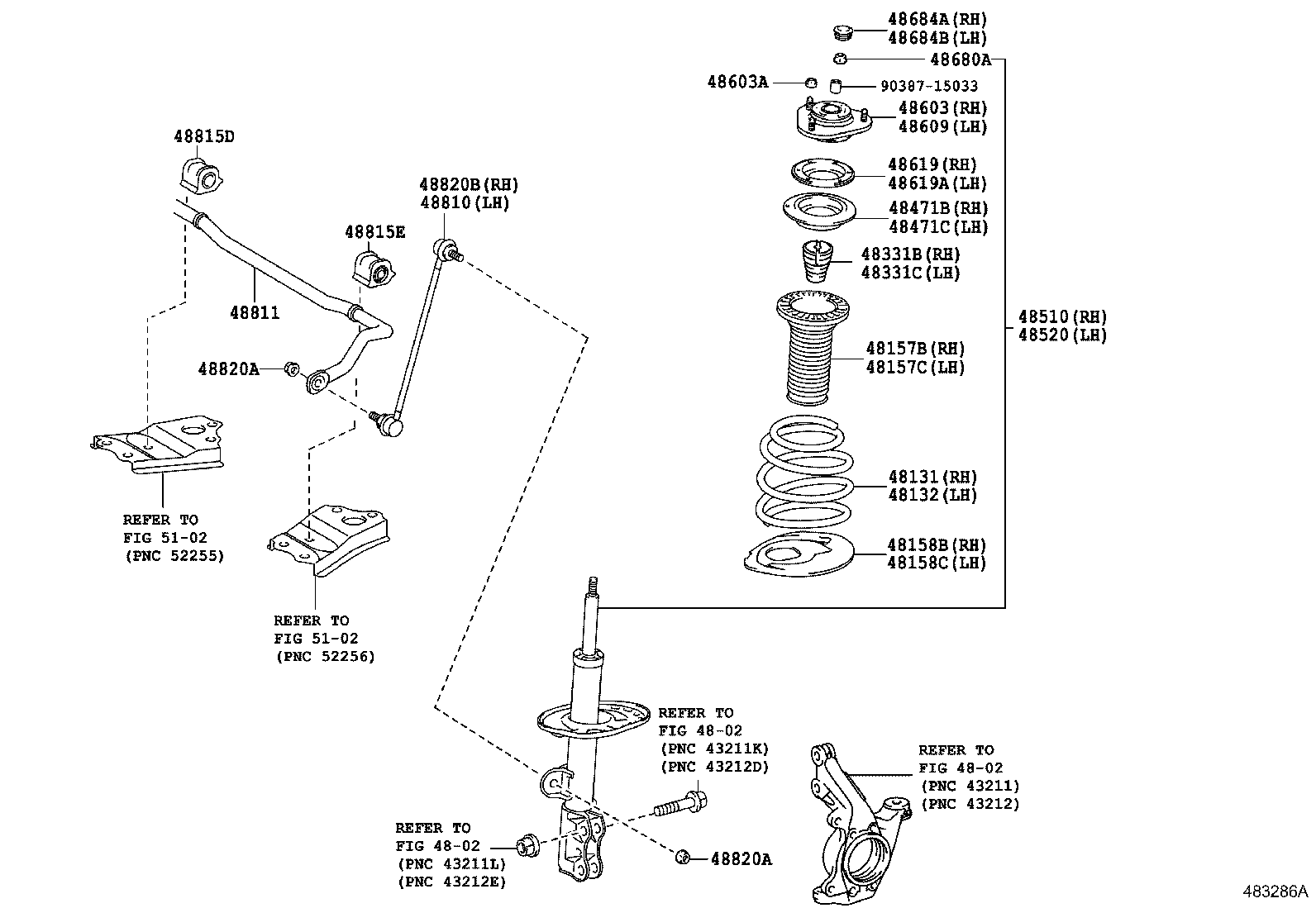

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-0F140 |
ZGR20,21 |
1 | ||
| 48131-0F100 |
ZGR20,21 |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48131-0F100 |
ZGR20,21 |
1 | ||
| 48131-0F140 |
ZGR20,21 |
1 | ||
| 48157B - INSULATOR, FRONT COIL SPRING, UPPER RH | ||||
| 48157-0F011 |
ZGR2# |
1 | ||
| 48157-0F010 |
ZGR2# |
1 | ||
| 48157C - INSULATOR, FRONT COIL SPRING, UPPER LH | ||||
| 48157-0F010 |
ZGR2# |
1 | ||
| 48157-0F011 |
ZGR2# |
1 | ||
| 48158B - INSULATOR, FRONT COIL SPRING, LOWER RH | ||||
| 48158-0R020 |
ZGR2# |
1 | ||
| 48158C - INSULATOR, FRONT COIL SPRING, LOWER LH | ||||
| 48158-0R020 |
ZGR2# |
1 | ||
| 48331B - BUMPER, FRONT SPRING, RH | ||||
| 48331-0F020 |
ZGR2# |
1 | ||
| 48331C - BUMPER, FRONT SPRING, LH | ||||
| 48331-0F020 |
ZGR2# |
1 | ||
| 48471B - SEAT, FRONT COIL SPRING, UPPER RH | ||||
| 48471-0F010 |
ZGR2# |
1 | ||
| 48471C - SEAT, FRONT COIL SPRING, UPPER LH | ||||
| 48471-0F010 |
ZGR2# |
1 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-8Z068 |
ZGR21..CVFC MARK 48510-0F120 |
1 | ||
| 48510-8Z059 |
ZGR21..CVFC MARK 48510-0F101 |
1 | ||
| 48510-8Z026 |
ZGR21..CVFC MARK 48510-0F100 |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48520-09V21 |
ZGR21..CVFC MARK 48520-0F101 |
1 | ||
| 48520-09V20 |
ZGR21..CVFC MARK 48520-0F100 |
1 | ||
| 48520-09Y50 |
ZGR21..CVFC MARK 48520-0F120 |
1 | ||
| 48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH | ||||
| 48609-0F030 |
ZGR2# |
1 | ||
| 48603A - NUT(FOR FRONT SUSPENSION SUPPORT) | ||||
| 90178-C0061 |
ZGR2# |
6 | ||
| 48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH | ||||
| 48609-0F030 |
ZGR2# |
1 | ||
| 48619 - BEARING, STRUT MOUNTING, RH | ||||
| 48619-28010 |
ZGR2# |
1 | ||
| 48619A - BEARING, STRUT MOUNTING, LH | ||||
| 48619-28010 |
ZGR2# |
1 | ||
| 48680A - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER) | ||||
| 90177-14005 |
ZGR2# |
2 | ||
| 48684A - COVER, FRONT SUSPENSION SUPPORT DUST, RH | ||||
| 48684-0F010 |
ZGR2# |
1 | ||
| 48684B - COVER, FRONT SUSPENSION SUPPORT DUST, LH | ||||
| 48684-0F010 |
ZGR2# |
1 | ||
| 48810 - LINK ASSY, FRONT STABILIZER, LH | ||||
| 48820-02080 |
ZGR2# |
1 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-0F040 |
ZGR2# |
1 | ||
| 48815D - BUSH, FRONT STABILIZER BAR, RH | ||||
| 48815-0F050 |
ZGR2# |
1 | ||
| 48815E - BUSH, FRONT STABILIZER BAR, LH | ||||
| 48815-0F060 |
ZGR2# |
1 | ||
| 48820A - NUT(FOR FRONT STABILIZER LINK) | ||||
| 90178-C0018 |
ZGR2# |
4 | ||
| 48820A - NUT(FOR FRONT STABILIZER LINK) | ||||
| 90178-C0018 |
ZGR2# |
4 | ||
| 48820B - LINK ASSY, FRONT STABILIZER, RH | ||||
| 48820-02080 |
ZGR2# |
1 | ||
| Common parts | ||||
| 90387-15033 | ||||
| Linked diagrams | ||||
| 4802 | ||||
| 5102 | ||||
