ZGR21L-GWXEKC (2011)

Toyota E'Z

Production Jun 2011 - Dec 2016
Engine 2ZRFE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1106- )

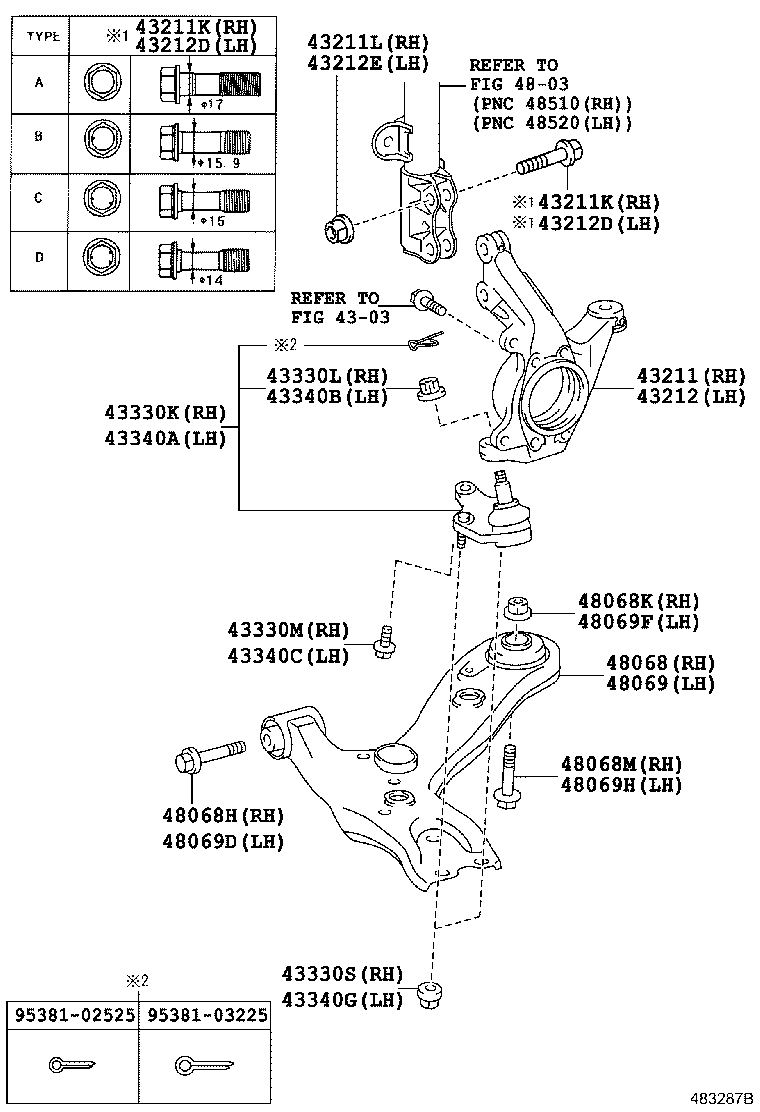

Click highlighted areas on diagram

diagram 4303 43211 43211K 43211K 43211L 43212 43212D 43212D 43212E 43330K 43330L 43330M 43330S 43340A 43340B 43340C 43340G 4803 48068 48068H 48068K 48068M 48069 48069D 48069F 48069H 9538102525 9538103225
Part # Description Qty Price
43211 - KNUCKLE, STEERING, RH
43211-0F030

ZGR2#

 1
43211K - BOLT (FOR STEERING KNUCKLE RH)
90105-17012

ZGR2#

OD=17,TYPE A:REFER ILLUST.

 2
90105-17009

ZGR2#

OD=15.9,TYPE B:REFER ILLUST.

 1
90105-17011

ZGR2#

OD=14,TYPE D:REFER ILLUST.

 1
90105-17010

ZGR2#

OD=15,TYPE C:REFER ILLUST.

 1
43211K - BOLT (FOR STEERING KNUCKLE RH)
90105-17012

ZGR2#

OD=17,TYPE A:REFER ILLUST.

 2
90105-17009

ZGR2#

OD=15.9,TYPE B:REFER ILLUST.

 1
90105-17011

ZGR2#

OD=14,TYPE D:REFER ILLUST.

 1
90105-17010

ZGR2#

OD=15,TYPE C:REFER ILLUST.

 1
43211L - NUT (FOR STEERING KNUCKLE RH)
90178-C0084

ZGR2#

(L)

 2
90178-17002

ZGR2#

(J)

 2
90178-17002

ZGR2#

 2
43212 - KNUCKLE, STEERING, LH
43212-0F030

ZGR2#

 1
43212D - BOLT (FOR STEERING KNUCKLE LH)
90105-17010

ZGR2#

OD=15,TYPE C:REFER ILLUST.

 1
90105-17009

ZGR2#

OD=15.9,TYPE B:REFER ILLUST.

 1
90105-17011

ZGR2#

OD=14,TYPE D:REFER ILLUST.

 1
90105-17012

ZGR2#

OD=17,TYPE A:REFER ILLUST.

 2
43212D - BOLT (FOR STEERING KNUCKLE LH)
90105-17010

ZGR2#

OD=15,TYPE C:REFER ILLUST.

 1
90105-17009

ZGR2#

OD=15.9,TYPE B:REFER ILLUST.

 1
90105-17011

ZGR2#

OD=14,TYPE D:REFER ILLUST.

 1
90105-17012

ZGR2#

OD=17,TYPE A:REFER ILLUST.

 2
43212E - NUT (FOR STEERING KNUCKLE LH)
90178-C0084

ZGR2#

(L)

 2
90178-17002

ZGR2#

 2
90178-17002

ZGR2#

(J)

 2
43330K - JOINT ASSY, LOWER BALL, FRONT RH
43330-09651

ZGR2#

 1
43330-09652

ZGR2#

 1
43330L - NUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)
90171-14003

ZGR2#

 1
43330M - BOLT (FOR FRONT LOWER BALL JOINT RH)
90105-C0067

ZGR2#

 1
43330S - NUT (FOR FRONT LOWER BALL JOINT RH)
90178-12019

ZGR2#

(J)

 2
90178-C0062

ZGR2#

(L)

 2
43340A - JOINT ASSY, LOWER BALL, FRONT LH
43330-09651

ZGR2#

 1
43330-09652

ZGR2#

 1
43340B - NUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)
90171-14003

ZGR2#

 1
43340C - BOLT (FOR FRONT LOWER BALL JOINT LH)
90105-C0067

ZGR2#

 1
43340G - NUT (FOR FRONT LOWER BALL JOINT LH)
90178-12019

ZGR2#

(J)

 2
90178-C0062

ZGR2#

(L)

 2
48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
48068-0F040

ZGR2#

 1
48068H - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)
90105-C0066

ZGR2#

 1
48068K - NUT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)
90178-C0016

ZGR2#

 1
48068M - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)
90105-C0066

ZGR2#

 1
48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
48069-0F040

ZGR2#

 1
48069D - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)
90105-C0066

ZGR2#

 1
48069F - NUT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)
90178-C0016

ZGR2#

 1
48069H - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)
90105-C0066

ZGR2#

 1
Common parts
95381-02525
95381-03225
Linked diagrams
4303
4803
