ZGR21L-GWXEKC (2011)

Toyota E'Z

Production Jun 2011 - Dec 2016
Engine 2ZRFE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

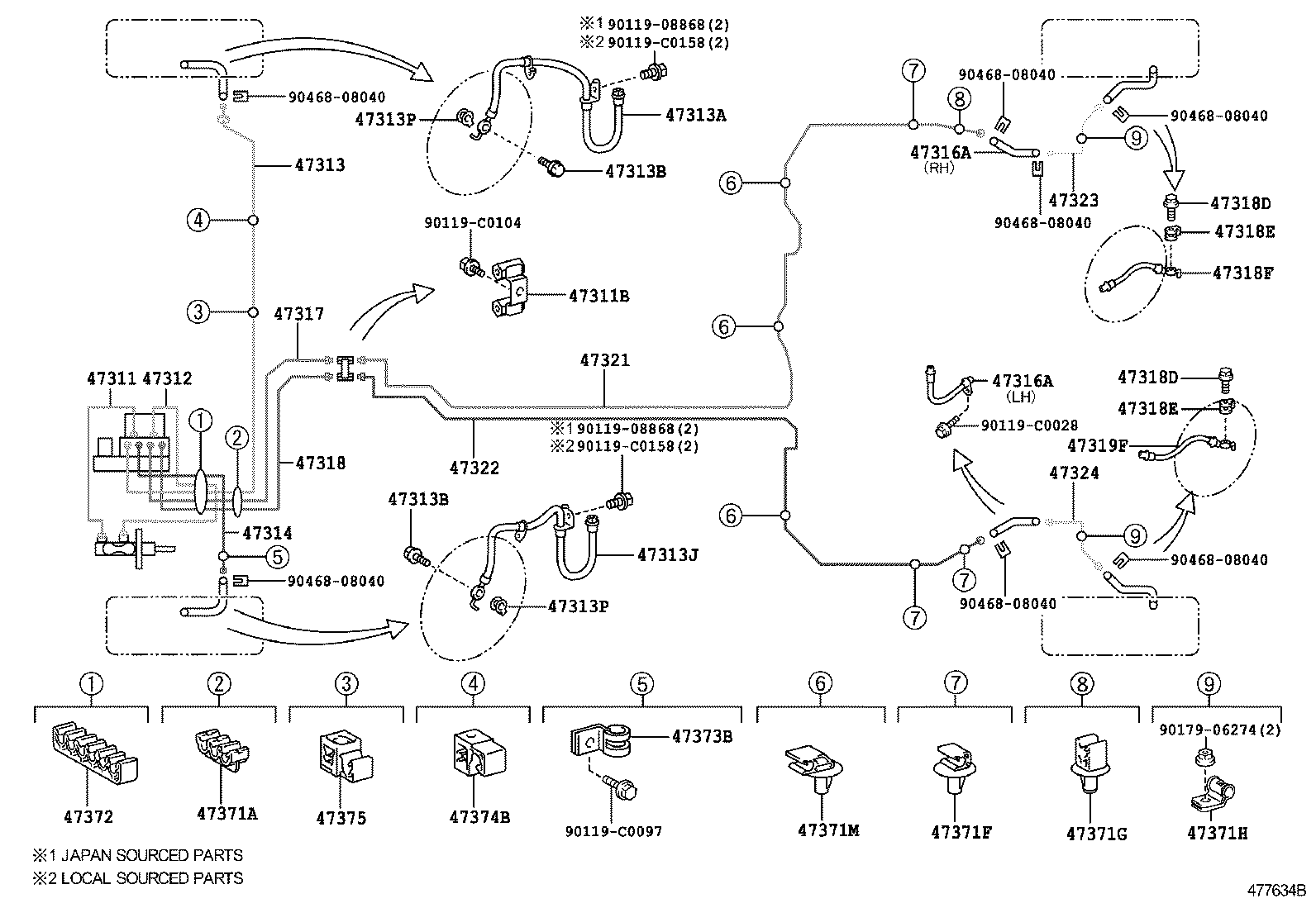

ILLUST NO. 1 OF 2(1106- )

Click highlighted areas on diagram

diagram 47311 47311B 47312 47313 47313A 47313B 47313B 47313J 47313P 47313P 47314 47316A 47316A 47317 47318 47318D 47318D 47318E 47318E 47318F 47319F 47321 47322 47323 47324 47371A 47371F 47371G 47371H 47371M 47372 47373B 47374B 47375 9011908868 9011908868 90119C0028 90119C0097 90119C0104 90119C0158 90119C0158 9017906274 9046808040 9046808040 9046808040 9046808040 9046808040 9046808040 9046808040
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-0F140

ZGR2#

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90412-C0001

ZGR2#

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-0F140

ZGR2#

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-0F140

ZGR2#

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-C2049

ZGR2#

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-C0001

ZGR2#

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-C0001

ZGR2#

 2
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
90947-C2050

ZGR2#

 1
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50021

ZGR2#

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50021

ZGR2#

 2
47314 - TUBE, FRONT BRAKE, NO.4
47314-0F140

ZGR2#

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-C2051

ZGR2#

RH

 1
90947-C2053

ZGR2#

LH

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-C2051

ZGR2#

RH

 1
90947-C2053

ZGR2#

LH

 1
47317 - TUBE, FRONT BRAKE, NO.7
47317-0F140

ZGR2#

 1
47318 - TUBE, FRONT BRAKE, NO.8
47318-0F140

ZGR2#

 1
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-C0001

ZGR2#

 2
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-C0001

ZGR2#

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50021

ZGR2#

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50021

ZGR2#

 2
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-C2052

ZGR2#

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-C2052

ZGR2#

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-0F040

ZGR2#

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-0F040

ZGR2#

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-0F010

ZGR2#

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-0F010

ZGR2#

 1
47371A - CLAMP, BRAKE TUBE, NO.1
90464-00868

ZGR2#

 1
47371F - CLAMP, BRAKE TUBE, NO.10
90949-01D17

ZGR2#

 3
47371G - CLAMP, BRAKE TUBE, NO.11
90949-01D29

ZGR2#

 1
47371H - CLAMP, BRAKE TUBE, NO.12
90461-10837

ZGR2#

 2
47371M - CLAMP, BRAKE TUBE, NO.13
90949-01D46

ZGR2#

 3
47372 - CLAMP, BRAKE TUBE, NO.2
90464-00900

ZGR2#

 1
47373B - CLAMP, BRAKE TUBE, NO.3
90461-10781

ZGR2#

 1
47374B - CLAMP, BRAKE TUBE, NO.4
90949-01C82

ZGR20,21

 2
Common parts
90119-08868
90119-C0028
90119-C0097
90119-C0104
90119-C0158
90179-06274
90468-08040

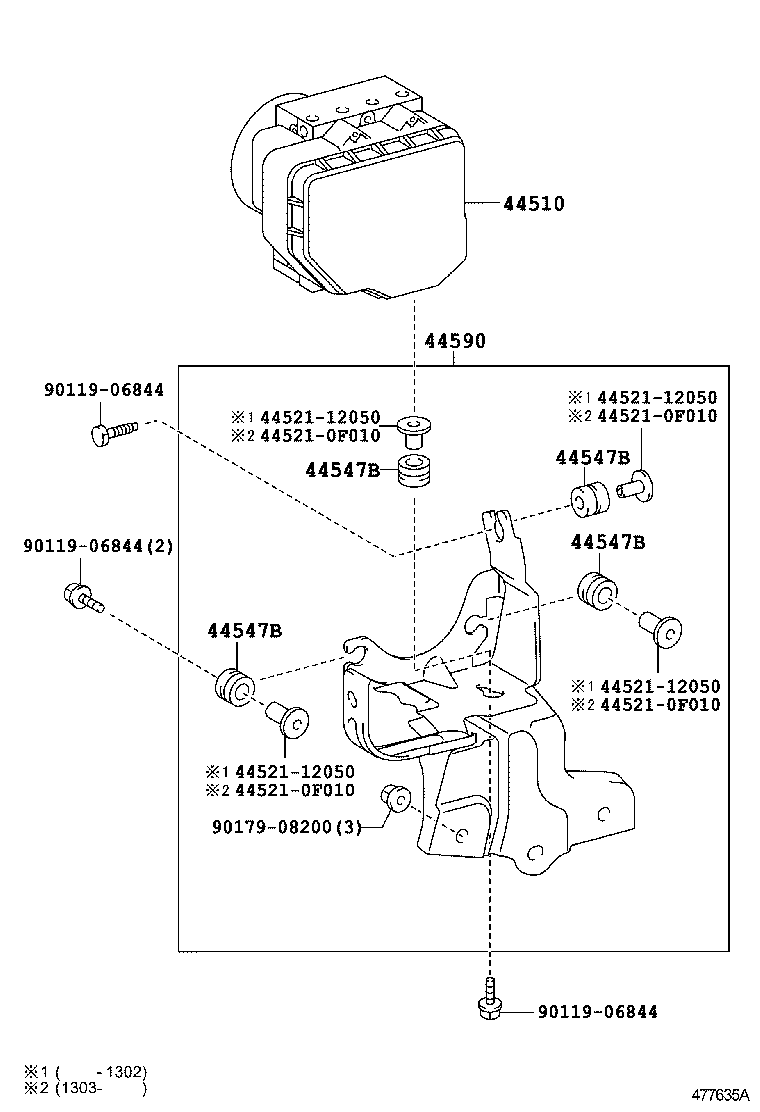

ILLUST NO. 2 OF 2(1106- )

Click highlighted areas on diagram

diagram 44510 445210F010 445210F010 445210F010 445210F010 4452112050 4452112050 4452112050 4452112050 44547B 44547B 44547B 44547B 44590 9011906844 9011906844 9011906844 9017908200
Part # Description Qty Price
44510 - ACTUATOR ASSY, BRAKE
44050-0F061

ZGR2#

 1
44050-0F060

ZGR2#

 1
44547B - CUSHION, BRAKE ACTUATOR BRACKET
44547-02040

ZGR2#

 4
44547B - CUSHION, BRAKE ACTUATOR BRACKET
44547-02040

ZGR2#

 4
44547B - CUSHION, BRAKE ACTUATOR BRACKET
44547-02040

ZGR2#

 4
44547B - CUSHION, BRAKE ACTUATOR BRACKET
44547-02040

ZGR2#

 4
44590 - BRACKET ASSY, BRAKE ACTUATOR
44590-0F050

ZGR21,22..CVFC

 1
Common parts
44521-0F010
44521-12050
90119-06844
90179-08200
