ZGR21L-GWXEKC (2011)

Toyota E'Z

Production Jun 2011 - Dec 2016
Engine 2ZRFE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1106- )

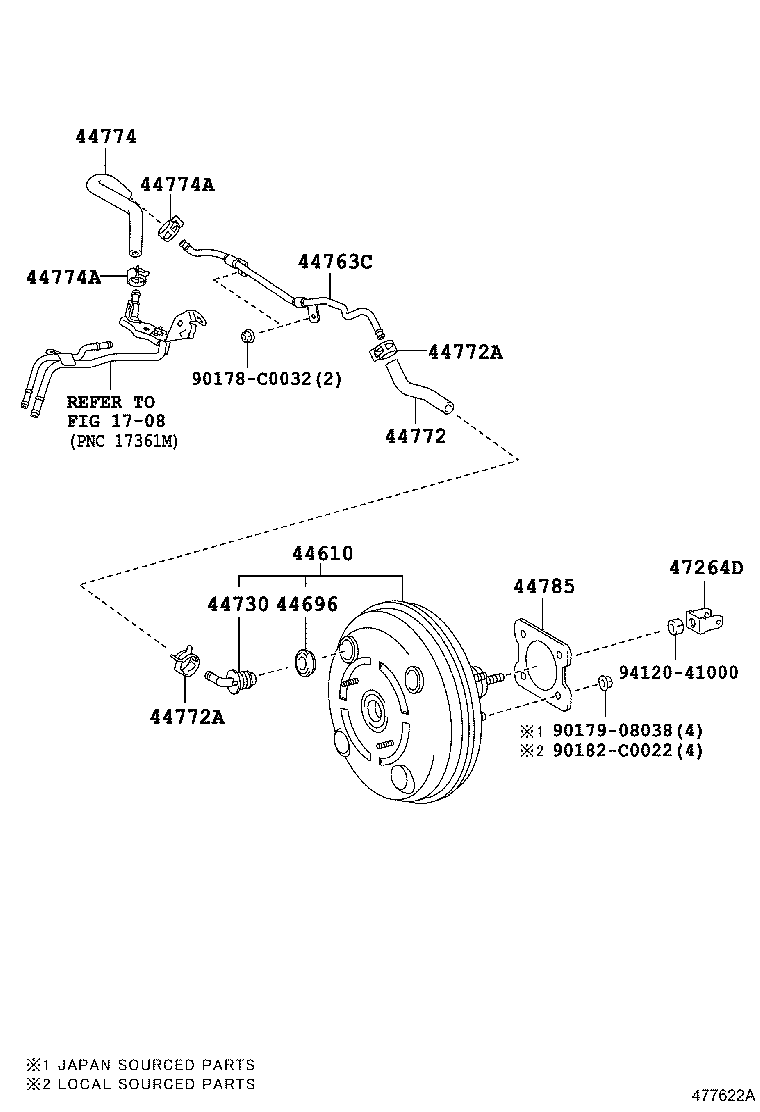

Click highlighted areas on diagram

diagram 1708 44610 44696 44730 44763C 44772 44772A 44772A 44774 44774A 44774A 44785 47264D 90178C0032 9017908038 90182C0022 9412041000
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-0F051

ZGR2#

 1
44610-0F050

ZGR2#

 1
44696 - GROMMET, CHECK VALVE
90080-48071

ZGR2#

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-20170

ZGR2#

 1
44763C - TUBE, HOSE TO HOSE, NO.2
44763-02070

ZGR2#

 1
44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE
44772-02060

ZGR2#

 1
44772A - CLIP(FOR CHECK VALVE TO CONNECTOR TUBE)
96133-41500

ZGR2#

 2
90467-16014

ZGR2#

 2
44772A - CLIP(FOR CHECK VALVE TO CONNECTOR TUBE)
96133-41500

ZGR2#

 2
90467-16014

ZGR2#

 2
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-02240

ZGR2#

 1
44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE)
90467-16014

ZGR2#

 2
96133-41500

ZGR2#

 2
44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE)
90467-16014

ZGR2#

 2
96133-41500

ZGR2#

 2
44785 - GASKET, BRAKE BOOSTER
44785-02050

ZGR2#

 1
47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD
47264-0P010

ZGR2#

 1
Common parts
90178-C0032
90179-08038
90182-C0022
94120-41000
Linked diagrams
1708
