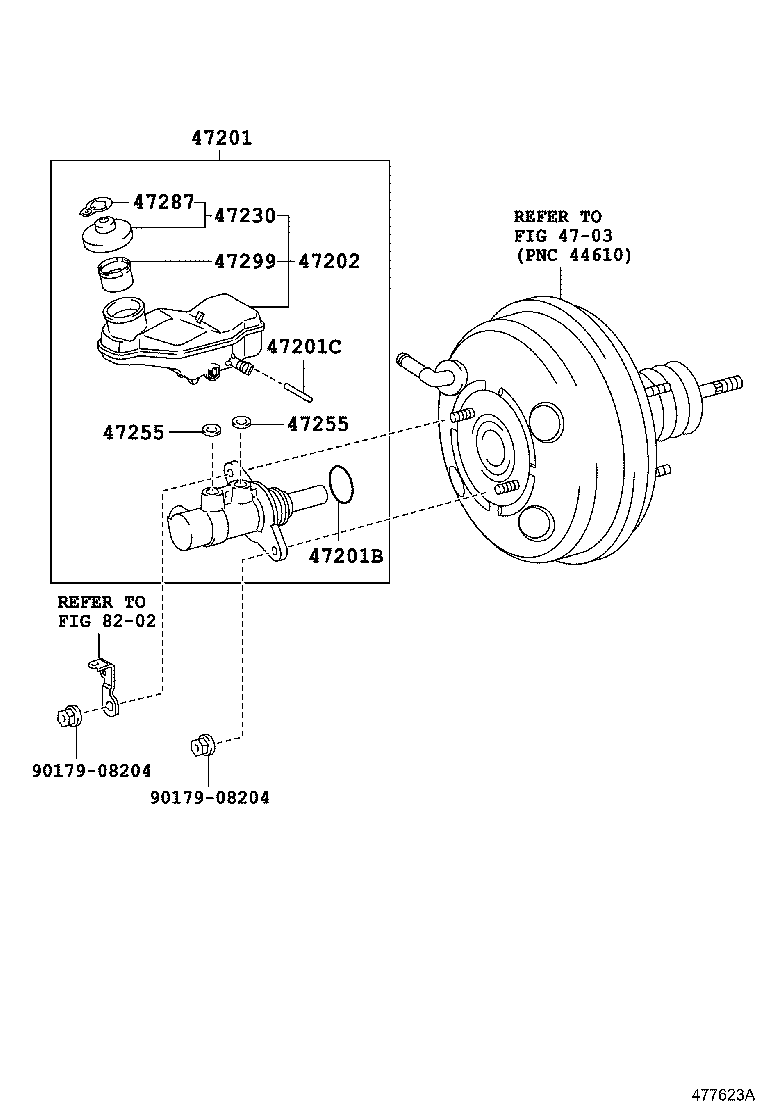

Toyota E'z ZGR21 BRAKE MASTER CYLINDER

Part #	Description	Period	Qty
47201 - CYLINDER SUB-ASSY, BRAKE MASTER
47201-02820	ZGR21..CVFC	03/2015 - 12/2999	1
47201-0F170	ZGR21,22..CVFC	11/2012 - 02/2015	1
47201-02501	ZGR2#	04/2012 - 05/2012	1
47201-02500	ZGR2#	06/2011 - 03/2012	1
47201-02502	ZGR2#	05/2012 - 11/2012	1
47201B - RING, O(FOR BRAKE MASTER CYLINDER)
90015-AH002	ZGR2#	06/2011 - 04/2012	1
90015-AH002	ZGR2#	05/2012 - 03/2015	1
90016-AH902	ZGR21..CVFC	03/2015 - 12/2999	1
90015-AH002	ZGR2#	04/2012 - 05/2012	1
47201C - RING PIN, BRAKE MASTER CYLINDER
90029-15803	ZGR2#	06/2011 - 12/2999	1
47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER
47220-02260	ZGR2#	06/2011 - 11/2012	1
47220-0F070	ZGR21,22..CVFC	11/2012 - 03/2015	1
47220-02400	ZGR21..CVFC	03/2015 - 12/2999	1
47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
47230-02260	ZGR2#	06/2011 - 07/2015	1
47230-0R030	ZGR2#	07/2015 - 12/2999	1
47255 - GROMMET, MASTER CYLINDER RESERVOIR
90029-48001	ZGR2#	06/2011 - 04/2012	2
90029-48001	ZGR2#	05/2012 - 03/2015	2
90016-AT002	ZGR21..CVFC	03/2015 - 12/2999	2
90029-48001	ZGR2#	04/2012 - 05/2012	2
47255 - GROMMET, MASTER CYLINDER RESERVOIR
90029-48001	ZGR2#	06/2011 - 04/2012	2
90029-48001	ZGR2#	05/2012 - 03/2015	2
90016-AT002	ZGR21..CVFC	03/2015 - 12/2999	2
90029-48001	ZGR2#	04/2012 - 05/2012	2
47287 - LABEL, BRAKE FLUID INFORMATION
47287-20010	ZGR2#	06/2011 - 07/2015	1
47287-02360	ZGR2#	07/2015 - 12/2016	1
47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR
47299-20060	ZGR2#	06/2011 - 12/2999	1
Common parts
90179-08204
Linked diagrams
4703
8202

ZGR21L-GWXEKC (2011)
