ZGR21L-GWXEKC (2011)
Toyota E'Z
Production
Jun 2011
-
Dec 2016
Engine
2ZRFE
Transmission
CVFC ATM
Displacement
2500cc
Power
168 HP (125 kW)

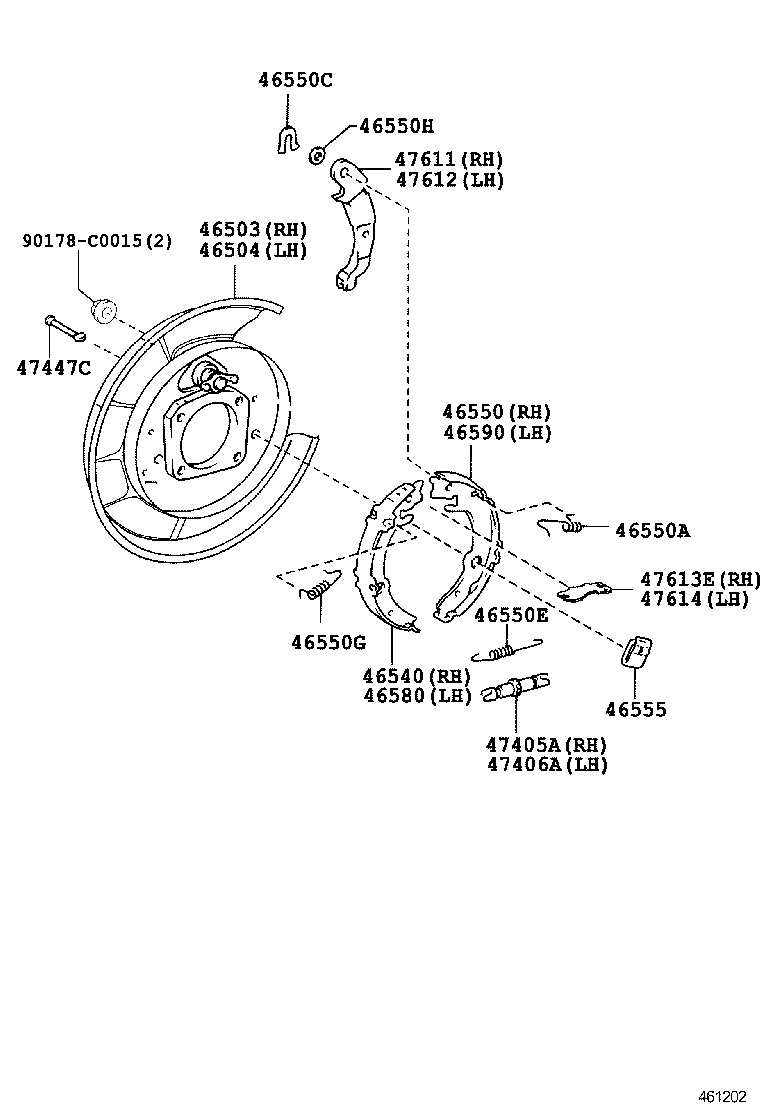

ILLUST NO. 2 OF 2(1106- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46503 - PLATE SUB-ASSY, PARKING BRAKE, RH | ||||
| 46503-47020 |
ZGR2# |
1 | ||
| 46503-47030 |
ZGR2# |
1 | ||
| 46504 - PLATE SUB-ASSY, PARKING BRAKE, LH | ||||
| 46504-47030 |
ZGR2# |
1 | ||
| 46504-47050 |
ZGR2# |
1 | ||
| 46540 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1 | ||||
| 46540-47010 |
ZGR2# |
1 | ||
| 46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2 | ||||
| 46550-47010 |
ZGR2# |
1 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90015-DY013 |
ZGR2# |
2 | ||
| 46550C - WASHER, TYPE C(FOR PARKING BRAKE SHOE) | ||||
| 90213-07010 |
ZGR2# |
2 | ||
| 46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90015-DY007 |
ZGR2# |
2 | ||
| 46550G - SPRING, TENSION, NO.3(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90015-DY012 |
ZGR2# |
2 | ||
| 46550H - SHIM(FOR PARKING BRAKE SHOE) | ||||
| 90564-09185 |
ZGR2# T=0.6 |
1 | ||
| 90564-09184 |
ZGR2# T=0.3 |
1 | ||
| 90564-09186 |
ZGR2# T=0.9 |
1 | ||
| 46555 - SPRING, BRAKE SHOE HOLD DOWN | ||||
| 46555-47020 |
ZGR2# |
4 | ||
| 46580 - SHOE ASSY, PARKING BRAKE, LH NO.1 | ||||
| 46540-47010 |
ZGR2# |
1 | ||
| 46590 - SHOE ASSY, PARKING BRAKE, LH NO.2 | ||||
| 46590-47010 |
ZGR2# |
1 | ||
| 47405A - SCREW SET, SHOE ADJUSTING, RH(FOR PARKING BRAKE) | ||||
| 47405-30040 |
ZGR2# |
1 | ||
| 47406A - SCREW SET, SHOE ADJUSTING, LH(FOR PARKING BRAKE) | ||||
| 47406-30040 |
ZGR2# |
1 | ||
| 47447C - PIN, SHOE HOLD DOWN SPRING(FOR PARKING BRAKE) | ||||
| 47447-10020 |
ZGR2# |
4 | ||
| 47611 - LEVER, PARKING BRAKE SHOE, RH | ||||
| 46611-47020 |
ZGR2# |
1 | ||
| 47612 - LEVER, PARKING BRAKE SHOE, LH | ||||
| 46621-47030 |
ZGR2# |
1 | ||
| 47613E - STRUT, PARKING BRAKE SHOE, RH | ||||
| 46612-47020 |
ZGR2# |
1 | ||
| 47614 - STRUT, PARKING BRAKE SHOE, LH | ||||
| 46612-47020 |
ZGR2# |
1 | ||
| Common parts | ||||
| 90178-C0015 | ||||

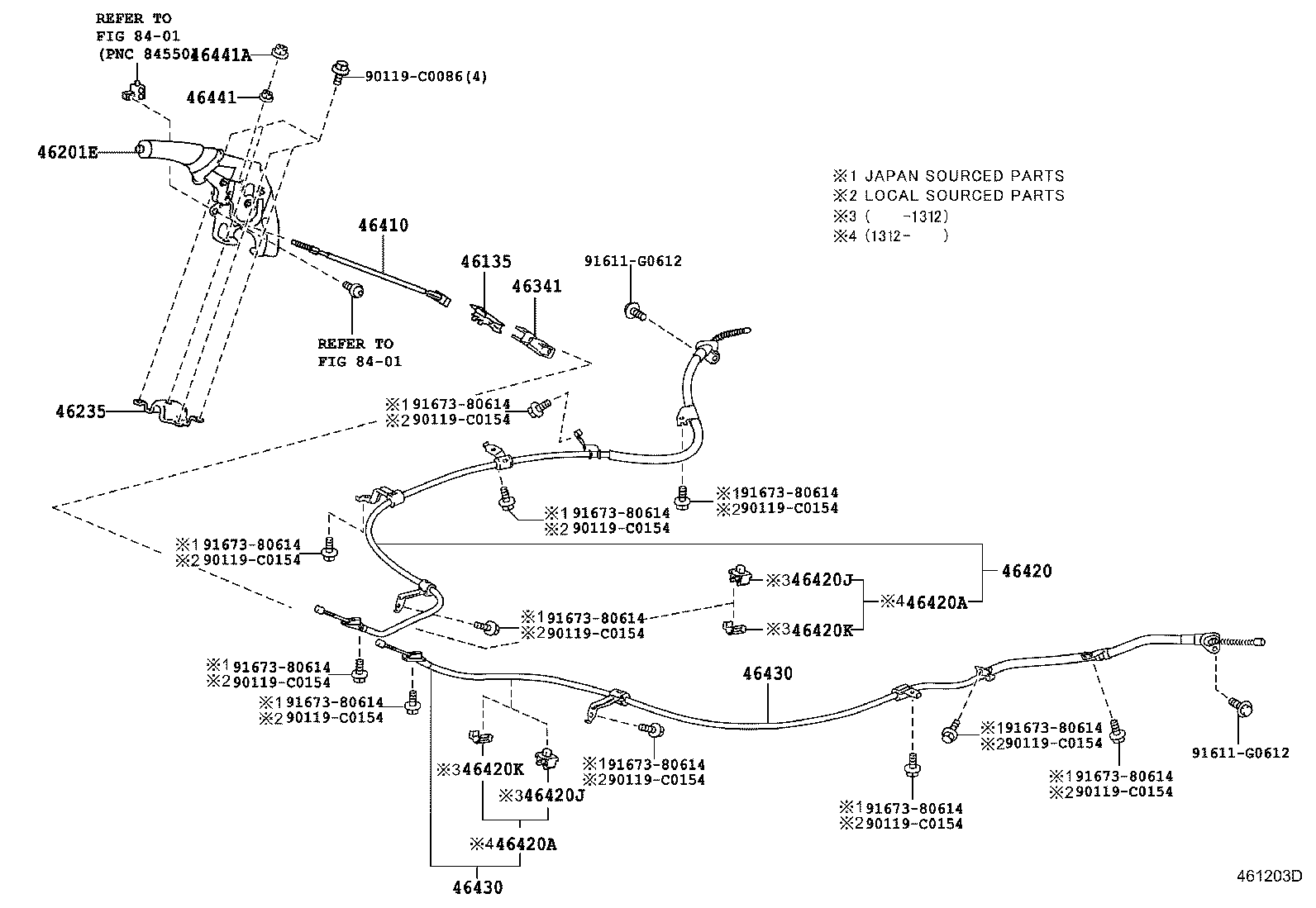

ILLUST NO. 1 OF 2(1106-1409)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46135 - STOPPER, PARKING BRAKE CABLE END | ||||
| 46135-02090 |
ZGR2# |
1 | ||
| 46135-12010 |
ZGR2# |
1 | ||
| 46201E - LEVER SUB-ASSY, PARKING BRAKE | ||||
| 46201-0F030E0 |
ZGR2# ASH BROWN,TRIM4# |
1 | ||
| 46235 - BRACKET, PARKING BRAKE LEVER SUPPORT | ||||
| 46235-0F030 |
ZGR2# |
1 | ||
| 46341 - EQUALIZER, PARKING BRAKE | ||||
| 46341-0F010 |
ZGR2# |
1 | ||
| 46341-12040 |
ZGR2# |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-0F030 |
ZGR2# |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-64010 |
ZGR2# |
1 | ||
| 46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE) | ||||
| 46402-12030 |
ZGR2# |
2 | ||
| 46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE) | ||||
| 46402-12030 |
ZGR2# |
2 | ||
| 46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE) | ||||
| 46411-12030 |
ZGR2# |
2 | ||
| 46411-12030 |
ZGR20,21 |
2 | ||
| 46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE) | ||||
| 46411-12030 |
ZGR2# |
2 | ||
| 46411-12030 |
ZGR20,21 |
2 | ||
| 46420K - CLAMP, NO.4(FOR PARKING BRAKE CABLE) | ||||
| 46411-12040 |
ZGR20,21 |
2 | ||
| 46411-12040 |
ZGR2# |
2 | ||
| 46420K - CLAMP, NO.4(FOR PARKING BRAKE CABLE) | ||||
| 46411-12040 |
ZGR20,21 |
2 | ||
| 46411-12040 |
ZGR2# |
2 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-64010 |
ZGR2# |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-64010 |
ZGR2# |
1 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 46441-12010 |
ZGR2# |
1 | ||
| 46441A - NUT, WIRE ADJUSTING, NO.2 | ||||
| 90178-C0032 |
ZGR2# |
1 | ||
| Common parts | ||||
| 90119-C0086 | ||||
| 90119-C0154 | ||||
| 91611-G0612 | ||||
| 91673-80614 | ||||
| Linked diagrams | ||||
| 8401 | ||||

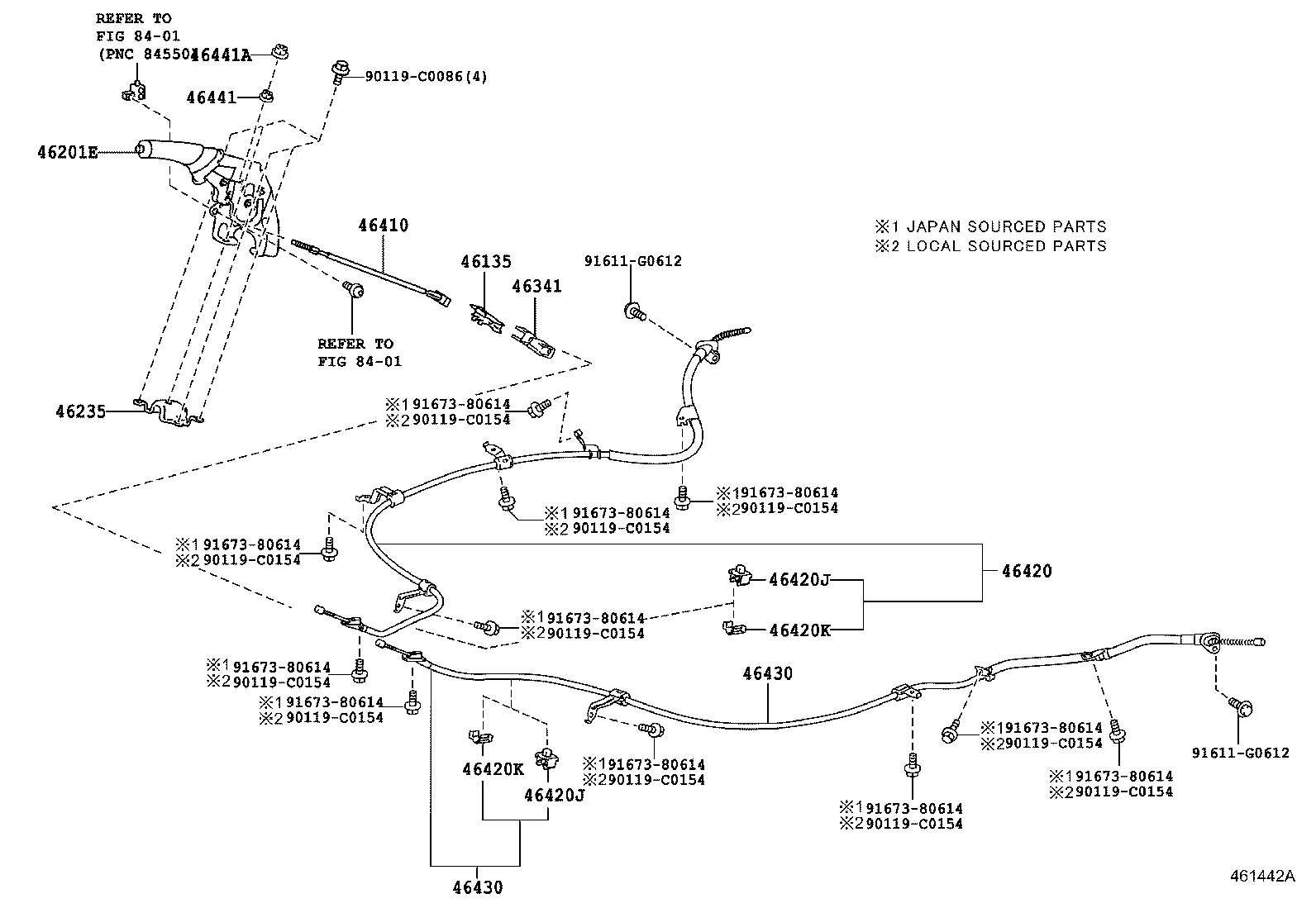

ILLUST NO. 1 OF 2(1409- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46135 - STOPPER, PARKING BRAKE CABLE END | ||||
| 46135-02090 |
ZGR2# |
1 | ||
| 46135-12010 |
ZGR2# |
1 | ||
| 46201E - LEVER SUB-ASSY, PARKING BRAKE | ||||
| 46201-0F030E0 |
ZGR2# ASH BROWN,TRIM4# |
1 | ||
| 46235 - BRACKET, PARKING BRAKE LEVER SUPPORT | ||||
| 46235-0F030 |
ZGR2# |
1 | ||
| 46341 - EQUALIZER, PARKING BRAKE | ||||
| 46341-0F010 |
ZGR2# |
1 | ||
| 46341-12040 |
ZGR2# |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-0F030 |
ZGR2# |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-64010 |
ZGR2# |
1 | ||
| 46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE) | ||||
| 46411-12030 |
ZGR2# |
2 | ||
| 46411-12030 |
ZGR20,21 |
2 | ||
| 46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE) | ||||
| 46411-12030 |
ZGR2# |
2 | ||
| 46411-12030 |
ZGR20,21 |
2 | ||
| 46420K - CLAMP, NO.4(FOR PARKING BRAKE CABLE) | ||||
| 46411-12040 |
ZGR20,21 |
2 | ||
| 46411-12040 |
ZGR2# |
2 | ||
| 46420K - CLAMP, NO.4(FOR PARKING BRAKE CABLE) | ||||
| 46411-12040 |
ZGR20,21 |
2 | ||
| 46411-12040 |
ZGR2# |
2 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-64010 |
ZGR2# |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-64010 |
ZGR2# |
1 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 46441-12010 |
ZGR2# |
1 | ||
| 46441A - NUT, WIRE ADJUSTING, NO.2 | ||||
| 90178-C0032 |
ZGR2# |
1 | ||
| Common parts | ||||
| 90119-C0086 | ||||
| 90119-C0154 | ||||
| 91611-G0612 | ||||
| 91673-80614 | ||||
| Linked diagrams | ||||
| 8401 | ||||
