ZGR21L-GWXEKC (2011)

Toyota E'Z

Production Jun 2011 - Dec 2016
Engine 2ZRFE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1106- )

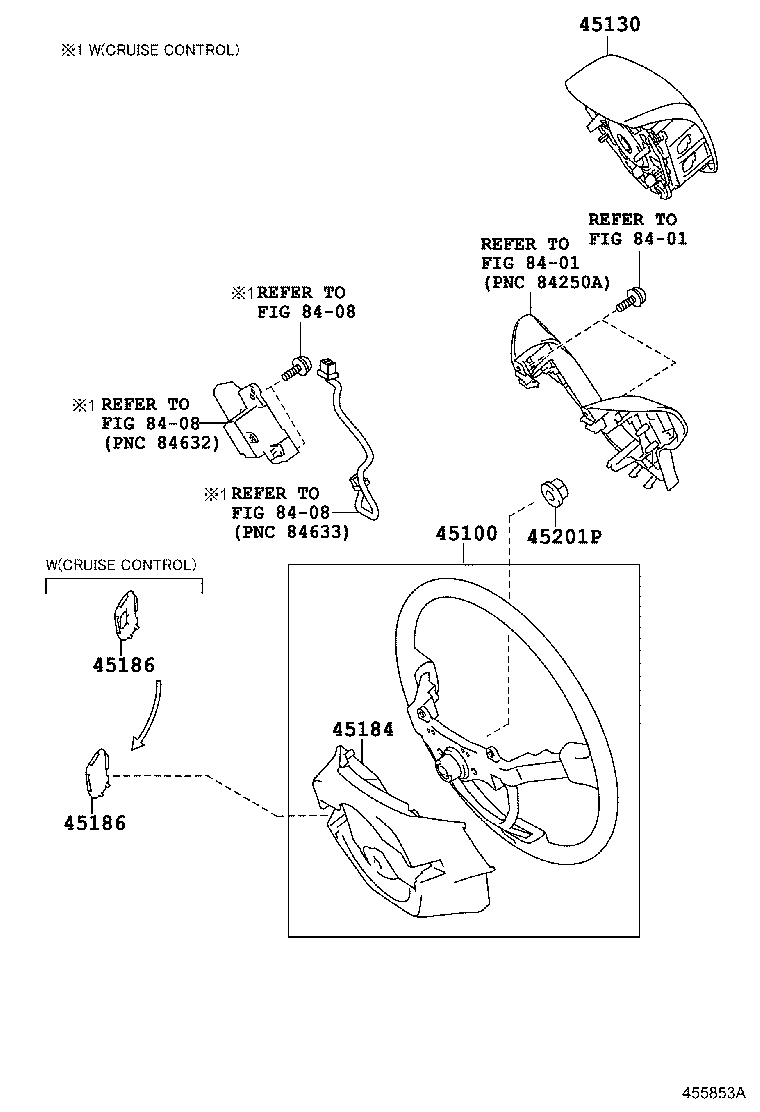

Click highlighted areas on diagram

3-SPOKE

diagram 45100 45130 45184 45186 45186 45201P 8401 8401 8408 8408 8408
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-0F260E1

ZGR21,22..V

3-SPOKE,LEATHER,ASH BROWN,TRIM4#

 1
45100-0F240E0

ZGR2#..E,G

3-SPOKE,URETHANE,ASH BROWN,TRIM4#

 1
45130 - BUTTON ASSY, HORN
45130-0F040E0

ZGR2#

ASH BROWN,TRIM4#

 1
45184 - COVER, STEERING WHEEL BOSS, LOWER
45184-0F090E0

ZGR2#

ASH BROWN,TRIM4#

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-0F050E0

ZGR21,22..V

ASH BROWN,TRIM4#

 1
45186-0F040E0

ZGR2#..E,G

ASH BROWN,TRIM4#

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-0F050E0

ZGR21,22..V

ASH BROWN,TRIM4#

 1
45186-0F040E0

ZGR2#..E,G

ASH BROWN,TRIM4#

 1
45201P - NUT, STEERING WHEEL SET
90178-C0025

ZGR2#

 1
Linked diagrams
8401
8408
