ZGR21L-GWXEKC (2011)

Toyota E'Z

Production Jun 2011 - Dec 2016
Engine 2ZRFE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

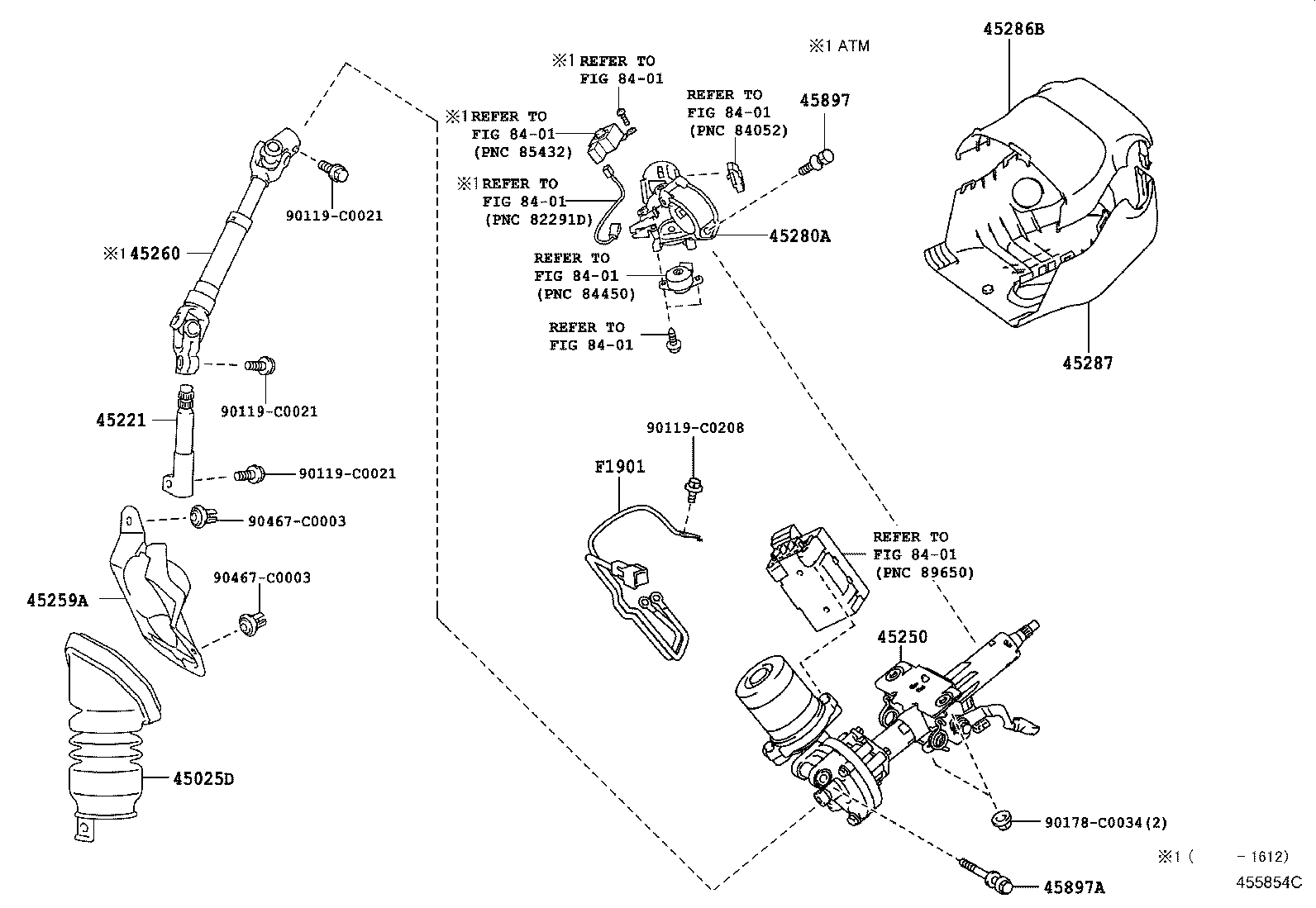

(1106- )E,G

Click highlighted areas on diagram

diagram 45025D 45221 45250 45259A 45260 45280A 45286B 45287 45897 45897A 8401 8401 8401 8401 8401 8401 8401 90119C0021 90119C0021 90119C0021 90119C0208 90178C0034 90467C0003 90467C0003 F1901
Part # Description Qty Price
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-0F050

ZGR2#

 1
45221 - SHAFT, STEERING INTERMEDIATE
45221-0F020

ZGR2#

 1
45250 - COLUMN ASSY, STEERING
45250-0F180

ZGR2#..E,G

 1
45250-0F170

ZGR21..CVFC..G

SEAT COVER MATERIAL-NATURAL LEATHER

 1
45250-0F170

ZGR21,22..V

 1
45259A - SHEET, COLUMN HOLE COVER SILENCER
45259-0F070

ZGR2#

 1
45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45260-0F040

ZGR2#

 1
45280A - BRACKET ASSY, STEERING COLUMN, UPPER
45280-02180

ZGR21,22..CVFC..(E,G)

 1
45286B - COVER, STEERING COLUMN, UPR
45286-0F040E0

ZGR2#

ASH BROWN,TRIM4#

 1
45287 - COVER, STEERING COLUMN, LWR
45287-0F040E0

ZGR21..CVFC..G

SEAT COVER MATERIAL-NATURAL LEATHER,ASH BROWN,TRIM4#

 1
45287-0F050E0

ZGR2#..E,G

ASH BROWN,TRIM4#

 1
45287-0F040E0

ZGR21,22..V

ASH BROWN,TRIM4#

 1
45897 - BOLT, STEERING LOCK SET
45897-12020

ZGR2#

 1
45897A - BOLT, TILT STEERING PAWL SET
45897-20020

ZGR2#

 1
F1901 - WIRE SUB-ASSY, COMPUTER
F1901-0F030

ZGR2#

 1
Common parts
90119-C0021
90119-C0208
90178-C0034
90467-C0003
Linked diagrams
8401

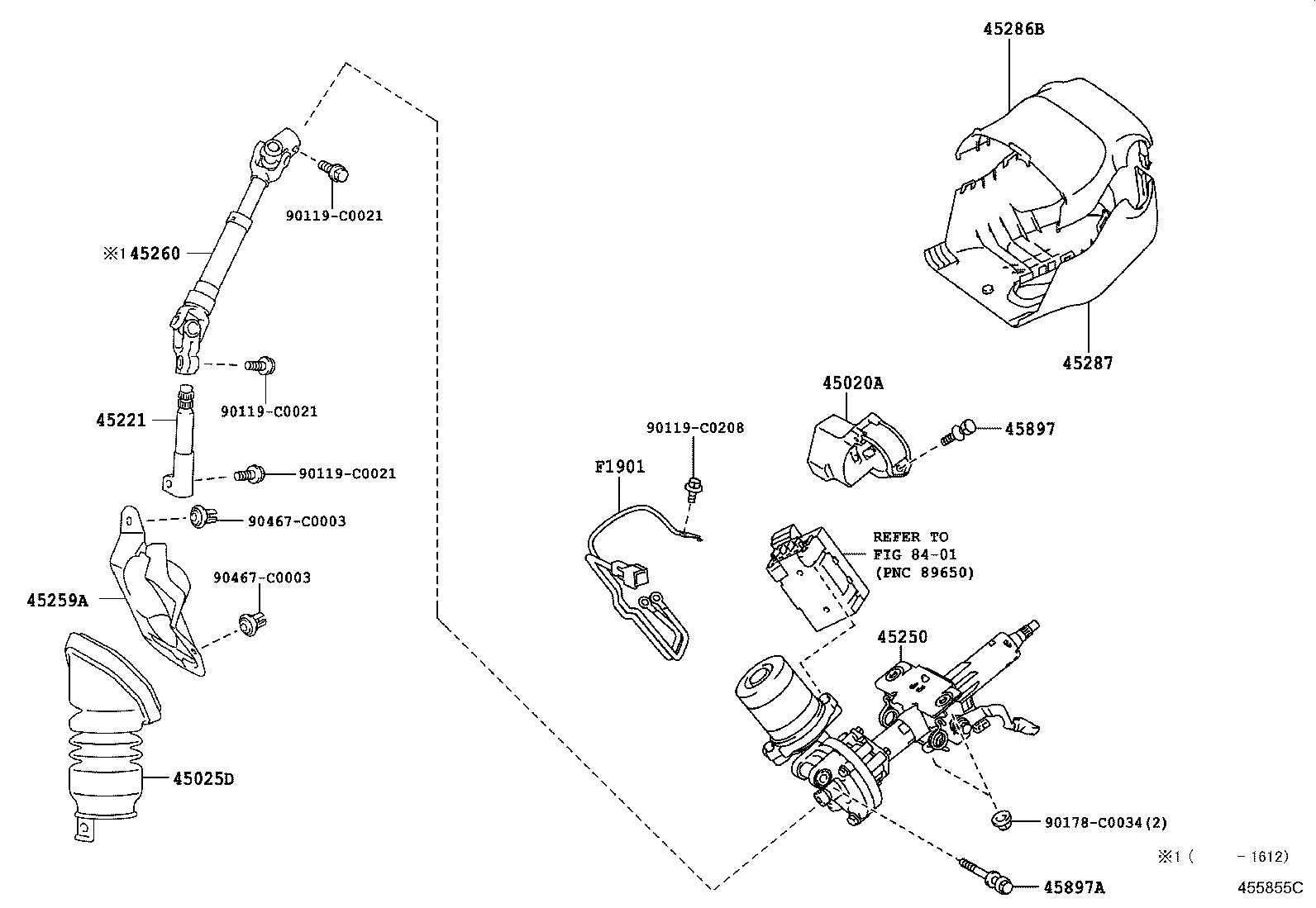

(1106- )V ; (1309- )CVFC..G

Click highlighted areas on diagram

W(SMART ENTRY)

diagram 45020A 45025D 45221 45250 45259A 45260 45286B 45287 45897 45897A 8401 90119C0021 90119C0021 90119C0021 90119C0208 90178C0034 90467C0003 90467C0003 F1901
Part # Description Qty Price
45020A - ACTUATOR ASSY, STEERING LOCK
45020-0N040

ZGR21..CVFC..G

SEAT COVER MATERIAL-NATURAL LEATHER

 1
45020-0N040

ZGR21,22..V

 1
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-0F050

ZGR2#

 1
45221 - SHAFT, STEERING INTERMEDIATE
45221-0F020

ZGR2#

 1
45250 - COLUMN ASSY, STEERING
45250-0F180

ZGR2#..E,G

 1
45250-0F170

ZGR21..CVFC..G

SEAT COVER MATERIAL-NATURAL LEATHER

 1
45250-0F170

ZGR21,22..V

 1
45259A - SHEET, COLUMN HOLE COVER SILENCER
45259-0F070

ZGR2#

 1
45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45260-0F040

ZGR2#

 1
45286B - COVER, STEERING COLUMN, UPR
45286-0F040E0

ZGR2#

ASH BROWN,TRIM4#

 1
45287 - COVER, STEERING COLUMN, LWR
45287-0F040E0

ZGR21..CVFC..G

SEAT COVER MATERIAL-NATURAL LEATHER,ASH BROWN,TRIM4#

 1
45287-0F050E0

ZGR2#..E,G

ASH BROWN,TRIM4#

 1
45287-0F040E0

ZGR21,22..V

ASH BROWN,TRIM4#

 1
45897 - BOLT, STEERING LOCK SET
45897-12020

ZGR2#

 1
45897A - BOLT, TILT STEERING PAWL SET
45897-20020

ZGR2#

 1
F1901 - WIRE SUB-ASSY, COMPUTER
F1901-0F030

ZGR2#

 1
Common parts
90119-C0021
90119-C0208
90178-C0034
90467-C0003
Linked diagrams
8401
