ZGR21L-GWXEKC (2011)
Toyota E'Z
Production
Jun 2011
-
Dec 2016
Engine
2ZRFE
Transmission
CVFC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1106- )ZGR21..CVFC

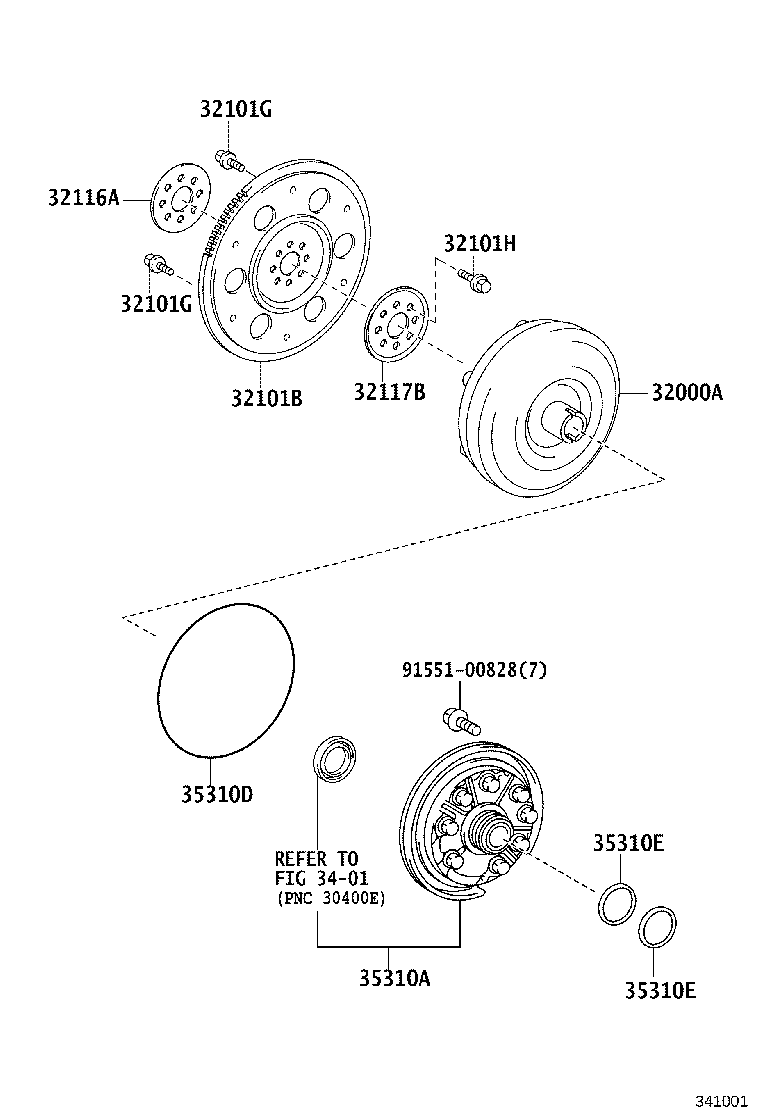

Click highlighted areas on diagram
K311
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32000A - CONVERTER ASSY, TORQUE | ||||
| 32000-12400 |
ZGR21..CVFC |
1 | ||
| 32101B - GEAR SUB-ASSY, DRIVE PLATE & RING | ||||
| 32101-12100 |
ZGR21..CVFC (J) |
1 | ||
| 32101-0D030 |
ZGR21..CVFC (L) |
1 | ||
| 32101G - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING) | ||||
| 90119-08498 |
ZGR21..CVFC *8-1.25PX12-8,YELLOW |
5 | ||
| 90109-08113 |
ZGR21..CVFC *8-1.25PX12-8.4,BLACK |
1 | ||
| 32101G - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING) | ||||
| 90119-08498 |
ZGR21..CVFC *8-1.25PX12-8,YELLOW |
5 | ||
| 90109-08113 |
ZGR21..CVFC *8-1.25PX12-8.4,BLACK |
1 | ||
| 32101H - BOLT, HEXAGON(FOR DRIVE PLATE SETTING) | ||||
| 90105-10048 |
ZGR21,22..CVFC |
8 | ||
| 32116A - SPACER, DRIVE PLATE, FRONT | ||||
| 32116-02020 |
ZGR21..CVFC |
1 | ||
| 32117B - SPACER, DRIVE PLATE, REAR | ||||
| 32117-02020 |
ZGR21..CVFC |
1 | ||
| 35310A - PUMP ASSY, FRONT OIL | ||||
| 35310-12121 |
ZGR21..CVFC |
1 | ||
| 35310D - RING, O (FOR FRONT OIL PUMP) | ||||
| 90301-99133 |
ZGR21..CVFC |
1 | ||
| 35310E - SEAL, TYPE T OIL (FOR FRONT OIL PUMP) | ||||
| 35617-12030 |
ZGR21..CVFC |
2 | ||
| 35617-12031 |
ZGR21..CVFC |
2 | ||
| 35310E - SEAL, TYPE T OIL (FOR FRONT OIL PUMP) | ||||
| 35617-12030 |
ZGR21..CVFC |
2 | ||
| 35617-12031 |
ZGR21..CVFC |
2 | ||
| Common parts | ||||
| 91551-00828 | ||||
| Linked diagrams | ||||
| 3401 | ||||
