ZGR21L-GWXEKC (2011)

Toyota E'Z

Production Jun 2011 - Dec 2016
Engine 2ZRFE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1106- )ZGR21..CVFC

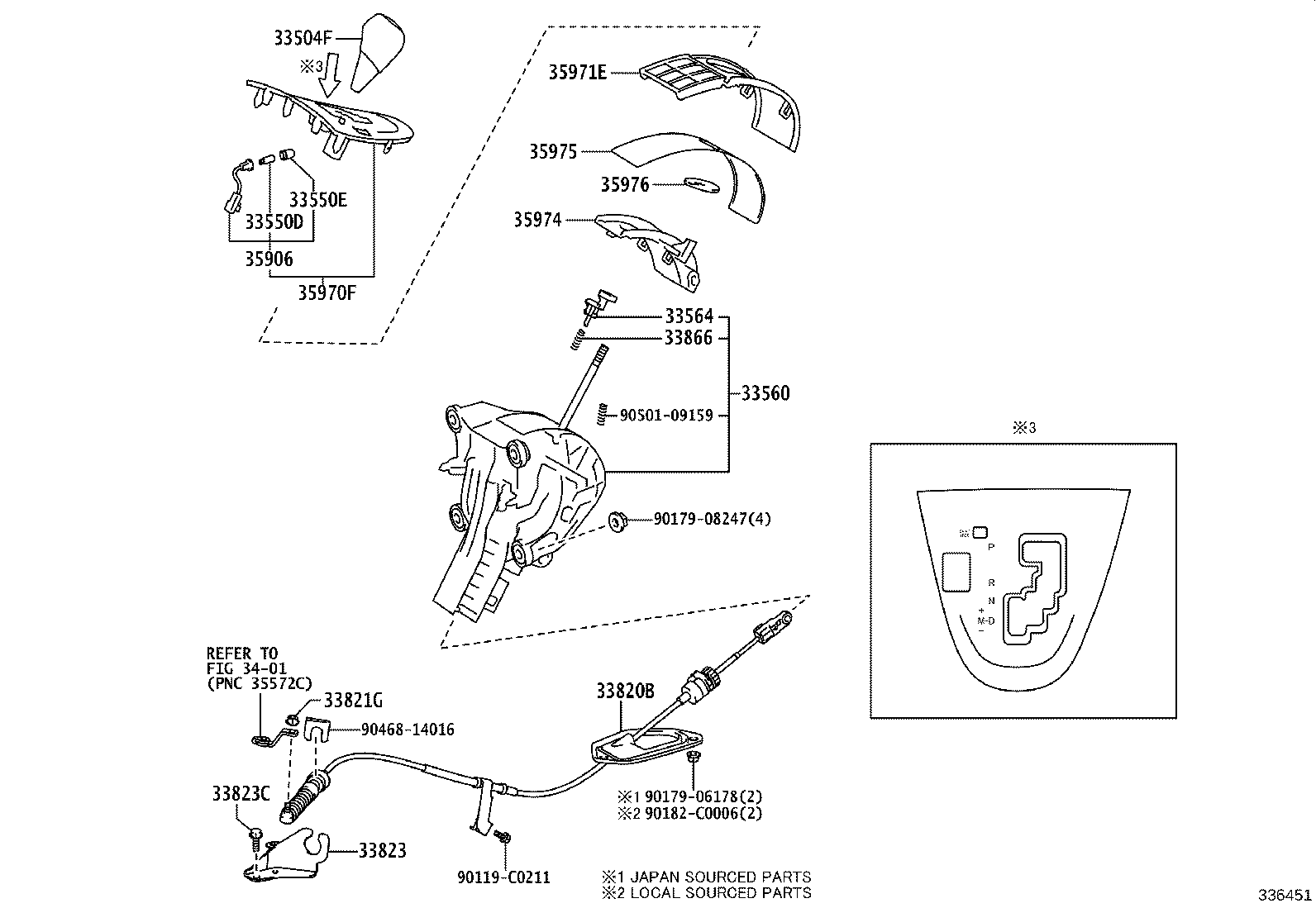

Click highlighted areas on diagram

diagram 33504F 33550D 33550E 33560 33564 33820B 33821G 33823 33823C 33866 3401 35906 35970F 35971E 35974 35975 35976 90119C0211 9017906178 9017908247 90182C0006 9046814016 9050109159
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-0F030E1

ZGR21,22..V

ASH BROWN&ORNAMENT SILVER,TRIM4#

 1
33504-0F020E0

ZGR21,22..CVFC..(E,G)

ASH BROWN,TRIM4#

 1
33550D - BULB, POSITION INDICATOR LAMP
90981-11014

ZGR21,22..CVFC

14V 1.4W

 1
33550E - CAP, POSITION INDICATOR LAMP
90339-04074

ZGR21,22..CVFC

 1
33560 - UNIT ASSY, SHIFT LOCK CONTROL
33560-0F020

ZGR21..CVFC..G

SEAT COVER MATERIAL-NATURAL LEATHER

 1
33560-0F010

ZGR21,22..CVFC..(E,G)

 1
33560-0F020

ZGR21,22..V

 1
33564 - LINK, SHIFT LOCK RELEASE, NO.1
33564-0F010

ZGR21,22..CVFC..(E,G)

 1
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-0F060

ZGR21..CVFC

 1
33821G - NUT (FOR TRANSMISSION CONTROL CABLE)
90178-C0034

ZGR21,22..CVFC

 1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-0F010

ZGR21..CVFC

 1
33823C - BOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)
91611-B0816

ZGR21,22..CVFC

 2
90119-C0212

ZGR21..CVFC

 2
33866 - SPRING, SHIFT LOCK RELEASE
33866-02020

ZGR21,22..CVFC

 1
35906 - WIRE SUB-ASSY, INDICATOR LAMP
35906-0F010

ZGR21,22..CVFC

 1
35970F - HOUSING ASSY, POSITION INDICATOR
35970-0F010

ZGR21,22..CVFC

 1
35971E - HOUSING, POSITION INDICATOR
35971-0F010

ZGR21,22..CVFC

 1
35974 - HOUSING, POSITION INDICATOR, LOWER
35974-0F010

ZGR21,22..CVFC

 1
35975 - COVER, SLIDE (FOR POSITION INDICATOR)
35975-0F010

ZGR21,22..CVFC

 1
35976 - COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)
35976-0F010

ZGR21,22..CVFC

 1
Common parts
90119-C0211
90179-06178
90179-08247
90182-C0006
90468-14016
90501-09159
Linked diagrams
3401
