Toyota E'z ZGR21 ALTERNATOR - JDM Part Detective

ZGR21L-GWXEKC (2011)

Toyota E'Z

Production Jun 2011 - Dec 2016

Engine 2ZRFE

Transmission CVFC ATM

Displacement 2500cc

Power 168 HP (125 kW)

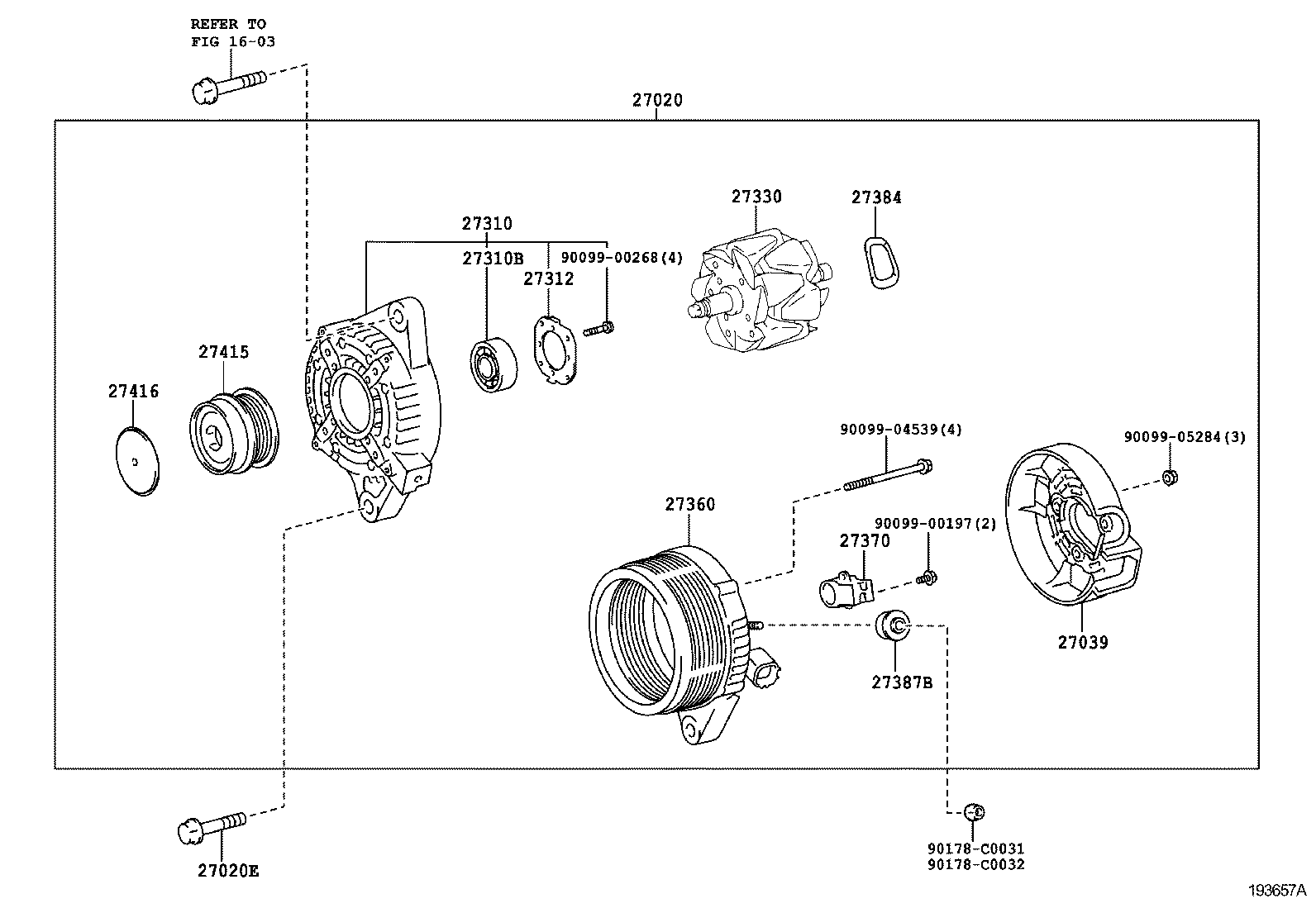

(1106-1309)

Click highlighted areas on diagram

12V 100A

Part #	Description	Period	Qty
27020 - ALTERNATOR ASSY
27060-0T160	1ZRFE,2ZRFE,3ZRFE..ZGR2# 12V 100A	06/2011 - 09/2013	1
27060-0T280	1ZRFE,2ZRFE..ZGR2# 12V 100A	09/2013 - 12/2999	1
27020E - BOLT(FOR ALTERNATOR)
90105-10307	1ZRFE,2ZRFE,3ZRFE..ZGR2#	06/2011 - 12/2999	1
27039 - COVER, ALTERNATOR REAR END
27039-0T260	1ZRFE,2ZRFE..ZGR2#	09/2013 - 12/2999	1
27039-0P070	1ZRFE,2ZRFE,3ZRFE..ZGR2#	06/2011 - 09/2013	1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-0T120	1ZRFE,2ZRFE,3ZRFE..ZGR2#	06/2011 - 12/2012	1
27310-0T150	1ZRFE,2ZRFE,3ZRFE..ZGR2#	12/2012 - 09/2013	1
27310-0T320	1ZRFE,2ZRFE..ZGR2#	09/2013 - 12/2016	1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90068-10042	1ZRFE,2ZRFE,3ZRFE..ZGR2#	12/2012 - 09/2013	1
90068-10033	1ZRFE,2ZRFE,3ZRFE..ZGR2#	06/2011 - 12/2012	1
90068-10050	1ZRFE,2ZRFE..ZGR2#	09/2013 - 12/2016	1
27312 - PLATE, RETAINER
27312-72100	1ZRFE,2ZRFE,3ZRFE..ZGR2#	06/2011 - 09/2013	1
27312-0M070	1ZRFE,2ZRFE..ZGR2#	09/2013 - 12/2016	1
27330 - ROTOR ASSY, ALTERNATOR
27330-0T030	1ZRFE,2ZRFE,3ZRFE..ZGR2#	06/2011 - 09/2013	1
27330-0T260	1ZRFE,2ZRFE..ZGR2#	09/2013 - 12/2999	1
27360 - COIL ASSY, ALTERNATOR
27360-0T030	1ZRFE,2ZRFE,3ZRFE..ZGR2#	06/2011 - 09/2013	1
27360-0T260	1ZRFE,2ZRFE..ZGR2#	09/2013 - 12/2999	1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-0T030	1ZRFE,2ZRFE,3ZRFE..ZGR2#	06/2011 - 12/2999	1
27384 - WASHER
27384-50030	1ZRFE,2ZRFE,3ZRFE..ZGR2#	06/2011 - 09/2013	1
27387B - INSULATOR, ALTERNATOR TERMINAL
27387-0T030	1ZRFE,2ZRFE,3ZRFE..ZGR2#	06/2011 - 12/2011	1
27387-0H110	1ZRFE,2ZRFE,3ZRFE..ZGR2#	12/2011 - 12/2999	1
27415 - PULLEY, ALTERNATOR W/CLUTCH
27415-0T060	1ZRFE,2ZRFE..ZGR2#	09/2013 - 12/2016	1
27415-0T011	1ZRFE,2ZRFE,3ZRFE..ZGR2#	06/2011 - 09/2013	1
27416 - CAP, ALTERNATOR PULLEY
27416-0W050	1ZRFE,2ZRFE..ZGR2#	09/2013 - 12/2016	1
27416-0W020	1ZRFE,2ZRFE,3ZRFE..ZGR2#	06/2011 - 09/2013	1
Common parts
90099-00197
90099-00268
90099-04539
90099-05284
90178-C0031
90178-C0032
Linked diagrams
1603

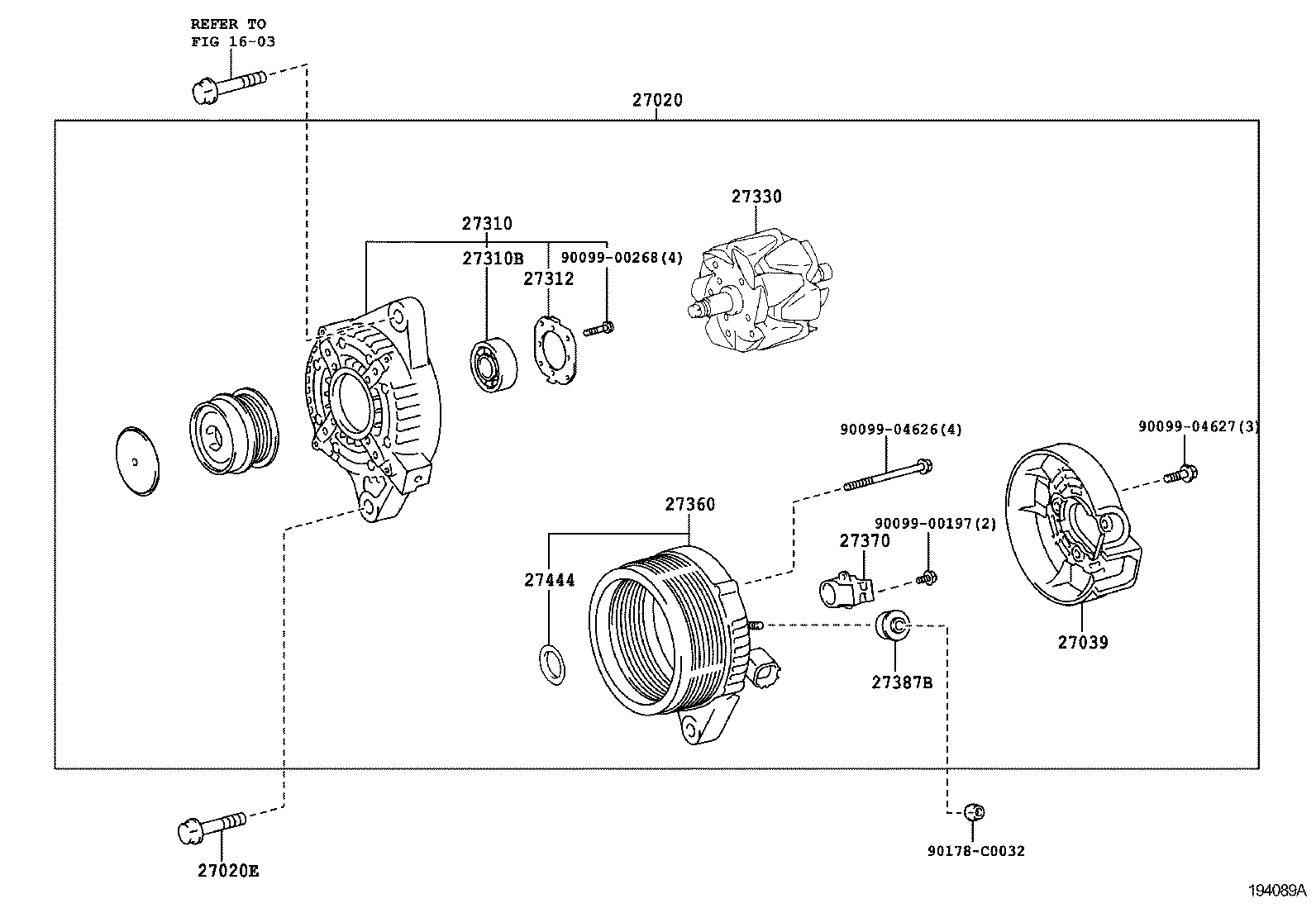

(1309- )

Click highlighted areas on diagram

12V 100A

Part #	Description	Period	Qty
27020 - ALTERNATOR ASSY
27060-0T160	1ZRFE,2ZRFE,3ZRFE..ZGR2# 12V 100A	06/2011 - 09/2013	1
27060-0T280	1ZRFE,2ZRFE..ZGR2# 12V 100A	09/2013 - 12/2999	1
27020E - BOLT(FOR ALTERNATOR)
90105-10307	1ZRFE,2ZRFE,3ZRFE..ZGR2#	06/2011 - 12/2999	1
27039 - COVER, ALTERNATOR REAR END
27039-0T260	1ZRFE,2ZRFE..ZGR2#	09/2013 - 12/2999	1
27039-0P070	1ZRFE,2ZRFE,3ZRFE..ZGR2#	06/2011 - 09/2013	1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-0T120	1ZRFE,2ZRFE,3ZRFE..ZGR2#	06/2011 - 12/2012	1
27310-0T150	1ZRFE,2ZRFE,3ZRFE..ZGR2#	12/2012 - 09/2013	1
27310-0T320	1ZRFE,2ZRFE..ZGR2#	09/2013 - 12/2016	1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90068-10042	1ZRFE,2ZRFE,3ZRFE..ZGR2#	12/2012 - 09/2013	1
90068-10033	1ZRFE,2ZRFE,3ZRFE..ZGR2#	06/2011 - 12/2012	1
90068-10050	1ZRFE,2ZRFE..ZGR2#	09/2013 - 12/2016	1
27312 - PLATE, RETAINER
27312-72100	1ZRFE,2ZRFE,3ZRFE..ZGR2#	06/2011 - 09/2013	1
27312-0M070	1ZRFE,2ZRFE..ZGR2#	09/2013 - 12/2016	1
27330 - ROTOR ASSY, ALTERNATOR
27330-0T030	1ZRFE,2ZRFE,3ZRFE..ZGR2#	06/2011 - 09/2013	1
27330-0T260	1ZRFE,2ZRFE..ZGR2#	09/2013 - 12/2999	1
27360 - COIL ASSY, ALTERNATOR
27360-0T030	1ZRFE,2ZRFE,3ZRFE..ZGR2#	06/2011 - 09/2013	1
27360-0T260	1ZRFE,2ZRFE..ZGR2#	09/2013 - 12/2999	1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-0T030	1ZRFE,2ZRFE,3ZRFE..ZGR2#	06/2011 - 12/2999	1
27387B - INSULATOR, ALTERNATOR TERMINAL
27387-0T030	1ZRFE,2ZRFE,3ZRFE..ZGR2#	06/2011 - 12/2011	1
27387-0H110	1ZRFE,2ZRFE,3ZRFE..ZGR2#	12/2011 - 12/2999	1
27444 - PACKING, ALTERNATOR BEARING COVER
27444-0Y180	1ZRFE,2ZRFE..ZGR2#	09/2013 - 12/2999	1
Common parts
90099-00197
90099-00268
90099-04626
90099-04627
90178-C0032
Linked diagrams
1603
