ZGR21L-GWXEKC (2011)

Toyota E'Z

Production Jun 2011 - Dec 2016
Engine 2ZRFE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1106- )

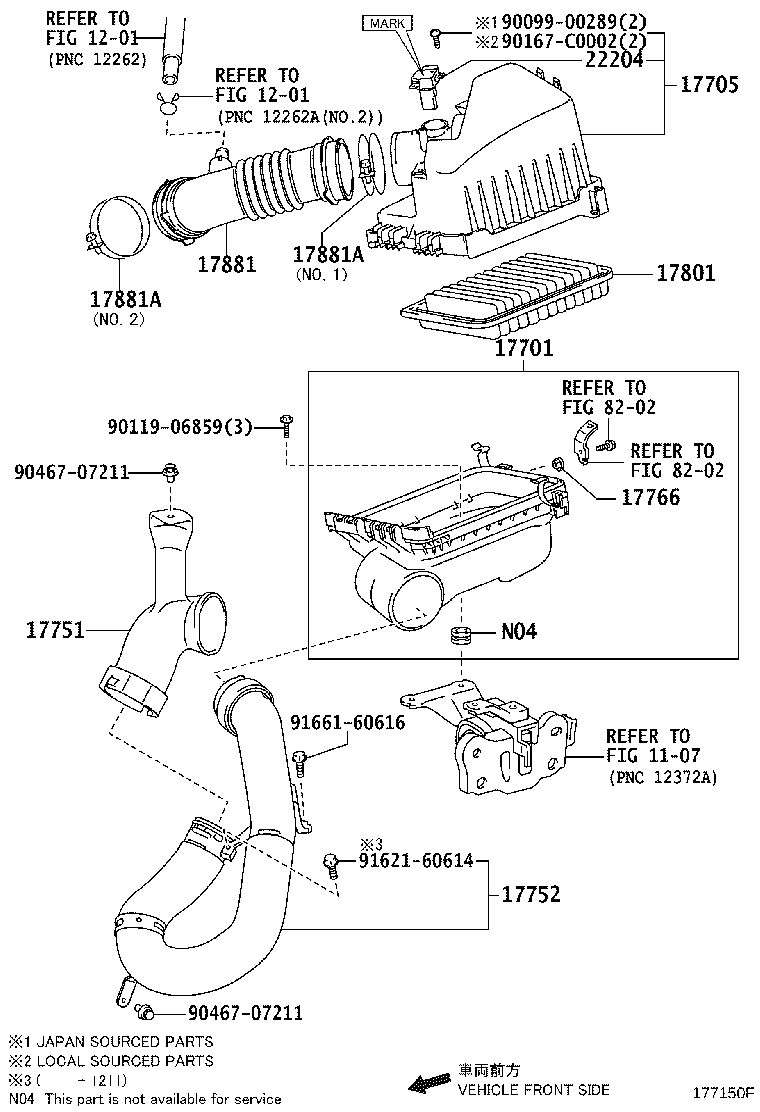

Click highlighted areas on diagram

diagram 1107 1201 1201 17701 17705 17751 17752 17766 17801 17881 17881A 17881A 22204 8202 8202 9009900289 9011906859 90167C0002 9046707211 9046707211 9162160614 9166160616
Part # Description Qty Price
17701 - CASE SUB-ASSY, AIR CLEANER
17701-0T100

1ZRFE,2ZRFE,3ZRFE..ZGR2#

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-0T131

1ZRFE,2ZRFE,3ZRFE..ZGR2#

 1
17751 - INLET, AIR CLEANER, NO.1
17751-0T120

1ZRFE,2ZRFE,3ZRFE..ZGR2#

 1
17752 - INLET, AIR CLEANER, NO.2
17752-0T050

1ZRFE,2ZRFE,3ZRFE..ZGR2#

 1
17766 - STAY, AIR CLEANER, NO.2
17706-0T010

1ZRFE,2ZRFE,3ZRFE..ZGR2#

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-0T020

1ZRFE,2ZRFE,3ZRFE..ZGR2#

 1
17881 - HOSE, AIR CLEANER, NO.1
17880-0T250

2ZRFE,3ZRFE..ZGR21,22

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10750

1ZRFE,2ZRFE,3ZRFE..ZGR2#

NO.1

 1
96111-10780

1ZRFE,2ZRFE,3ZRFE..ZGR2#

NO.2

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10750

1ZRFE,2ZRFE,3ZRFE..ZGR2#

NO.1

 1
96111-10780

1ZRFE,2ZRFE,3ZRFE..ZGR2#

NO.2

 1
22204 - METER SUB-ASSY, INTAKE AIR FLOW
22204-28010

1ZRFE,2ZRFE,3ZRFE..ZGR2#

MARK 22204-28010

 1
Common parts
90099-00289
90119-06859
90167-C0002
90467-07211
91621-60614
91661-60616
Linked diagrams
1107
1201
8202
