ZGR21L-GWXEKC (2011)

Toyota E'Z

Production Jun 2011 - Dec 2016
Engine 2ZRFE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1106- )

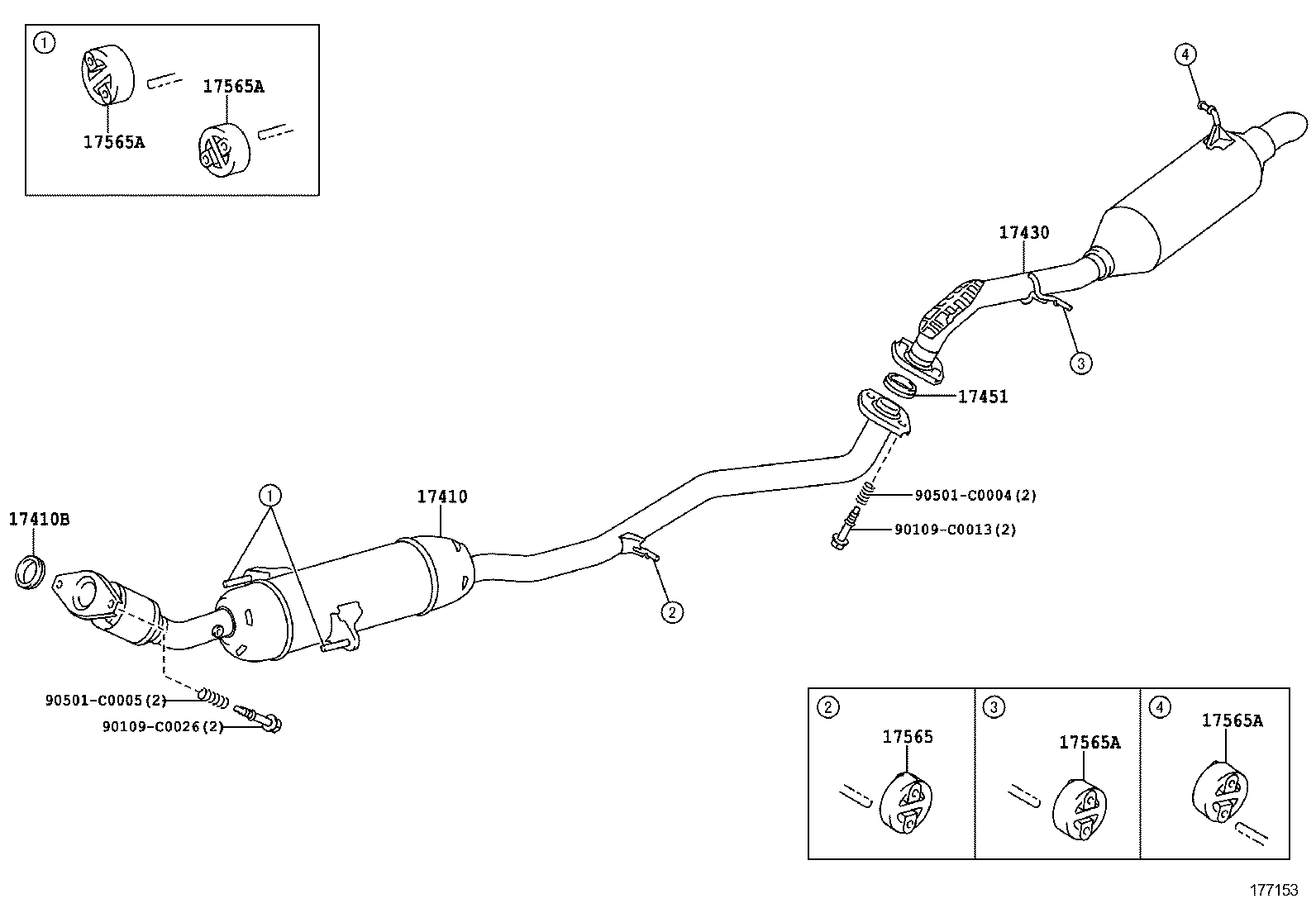

Click highlighted areas on diagram

diagram 17410 17410B 17430 17451 17565 17565A 17565A 17565A 17565A 90109C0013 90109C0026 90501C0004 90501C0005
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-0T370

2ZRFE..ZGR21

BEIJING SPEC

 1
17410-0T880

2ZRFE..ZGR21

 1
17410-0T360

2ZRFE..ZGR21

 1
17410-0T881

2ZRFE..ZGR21

 1
17410B - GASKET, EXHAUST PIPE
17451-0T010

1ZRFE,2ZRFE,3ZRFE..ZGR2#

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-0T161

1ZRFE,2ZRFE,3ZRFE..ZGR2#

 1
17451 - GASKET, EXHAUST PIPE
17451-0T070

1ZRFE,2ZRFE,3ZRFE..ZGR2#

 1
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-0H070

1ZRFE,2ZRFE,3ZRFE..ZGR2#

 1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-0H080

1ZRFE,2ZRFE,3ZRFE..ZGR2#

 4
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-0H080

1ZRFE,2ZRFE,3ZRFE..ZGR2#

 4
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-0H080

1ZRFE,2ZRFE,3ZRFE..ZGR2#

 4
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-0H080

1ZRFE,2ZRFE,3ZRFE..ZGR2#

 4
Common parts
90109-C0013
90109-C0026
90501-C0004
90501-C0005
