ZGR21L-GWXEKC (2011)
Toyota E'Z

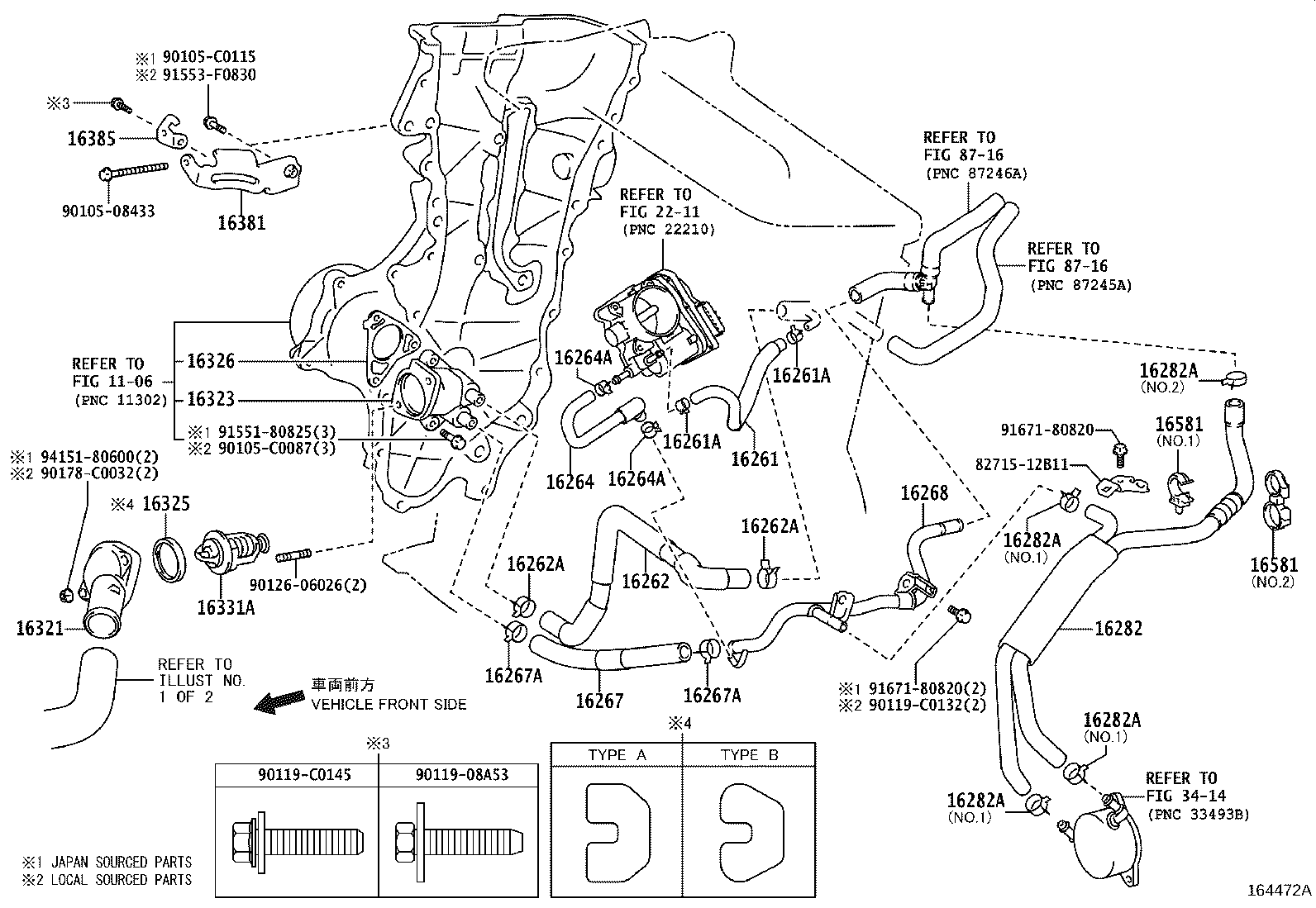

ILLUST NO. 2 OF 2(1106- )2ZRFE..CVFC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-0T101 |
2ZRFE..ZGR21 (L) |
1 | ||
| 16261-37052 |
2ZRFE..ZGR21 (J) |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96137-41501 |
1ZRFE,2ZRFE..ZGR20,21 |
2 | ||
| 90466-C0026 |
1ZRFE,2ZRFE..ZGR20,21 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96137-41501 |
1ZRFE,2ZRFE..ZGR20,21 |
2 | ||
| 90466-C0026 |
1ZRFE,2ZRFE..ZGR20,21 |
2 | ||
| 16262 - HOSE, WATER INLET | ||||
| 16262-0T010 |
1ZRFE,2ZRFE..ZGR20,21 (L) |
1 | ||
| 16262-37010 |
1ZRFE,2ZRFE..ZGR20,21 (J) |
1 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 96136-42501 |
1ZRFE,2ZRFE..ZGR20,21 |
2 | ||
| 90466-C0014 |
1ZRFE,2ZRFE..ZGR20,21 |
2 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 96136-42501 |
1ZRFE,2ZRFE..ZGR20,21 |
2 | ||
| 90466-C0014 |
1ZRFE,2ZRFE..ZGR20,21 |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-0T061 |
2ZRFE..ZGR21 (L) |
1 | ||
| 16264-37042 |
2ZRFE..ZGR21 (J) |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96137-41501 |
1ZRFE,2ZRFE..ZGR20,21 |
2 | ||
| 90466-C0026 |
1ZRFE,2ZRFE..ZGR20,21 |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96137-41501 |
1ZRFE,2ZRFE..ZGR20,21 |
2 | ||
| 90466-C0026 |
1ZRFE,2ZRFE..ZGR20,21 |
2 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-37010 |
1ZRFE,2ZRFE..ZGR20,21 (J) |
1 | ||
| 16267-0T020 |
1ZRFE,2ZRFE..ZGR20,21 (L) |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96136-42501 |
1ZRFE,2ZRFE..ZGR20,21 |
2 | ||
| 90466-C0014 |
1ZRFE,2ZRFE..ZGR20,21 |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96136-42501 |
1ZRFE,2ZRFE..ZGR20,21 |
2 | ||
| 90466-C0014 |
1ZRFE,2ZRFE..ZGR20,21 |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-37021 |
2ZRFE..ZGR21..CVFC |
1 | ||
| 16268-0T060 |
2ZRFE..ZGR21..CVFC |
1 | ||
| 16282 - HOSE, WATER BY-PASS, NO.5 | ||||
| 16260-37010 |
2ZRFE..ZGR21..CVFC |
1 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 96134-41900 |
2ZRFE..ZGR21..CVFC NO.1 |
3 | ||
| 96136-42501 |
2ZRFE..ZGR21..CVFC NO.2 |
1 | ||
| 96136-42201 |
2ZRFE..ZGR21..CVFC NO.1 |
3 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 96134-41900 |
2ZRFE..ZGR21..CVFC NO.1 |
3 | ||
| 96136-42501 |
2ZRFE..ZGR21..CVFC NO.2 |
1 | ||
| 96136-42201 |
2ZRFE..ZGR21..CVFC NO.1 |
3 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 96134-41900 |
2ZRFE..ZGR21..CVFC NO.1 |
3 | ||
| 96136-42501 |
2ZRFE..ZGR21..CVFC NO.2 |
1 | ||
| 96136-42201 |
2ZRFE..ZGR21..CVFC NO.1 |
3 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 96134-41900 |
2ZRFE..ZGR21..CVFC NO.1 |
3 | ||
| 96136-42501 |
2ZRFE..ZGR21..CVFC NO.2 |
1 | ||
| 96136-42201 |
2ZRFE..ZGR21..CVFC NO.1 |
3 | ||
| 16321 - INLET, WATER | ||||
| 16321-0T020 |
1ZRFE,2ZRFE..ZGR20,21 |
1 | ||
| 16321-37010 |
1ZRFE,2ZRFE..ZGR20,21 |
1 | ||
| 16323 - HOUSING, WATER INLET | ||||
| 16323-37020 |
1ZRFE,2ZRFE..ZGR20,21 (J) |
1 | ||
| 16323-0T040 |
1ZRFE,2ZRFE..ZGR20,21 (L) |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-28010 |
1ZRFE,2ZRFE..ZGR20,21 (J),T/P B:REF.ILLUST |
1 | ||
| 16325-0H030 |
1ZRFE,2ZRFE..ZGR20,21 (L),T/P A:REF.ILLUST |
1 | ||
| 16325-0T010 |
1ZRFE,2ZRFE..ZGR20,21 TYPE B:REFER ILLUST. |
1 | ||
| 16326 - GASKET, WATER INLET HOUSING, NO.2 | ||||
| 16326-37010 |
1ZRFE,2ZRFE,3ZRFE..ZGR2# |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-C3003 |
1ZRFE,2ZRFE..ZGR20,21 (L),FUJISEIKO |
1 | ||
| 90916-03145 |
1ZRFE,2ZRFE..ZGR20,21 *WAX 82-95,(J),FUJISEIKO |
1 | ||
| 90916-03144 |
1ZRFE,2ZRFE,3ZRFE..ZGR2# *WAX 82-95,KUZEH |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-37030 |
1ZRFE,2ZRFE..ZGR20,21 |
1 | ||
| 16385 - SLIDER, FAN BELT ADJUSTING | ||||
| 16385-37010 |
1ZRFE,2ZRFE,3ZRFE..ZGR2# |
1 | ||
| 16581 - CLAMP, HOSE(FOR WATER HOSE) | ||||
| 16581-37110 |
2ZRFE..ZGR21..CVFC NO.2 |
1 | ||
| 16581-21030 |
2ZRFE,3ZRFE..ZGR21,22..CVFC NO.1 |
1 | ||
| 16581-37110 |
2ZRFE..ZGR21..CVFC (J),NO.2 |
1 | ||
| 16581-0T110 |
2ZRFE..ZGR21..CVFC (L),NO.2 |
1 | ||
| 16581 - CLAMP, HOSE(FOR WATER HOSE) | ||||
| 16581-37110 |
2ZRFE..ZGR21..CVFC NO.2 |
1 | ||
| 16581-21030 |
2ZRFE,3ZRFE..ZGR21,22..CVFC NO.1 |
1 | ||
| 16581-37110 |
2ZRFE..ZGR21..CVFC (J),NO.2 |
1 | ||
| 16581-0T110 |
2ZRFE..ZGR21..CVFC (L),NO.2 |
1 | ||
| Common parts | ||||
| 82715-12B11 | ||||
| 90105-08433 | ||||
| 90105-C0087 | ||||
| 90105-C0115 | ||||
| 90119-08A53 | ||||
| 90119-C0132 | ||||
| 90119-C0145 | ||||
| 90126-06026 | ||||
| 90178-C0032 | ||||
| 91551-80825 | ||||
| 91553-F0830 | ||||
| 91671-80820 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1106 | ||||
| 2211 | ||||
| 3414 | ||||
| 8716 | ||||

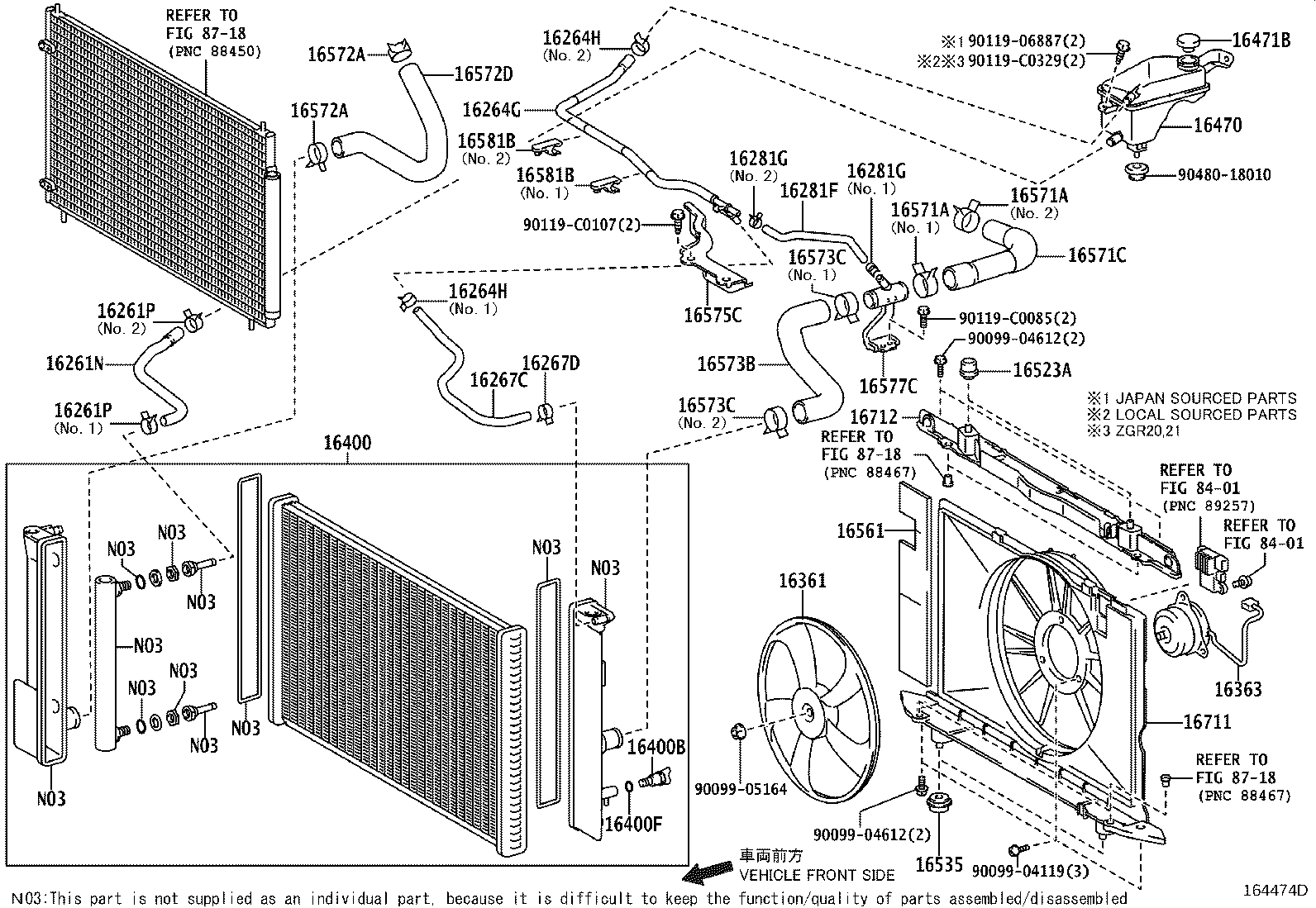

ILLUST NO. 1 OF 2(1106- )2ZRFE,3ZRFE..CVFC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261N - HOSE, WATER BY-PASS, NO.2 | ||||
| 16261-0T010 |
1ZRFE,2ZRFE,3ZRFE..ZGR2# |
1 | ||
| 16261P - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96136-52501 |
1ZRFE,2ZRFE..ZGR20,21 NO.2 |
1 | ||
| 90466-C0006 |
1ZRFE,2ZRFE,3ZRFE..ZGR2# (L),NO.1 |
1 | ||
| 90466-C0007 |
1ZRFE,2ZRFE,3ZRFE..ZGR2# (L),NO.2 |
1 | ||
| 96136-52201 |
1ZRFE,2ZRFE..ZGR20,21 NO.1 |
1 | ||
| 96136-52201 |
1ZRFE,2ZRFE..ZGR20,21 (J),NO.1 |
1 | ||
| 96136-52501 |
1ZRFE,2ZRFE..ZGR20,21 (J),NO.2 |
1 | ||
| 16261P - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96136-52501 |
1ZRFE,2ZRFE..ZGR20,21 NO.2 |
1 | ||
| 90466-C0006 |
1ZRFE,2ZRFE,3ZRFE..ZGR2# (L),NO.1 |
1 | ||
| 90466-C0007 |
1ZRFE,2ZRFE,3ZRFE..ZGR2# (L),NO.2 |
1 | ||
| 96136-52201 |
1ZRFE,2ZRFE..ZGR20,21 NO.1 |
1 | ||
| 96136-52201 |
1ZRFE,2ZRFE..ZGR20,21 (J),NO.1 |
1 | ||
| 96136-52501 |
1ZRFE,2ZRFE..ZGR20,21 (J),NO.2 |
1 | ||
| 16264G - HOSE, WATER BY-PASS, NO.3 | ||||
| 16264-0T010 |
1ZRFE,2ZRFE,3ZRFE..ZGR2# |
1 | ||
| 16264H - CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96136-52101 |
1ZRFE,2ZRFE,3ZRFE..ZGR2# NO.2 |
1 | ||
| 90467-15022 |
1ZRFE,2ZRFE..ZGR20,21 (J),NO.1 |
1 | ||
| 90466-C0003 |
1ZRFE,2ZRFE,3ZRFE..ZGR2# (L),NO.1 |
1 | ||
| 90466-C0004 |
1ZRFE,2ZRFE,3ZRFE..ZGR2# (L),NO.2 |
1 | ||
| 90467-15022 |
1ZRFE,2ZRFE..ZGR20,21 NO.1 |
1 | ||
| 96136-52101 |
1ZRFE,2ZRFE,3ZRFE..ZGR2# (J),NO.2 |
1 | ||
| 16264H - CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96136-52101 |
1ZRFE,2ZRFE,3ZRFE..ZGR2# NO.2 |
1 | ||
| 90467-15022 |
1ZRFE,2ZRFE..ZGR20,21 (J),NO.1 |
1 | ||
| 90466-C0003 |
1ZRFE,2ZRFE,3ZRFE..ZGR2# (L),NO.1 |
1 | ||
| 90466-C0004 |
1ZRFE,2ZRFE,3ZRFE..ZGR2# (L),NO.2 |
1 | ||
| 90467-15022 |
1ZRFE,2ZRFE..ZGR20,21 NO.1 |
1 | ||
| 96136-52101 |
1ZRFE,2ZRFE,3ZRFE..ZGR2# (J),NO.2 |
1 | ||
| 16267C - HOSE, WATER BY-PASS, NO.4 | ||||
| 16267-0T031 |
1ZRFE,2ZRFE..ZGR2# |
1 | ||
| 16267-0T030 |
1ZRFE,2ZRFE,3ZRFE..ZGR2# |
1 | ||
| 16267D - CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 90467-15022 |
1ZRFE,2ZRFE,3ZRFE..ZGR2# |
1 | ||
| 16281F - HOSE, WATER BY-PASS, NO.5 | ||||
| 16281-0T040 |
1ZRFE,2ZRFE,3ZRFE..ZGR2# |
1 | ||
| 16281G - CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 96136-51901 |
1ZRFE,2ZRFE..ZGR20,21 (J),NO.2 |
1 | ||
| 96136-51901 |
1ZRFE,2ZRFE..ZGR20,21 NO.2 |
1 | ||
| 90467-17013 |
1ZRFE,2ZRFE,3ZRFE..ZGR2# NO.1 |
1 | ||
| 90466-C0005 |
1ZRFE,2ZRFE,3ZRFE..ZGR2# (L),NO.2 |
1 | ||
| 16281G - CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 96136-51901 |
1ZRFE,2ZRFE..ZGR20,21 (J),NO.2 |
1 | ||
| 96136-51901 |
1ZRFE,2ZRFE..ZGR20,21 NO.2 |
1 | ||
| 90467-17013 |
1ZRFE,2ZRFE,3ZRFE..ZGR2# NO.1 |
1 | ||
| 90466-C0005 |
1ZRFE,2ZRFE,3ZRFE..ZGR2# (L),NO.2 |
1 | ||
| 16361 - FAN | ||||
| 16361-0T100 |
1ZRFE,2ZRFE,3ZRFE..ZGR2# |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-0T070 |
1ZRFE,2ZRFE,3ZRFE..ZGR2# |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-0T230 |
2ZRFE,3ZRFE..ZGR21,22..CVFC |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-0H290 |
1ZRFE,2ZRFE,3ZRFE..ZGR2# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
2ZRFE,3ZRFE..ZGR21,22..CVFC |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16480-22080 |
1ZRFE,2ZRFE,3ZRFE..ZGR2# |
1 | ||
| 16480-22080 |
1ZRFE,2ZRFE..ZGR2# (J) |
1 | ||
| 164A2-0T010 |
1ZRFE,2ZRFE..ZGR2# (L) |
1 | ||
| 16471B - CAP, RESERVE TANK | ||||
| 16475-0T080 |
1ZRFE,2ZRFE..ZGR2# |
1 | ||
| 16475-51010 |
1ZRFE,2ZRFE,3ZRFE..ZGR2# |
1 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-36010 |
1ZRFE,2ZRFE,3ZRFE..ZGR2# |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16535-0T040 |
1ZRFE,2ZRFE,3ZRFE..ZGR2# |
2 | ||
| 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 | ||||
| 16561-0T050 |
1ZRFE,2ZRFE,3ZRFE..ZGR2# |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 96136-43901 |
1ZRFE,2ZRFE..ZGR20,21 NO.2 |
1 | ||
| 96136-43901 |
1ZRFE,2ZRFE..ZGR20,21 (J),NO.2 |
1 | ||
| 90466-C0008 |
1ZRFE,2ZRFE,3ZRFE..ZGR2# (L),NO.2 |
1 | ||
| 96136-44301 |
1ZRFE,2ZRFE,3ZRFE..ZGR2# (J),NO.1 |
1 | ||
| 96136-44301 |
1ZRFE,2ZRFE,3ZRFE..ZGR2# NO.1 |
1 | ||
| 90466-C0009 |
1ZRFE,2ZRFE,3ZRFE..ZGR2# (L),NO.1 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 96136-43901 |
1ZRFE,2ZRFE..ZGR20,21 NO.2 |
1 | ||
| 96136-43901 |
1ZRFE,2ZRFE..ZGR20,21 (J),NO.2 |
1 | ||
| 90466-C0008 |
1ZRFE,2ZRFE,3ZRFE..ZGR2# (L),NO.2 |
1 | ||
| 96136-44301 |
1ZRFE,2ZRFE,3ZRFE..ZGR2# (J),NO.1 |
1 | ||
| 96136-44301 |
1ZRFE,2ZRFE,3ZRFE..ZGR2# NO.1 |
1 | ||
| 90466-C0009 |
1ZRFE,2ZRFE,3ZRFE..ZGR2# (L),NO.1 |
1 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-0T130 |
2ZRFE,3ZRFE..ZGR21,22..CVFC |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96136-44301 |
1ZRFE,2ZRFE,3ZRFE..ZGR2# (J) |
2 | ||
| 90466-C0009 |
1ZRFE,2ZRFE,3ZRFE..ZGR2# (L) |
2 | ||
| 96136-44301 |
1ZRFE,2ZRFE,3ZRFE..ZGR2# |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96136-44301 |
1ZRFE,2ZRFE,3ZRFE..ZGR2# (J) |
2 | ||
| 90466-C0009 |
1ZRFE,2ZRFE,3ZRFE..ZGR2# (L) |
2 | ||
| 96136-44301 |
1ZRFE,2ZRFE,3ZRFE..ZGR2# |
2 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-0T010 |
1ZRFE,2ZRFE,3ZRFE..ZGR2# |
1 | ||
| 16573B - HOSE, RADIATOR, NO.3 | ||||
| 16573-0T060 |
1ZRFE,2ZRFE,3ZRFE..ZGR2# |
1 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 96136-44301 |
1ZRFE,2ZRFE,3ZRFE..ZGR2# (J),NO.2 |
1 | ||
| 96136-44301 |
1ZRFE,2ZRFE,3ZRFE..ZGR2# NO.2 |
1 | ||
| 90466-35001 |
1ZRFE,2ZRFE..ZGR20,21 NO.1 |
1 | ||
| 90466-C0009 |
1ZRFE,2ZRFE..ZGR20,21 NO.1 |
1 | ||
| 90466-C0009 |
1ZRFE,2ZRFE,3ZRFE..ZGR2# (L),NO.2 |
1 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 96136-44301 |
1ZRFE,2ZRFE,3ZRFE..ZGR2# (J),NO.2 |
1 | ||
| 96136-44301 |
1ZRFE,2ZRFE,3ZRFE..ZGR2# NO.2 |
1 | ||
| 90466-35001 |
1ZRFE,2ZRFE..ZGR20,21 NO.1 |
1 | ||
| 90466-C0009 |
1ZRFE,2ZRFE..ZGR20,21 NO.1 |
1 | ||
| 90466-C0009 |
1ZRFE,2ZRFE,3ZRFE..ZGR2# (L),NO.2 |
1 | ||
| 16575C - BRACKET, WATER HOSE CLAMP, NO.1 | ||||
| 16575-37020 |
1ZRFE,2ZRFE,3ZRFE..ZGR2# |
1 | ||
| 16577C - PIPE, RADIATOR | ||||
| 16577-0T040 |
1ZRFE,2ZRFE,3ZRFE..ZGR2# |
1 | ||
| 16581B - CLAMP, HOSE(FOR RADIATOR HOSE) | ||||
| 16581-22110 |
1ZRFE,2ZRFE,3ZRFE..ZGR2# NO.1 |
1 | ||
| 16581-22120 |
1ZRFE,2ZRFE,3ZRFE..ZGR2# NO.2 |
1 | ||
| 16581B - CLAMP, HOSE(FOR RADIATOR HOSE) | ||||
| 16581-22110 |
1ZRFE,2ZRFE,3ZRFE..ZGR2# NO.1 |
1 | ||
| 16581-22120 |
1ZRFE,2ZRFE,3ZRFE..ZGR2# NO.2 |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-0T080 |
1ZRFE,2ZRFE,3ZRFE..ZGR2# |
1 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-0T060 |
1ZRFE,2ZRFE,3ZRFE..ZGR2# |
1 | ||
| Common parts | ||||
| 90099-04119 | ||||
| 90099-04612 | ||||
| 90099-05164 | ||||
| 90119-06887 | ||||
| 90119-C0085 | ||||
| 90119-C0107 | ||||
| 90119-C0329 | ||||
| 90480-18010 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8718 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
