ZGR21L-GWXEKC (2011)

Toyota E'Z

Production Jun 2011 - Dec 2016
Engine 2ZRFE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1106- )1ZRFE,2ZRFE

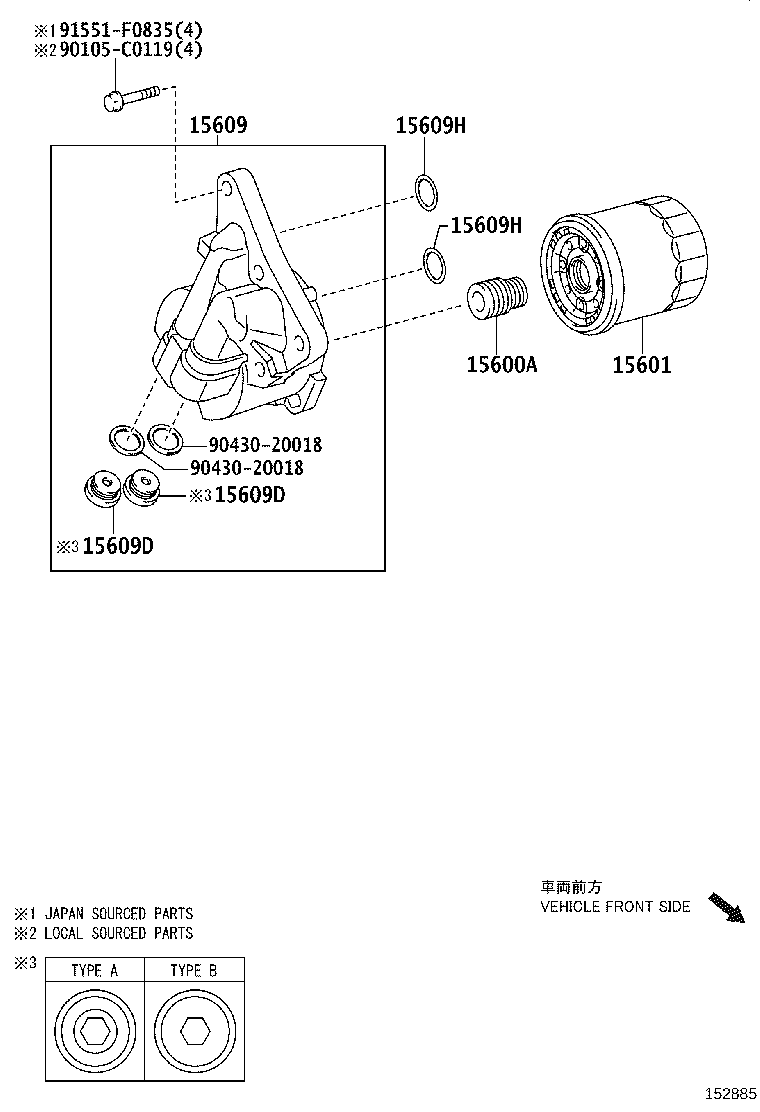

Click highlighted areas on diagram

diagram 15600A 15601 15609 15609D 15609D 15609H 15609H 90105C0119 9043020018 9043020018 91551F0835
Part # Description Qty Price
15600A - UNION(FOR OIL FILTER)
90904-04006

1ZRFE,2ZRFE..ZGR20,21

 1
15601 - FILTER SUB-ASSY, OIL
90915-10003

1ZRFE,2ZRFE..ZGR20,21

(J)

 1
90915-CA003

1ZRFE,2ZRFE..ZGR20,21

(L)

 1
15609 - BRACKET SUB-ASSY, OIL FILTER
15609-0T010

1ZRFE,2ZRFE..ZGR20,21

 1
15609D - PLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET)
90341-20012

1ZRFE,2ZRFE..ZGR20,21

 2
15609D - PLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET)
90341-20012

1ZRFE,2ZRFE..ZGR20,21

 2
15609H - RING, O(FOR OIL FILTER BRACKET)
96723-24020

1ZRFE,2ZRFE..ZGR20,21

(J)

 2
90301-C0033

1ZRFE,2ZRFE..ZGR20,21

(L)

 2
15609H - RING, O(FOR OIL FILTER BRACKET)
96723-24020

1ZRFE,2ZRFE..ZGR20,21

(J)

 2
90301-C0033

1ZRFE,2ZRFE..ZGR20,21

(L)

 2
Common parts
90105-C0119
90430-20018
91551-F0835
