ZGR21L-GWXEKC (2011)
Toyota E'Z
Production
Jun 2011
-
Dec 2016
Engine
2ZRFE
Transmission
CVFC ATM
Displacement
2500cc
Power
168 HP (125 kW)

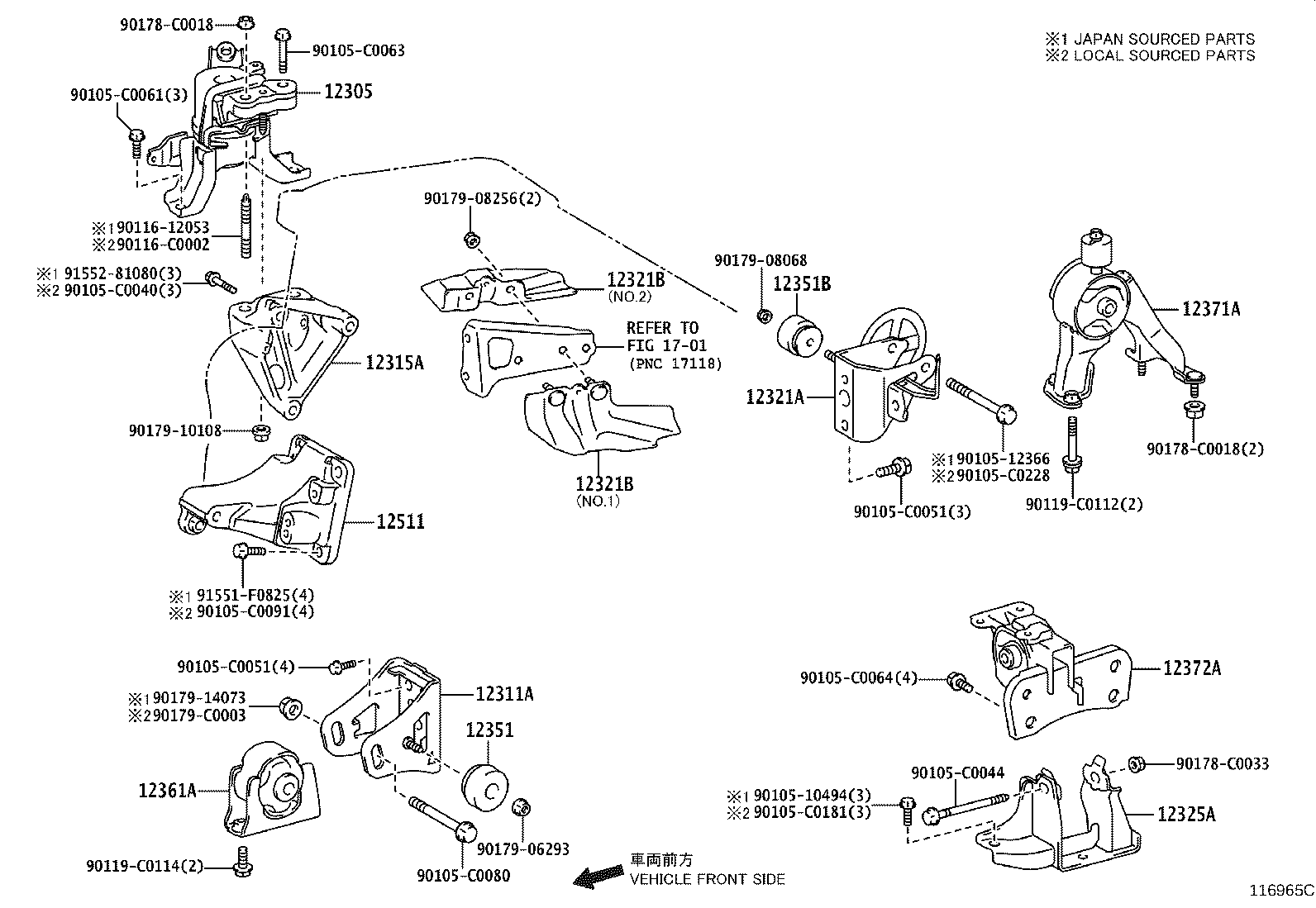

(1106- )2ZRFE..CVFC
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH | ||||
| 12305-0T140 |
1ZRFE,2ZRFE..ZGR20,21 |
1 | ||
| 12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE) | ||||
| 12311-0T160 |
1ZRFE,2ZRFE..ZGR20,21 |
1 | ||
| 12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) | ||||
| 12315-0T010 |
1ZRFE,2ZRFE..ZGR20,21 (L) |
1 | ||
| 12315-37030 |
1ZRFE,2ZRFE..ZGR20,21 (J) |
1 | ||
| 12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE) | ||||
| 12321-0T350 |
2ZRFE..ZGR21..CVFC |
1 | ||
| 12321B - INSULATOR SUB-ASSY, DRIVE SHAFT HEAT | ||||
| 43409-12060 |
1ZRFE,2ZRFE..ZGR20,21 NO.1 |
1 | ||
| 43498-12051 |
1ZRFE,2ZRFE..ZGR20,21 NO.2 |
1 | ||
| 12321B - INSULATOR SUB-ASSY, DRIVE SHAFT HEAT | ||||
| 43409-12060 |
1ZRFE,2ZRFE..ZGR20,21 NO.1 |
1 | ||
| 43498-12051 |
1ZRFE,2ZRFE..ZGR20,21 NO.2 |
1 | ||
| 12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12325-0T190 |
2ZRFE..ZGR21..CVFC |
1 | ||
| 12351 - DAMPER, ENGINE MOUNTING | ||||
| 12351-0T150 |
1ZRFE,2ZRFE,3ZRFE..ZGR2# |
1 | ||
| 12351B - DAMPER, ENGINE MOUNTING | ||||
| 12351-0T020 |
2ZRFE..ZGR21..CVFC |
1 | ||
| 12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE | ||||
| 12361-0T160 |
2ZRFE,3ZRFE..ZGR21,22..CVFC |
1 | ||
| 12371A - INSULATOR, ENGINE MOUNTING, REAR | ||||
| 12371-0T440 |
2ZRFE..ZGR21..CVFC |
1 | ||
| 12371-0T441 |
2ZRFE..ZGR21..CVFC |
1 | ||
| 12371-0T130 |
2ZRFE,3ZRFE..ZGR21,22..CVFC |
1 | ||
| 12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12372-0T250 |
2ZRFE..ZGR21..CVFC |
1 | ||
| 12511 - BRACKET, ALTERNATOR, NO.1 | ||||
| 12511-0T010 |
1ZRFE,2ZRFE..ZGR20,21 (L) |
1 | ||
| 12511-37010 |
1ZRFE,2ZRFE..ZGR20,21 (J) |
1 | ||
| Common parts | ||||
| 90105-10494 | ||||
| 90105-12366 | ||||
| 90105-C0040 | ||||
| 90105-C0044 | ||||
| 90105-C0051 | ||||
| 90105-C0061 | ||||
| 90105-C0063 | ||||
| 90105-C0064 | ||||
| 90105-C0080 | ||||
| 90105-C0091 | ||||
| 90105-C0181 | ||||
| 90105-C0228 | ||||
| 90116-12053 | ||||
| 90116-C0002 | ||||
| 90119-C0112 | ||||
| 90119-C0114 | ||||
| 90178-C0018 | ||||
| 90178-C0033 | ||||
| 90179-06293 | ||||
| 90179-08068 | ||||
| 90179-08256 | ||||
| 90179-10108 | ||||
| 90179-14073 | ||||
| 90179-C0003 | ||||
| 91551-F0825 | ||||
| 91552-81080 | ||||
| Linked diagrams | ||||
| 1701 | ||||
