ZGR21L-GWFDKC (2011)
Toyota E'Z
Production
Dec 2011
-
Dec 2016
Engine
2ZRFE
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(1106-1308)

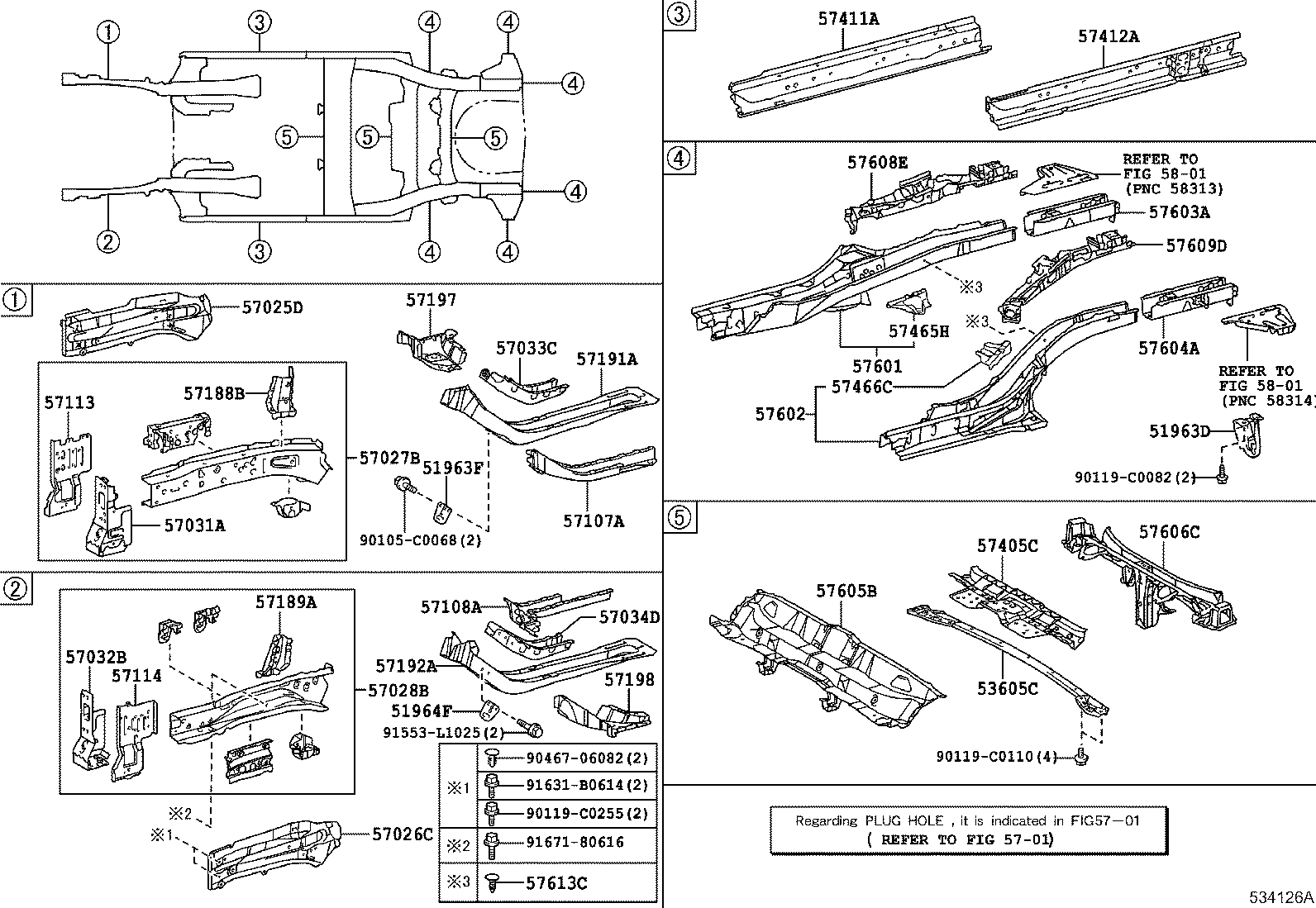

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51963D - HOOK, TRANSPORT, REAR LH | ||||
| 51968-02090 |
ZGR2# |
1 | ||
| 51963F - HOOK, TRANSPORT | ||||
| 51963-02110 |
ZGR2# |
1 | ||
| 51964F - HOOK, TRANSPORT, LH | ||||
| 51964-02040 |
ZGR2# |
1 | ||
| 53605C - BRACE SUB-ASSY, REAR FLOOR SIDE MEMBER | ||||
| 53605-0F020 |
ZGR2# |
1 | ||
| 57025D - MEMBER SUB-ASSY, FRONT SIDE, OUTER RH | ||||
| 57025-02040 |
ZGR2# |
1 | ||
| 57026C - MEMBER SUB-ASSY, FRONT SIDE, OUTER LH | ||||
| 57026-02040 |
ZGR2# |
1 | ||
| 57027B - MEMBER SUB-ASSY, FRONT SIDE, INNER RH | ||||
| 57027-02050 |
ZGR2# |
1 | ||
| 57028B - MEMBER SUB-ASSY, FRONT SIDE, INNER LH | ||||
| 57028-02040 |
ZGR2# |
1 | ||
| 57031A - REINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH | ||||
| 57031-02030 |
ZGR2# |
1 | ||
| 57032B - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH | ||||
| 57032-02030 |
ZGR2# |
1 | ||
| 57033C - REINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.3 RH | ||||
| 57033-02060 |
ZGR2# |
1 | ||
| 57034D - REINFORCE SUB-ASSY, FRONT SIDE MENBER, NO.3 LH | ||||
| 57034-02060 |
ZGR2# |
1 | ||
| 57107A - PLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH | ||||
| 57107-0F020 |
ZGR2# |
1 | ||
| 57108A - PLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH | ||||
| 57108-0F020 |
ZGR2# |
1 | ||
| 57113 - EXTENSION, FRONT SIDE MEMBER, RH | ||||
| 57113-02090 |
ZGR2# |
1 | ||
| 57114 - EXTENSION, FRONT SIDE MEMBER, LH | ||||
| 57114-02090 |
ZGR2# |
1 | ||
| 57188B - GUSSET, FRONT SIDE MEMBER TO SPRING SUPPORT, RH | ||||
| 57188-02030 |
ZGR2# |
1 | ||
| 57189A - GUSSET, FRONT SIDE MEMBER TO SPRING SUPPORT, LH | ||||
| 57189-02030 |
ZGR2# |
1 | ||
| 57191A - MEMBER, FRONT SIDE, INNER REAR RH | ||||
| 57191-0F011 |
ZGR2# |
1 | ||
| 57191-0F010 |
ZGR2# |
1 | ||
| 57192A - MEMBER, FRONT SIDE, INNER REAR LH | ||||
| 57192-0F010 |
ZGR2# |
1 | ||
| 57192-0F011 |
ZGR2# |
1 | ||
| 57197 - BOX, TORQUE, FRONT RH | ||||
| 57197-02060 |
ZGR2# |
1 | ||
| 57198 - BOX, TORQUE, FRONT LH | ||||
| 57198-02060 |
ZGR2# |
1 | ||
| 57405C - MEMBER SUB-ASSY, CENTER FLOOR CROSS, REAR | ||||
| 57405-0F020 |
ZGR2# |
1 | ||
| 57411A - MEMBER, FLOOR SIDE, INNER RH | ||||
| 57401-0F030 |
ZGR2# |
1 | ||
| 57412A - MEMBER, FLOOR SIDE, INNER LH | ||||
| 57402-0F030 |
ZGR2# |
1 | ||
| 57465H - GUSSET, CENTER FLOOR CROSSMEMBER, RH | ||||
| 57465-0F030 |
ZGR2# |
1 | ||
| 57466C - GUSSET, CENTER FLOOR CROSSMEMBER, LH | ||||
| 57466-0F030 |
ZGR2# |
1 | ||
| 57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH | ||||
| 57601-0F040 |
ZGR2# |
1 | ||
| 57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH | ||||
| 57602-0F040 |
ZGR2# |
1 | ||
| 57603A - MEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH | ||||
| 57603-0F040 |
ZGR2# |
1 | ||
| 57604A - MEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH | ||||
| 57604-0F040 |
ZGR2# |
1 | ||
| 57605B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1 | ||||
| 57605-0F031 |
ZGR2# |
1 | ||
| 57605-0F030 |
ZGR2# |
1 | ||
| 57606C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2 | ||||
| 57606-0F040 |
ZGR2# |
1 | ||
| 57608E - REINFORCE SUB-ASSY, SIDE MEMBER TO FLOOR, RH | ||||
| 57608-0F030 |
ZGR2# |
1 | ||
| 57609D - REINFORCE SUB-ASSY, SIDE MEMBER TO FLOOR, LH | ||||
| 57609-0F030 |
ZGR2# |
1 | ||
| 57613C - CLIP, REAR FLOOR SIDE MEMBER | ||||
| 90467-06020C0 |
ZGR2# BLACK |
2 | ||
| Common parts | ||||
| 90105-C0068 | ||||
| 90119-C0082 | ||||
| 90119-C0110 | ||||
| 90467-06082 | ||||
| 91553-L1025 | ||||
| 91631-B0614 | ||||
| 91671-80616 | ||||
| Linked diagrams | ||||
| 5701 | ||||
| 5801 | ||||
(1308- )

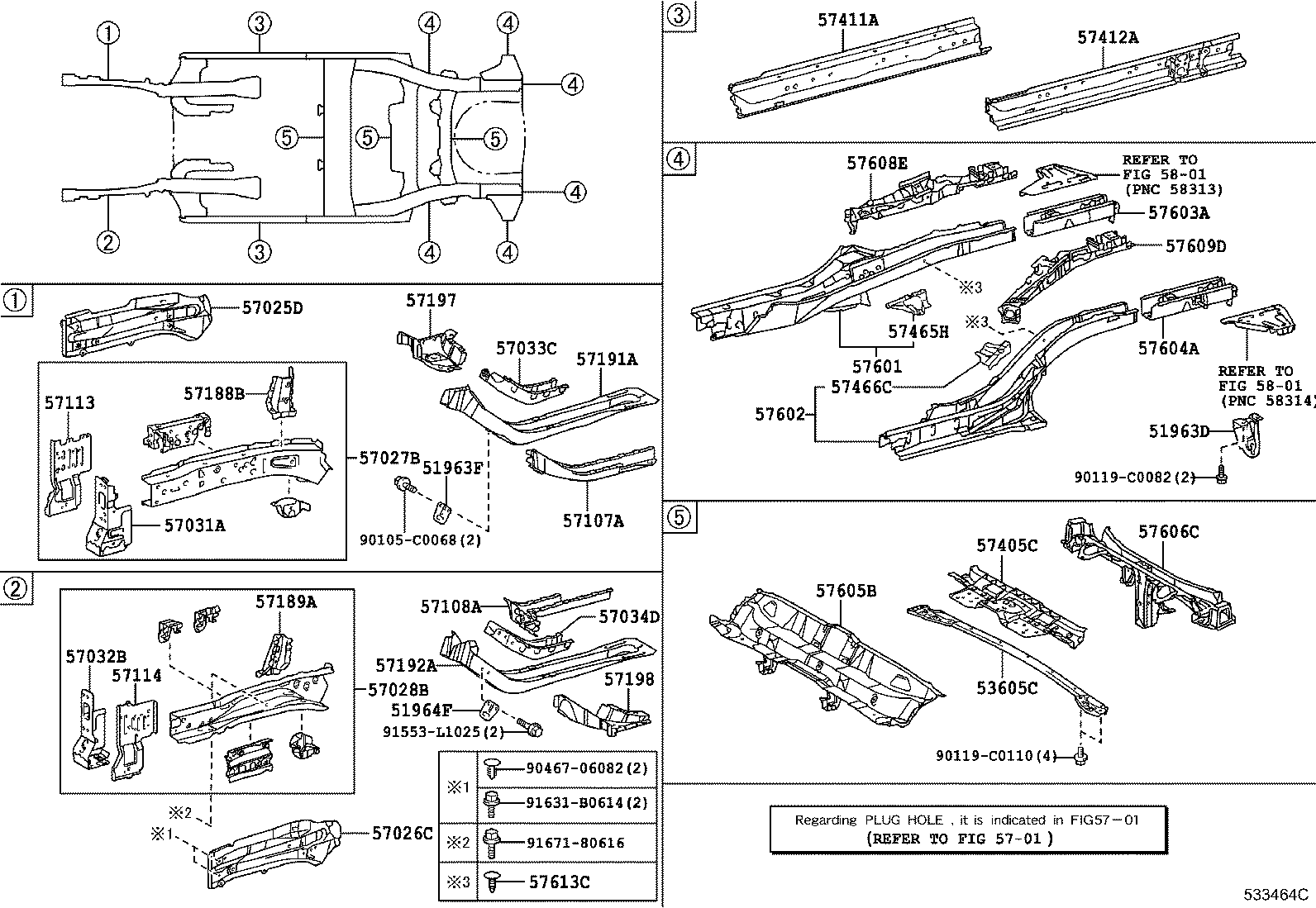

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51963D - HOOK, TRANSPORT, REAR LH | ||||
| 51968-02090 |
ZGR2# |
1 | ||
| 51963F - HOOK, TRANSPORT | ||||
| 51963-02110 |
ZGR2# |
1 | ||
| 51964F - HOOK, TRANSPORT, LH | ||||
| 51964-02040 |
ZGR2# |
1 | ||
| 53605C - BRACE SUB-ASSY, REAR FLOOR SIDE MEMBER | ||||
| 53605-0F020 |
ZGR2# |
1 | ||
| 57025D - MEMBER SUB-ASSY, FRONT SIDE, OUTER RH | ||||
| 57025-02040 |
ZGR2# |
1 | ||
| 57026C - MEMBER SUB-ASSY, FRONT SIDE, OUTER LH | ||||
| 57026-02040 |
ZGR2# |
1 | ||
| 57027B - MEMBER SUB-ASSY, FRONT SIDE, INNER RH | ||||
| 57027-02050 |
ZGR2# |
1 | ||
| 57028B - MEMBER SUB-ASSY, FRONT SIDE, INNER LH | ||||
| 57028-02040 |
ZGR2# |
1 | ||
| 57031A - REINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH | ||||
| 57031-02030 |
ZGR2# |
1 | ||
| 57032B - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH | ||||
| 57032-02030 |
ZGR2# |
1 | ||
| 57033C - REINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.3 RH | ||||
| 57033-02060 |
ZGR2# |
1 | ||
| 57034D - REINFORCE SUB-ASSY, FRONT SIDE MENBER, NO.3 LH | ||||
| 57034-02060 |
ZGR2# |
1 | ||
| 57107A - PLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH | ||||
| 57107-0F020 |
ZGR2# |
1 | ||
| 57108A - PLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH | ||||
| 57108-0F020 |
ZGR2# |
1 | ||
| 57113 - EXTENSION, FRONT SIDE MEMBER, RH | ||||
| 57113-02090 |
ZGR2# |
1 | ||
| 57114 - EXTENSION, FRONT SIDE MEMBER, LH | ||||
| 57114-02090 |
ZGR2# |
1 | ||
| 57188B - GUSSET, FRONT SIDE MEMBER TO SPRING SUPPORT, RH | ||||
| 57188-02030 |
ZGR2# |
1 | ||
| 57189A - GUSSET, FRONT SIDE MEMBER TO SPRING SUPPORT, LH | ||||
| 57189-02030 |
ZGR2# |
1 | ||
| 57191A - MEMBER, FRONT SIDE, INNER REAR RH | ||||
| 57191-0F011 |
ZGR2# |
1 | ||
| 57191-0F010 |
ZGR2# |
1 | ||
| 57192A - MEMBER, FRONT SIDE, INNER REAR LH | ||||
| 57192-0F010 |
ZGR2# |
1 | ||
| 57192-0F011 |
ZGR2# |
1 | ||
| 57197 - BOX, TORQUE, FRONT RH | ||||
| 57197-02060 |
ZGR2# |
1 | ||
| 57198 - BOX, TORQUE, FRONT LH | ||||
| 57198-02060 |
ZGR2# |
1 | ||
| 57405C - MEMBER SUB-ASSY, CENTER FLOOR CROSS, REAR | ||||
| 57405-0F020 |
ZGR2# |
1 | ||
| 57411A - MEMBER, FLOOR SIDE, INNER RH | ||||
| 57401-0F030 |
ZGR2# |
1 | ||
| 57412A - MEMBER, FLOOR SIDE, INNER LH | ||||
| 57402-0F030 |
ZGR2# |
1 | ||
| 57465H - GUSSET, CENTER FLOOR CROSSMEMBER, RH | ||||
| 57465-0F030 |
ZGR2# |
1 | ||
| 57466C - GUSSET, CENTER FLOOR CROSSMEMBER, LH | ||||
| 57466-0F030 |
ZGR2# |
1 | ||
| 57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH | ||||
| 57601-0F040 |
ZGR2# |
1 | ||
| 57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH | ||||
| 57602-0F040 |
ZGR2# |
1 | ||
| 57603A - MEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH | ||||
| 57603-0F040 |
ZGR2# |
1 | ||
| 57604A - MEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH | ||||
| 57604-0F040 |
ZGR2# |
1 | ||
| 57605B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1 | ||||
| 57605-0F031 |
ZGR2# |
1 | ||
| 57605-0F030 |
ZGR2# |
1 | ||
| 57606C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2 | ||||
| 57606-0F040 |
ZGR2# |
1 | ||
| 57608E - REINFORCE SUB-ASSY, SIDE MEMBER TO FLOOR, RH | ||||
| 57608-0F030 |
ZGR2# |
1 | ||
| 57609D - REINFORCE SUB-ASSY, SIDE MEMBER TO FLOOR, LH | ||||
| 57609-0F030 |
ZGR2# |
1 | ||
| 57613C - CLIP, REAR FLOOR SIDE MEMBER | ||||
| 90467-06020C0 |
ZGR2# BLACK |
2 | ||
| Common parts | ||||
| 90105-C0068 | ||||
| 90119-C0082 | ||||
| 90119-C0110 | ||||
| 90119-C0255 | ||||
| 90467-06082 | ||||
| 91553-L1025 | ||||
| 91631-B0614 | ||||
| 91671-80616 | ||||
| Linked diagrams | ||||
| 5701 | ||||
| 5801 | ||||
