ZGR21L-GRFEKC (2011)

Toyota E'Z

Production Jun 2011 - Dec 2016
Engine 2ZRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1106- )6F

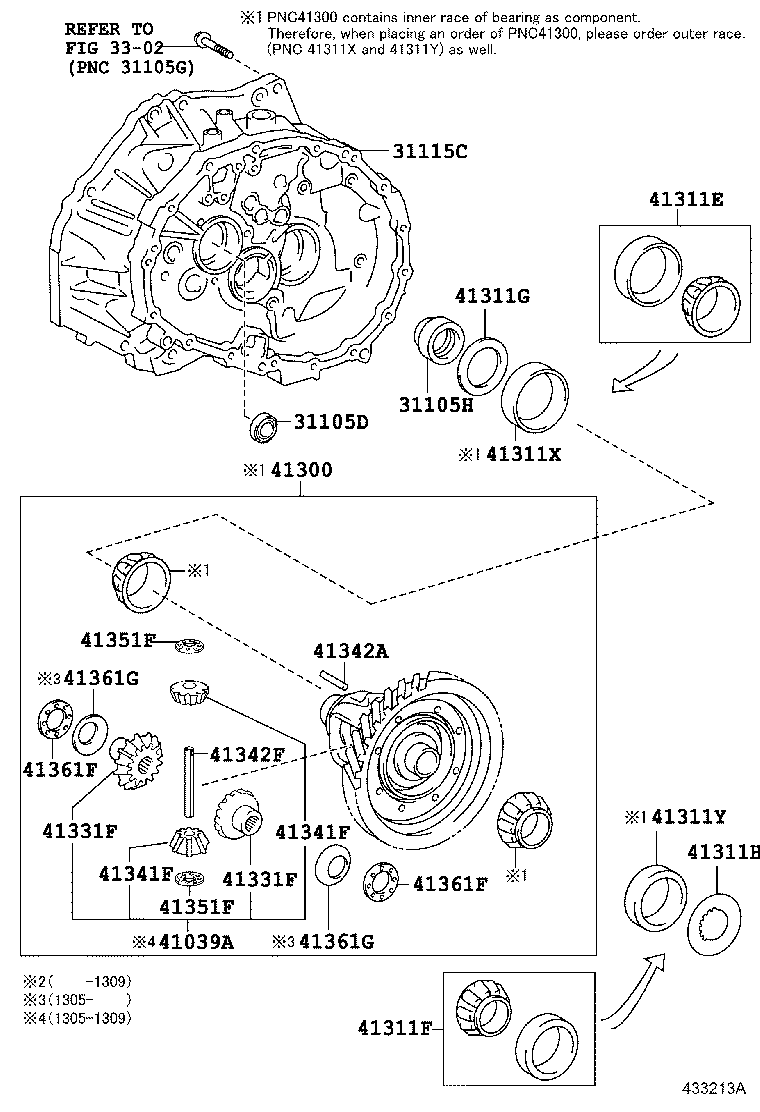

Click highlighted areas on diagram

EC61,EC62

diagram 31105D 31105H 31115C 3302 41039A 41300 41311E 41311F 41311G 41311H 41311X 41311Y 41331F 41331F 41341F 41341F 41342A 41342F 41351F 41351F 41361F 41361F 41361G 41361G
Part # Description Qty Price
31105D - SEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE)
90311-25030

ZGR20,21..6F

 1
31105H - SEAL, OIL, NO.2(FOR TRANSAXLE CASE)
90311-35065

ZGR20,21..6F

 1
31115C - CASE, FRONT TRANSAXLE(MTM)
31115-12200

ZGR20,21..6F

*201

 1
31115-12201

ZGR2#..6F

*201

 1
41039A - GEAR KIT, DIFFERENTIAL
41039-12050

ZGR20,21..6F

 1
41300 - CASE ASSY, FRONT DIFFERENTIAL, W/RING GEAR
41300-12150

ZGR2#..6F

 1
41300-12070

ZGR20,21..6F

 1
41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FR
90366-40129

ZGR20,21..6F

*201

 1
41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE RE
90366-42009

ZGR20,21..6F

(J)

 1
41311G - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE FRONT)
90560-41003

ZGR20,21..6F

T=2.1

 1
41311H - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE REAR)
90564-44045

ZGR20,21..6F

T=2.250, MARK 16

 1
90564-44050

ZGR20,21..6F

T=2.375, MARK 21

 1
90564-44047

ZGR20,21..6F

T=2.300, MARK 18

 1
90564-44052

ZGR20,21..6F

T=2.425, MARK 23

 1
90564-44049

ZGR20,21..6F

T=2.350, MARK 20

 1
90564-44042

ZGR20,21..6F

T=2.175, MARK 13

 1
90564-44054

ZGR20,21..6F

T=2.475, MARK 25

 1
90564-44043

ZGR20,21..6F

T=2.200, MARK 14

 1
90564-44039

ZGR20,21..6F

T=2.100, MARK 10

 1
90564-44053

ZGR20,21..6F

T=2.450, MARK 24

 1
90564-44048

ZGR20,21..6F

T=2.325, MARK 19

 1
90564-44060

ZGR20,21..6F

T=2.625, MARK 31

 1
90564-44046

ZGR20,21..6F

T=2.275, MARK 17

 1
90564-44057

ZGR20,21..6F

T=2.550, MARK 28

 1
90564-44041

ZGR20,21..6F

T=2.150, MARK 12

 1
90564-44051

ZGR20,21..6F

T=2.400, MARK 22

 1
90564-44055

ZGR20,21..6F

T=2.500, MARK 26

 1
90564-44044

ZGR20,21..6F

T=2.225, MARK 15

 1
90564-44059

ZGR20,21..6F

T=2.600, MARK 30

 1
90564-44058

ZGR20,21..6F

T=2.575, MARK 29

 1
90564-44040

ZGR20,21..6F

T=2.125, MARK 11

 1
90564-44061

ZGR20,21..6F

T=2.650, MARK 32

 1
90564-44067

ZGR20,21..6F

T=2.800, MARK 38

 1
90564-44062

ZGR20,21..6F

T=2.675, MARK 33

 1
90564-44065

ZGR20,21..6F

T=2.750, MARK 36

 1
90564-44056

ZGR20,21..6F

T=2.525, MARK 27

 1
90564-44066

ZGR20,21..6F

T=2.775, MARK 37

 1
90564-44064

ZGR20,21..6F

T=2.725, MARK 35

 1
90564-44069

ZGR20,21..6F

T=2.850, MARK 40

 1
90564-44068

ZGR20,21..6F

T=2.825, MARK 39

 1
90564-44063

ZGR20,21..6F

T=2.700, MARK 34

 1
41311X - OUTER RACE, TAPERED ROLLER BEARING (FOR DIFF. CASE FRON
90366-40130

ZGR20,21..6F

 1
41311Y - OUTER RACE, TAPERED ROLLER BEARING (FOR DIFF. CASE REAR
90366-42010

ZGR20,21..6F

 1
41331F - GEAR, FRONT DIFFERENTIAL SIDE
41331-12190

ZGR20,21..6F

 2
41331-12150

ZGR20,21..6F

 2
41331F - GEAR, FRONT DIFFERENTIAL SIDE
41331-12190

ZGR20,21..6F

 2
41331-12150

ZGR20,21..6F

 2
41341F - PINION, FRONT DIFFERENTIAL
41341-12130

ZGR20,21..6F

 2
41341-12100

ZGR20,21..6F

 2
41341F - PINION, FRONT DIFFERENTIAL
41341-12130

ZGR20,21..6F

 2
41341-12100

ZGR20,21..6F

 2
41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
90250-06058

ZGR20,21..6F

 1
41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1
41342-32020

ZGR20,21..6F

 1
41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST
41351-32010

ZGR20,21..6F

 2
41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST
41351-32010

ZGR20,21..6F

 2
41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-22040

ZGR20,21..6F

T=1.20,MARK 04

 2
41361-22150

ZGR20,21..6F

T=1.05,MARK 15

 2
41361-22160

ZGR20,21..6F

T=1.15,MARK 16

 2
41361-48010

ZGR2#..6F

T=0.90,MARK 19

 2
41361-22020

ZGR20,21..6F

T=1.00,MARK 02

 2
41361-22140

ZGR20,21..6F

T=0.95,MARK 14

 2
41361-22030

ZGR20,21..6F

T=1.10,MARK 03

 2
41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-22040

ZGR20,21..6F

T=1.20,MARK 04

 2
41361-22150

ZGR20,21..6F

T=1.05,MARK 15

 2
41361-22160

ZGR20,21..6F

T=1.15,MARK 16

 2
41361-48010

ZGR2#..6F

T=0.90,MARK 19

 2
41361-22020

ZGR20,21..6F

T=1.00,MARK 02

 2
41361-22140

ZGR20,21..6F

T=0.95,MARK 14

 2
41361-22030

ZGR20,21..6F

T=1.10,MARK 03

 2
41361G - WASHER, CONICAL SPRING(FOR CENTER DIFFERENTIAL SIDE GEA
90208-35001

ZGR20,21..6F

 2
41361G - WASHER, CONICAL SPRING(FOR CENTER DIFFERENTIAL SIDE GEA
90208-35001

ZGR20,21..6F

 2
Linked diagrams
3302
