ZGR20L-GWFEKC (2011)

Toyota E'Z

Production Jun 2011 - Dec 2016
Engine 1ZRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1106- )

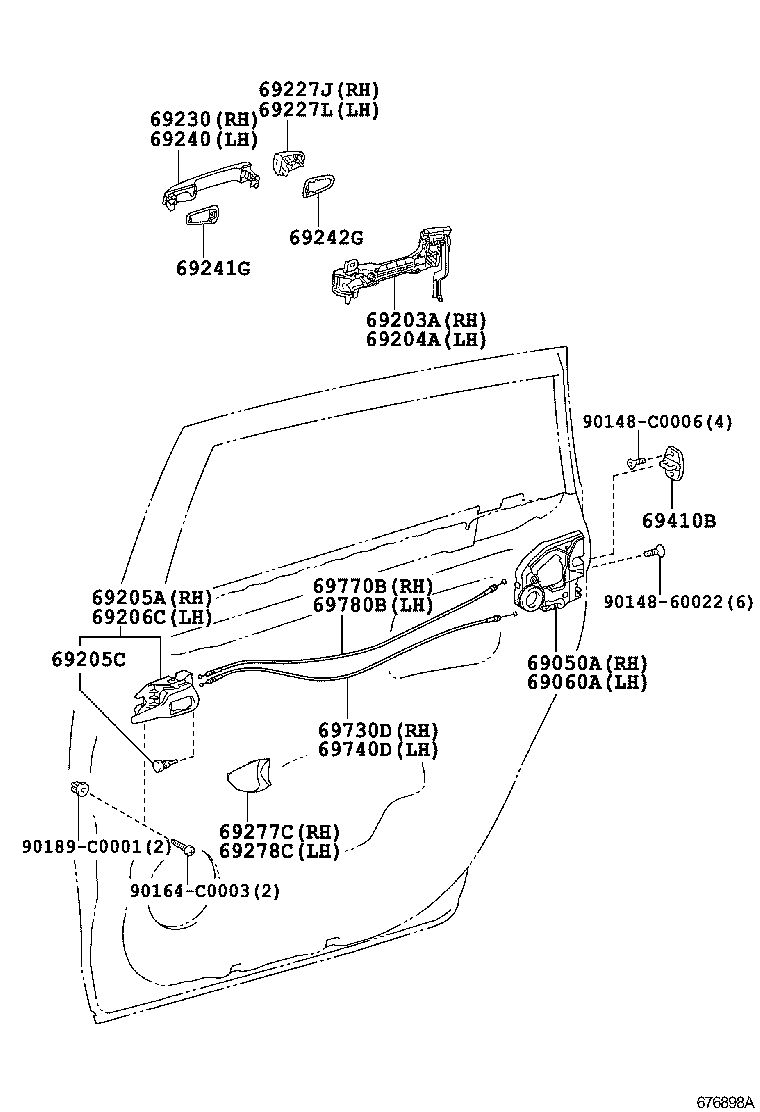

Click highlighted areas on diagram

diagram 69050A 69060A 69203A 69204A 69205A 69205C 69206C 69227J 69227L 69230 69240 69241G 69242G 69277C 69278C 69410B 69730D 69740D 69770B 69780B 9014860022 90148C0006 90164C0003 90189C0001
Part # Description Qty Price
69050A - LOCK ASSY, REAR DOOR W/MOTOR, RH
69050-0F050

ZGR2#

 1
69060A - LOCK ASSY, REAR DOOR W/MOTOR, LH
69060-0F050

ZGR2#

 1
69203A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69203-0F030

ZGR2#

 1
69204A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69204-0F030

ZGR2#

 1
69205A - HANDLE SUB-ASSY, REAR DOOR INSIDE, RH
69205-02140B2

ZGR2#

ORNAMENT SILVER,TRIM4#

 1
69205C - CUSHION(FOR REAR DOOR INSIDE HANDLE)
90541-04027

ZGR2#

 2
69206C - HANDLE SUB-ASSY, REAR DOOR INSIDE, LH
69206-02140B2

ZGR2#

ORNAMENT SILVER,TRIM4#

 1
69227J - COVER, REAR DOOR OUTSIDE HANDLE, RH
69250-0N050A1

ZGR2#

WHITE PEARL CS.,070

 1
69250-0N050C1

ZGR2#

ATTITUDE BLACK MC.,218

 1
69250-0N050E0

ZGR2#

BEIGE ME.,4T8

 1
69250-0N050B4

ZGR2#

GRAY ME.,1G3

 1
69250-0N050D2

ZGR2#

RED M.M.,3R3

 1
69250-0N050J0

ZGR2#

DK.BLUE MC.,8S6

 1
69250-0N050B3

ZGR2#

SILVER ME.,1D4

 1
69250-0N050C0

ZGR2#

BLACK,202

 1
69227L - COVER, REAR DOOR OUTSIDE HANDLE, LH
69250-0N050C0

ZGR2#

BLACK,202

 1
69250-0N050B3

ZGR2#

SILVER ME.,1D4

 1
69250-0N050A1

ZGR2#

WHITE PEARL CS.,070

 1
69250-0N050J0

ZGR2#

DK.BLUE MC.,8S6

 1
69250-0N050E0

ZGR2#

BEIGE ME.,4T8

 1
69250-0N050D2

ZGR2#

RED M.M.,3R3

 1
69250-0N050B4

ZGR2#

GRAY ME.,1G3

 1
69250-0N050C1

ZGR2#

ATTITUDE BLACK MC.,218

 1
69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH
69210-0P020C0

ZGR2#

BLACK,202

 1
69210-0P020J0

ZGR2#

DK.BLUE MC.,8S6

 1
69210-0P020B2

ZGR2#

SILVER ME.,1D4

 1
69210-0P020E0

ZGR2#

BEIGE ME.,4T8

 1
69210-0P020A1

ZGR2#

WHITE PEARL CS.,070

 1
69210-0P020D1

ZGR2#

RED M.M.,3R3

 1
69210-0P020B3

ZGR2#

GRAY ME.,1G3

 1
69210-0P020C1

ZGR2#

ATTITUDE BLACK MC.,218

 1
69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH
69210-0P020B2

ZGR2#

SILVER ME.,1D4

 1
69210-0P020A1

ZGR2#

WHITE PEARL CS.,070

 1
69210-0P020E0

ZGR2#

BEIGE ME.,4T8

 1
69210-0P020J0

ZGR2#

DK.BLUE MC.,8S6

 1
69210-0P020C0

ZGR2#

BLACK,202

 1
69210-0P020B3

ZGR2#

GRAY ME.,1G3

 1
69210-0P020D1

ZGR2#

RED M.M.,3R3

 1
69210-0P020C1

ZGR2#

ATTITUDE BLACK MC.,218

 1
69241G - PAD, REAR DOOR OUTSIDE HANDLE, FRONT
69241-30110

ZGR2#

 2
69241-30111

ZGR2#

 2
69242G - PAD, REAR DOOR OUTSIDE HANDLE, REAR
69242-30090

ZGR2#

 2
69242-47020

ZGR2#

 2
69277C - BEZEL, REAR DOOR INSIDE HANDLE, RH
69277-0F020E0

ZGR2#

ASH BROWN,TRIM4#

 1
69278C - BEZEL, REAR DOOR INSIDE HANDLE, LH
69278-0F020E0

ZGR2#

ASH BROWN,TRIM4#

 1
69410B - PLATE ASSY, REAR DOOR LOCK STRIKER
69410-0P010

ZGR2#

 2
69730D - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
69730-0F020

ZGR2#

 1
69740D - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
69730-0F020

ZGR2#

 1
69770B - CABLE ASSY, REAR DOOR INSIDE LOCKING, RH
69770-0F020

ZGR2#

 1
69780B - CABLE ASSY, REAR DOOR INSIDE LOCKING, LH
69770-0F020

ZGR2#

 1
Common parts
90148-60022
90148-C0006
90164-C0003
90189-C0001
