ZGR20L-GWFDKC (2011)

Toyota E'Z

Production Jun 2011 - Dec 2016
Engine 1ZRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1106-1109)

Click highlighted areas on diagram

12V 1.6KW

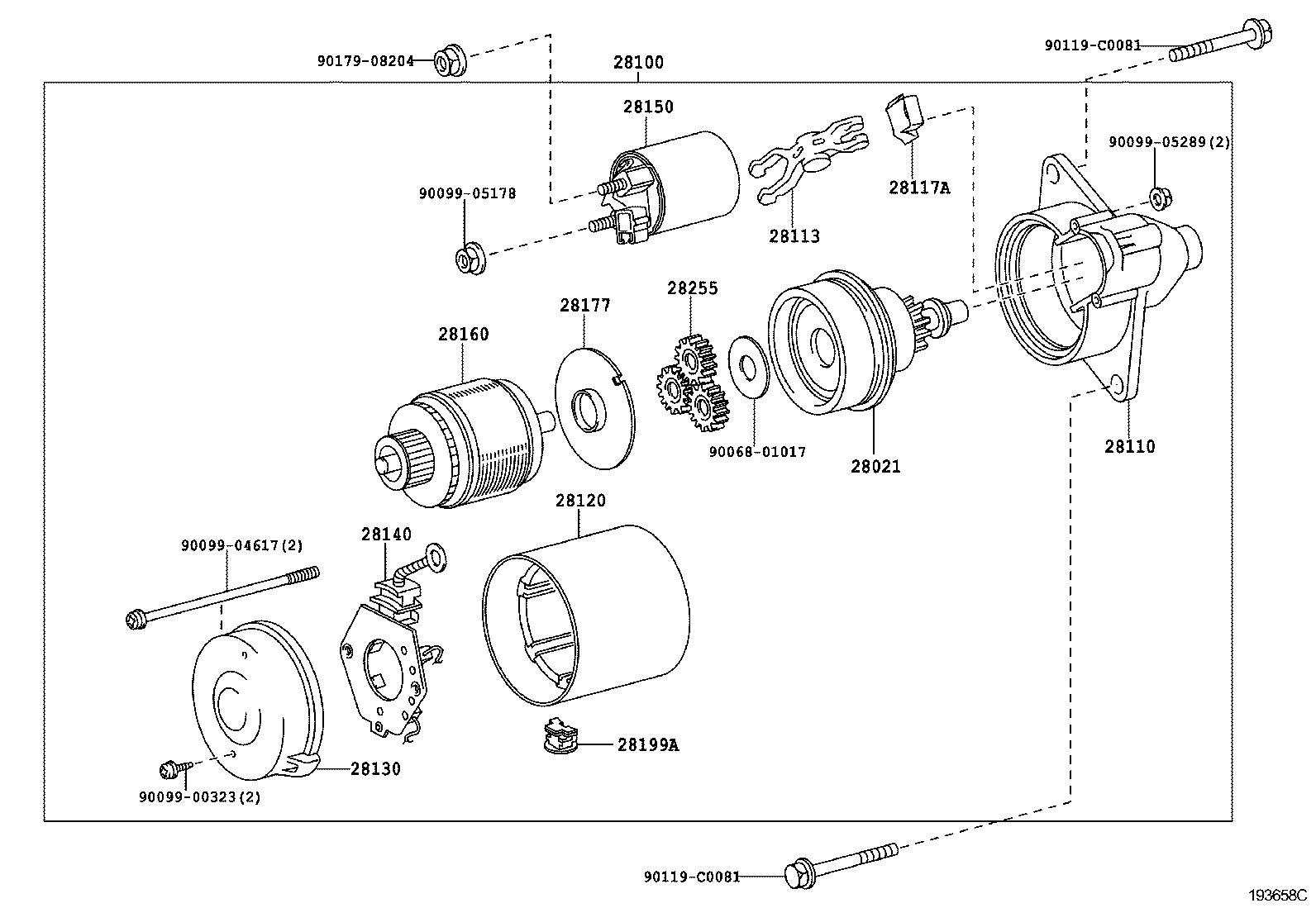

diagram 28100 28110 28113 28117A 28130 28177 28199A 28255 9006801017 9009900323 9009904617 9009905178 90119C0081 90119C0081 9017908204
Part # Description Qty Price
28100 - STARTER ASSY
28100-0T300

1ZRFE,2ZRFE,3ZRFE..ZGR2#

12V 1.6KW

 1
28100-0T020

1ZRFE,2ZRFE,3ZRFE..ZGR2#

12V 1.6KW

 1
28110 - HOUSING ASSY, STARTER DRIVE
28110-0T020

1ZRFE,2ZRFE,3ZRFE..ZGR2#

 1
28110-37040

1ZRFE,2ZRFE,3ZRFE..ZGR2#

 1
28113 - LEVER, STARTER PINION DRIVE
28113-0T020

1ZRFE,2ZRFE,3ZRFE..ZGR2#

 1
28117A - SEAL, RUBBER
28117-0T020

1ZRFE,2ZRFE,3ZRFE..ZGR2#

 1
28130 - FRAME ASSY, STARTER COMMUTATOR END
28130-0T020

1ZRFE,2ZRFE,3ZRFE..ZGR2#

 1
28130-37120

1ZRFE,2ZRFE,3ZRFE..ZGR2#

 1
28177 - PLATE(FOR STARTER ARMATURE)
28177-28040

1ZRFE,2ZRFE,3ZRFE..ZGR2#

 1
28177-0T020

1ZRFE,2ZRFE,3ZRFE..ZGR2#

 1
28199A - PROTECTOR, DUST STARTER
28199-37050

1ZRFE,2ZRFE,3ZRFE..ZGR2#

 1
28255 - GEAR, PLANET
28255-28040

1ZRFE,2ZRFE,3ZRFE..ZGR2#

 3
28255-37050

1ZRFE,2ZRFE,3ZRFE..ZGR2#

 3
Common parts
90068-01017
90099-00323
90099-04617
90099-05178
90119-C0081
90179-08204

(1109-1301)

Click highlighted areas on diagram

12V 1.6KW

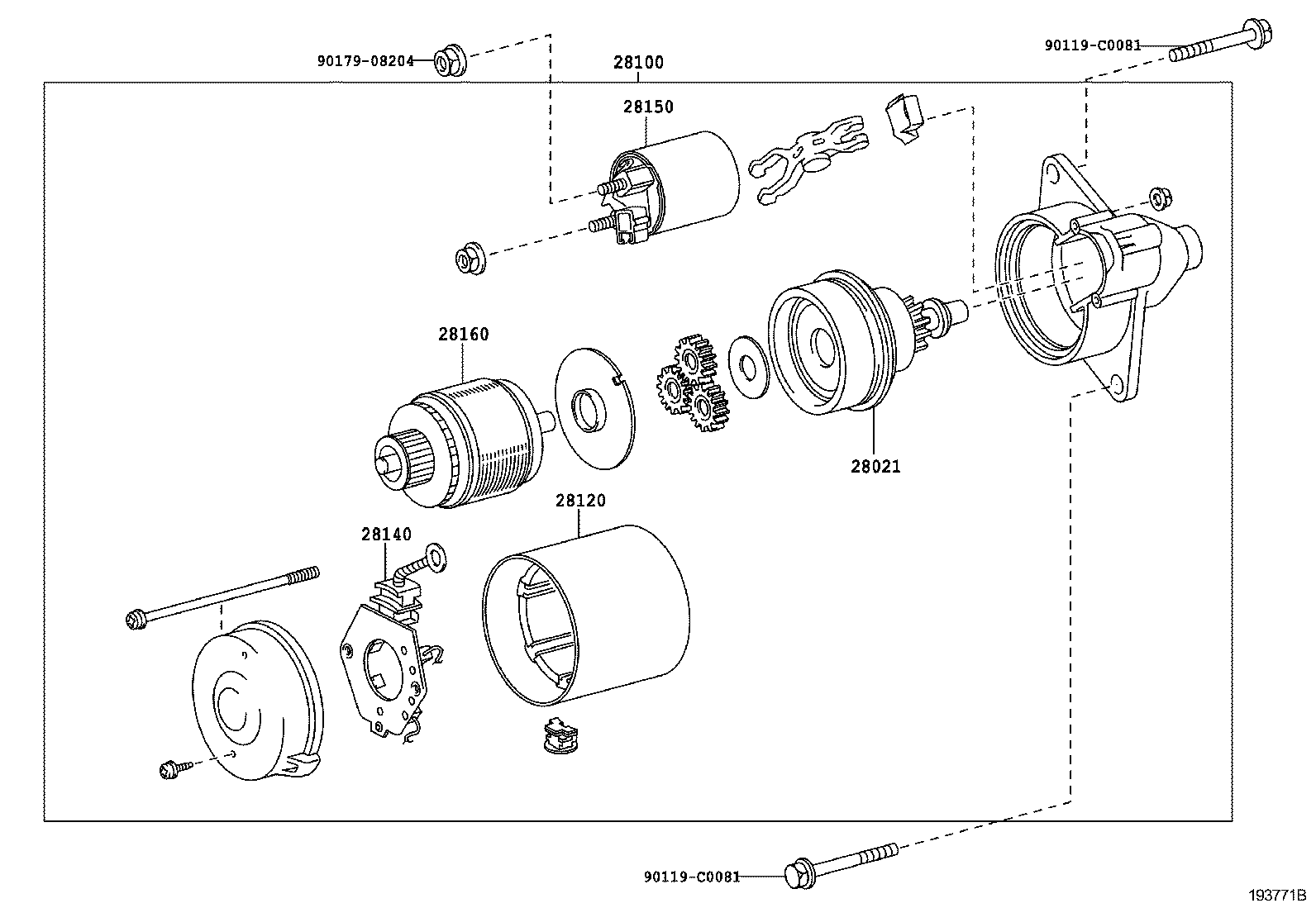

diagram 28100 90119C0081 90119C0081 9017908204
Part # Description Qty Price
28100 - STARTER ASSY
28100-0T300

1ZRFE,2ZRFE,3ZRFE..ZGR2#

12V 1.6KW

 1
28100-0T020

1ZRFE,2ZRFE,3ZRFE..ZGR2#

12V 1.6KW

 1
Common parts
90119-C0081
90179-08204

(1301- )

Click highlighted areas on diagram

12V 1.6KW

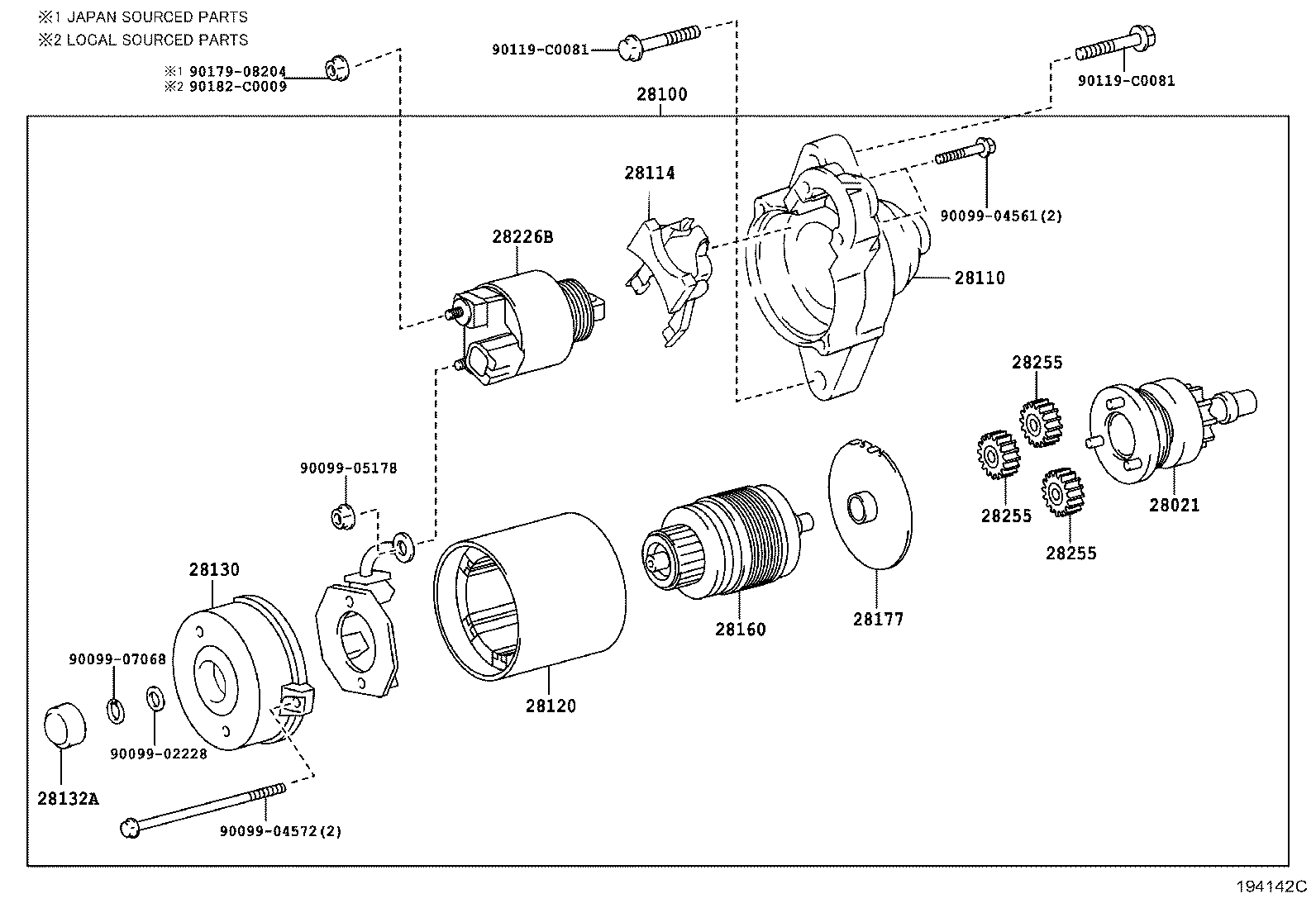

diagram 28021 28100 28110 28114 28120 28130 28132A 28160 28177 28226B 28255 28255 28255 9009902228 9009904561 9009904572 9009905178 9009907068 90119C0081 90119C0081 9017908204 90182C0009
Part # Description Qty Price
28021 - CLUTCH SUB-ASSY, STARTER CENTER BEARING
28021-37050

1ZRFE,2ZRFE,3ZRFE..ZGR2#

 1
28021-21060

1ZRFE,2ZRFE,3ZRFE..ZGR2#

 1
28100 - STARTER ASSY
28100-0T300

1ZRFE,2ZRFE,3ZRFE..ZGR2#

12V 1.6KW

 1
28100-0T020

1ZRFE,2ZRFE,3ZRFE..ZGR2#

12V 1.6KW

 1
28110 - HOUSING ASSY, STARTER DRIVE
28110-0T020

1ZRFE,2ZRFE,3ZRFE..ZGR2#

 1
28110-37040

1ZRFE,2ZRFE,3ZRFE..ZGR2#

 1
28114 - PIN, STARTER DRIVE LEVER SET
28114-21060

1ZRFE,2ZRFE,3ZRFE..ZGR2#

 1
28120 - YOKE ASSY, STARTER
28120-37050

1ZRFE,2ZRFE,3ZRFE..ZGR2#

 1
28120-28060

1ZRFE,2ZRFE,3ZRFE..ZGR2#

 1
28130 - FRAME ASSY, STARTER COMMUTATOR END
28130-0T020

1ZRFE,2ZRFE,3ZRFE..ZGR2#

 1
28130-37120

1ZRFE,2ZRFE,3ZRFE..ZGR2#

 1
28132A - COVER, STARTER COMMUTATOR END FRAME
28132-28040

1ZRFE,2ZRFE,3ZRFE..ZGR2#

 1
28160 - ARMATURE ASSY, STARTER
28160-21060

1ZRFE,2ZRFE,3ZRFE..ZGR2#

 1
28160-0T020

1ZRFE,2ZRFE,3ZRFE..ZGR2#

 1
28177 - PLATE(FOR STARTER ARMATURE)
28177-28040

1ZRFE,2ZRFE,3ZRFE..ZGR2#

 1
28177-0T020

1ZRFE,2ZRFE,3ZRFE..ZGR2#

 1
28226B - STARTER KIT, REPAIR SERVICE
28226-37120

1ZRFE,2ZRFE,3ZRFE..ZGR2#

 1
28255 - GEAR, PLANET
28255-28040

1ZRFE,2ZRFE,3ZRFE..ZGR2#

 3
28255-37050

1ZRFE,2ZRFE,3ZRFE..ZGR2#

 3
28255 - GEAR, PLANET
28255-28040

1ZRFE,2ZRFE,3ZRFE..ZGR2#

 3
28255-37050

1ZRFE,2ZRFE,3ZRFE..ZGR2#

 3
28255 - GEAR, PLANET
28255-28040

1ZRFE,2ZRFE,3ZRFE..ZGR2#

 3
28255-37050

1ZRFE,2ZRFE,3ZRFE..ZGR2#

 3
Common parts
90099-02228
90099-04561
90099-04572
90099-05178
90099-07068
90119-C0081
90179-08204
90182-C0009
