ZGR20L-GWFDKC (2011)

Toyota E'Z

Production Jun 2011 - Dec 2016
Engine 1ZRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1106- )

Click highlighted areas on diagram

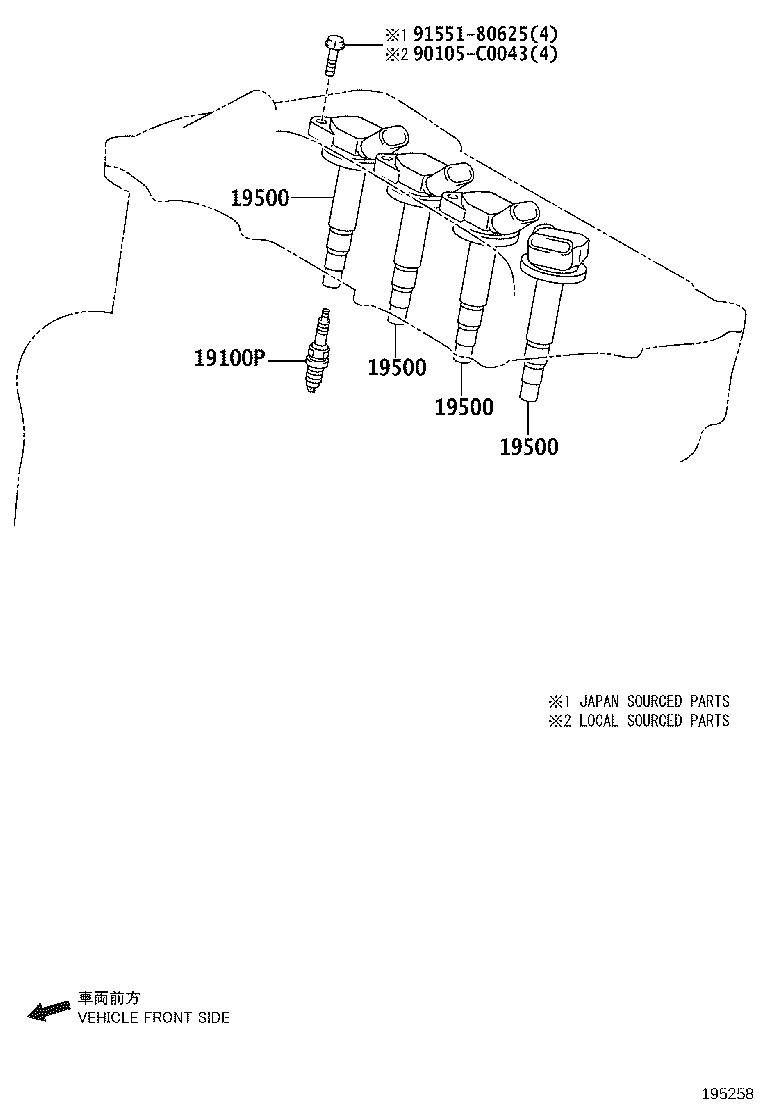

diagram 19100P 19500 19500 19500 19500 90105C0043 9155180625
Part # Description Qty Price
19100P - PLUG, SPARK
90919-T1009

1ZRFE,2ZRFE..ZGR20,21

SC20HR11,(L)

 4
90919-T1014

1ZRFE,2ZRFE..ZGR2#

SC16HR11

 4
90919-01253

1ZRFE,2ZRFE..ZGR2#

SC20HR11,(J)

 4
90919-C1010

1ZRFE,2ZRFE..ZGR2#

SC20HR11

 4
19500 - COIL ASSY, IGNITION
90919-02258

1ZRFE,2ZRFE..ZGR20,21

(J)

 4
90919-C2005

1ZRFE,2ZRFE..ZGR20,21

(L)

 4
19500 - COIL ASSY, IGNITION
90919-02258

1ZRFE,2ZRFE..ZGR20,21

(J)

 4
90919-C2005

1ZRFE,2ZRFE..ZGR20,21

(L)

 4
19500 - COIL ASSY, IGNITION
90919-02258

1ZRFE,2ZRFE..ZGR20,21

(J)

 4
90919-C2005

1ZRFE,2ZRFE..ZGR20,21

(L)

 4
19500 - COIL ASSY, IGNITION
90919-02258

1ZRFE,2ZRFE..ZGR20,21

(J)

 4
90919-C2005

1ZRFE,2ZRFE..ZGR20,21

(L)

 4
Common parts
90105-C0043
91551-80625
