YU82R-MDDT3 (1988)

Toyota Dyna 200

Production Aug 1988 - May 1995
Engine 4Y
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )B,11B,14B

Click highlighted areas on diagram

diagram 17111 17114A 17141 17152 17159 17159 17167 17168 17172 17173 19829 19829 9011008018 9011608280 9011910346 9017908040 9020112014 9056012033 9056012033 9161160825 9161160825 9162160816 9411040800 9418461000 9461310800
Part # Description Qty Price
Common parts
90110-08018
90116-08280
90119-10346
90179-08040
90201-12014
90560-12033
91611-60825
91621-60816
94110-40800
94184-61000
94613-10800

(8808- )4Y

Click highlighted areas on diagram

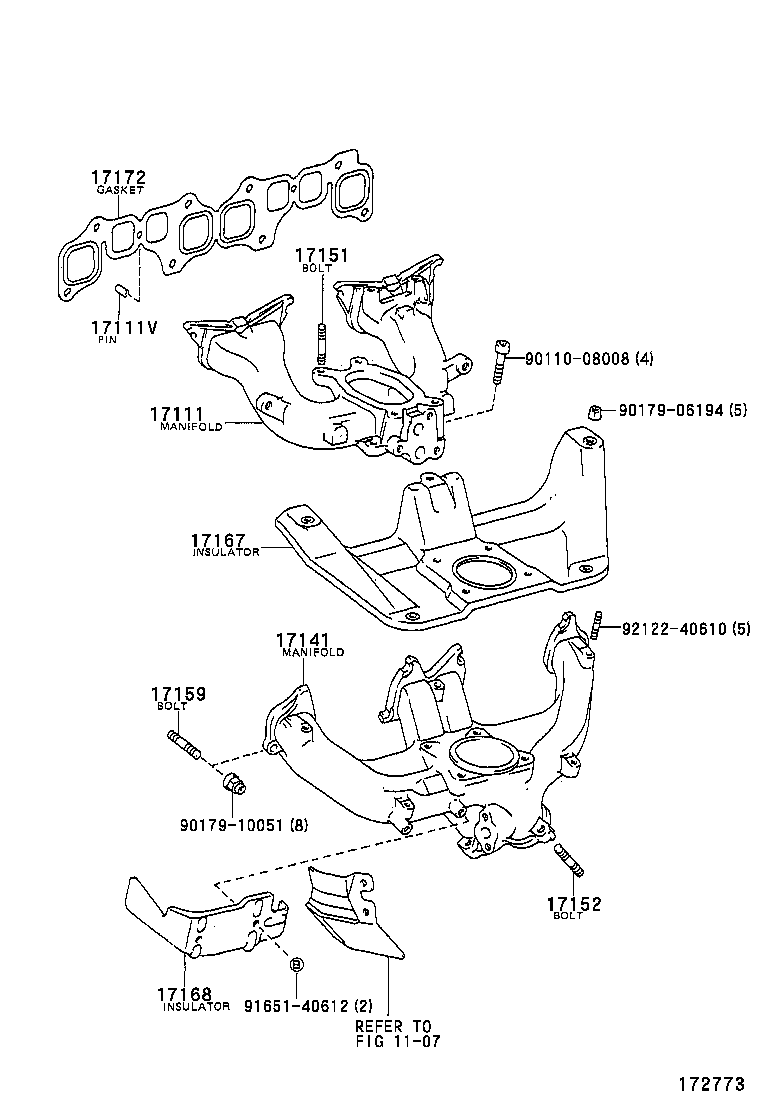

diagram 1107 17111 17111V 17141 17151 17152 17159 17167 17168 17172 9011008008 9017906194 9017910051 9165140612 9212240610
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17111-71020

4Y..YU6#,71,8#

 1
17111V - PIN, STRAIGHT(FOR INTAKE MANIFOLD SETTING)
90250-08120

4Y..YU6#,71,8#

 2
17141 - MANIFOLD, EXHAUST
17141-71020

4Y..YU6#,71,8#

 1
17151 - BOLT, STUD(FOR MANIFOLD TO CARBURETOR)
92122-40835

4Y..YU6#,71,8#

 4
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10058

4Y..YU6#,71,82

 3
90116-10148

4Y..YU6#,71,82

 3
90116-10146

4Y..YU6#,71,8#

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10063

4Y..YU6#,71,8#

 8
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-71020

4Y..YU6#,71,8#

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
12521-72010

4Y..YU6#,71,8#

 1
17172 - GASKET, MANIFOLD TO CYLINDER HEAD
17172-73010

4Y..YU6#,71,8#

 1
Common parts
90110-08008
90179-06194
90179-10051
91651-40612
92122-40610
Linked diagrams
1107
