YU82L-MDDT3 (1988)

Toyota Dyna 200

Production Aug 1988 - May 1995
Engine 4Y
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )L2,T3

Click highlighted areas on diagram

diagram 77017B 77018 77018 77022A 77022A 77022A 77022A 77022A 77100 77100A 77100B 77275B 77310A 77316 77601A 77611A 77633 77651A 9011910531 9015940155 9017010028 9046713007 9161240616 9165140616 9165140616 9411040800 9411040800 9613230600
Part # Description Qty Price
77017B - TUBE SUB-ASSY, FUEL TANK VENT
77017-36181

RU85,WU9#,YU6#,8#..L2,T3

 1
77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE
77018-36230

RU85,WU9#,YU6#,8#..(L2,T3)..(GEN,SA)

 1
77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE
77018-36230

RU85,WU9#,YU6#,8#..(L2,T3)..(GEN,SA)

 1
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95333-08030

RU85,WU9#,YU6#,8#..L2,T3

*H,L=300

 2
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95333-08030

RU85,WU9#,YU6#,8#..L2,T3

*H,L=300

 2
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95333-08030

RU85,WU9#,YU6#,8#..L2,T3

*H,L=300

 2
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95333-08030

RU85,WU9#,YU6#,8#..L2,T3

*H,L=300

 2
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95333-08030

RU85,WU9#,YU6#,8#..L2,T3

*H,L=300

 2
77100 - TANK ASSY, FUEL
77001-3B100

RU85,WU9#,YU62,8#..WT..(GEN,SA)

 1
77100A - PLUG(FOR FUEL TANK)
90105-12116

RU85,WU9#,YU6#,71,8#

 1
77100B - GASKET(FOR FUEL TANK)
90430-12245

RU85,WU9#,YU6#,71,8#

 1
77310A - CAP ASSY, FUEL TANK
77310-60051

RU85,YU6#,71,8#

 1
77316 - GASKET, FUEL TANK CAP
77316-27010

RU85,YU6#,71,8#

 1
77601A - BAND SUB-ASSY, FUEL TANK, NO.1
77601-36140

RU85,WU9#,YU62,8#..T3..(GEN,SA)

 2
77611A - PIN (FOR FUEL TANK BAND)
77629-36010

RU85,WU9#,YU6#,8#..L2,T3

 2
77633 - STAY, FUEL TANK
77633-36090

RU85,WU9#,YU62,8#..T3..(GEN,SA)

 2
77651A - CUSHION, FUEL TANK, NO.1
77651-36100

RU85,WU9#,YU62,8#..T3

 2
Common parts
90119-10531
90159-40155
90170-10028
90467-13007
91612-40616
91651-40616
94110-40800
96132-30600

(8808- )YU82 ; (8808- )RU85..GEN

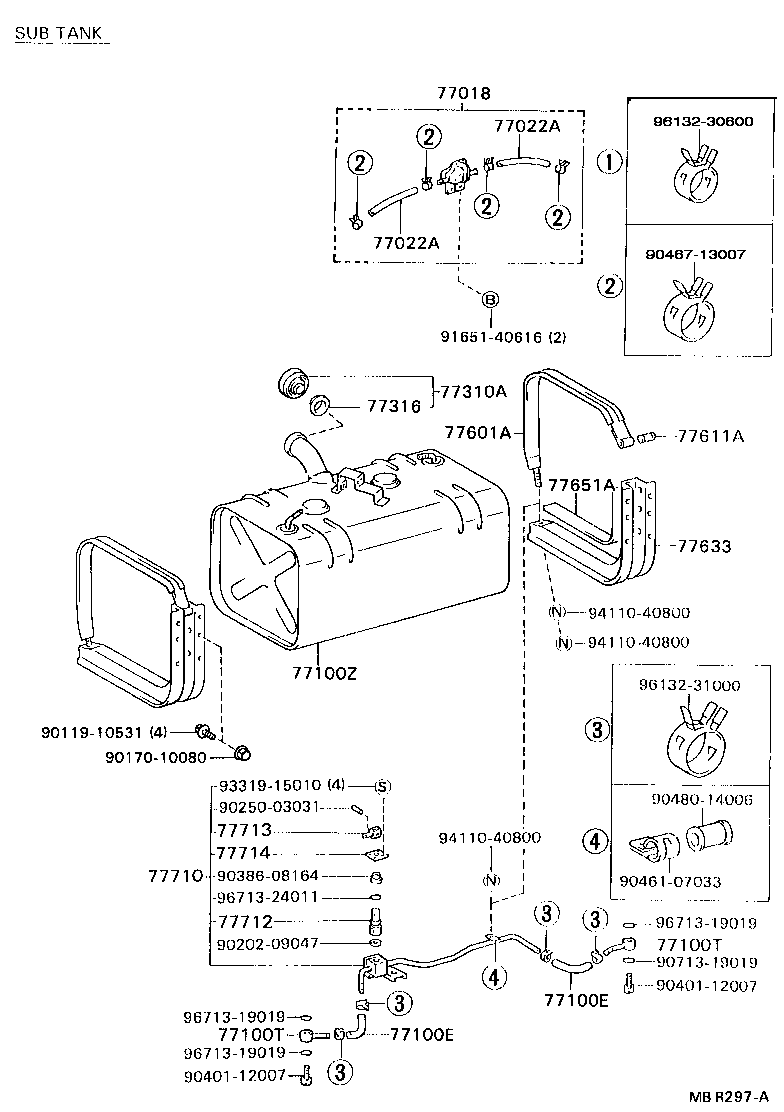

Click highlighted areas on diagram

diagram 77018 77022A 77022A 77100E 77100E 77100T 77100T 77100Z 77310A 77316 77601A 77611A 77633 77651A 77710 77712 77713 77714 9011910531 9017010080 9020209047 9025003031 9038608164 9040112007 9040112007 9046107033 9046713007 9048014006 9071319019 9165140616 9331915010 9411040800 9411040800 9411040800 9613230600 9613231000 9671319019 9671319019 9671319019 9671324011
Part # Description Qty Price
77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE
77018-36230

RU85,WU9#,YU6#,8#..(L2,T3)..(GEN,SA)

 1
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95333-08030

RU85,WU9#,YU6#,8#..L2,T3

*H,L=300

 2
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95333-08030

RU85,WU9#,YU6#,8#..L2,T3

*H,L=300

 2
77100E - HOSE, FUEL, NO.2(FOR FUEL TANK)
95332-10014

YU82;RU85..GEN

*H,L=140

 2
77100E - HOSE, FUEL, NO.2(FOR FUEL TANK)
95332-10014

YU82;RU85..GEN

*H,L=140

 2
77100T - UNION(FOR FUEL SUB-TANK)
90405-10008

YU82;RU85..GEN

 2
77100T - UNION(FOR FUEL SUB-TANK)
90405-10008

YU82;RU85..GEN

 2
77100Z - TANK SUB-ASSY, FUEL SUB
77001-3B130

YU82;RU85..GEN

 1
77310A - CAP ASSY, FUEL TANK
77310-60051

RU85,YU6#,71,8#

 1
77316 - GASKET, FUEL TANK CAP
77316-27010

RU85,YU6#,71,8#

 1
77601A - BAND SUB-ASSY, FUEL TANK, NO.1
77601-36140

RU85,WU9#,YU62,8#..T3..(GEN,SA)

 2
77611A - PIN (FOR FUEL TANK BAND)
77629-36010

RU85,WU9#,YU6#,8#..L2,T3

 2
77633 - STAY, FUEL TANK
77633-36090

RU85,WU9#,YU62,8#..T3..(GEN,SA)

 2
77651A - CUSHION, FUEL TANK, NO.1
77651-36100

RU85,WU9#,YU62,8#..T3

 2
77710 - COCK ASSY, FUEL CHANGE
77710-36030

YU82;RU85..GEN

 1
77712 - VALVE, FUEL CHANGE COCK
77712-36011

YU82;RU85..GEN

 1
77713 - LEVER, FUEL CHANGE COCK
77713-36010

YU82;RU85..GEN

 1
77714 - CAP, FUEL CHANGE COCK
77714-36010

YU82;RU85..GEN

 1
Common parts
90119-10531
90170-10080
90202-09047
90250-03031
90386-08164
90401-12007
90461-07033
90467-13007
90480-14006
90713-19019
91651-40616
93319-15010
94110-40800
96132-30600
96132-31000
96713-19019
96713-24011

(8808- )YU62,82

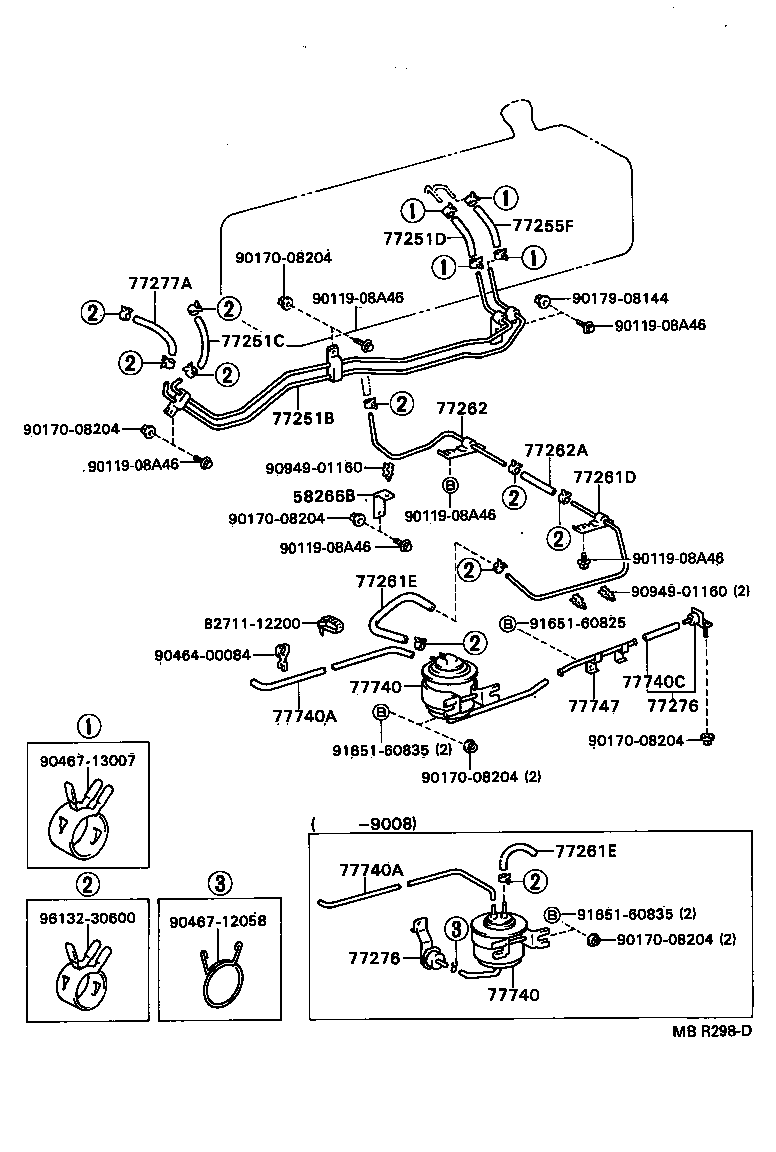

Click highlighted areas on diagram

diagram 58266B 77251B 77251C 77251D 77255F 77261D 77261E 77261E 77262 77262A 77276 77276 77277A 77740 77740 77740A 77740A 77740C 77747 8271112200 9011908A46 9011908A46 9011908A46 9011908A46 9011908A46 9011908A46 9017008204 9017008204 9017008204 9017008204 9017008204 9017008204 9017908144 9046400084 9046712058 9046713007 9094901160 9094901160 9165160825 9165160835 9165160835 9613230600
Part # Description Qty Price
77251B - TUBE, FUEL MAIN
77205-36250

YU62,82

 1
77251C - HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE)
95333-06030

YU62,71,82

*H,L=300

 1
90447-12084

YU62,71,82

L=280

 1
77251D - HOSE, FUEL, NO.2(FOR FUEL MAIN TUBE)
95334-08032

YU62,82..T3

L=320

 1
95333-08040

YU62,82..T3..(GEN,SA)

L=400

 1
77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE)
95333-08040

YU62,82..T3..(GEN,SA)

L=400

 1
95334-08032

YU62,82..T3

L=320

 1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
90447-12048

YU62,71,82

 1
Common parts
82711-12200
90119-08A46
90170-08204
90179-08144
90464-00084
90467-12058
90467-13007
90949-01160
91651-60825
91651-60835
96132-30600
