YU82L-MDDT (1988)

Toyota Dyna 200

Production Aug 1988 - May 1995
Engine 4Y
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

Click highlighted areas on diagram

diagram 12311 12315 12321 12321 12325 12325 12361 12361 12361 12371 12511 9010512058 9010512091 9010516023 9011910247 9011910348 9017912024 9017912024 9020112023 9020112023 9151261025 9161161028 9411551600 9451201200 9461111600
Part # Description Qty Price
Common parts
90105-12058
90105-12091
90105-16023
90119-10247
90119-10348
90179-12024
90201-12023
91512-61025
91611-61028
94115-51600
94512-01200
94611-11600

(8808- )4Y

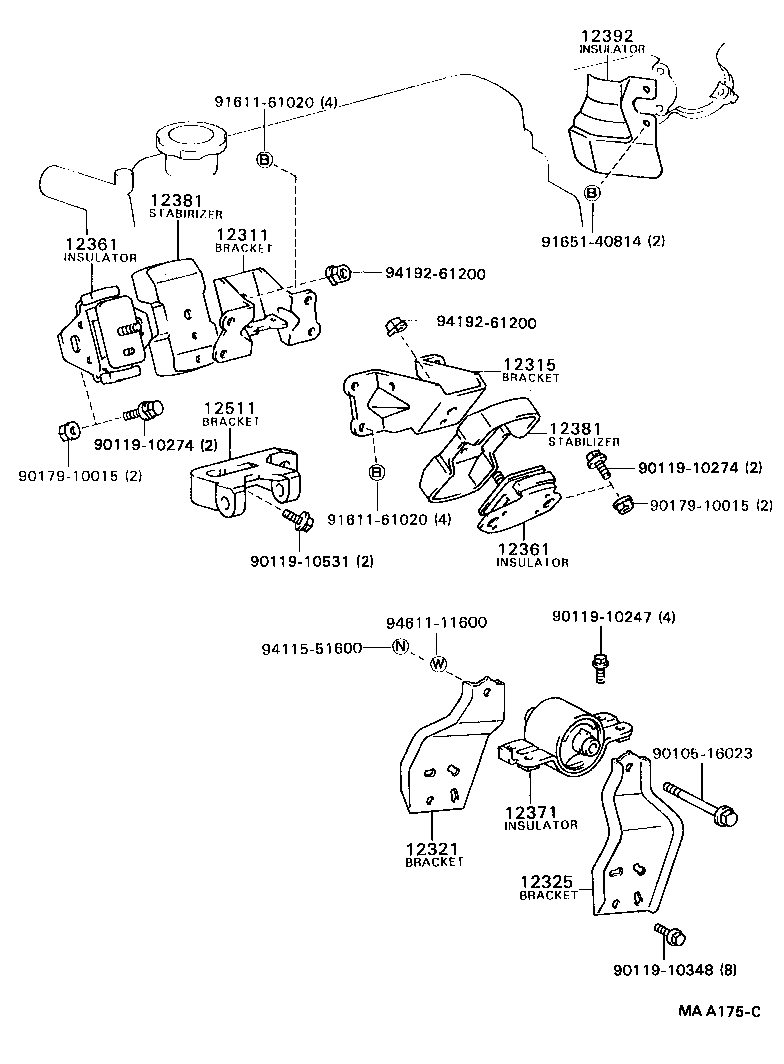

Click highlighted areas on diagram

diagram 12311 12315 12321 12325 12361 12361 12371 12381 12381 12392 12511 9010516023 9011910247 9011910274 9011910274 9011910348 9011910531 9017910015 9017910015 9161161020 9161161020 9165140814 9411551600 9419261200 9419261200 9461111600
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-71010

4Y..YU6#,71,8#

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-71010

4Y..YU6#,71,8#

 1
12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1
12321-56080

4Y..YU6#,71,82

 1
12325 - BRACKET, ENGINE MOUNTING, NO.3
12325-56070

4Y..YU6#,71,82

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-35050

4Y..YU6#,71,8#

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-35050

4Y..YU6#,71,8#

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-56041

4Y..YU6#,71,8#

 1
12381 - STABILIZER, ENGINE MOUNTING
12381-73010

4Y..YU6#,71,8#

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-73010

4Y..YU6#,71,8#

 2
12392 - INSULATOR, ENGINE MOUNTING HEAT, FRONT LH
12391-72010

4Y..YU6#,71,8#

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-71010

4Y..YU6#,71,8#

 1
Common parts
90105-16023
90119-10247
90119-10274
90119-10348
90119-10531
90179-10015
91611-61020
91651-40814
94115-51600
94192-61200
94611-11600
