YU81R-MDDT3 (1987)

Toyota Dyna 200

Production Aug 1987 - Aug 1988
Engine 4Y
Transmission RHD 5F
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(8708- )BU6#,70,80,81,82

Click highlighted areas on diagram

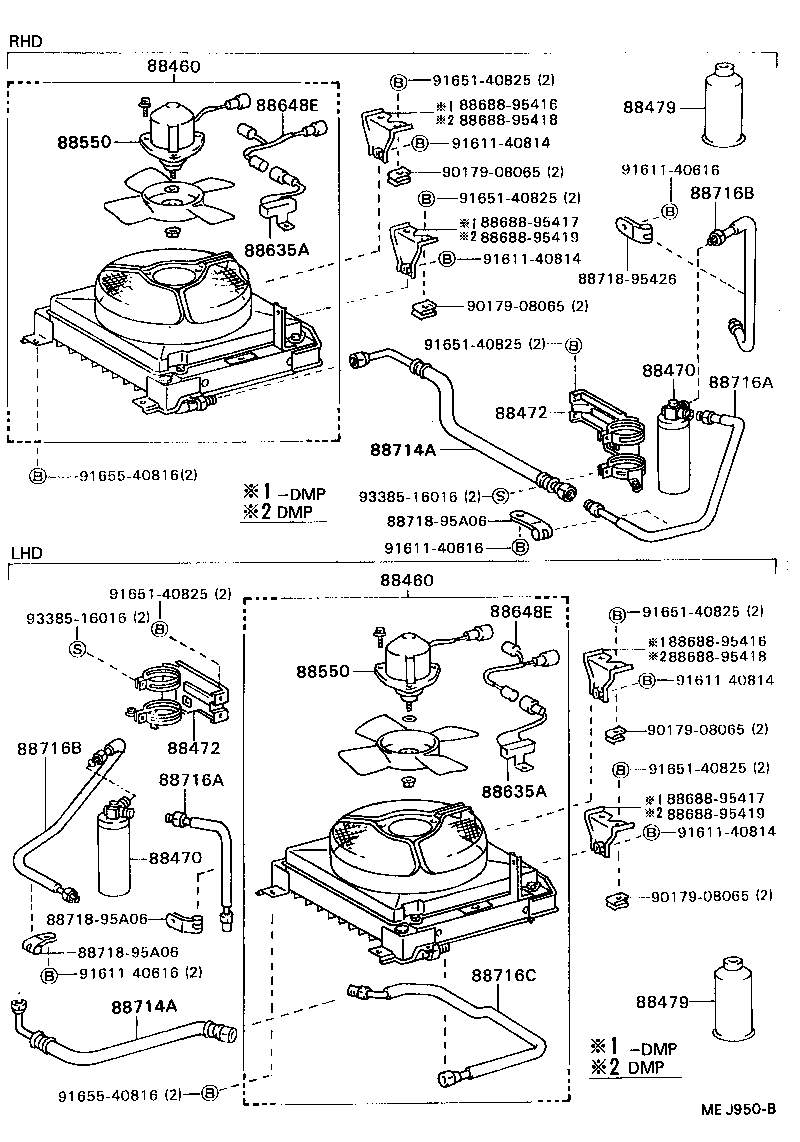

diagram 88460 88460 88470 88470 88472 88472 88479 88479 88550 88550 88635A 88635A 88648E 88648E 8868895416 8868895416 8868895417 8868895417 8868895418 8868895418 8868895419 8868895419 88714A 88714A 88716A 88716A 88716B 88716B 88716C 8871895426 8871895A06 8871895A06 8871895A06 9017908065 9017908065 9017908065 9017908065 9161140616 9161140616 9161140616 9161140814 9161140814 9161140814 9161140814 9165140825 9165140825 9165140825 9165140825 9165140825 9165140825 9165540816 9165540816 9338516016 9338516016
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-95405

YU81..RHD..GEN

 1
88460 - CONDENSER ASSY, COOLER
88460-95405

YU81..RHD..GEN

 1
88470 - RECEIVER & DRYER ASSY, COOLER
88471-95400

RU85,YU6#,81..GEN

 1
88470 - RECEIVER & DRYER ASSY, COOLER
88471-95400

RU85,YU6#,81..GEN

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-95400

YU81..RHD..GEN

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-95400

YU81..RHD..GEN

 1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02001

WU9#..LHD;WU90..RHD..CBU;RU85,YU6#,71,81..GEN,SA

400G

 2
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02001

WU9#..LHD;WU90..RHD..CBU;RU85,YU6#,71,81..GEN,SA

400G

 2
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
87104-95406

YU81..RHD..GEN

W(HEATER & A/C=MAKER OPT)

 1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
87104-95406

YU81..RHD..GEN

W(HEATER & A/C=MAKER OPT)

 1
88648E - WIRING, COOLER
88648-95419

RU85,YU6#,81..GEN

 1
88648E - WIRING, COOLER
88648-95419

RU85,YU6#,81..GEN

 1
88714A - HOSE, COOLER REFRIGERANT LIQUID, NO.2
88721-95405

YU81..RHD..GEN

W(HEATER & A/C=MAKER OPT)

 1
88714A - HOSE, COOLER REFRIGERANT LIQUID, NO.2
88721-95405

YU81..RHD..GEN

W(HEATER & A/C=MAKER OPT)

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-95403

YU81..RHD..GEN

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-95403

YU81..RHD..GEN

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-95405

YU81..RHD..GEN

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-95405

YU81..RHD..GEN

 1
Common parts
88688-95416
88688-95417
88688-95418
88688-95419
88718-95426
88718-95A06
90179-08065
91611-40616
91611-40814
91651-40825
91655-40816
93385-16016

ILLUST NO. 2 OF 2(8708- )BU6#,80,81,82..RHD

Click highlighted areas on diagram

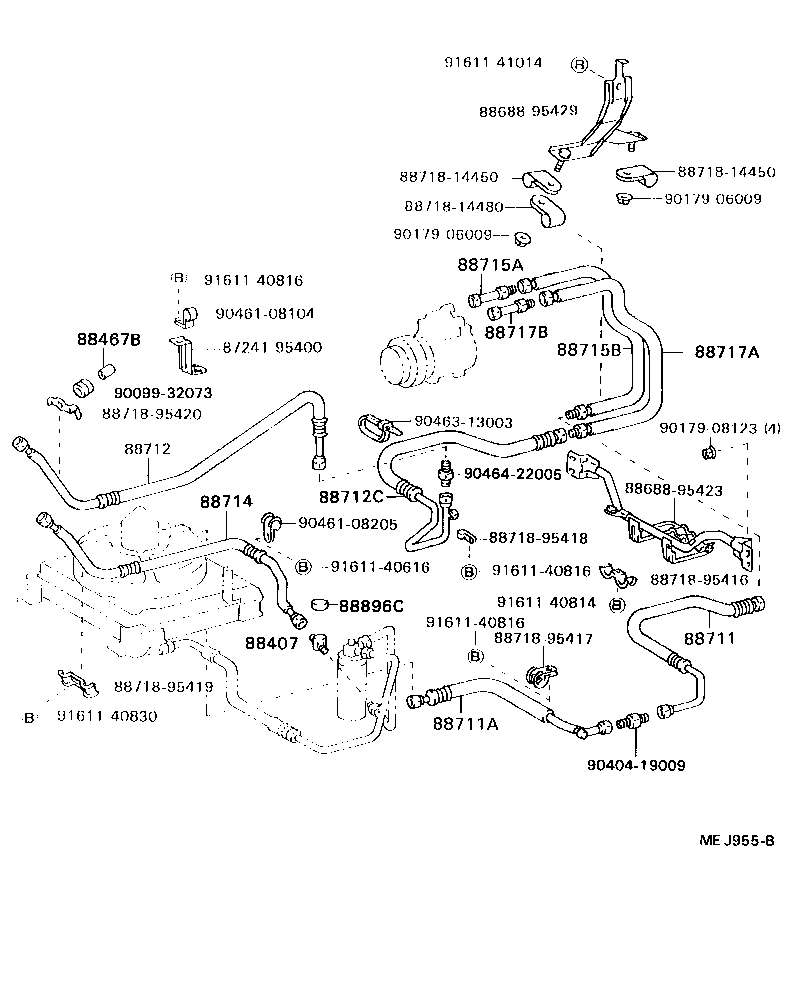

diagram 8724195400 88407 88467B 8868895423 8868895429 88711 88711A 88712 88712C 88714 88715A 88715B 88717A 88717B 8871814450 8871814450 8871814480 8871895416 8871895417 8871895418 8871895419 8871895420 88896C 9009932073 9017906009 9017906009 9017908123 9040419009 9046108104 9046108205 9046313003 9046422005 9161140616 9161140814 9161140816 9161140816 9161140816 9161140830 9161141014
Part # Description Qty Price
Common parts
87241-95400
88688-95423
88688-95429
88718-14450
88718-14480
88718-95416
88718-95417
88718-95418
88718-95419
88718-95420
90099-32073
90179-06009
90179-08123
90404-19009
90461-08104
90461-08205
90463-13003
90464-22005
91611-40616
91611-40814
91611-40816
91611-40830
91611-41014

ILLUST NO. 1 OF 2(8708- )YU6#,71,81

Click highlighted areas on diagram

diagram 88460 88460 88470 88470 88472 88472 88479 88479 88550 88550 88635A 88635A 88648E 88648E 8868895416 8868895416 8868895417 8868895417 8868895418 8868895418 8868895419 8868895419 88714A 88714A 88716A 88716A 88716B 88716B 88716C 8871895426 8871895A06 8871895A06 8871895A06 9017908065 9017908065 9017908065 9017908065 9161140616 9161140616 9161140616 9161140814 9161140814 9161140814 9161140814 9165140825 9165140825 9165140825 9165140825 9165140825 9165140825 9165540816 9165540816 9338516016 9338516016
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-95405

YU81..RHD..GEN

 1
88460 - CONDENSER ASSY, COOLER
88460-95405

YU81..RHD..GEN

 1
88470 - RECEIVER & DRYER ASSY, COOLER
88471-95400

RU85,YU6#,81..GEN

 1
88470 - RECEIVER & DRYER ASSY, COOLER
88471-95400

RU85,YU6#,81..GEN

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-95400

YU81..RHD..GEN

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-95400

YU81..RHD..GEN

 1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02001

WU9#..LHD;WU90..RHD..CBU;RU85,YU6#,71,81..GEN,SA

400G

 2
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02001

WU9#..LHD;WU90..RHD..CBU;RU85,YU6#,71,81..GEN,SA

400G

 2
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
87104-95406

YU81..RHD..GEN

W(HEATER & A/C=MAKER OPT)

 1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
87104-95406

YU81..RHD..GEN

W(HEATER & A/C=MAKER OPT)

 1
88648E - WIRING, COOLER
88648-95419

RU85,YU6#,81..GEN

 1
88648E - WIRING, COOLER
88648-95419

RU85,YU6#,81..GEN

 1
88714A - HOSE, COOLER REFRIGERANT LIQUID, NO.2
88721-95405

YU81..RHD..GEN

W(HEATER & A/C=MAKER OPT)

 1
88714A - HOSE, COOLER REFRIGERANT LIQUID, NO.2
88721-95405

YU81..RHD..GEN

W(HEATER & A/C=MAKER OPT)

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-95403

YU81..RHD..GEN

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-95403

YU81..RHD..GEN

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-95405

YU81..RHD..GEN

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-95405

YU81..RHD..GEN

 1
Common parts
88688-95416
88688-95417
88688-95418
88688-95419
88718-95426
88718-95A06
90179-08065
91611-40616
91611-40814
91651-40825
91655-40816
93385-16016

ILLUST NO. 2 OF 2(8708- )YU6#,71,81

Click highlighted areas on diagram

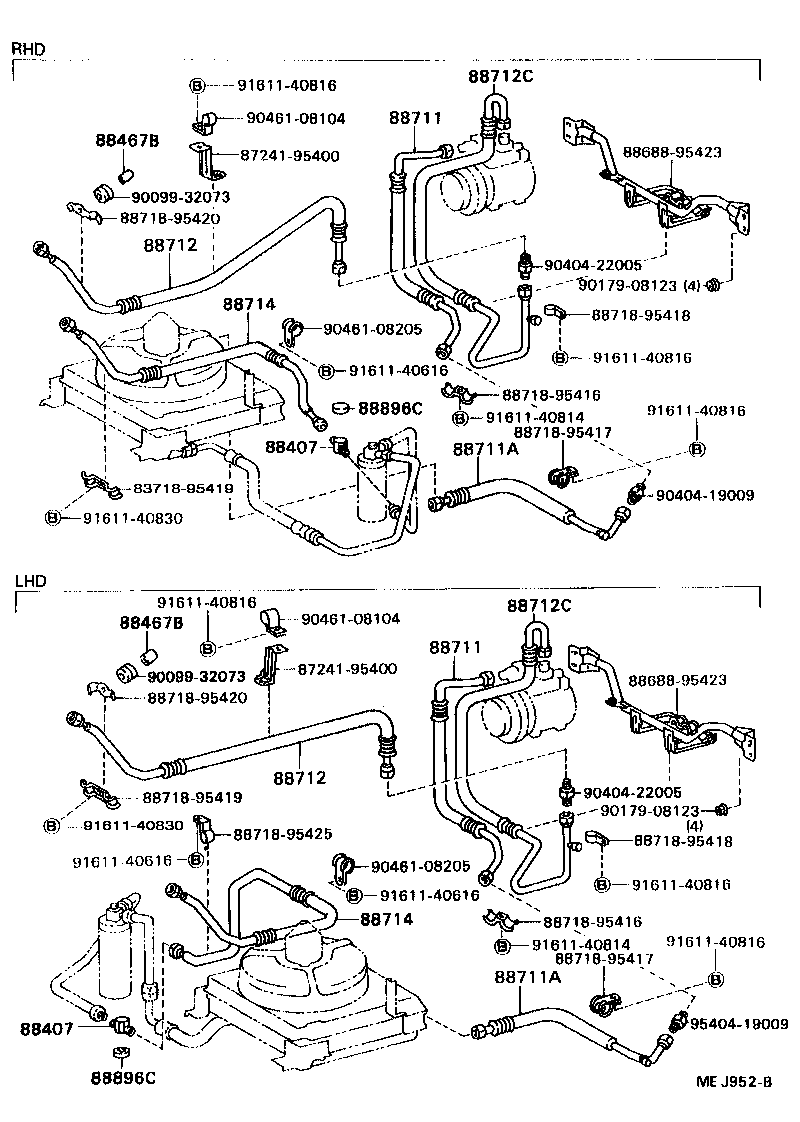

diagram 8371895419 8724195400 8724195400 88407 88407 88467B 88467B 8868895423 8868895423 88711 88711 88711A 88711A 88712 88712 88712C 88712C 88714 88714 8871895416 8871895416 8871895417 8871895417 8871895418 8871895418 8871895419 8871895420 8871895420 8871895425 88896C 88896C 9009932073 9009932073 9017908123 9017908123 9040419009 9040422005 9040422005 9046108104 9046108104 9046108205 9046108205 9161140616 9161140616 9161140616 9161140814 9161140814 9161140816 9161140816 9161140816 9161140816 9161140816 9161140816 9161140830 9161140830 9540419009
Part # Description Qty Price
88407 - GLASS SUB-ASSY, SIGHT
88407-95701

YU6#,81..GEN

 1
88407 - GLASS SUB-ASSY, SIGHT
88407-95701

YU6#,81..GEN

 1
88467B - INSULATOR, COOLER CONDENSER MOUNTING
88467-22010

YU62,81..T3..GEN

 1
88467B - INSULATOR, COOLER CONDENSER MOUNTING
88467-22010

YU62,81..T3..GEN

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-95405

YU6#,81..GEN

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-95405

YU6#,81..GEN

 1
88711A - HOSE, COOLER REFRIGERANT DISCHARGE, NO.2
88711-95421

YU6#,81..GEN

 1
88711A - HOSE, COOLER REFRIGERANT DISCHARGE, NO.2
88711-95421

YU6#,81..GEN

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-95410

YU81..RHD..GEN

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-95410

YU81..RHD..GEN

 1
88712C - HOSE, SUCTION
88712-95407

YU6#,81..GEN

 1
88712C - HOSE, SUCTION
88712-95407

YU6#,81..GEN

 1
88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1
88721-95407

YU81..RHD..GEN

 1
88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1
88721-95407

YU81..RHD..GEN

 1
Common parts
83718-95419
87241-95400
88688-95423
88718-95416
88718-95417
88718-95418
88718-95419
88718-95420
88718-95425
90099-32073
90179-08123
90404-19009
90404-22005
90461-08104
90461-08205
91611-40616
91611-40814
91611-40816
91611-40830
95404-19009
