YU81R-MDDT3 (1987)

Toyota Dyna 200

Production Aug 1987 - Aug 1988
Engine 4Y
Transmission RHD 5F
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

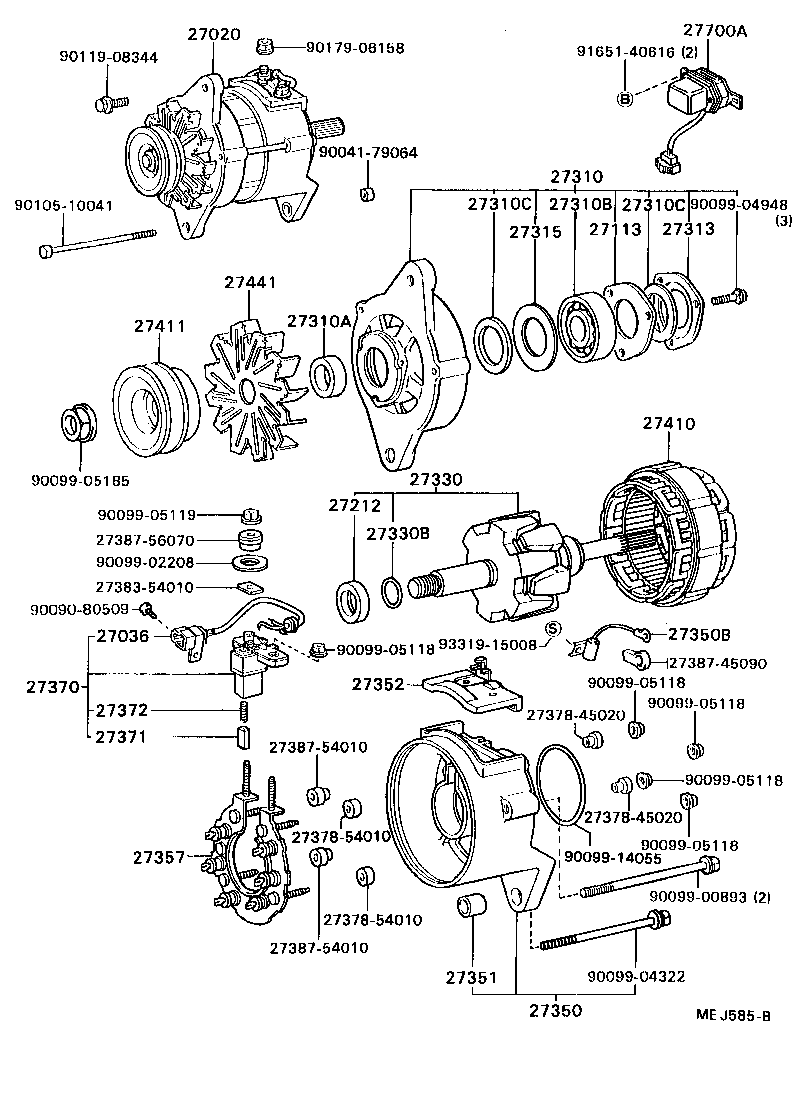

Click highlighted areas on diagram

24V 25A

diagram 27020 27036 27113 27212 27310 27310A 27310B 27310C 27310C 27313 27315 27330 27330B 27350 27350B 27351 27352 27357 27370 27371 27372 2737845020 2737854010 2737854010 2738354010 2738745090 2738754010 2738754010 2738756070 27410 27411 27441 27700A 9004179064 9009220604 9009900893 9009902208 9009904322 9009904948 9009905118 9009905118 9009905118 9009905118 9009905118 9009905118 9009905119 9009905185 9009914055 9010510041 9011908344 9017906158 9165140616 9331515012
Part # Description Qty Price
Common parts
27378-45020
27378-54010
27383-54010
27387-45090
27387-54010
27387-56070
90041-79064
90092-20604
90099-00893
90099-02208
90099-04322
90099-04948
90099-05118
90099-05119
90099-05185
90099-14055
90105-10041
90119-08344
90179-06158
91651-40616
93315-15012

(8708- )

Click highlighted areas on diagram

12V 45A

diagram 27020 27036 27113 27212 27310 27310A 27310B 27310C 27310C 27313 27315 27330 27330B 27350 27350B 27351 27352 27357 27370 27371 27372 2737845020 2737845020 2737854010 2737854010 2738354010 2738745090 2738754010 2738754010 2738756070 27410 27411 27441 27700A 9004179064 9009080509 9009900893 9009902208 9009904322 9009904948 9009905118 9009905118 9009905118 9009905118 9009905118 9009905119 9009905185 9009914055 9010510041 9011908344 9017906158 9165140616 9331915008
Part # Description Qty Price
Common parts
27378-45020
27378-54010
27383-54010
27387-45090
27387-54010
27387-56070
90041-79064
90090-80509
90099-00893
90099-02208
90099-04322
90099-04948
90099-05118
90099-05119
90099-05185
90099-14055
90105-10041
90119-08344
90179-06158
91651-40616
93319-15008

(8708- )4Y

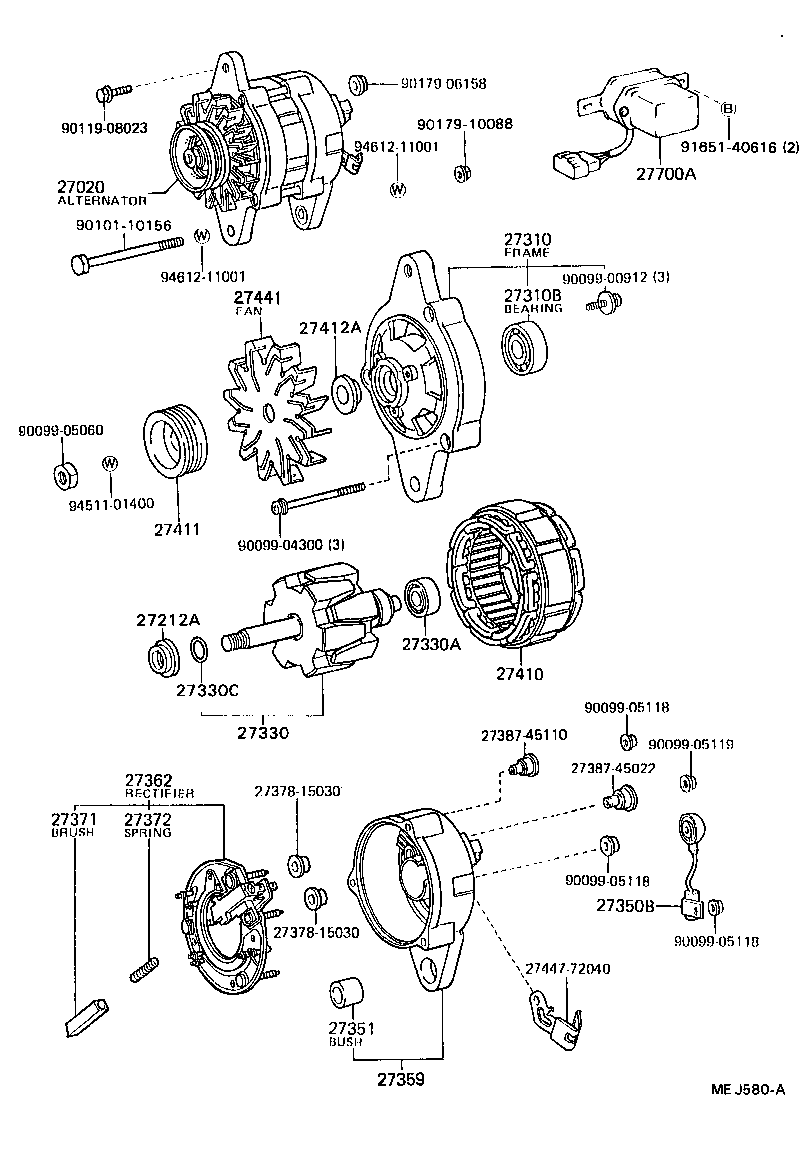

Click highlighted areas on diagram

12V 45A

diagram 27020 27212A 27310 27310B 27330 27330A 27330C 27350B 27351 27359 27362 27371 27372 2737815030 2737815030 2738745022 2738745110 27410 27411 27412A 27441 2744772040 27700A 9009900912 9009904300 9009905060 9009905118 9009905118 9009905118 9009905119 9010110156 9011908023 9017906158 9017910088 9165140616 9451101400 9461211001 9461211001
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27020-72050

4Y..YU6#,71,81

12V 45A

 1
27212A - RING, SPACE
27212-39050

22R,4Y..RU85,YU6#,71,81

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-72030

4Y..YU6#,71,81

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10142

4Y..YU6#,71,81

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10116

22R,4Y..RU85,YU6#,71,81

 1
27350B - CONDENSER, ALTERNATOR
90099-52065

4Y..YU6#,71,81

 1
27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME)
27351-38051

22R,4Y..RU85,YU6#,71,81

 1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-72030

4Y..YU6#,71,81

 1
27362 - RECTIFIER ASSY, W/BRUSH
27362-18011

22R,4Y..RU85,YU6#,71,81

 1
27371 - BRUSH, ALTERNATOR
27371-31011

22R,4Y..RU85,YU6#,71,81

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-31011

22R,4Y..RU85,YU6#,71,81

 2
27410 - STATOR ASSY, ALTERNATOR
27410-38120

22R,4Y..RU85,YU6#,71,81

 1
27411 - PULLEY, ALTERNATOR
27411-72040

4Y..YU6#,71,81

 1
27412A - COLLAR, SPACE(FOR ALTERNATOR DRIVE END FRAME)
27412-16030

4Y..YU6#,71,81

 1
27441 - FAN, ALTERNATOR
27441-34030

22R,4Y..RU85,YU6#,71,81

 1
27700A - REGULATOR ASSY, GENERATOR
27700-56060

22R,4Y..RU85,YU6#,71,81

 1
Common parts
27378-15030
27387-45022
27387-45110
27447-72040
90099-00912
90099-04300
90099-05060
90099-05118
90099-05119
90101-10156
90119-08023
90179-06158
90179-10088
91651-40616
94511-01400
94612-11001
