YU71LB-MD (1988)
Toyota Dyna 200
Production
Aug 1988
-
Sep 1993
Engine
4Y
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )YU71

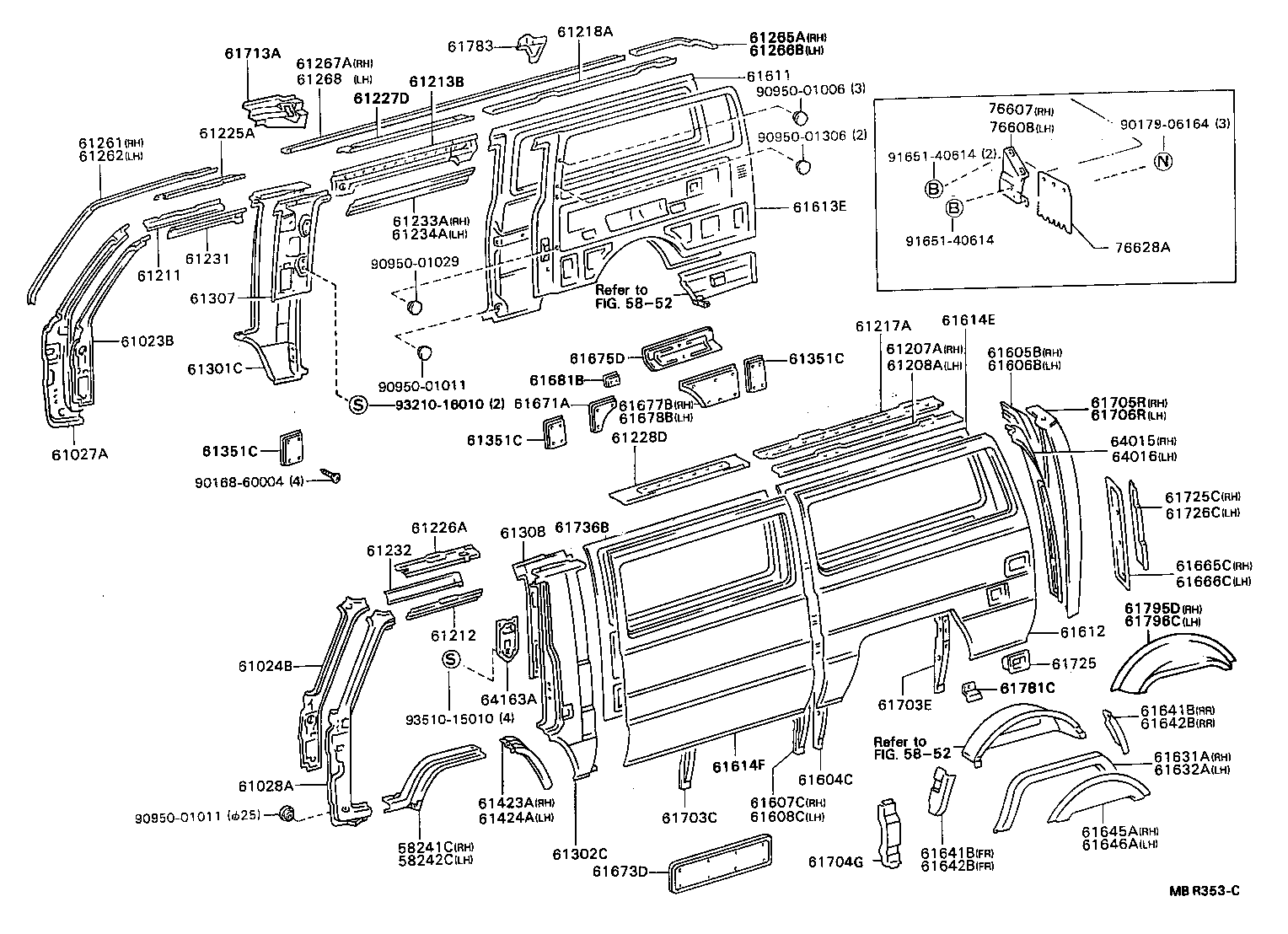

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58241C - PANEL, FLOOR SIDE, RH | ||||
| 58241-92603 |
YU71 |
1 | ||
| 58242C - PANEL, FLOOR SIDE, LH | ||||
| 58242-92603 |
YU71 |
1 | ||
| 61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH | ||||
| 61023-95401 |
RU85,WU9#,YU6#,71,82..LHD |
1 | ||
| 61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH | ||||
| 61024-95401 |
RU85,WU9#,YU6#,71,82..LHD |
1 | ||
| 61027A - PILLAR SUB-ASSY, FRONT BODY, OUTER RH | ||||
| 61027-95401 |
RU85,WU9#,YU6#,71,82 |
1 | ||
| 61027-37020 |
YU71 |
1 | ||
| 61028A - PILLAR SUB-ASSY, FRONT BODY, OUTER LH | ||||
| 61028-95400 |
RU85,YU6#,71,82 |
1 | ||
| 61028-95401 |
YU71 W(RADIO) |
1 | ||
| 61028-95401 |
RU85,YU6#,71,82..LHD W(RADIO) |
1 | ||
| 61207A - RAIL SUB-ASSY, ROOF SIDE, INNER NO.3 RH | ||||
| 61207-92615 |
YU71 |
1 | ||
| 61208A - RAIL SUB-ASSY, ROOF SIDE, INNER NO.3 LH | ||||
| 61208-92615 |
YU71 |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61211-95403 |
YU62..T3;RU85,WU9#,YU63,71,8# |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61212-95403 |
YU62..T3;RU85,WU9#,YU63,71,8# |
1 | ||
| 61213B - RAIL, ROOF SIDE, OUTER NO.2 RH | ||||
| 61213-92615 |
YU71 |
1 | ||
| 61217A - RAIL SUB-ASSY, ROOF SIDE, OUTER UPPER NO.3 LH | ||||
| 61217-92605 |
YU71 |
1 | ||
| 61218A - RAIL SUB-ASSY, ROOF SIDE, OUTER UPPER NO.3 RH | ||||
| 61218-92605 |
YU71 |
1 | ||
| 61225A - RAIL, ROOF SIDE OUTER UPPER NO.1, RH | ||||
| 61225-92601 |
YU71 |
1 | ||
| 61226A - RAIL, ROOF SIDE OUTER UPPER NO.1, LH | ||||
| 61226-92601 |
YU71 |
1 | ||
| 61227D - RAIL, ROOF SIDE OUTER UPPER NO.2 | ||||
| 61227-92615 |
YU71 |
1 | ||
| 61228D - RAIL, ROOF SIDE OUTER UPPER NO.2, LH | ||||
| 61228-92615 |
YU71 |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-92600 |
YU71 |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-95405 |
YU62..T3..GEN;RU85,WU9#,YU63,71,82..LHD |
1 | ||
| 61233A - RAIL, ROOF SIDE, INNER NO.2 RH | ||||
| 61203-92615 |
YU71 |
1 | ||
| 61234A - RAIL, ROOF SIDE, INNER NO.2 LH | ||||
| 61204-92615 |
YU71 |
1 | ||
| 61261 - CHANNEL, ROOF DRIP, RH | ||||
| 61261-37010 |
YU71 |
1 | ||
| 61261-92602 |
YU71 |
1 | ||
| 61262 - CHANNEL, ROOF DRIP, LH | ||||
| 61262-37010 |
YU71 |
1 | ||
| 61262-92602 |
YU71 |
1 | ||
| 61265A - CHANNEL, ROOF DRIP SIDE, CENTER RH | ||||
| 63216-37010 |
YU71 |
1 | ||
| 61265-92605 |
YU71 |
1 | ||
| 61266B - CHANNEL, ROOF DRIP SIDE REAR CORNER, LH | ||||
| 61266-92605 |
YU71 |
1 | ||
| 63217-37010 |
YU71 |
1 | ||
| 61267A - CHANNEL, ROOF DRIP SIDE, REAR RH | ||||
| 61267-92601 |
YU71 |
1 | ||
| 61267-37010 |
YU71 |
1 | ||
| 61268 - CHANNEL, ROOF DRIP SIDE, REAR LH | ||||
| 61268-92601 |
YU71 |
1 | ||
| 61268-37010 |
YU71 |
1 | ||
| 61301C - PILLAR SUB-ASSY, CENTER BODY, OUTER RH | ||||
| 61301-92612 |
YU71 |
1 | ||
| 61302C - PILLAR SUB-ASSY, CENTER BODY, OUTER LH | ||||
| 61302-92613 |
YU71 |
1 | ||
| 61307 - PILLAR SUB-ASSY, CENTER BODY, INNER RH | ||||
| 61307-92610 |
YU71 |
1 | ||
| 61308 - PILLAR SUB-ASSY, CENTER BODY, INNER LH | ||||
| 61308-92618 |
YU71 |
1 | ||
| 61351C - COVER, CENTER BODY PILLAR, INNER RH | ||||
| 61351-95A00 |
YU71 |
6 | ||
| 61351C - COVER, CENTER BODY PILLAR, INNER RH | ||||
| 61351-95A00 |
YU71 |
6 | ||
| 61351C - COVER, CENTER BODY PILLAR, INNER RH | ||||
| 61351-95A00 |
YU71 |
6 | ||
| 61423A - PANEL, FENDER, INNER LOWER RH | ||||
| 61423-92602 |
YU71 |
1 | ||
| 61423-37010 |
YU71 |
1 | ||
| 61424A - PANEL, FENDER, INNER LOWER LH | ||||
| 61424-92602 |
YU71 |
1 | ||
| 61424-37010 |
YU71 |
1 | ||
| 61604C - BRACE SUB-ASSY, QUARTER PANEL | ||||
| 61604-92605 |
YU71 |
1 | ||
| 61605B - FRAME SUB-ASSY, QUARTER BACK, RH | ||||
| 61605-92605 |
YU71 |
1 | ||
| 61606B - FRAME SUB-ASSY, QUARTER BACK, LH | ||||
| 61606-92605 |
YU71 |
1 | ||
| 61607C - PILLAR SUB-ASSY, QUARTER LOCK, INNER RH | ||||
| 61607-92615 |
YU71 |
1 | ||
| 61608C - PILLAR SUB-ASSY, QUARTER LOCK, INNER LH | ||||
| 61608-92615 |
YU71 |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61611-92602 |
YU71 |
1 | ||
| 61611-37020 |
YU71 |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61612-37020 |
YU71 |
1 | ||
| 61612-92615 |
YU71 |
1 | ||
| 61613E - PANEL, QUARTER, INNER RH | ||||
| 61613-92601 |
YU71 |
1 | ||
| 61613-37040 |
YU71 |
1 | ||
| 61614E - PANEL, QUARTER, INNER LH | ||||
| 61614-37040 |
YU71 |
1 | ||
| 61732-92615 |
YU71 |
1 | ||
| 61614F - EXTENSION, QUARTER PANEL OUTER, LH | ||||
| 61614-92615 |
YU71 |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-92605 |
YU71 |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-92605 |
YU71 |
1 | ||
| 61641B - GUSSET, QUARTER WHEEL HOUSE, RH | ||||
| 61064-92602 |
YU71 FRONT |
1 | ||
| 61063-92602 |
YU71 REAR |
1 | ||
| 61641B - GUSSET, QUARTER WHEEL HOUSE, RH | ||||
| 61064-92602 |
YU71 FRONT |
1 | ||
| 61063-92602 |
YU71 REAR |
1 | ||
| 61642B - GUSSET, QUARTER WHEEL HOUSE, LH | ||||
| 61062-92602 |
YU71 REAR |
1 | ||
| 61061-92602 |
YU71 FRONT |
1 | ||
| 61642B - GUSSET, QUARTER WHEEL HOUSE, LH | ||||
| 61062-92602 |
YU71 REAR |
1 | ||
| 61061-92602 |
YU71 FRONT |
1 | ||
| 61645A - PANEL, QUARTER FENDER INNER, RH | ||||
| 61645-92605 |
YU71 |
1 | ||
| 61646A - PANEL, QUARTER FENDER INNER, LH | ||||
| 61646-92605 |
YU71 |
1 | ||
| 61665C - COVER, QUARTER CORNER INNER, RH | ||||
| 61665-92605 |
YU71 |
1 | ||
| 61666C - COVER, QUARTER CORNER INNER, LH | ||||
| 61666-92605 |
YU71 |
1 | ||
| 61671A - COVER, QUARTER INNER, NO.1 | ||||
| 61671-95A00 |
YU71 |
2 | ||
| 61673D - COVER, OUARTER INNER, NO.2 | ||||
| 61673-95A00 |
YU71 |
1 | ||
| 61675D - COVER, QUARTER INNER, NO.3 | ||||
| 61675-95A00 |
YU71 |
2 | ||
| 61677B - COVER, QUARTER INNER, NO.4, RH | ||||
| 61677-95A00 |
YU71 |
1 | ||
| 61678B - COVER, QUARTER INNER, NO.4, LH | ||||
| 61678-95A00 |
YU71 |
1 | ||
| 61681B - COVER, QUARTER INNER, NO.6 | ||||
| 61681-95A00 |
YU71 |
4 | ||
| 61703C - REINFORCEMENT SUB-ASSY, QUARTER PANEL, INNER | ||||
| 61703-92605 |
YU71 |
1 | ||
| 61703E - REINFORCEMENT SUB-ASSY, QUARTER PANEL, INNER | ||||
| 61703-92606 |
YU71 |
1 | ||
| 61704G - REINFORCEMENT SUB-ASSY, QUARTER PANEL, OUTER | ||||
| 61704-92605 |
YU71 |
1 | ||
| 61705R - PANEL SUB-ASSY, QUARTER OUTER CORNER, RH | ||||
| 61705-92605 |
YU71 |
1 | ||
| 61706R - FRAME SUB-ASSY, QUARTER OUTER CORNER, LH | ||||
| 61706-92605 |
YU71 |
1 | ||
| 61713A - EXTENSION, ROOF SIDE, OUTER RH | ||||
| 61713-92603 |
YU71 |
1 | ||
| 61725 - BOX, FUEL INLET | ||||
| 61702-92605 |
YU71 |
1 | ||
| 61725C - BRACE, QUARTER PANEL CORNER, RH | ||||
| 61725-92605 |
YU71 |
1 | ||
| 61726C - BRACE, QUARTER PANEL CORNER, LH | ||||
| 61726-92605 |
YU71 |
1 | ||
| 61736B - EXTENSION, QUARTER PANEL, INNER LH | ||||
| 61736-92615 |
YU71 |
1 | ||
| 61736-37010 |
YU71 |
1 | ||
| 61781C - BRACE, QUARTER PANEL INNER | ||||
| 61781-95A01 |
YU71 |
1 | ||
| 61783 - PATCH, QUARTER PANEL INNER | ||||
| 61783-95A00 |
YU71 |
1 | ||
| 61795D - EXTENSION, QUARTER WHEEL HOUSE, NO.1 RH | ||||
| 61795-37010 |
YU71 |
1 | ||
| 61796C - EXTENSION, QUARTER WHEEL HOUSE, NO.1 LH | ||||
| 61796-37010 |
YU71 |
1 | ||
| 64015 - PANEL SUB-ASSY, BACK CORNER, INNER RH | ||||
| 64015-92604 |
YU71 |
1 | ||
| 64016 - PANEL SUB-ASSY, BACK CORNER, INNER LH | ||||
| 64016-92604 |
YU71 |
1 | ||
| 64163A - COVER, BACK CORNER, INNER | ||||
| 64163-9541006 |
RU85,YU62,71,82..LHD SAUDI ARABIA & GULF SPEC,BROWN,TRIM4# |
2 | ||
| 64163-95410F0 |
YU71 SAUDI ARABIA & GULF SPEC,YELLOW,TRIM1#&541 |
2 | ||
| 64163-95410G0 |
YU71 SAUDI ARABIA & GULF SPEC,GREEN,TRIM1#&6A9 |
2 | ||
| 64163-9541106 |
RU85,WU9#,YU6#,71,82..GEN,SA BROWN,TRIM4# |
2 | ||
| 64163-95410J0 |
YU71 SAUDI ARABIA & GULF SPEC,BLUE,TRIM1#&8E5 |
2 | ||
| 64163-95410D0 |
YU71 SAUDI ARABIA & GULF SPEC,RED,TRIM1#&391 |
2 | ||
| 64163-95410A0 |
YU71 SAUDI ARABIA & GULF SPEC,WHITE,TRIM1#&048 ,26H ,27H |
2 | ||
| 76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH | ||||
| 66240-92601 |
YU71 |
1 | ||
| 76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH | ||||
| 66250-92600 |
YU71 |
1 | ||
| 76628A - MUDGUARD, REAR BODY, REAR | ||||
| 76628-92600 |
YU71 |
2 | ||
| Common parts | ||||
| 90168-60004 | ||||
| 90179-06164 | ||||
| 90950-01006 | ||||
| 90950-01011 | ||||
| 90950-01029 | ||||
| 90950-01306 | ||||
| 91651-40614 | ||||
| 93210-16010 | ||||
| 93510-15010 | ||||
| Linked diagrams | ||||
| 5852 | ||||
