YU71LB-MD (1987)
Toyota Dyna 200
ILLUST NO. 1 OF 3(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-28070 |
YU6#,71,81..GEN |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-28070 |
YU6#,71,81..GEN |
1 | ||
| 88446 - BOLT, IDLE PULLEY | ||||
| 88446-35010 |
YU6#,71,81..GEN |
1 | ||
| 88595D - PULLEY ASSY, IDLE | ||||
| 88440-35020 |
YU6#,71,81..GEN |
1 | ||
| 88595D - PULLEY ASSY, IDLE | ||||
| 88440-35020 |
YU6#,71,81..GEN |
1 | ||
| Common parts | ||||
| 88899-20090 | ||||
| 90099-04312 | ||||
| 90099-04313 | ||||
| 90099-04315 | ||||
| 90099-04316 | ||||
| 90099-04317 | ||||
| 90099-04914 | ||||
| 90099-04993 | ||||
| 90119-08200 | ||||
| 90119-10079 | ||||
| 91611-60850 | ||||
| Linked diagrams | ||||
| 1605 | ||||
ILLUST NO. 2 OF 3(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-22030 |
YU6#,71,81..GEN |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-14050 |
RU85,YU6#,71,81..GEN |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-36160 |
YU6#,71,81..GEN |
1 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-12030 |
RU85,YU6#,71,81..GEN |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-22080 |
YU6#,71,81..GEN |
1 | ||
| Common parts | ||||
| 88335-12050 | ||||
| 90099-07087 | ||||
| 90099-07094 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||
ILLUST NO. 3 OF 3(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-39585 |
YU71;YU62..TW1 |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88321-14011 |
WU90..RHD..GEN;RU85,WU95,YU6#,71,81..GEN FR |
1 | ||
| 88322-14011 |
WU90..RHD..GEN;RU85,WU95,YU6#,71,81..GEN RR |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88321-14011 |
WU90..RHD..GEN;RU85,WU95,YU6#,71,81..GEN FR |
1 | ||
| 88322-14011 |
WU90..RHD..GEN;RU85,WU95,YU6#,71,81..GEN RR |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88342-14010 |
YU6#,71,81..LHD RR |
1 | ||
| 88341-14010 |
YU6#,71,81..LHD FR |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88342-14010 |
YU6#,71,81..LHD RR |
1 | ||
| 88341-14010 |
YU6#,71,81..LHD FR |
1 | ||
| 88335 - GASKET KIT, OVERHAUL | ||||
| 04881-10010 |
YU6#,71,81..GEN |
1 | ||
| 88343B - REED, SUCTION VALVE | ||||
| 88343-14011 |
WU90..RHD..GEN;RU85,WU95,YU6#,71,81..GEN |
2 | ||
| 88343B - REED, SUCTION VALVE | ||||
| 88343-14011 |
WU90..RHD..GEN;RU85,WU95,YU6#,71,81..GEN |
2 | ||
| 88344C - REED, DISCHARGE VALVE | ||||
| 88344-14011 |
WU90..RHD..GEN;RU85,WU95,YU6#,71,81..GEN |
2 | ||
| 88344C - REED, DISCHARGE VALVE | ||||
| 88344-14011 |
WU90..RHD..GEN;RU85,WU95,YU6#,71,81..GEN |
2 | ||
| 88360A - RING, COMPRESSOR SEAL PLATE SNAP | ||||
| 90096-90022 |
WU90..RHD..CBU;RU85,WU95,YU6#,71,81..GEN |
1 | ||
| 88360C - SEAL ASSY, SHAFT | ||||
| 88360-40010 |
WU90..RHD..CBU;RU85,WU95,YU6#,71,81..GEN |
1 | ||
| 88371A - VALVE, SUCTION | ||||
| 88371-36110 |
YU6#,71,81..GEN |
1 | ||
| 88374A - VALVE, SERVICE | ||||
| 88374-12020 |
YU6#,71,81..GEN |
1 | ||
| 88374A - VALVE, SERVICE | ||||
| 88374-12020 |
YU6#,71,81..GEN |
1 | ||
| 88375 - CAP, COOLER COMPRESSOR SERVICE VALVE | ||||
| 88375-30270 |
WU90..RHD..GEN;RU85,WU95,YU6#,71,81..GEN SUCTION |
1 | ||
| 88375 - CAP, COOLER COMPRESSOR SERVICE VALVE | ||||
| 88375-30270 |
WU90..RHD..GEN;RU85,WU95,YU6#,71,81..GEN SUCTION |
1 | ||

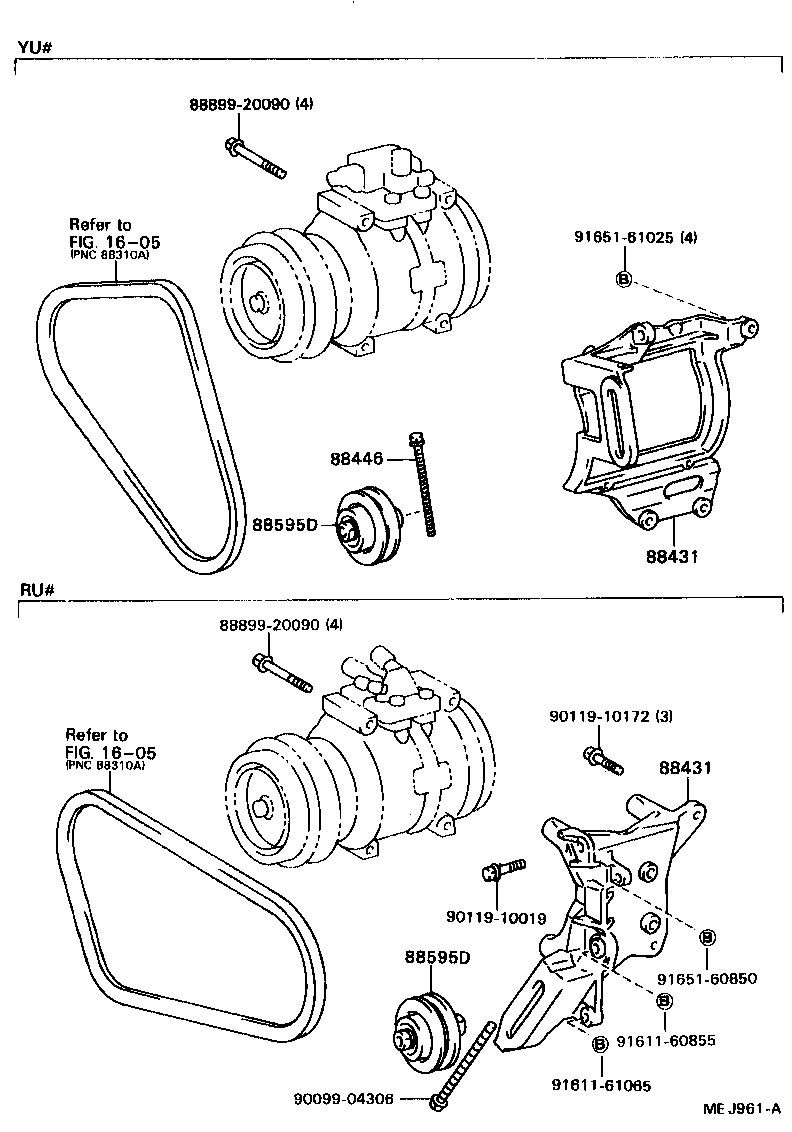

ILLUST NO. 1 OF 3(8708- )RU85,YU6#,71,81
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-28070 |
YU6#,71,81..GEN |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-28070 |
YU6#,71,81..GEN |
1 | ||
| 88446 - BOLT, IDLE PULLEY | ||||
| 88446-35010 |
YU6#,71,81..GEN |
1 | ||
| 88595D - PULLEY ASSY, IDLE | ||||
| 88440-35020 |
YU6#,71,81..GEN |
1 | ||
| 88595D - PULLEY ASSY, IDLE | ||||
| 88440-35020 |
YU6#,71,81..GEN |
1 | ||
| Common parts | ||||
| 88899-20090 | ||||
| 90099-04306 | ||||
| 90119-10019 | ||||
| 90119-10172 | ||||
| 91611-60855 | ||||
| 91611-61065 | ||||
| 91651-60850 | ||||
| 91651-61025 | ||||
| Linked diagrams | ||||
| 1605 | ||||
ILLUST NO. 2 OF 3(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-22030 |
YU6#,71,81..GEN |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-14050 |
RU85,YU6#,71,81..GEN |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-36160 |
YU6#,71,81..GEN |
1 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-12030 |
RU85,YU6#,71,81..GEN |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-22080 |
YU6#,71,81..GEN |
1 | ||
| Common parts | ||||
| 88335-12050 | ||||
| 90099-07087 | ||||
| 90099-07094 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||
ILLUST NO. 3 OF 3(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-39585 |
YU71;YU62..TW1 |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88321-14011 |
WU90..RHD..GEN;RU85,WU95,YU6#,71,81..GEN FR |
1 | ||
| 88322-14011 |
WU90..RHD..GEN;RU85,WU95,YU6#,71,81..GEN RR |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88321-14011 |
WU90..RHD..GEN;RU85,WU95,YU6#,71,81..GEN FR |
1 | ||
| 88322-14011 |
WU90..RHD..GEN;RU85,WU95,YU6#,71,81..GEN RR |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88342-14010 |
YU6#,71,81..LHD RR |
1 | ||
| 88341-14010 |
YU6#,71,81..LHD FR |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88342-14010 |
YU6#,71,81..LHD RR |
1 | ||
| 88341-14010 |
YU6#,71,81..LHD FR |
1 | ||
| 88335 - GASKET KIT, OVERHAUL | ||||
| 04881-10010 |
YU6#,71,81..GEN |
1 | ||
| 88343B - REED, SUCTION VALVE | ||||
| 88343-14011 |
WU90..RHD..GEN;RU85,WU95,YU6#,71,81..GEN |
2 | ||
| 88343B - REED, SUCTION VALVE | ||||
| 88343-14011 |
WU90..RHD..GEN;RU85,WU95,YU6#,71,81..GEN |
2 | ||
| 88344C - REED, DISCHARGE VALVE | ||||
| 88344-14011 |
WU90..RHD..GEN;RU85,WU95,YU6#,71,81..GEN |
2 | ||
| 88344C - REED, DISCHARGE VALVE | ||||
| 88344-14011 |
WU90..RHD..GEN;RU85,WU95,YU6#,71,81..GEN |
2 | ||
| 88360A - RING, COMPRESSOR SEAL PLATE SNAP | ||||
| 90096-90022 |
WU90..RHD..CBU;RU85,WU95,YU6#,71,81..GEN |
1 | ||
| 88360C - SEAL ASSY, SHAFT | ||||
| 88360-40010 |
WU90..RHD..CBU;RU85,WU95,YU6#,71,81..GEN |
1 | ||
| 88371A - VALVE, SUCTION | ||||
| 88371-36110 |
YU6#,71,81..GEN |
1 | ||
| 88374A - VALVE, SERVICE | ||||
| 88374-12020 |
YU6#,71,81..GEN |
1 | ||
| 88374A - VALVE, SERVICE | ||||
| 88374-12020 |
YU6#,71,81..GEN |
1 | ||
| 88375 - CAP, COOLER COMPRESSOR SERVICE VALVE | ||||
| 88375-30270 |
WU90..RHD..GEN;RU85,WU95,YU6#,71,81..GEN SUCTION |
1 | ||
| 88375 - CAP, COOLER COMPRESSOR SERVICE VALVE | ||||
| 88375-30270 |
WU90..RHD..GEN;RU85,WU95,YU6#,71,81..GEN SUCTION |
1 | ||
