8716 - HEATING & AIR CONDITIONING - WATER PIPING

YU63LD-MDT (1988)

Toyota Dyna 200

Production Aug 1988 - May 1995

Engine 4Y

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(8808- )YU6#,71,82..LHD

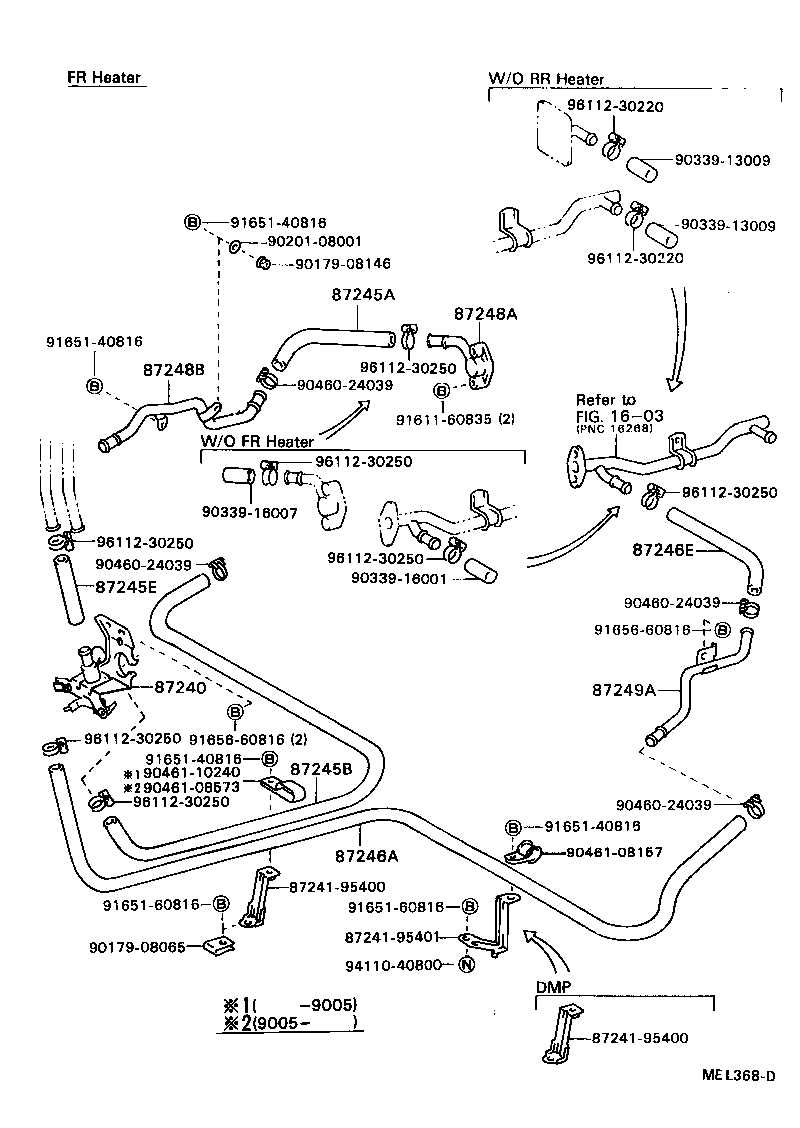

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
87240 - VALVE ASSY, HEATER WATER
87240-95410	RU85,WU9#,YU6#,71,82..LHD	08/1988 - 01/1993	1
87240-95410	RU85,YU6#,71,82..LHD	01/1993 - 05/1995	1
87245A - HOSE, HEATER WATER, INLET A
99556-30300	YU6#,71,82 L=300	08/1988 - 09/1993	1
99556-30300	YU6#,82..GEN L=300	09/1993 - 05/1995	1
87245B - HOSE, HEATER WATER, INLET B
99556-30700	YU6#,71,82..LHD L=700	08/1988 - 05/1995	1
87245E - HOSE, HEATER WATER, INLET E
99556-30135	RU85,WU9#,YU6#,71,82 *H,L=135	08/1988 - 01/1993	1
99556-30135	YU85;RU85,YU6#,82..GEN *H,L=135	09/1993 - 05/1995	1
99556-30135	RU85,YU6#,71,82 *H,L=135	01/1993 - 09/1993	1
87246A - HOSE, HEATER WATER, OUTLET A
99556-30980	YU6#,71,82..LHD *H,L=980	08/1988 - 05/1995	1
87246E - HOSE, HEATER WATER, OUTLET E
87245-95460	YU6#,82..GEN	09/1993 - 05/1995	1
87245-95460	YU6#,71,82	08/1988 - 09/1993	1
87248A - PIPE, HEATER WATER INLET, A
87208-28500	YU6#,71,82	01/1992 - 09/1993	1
87208-28010	YU6#,71,82	08/1988 - 01/1992	1
87208-28500	YU85;YU6#,82..GEN	09/1993 - 05/1995	1
87248B - PIPE, HEATER WATER INLET, B
87208-95407	YU6#,82..GEN	09/1993 - 05/1995	1
87208-95407	YU6#,71,82	08/1988 - 09/1993	1
87249A - PIPE, HEATER WATER OUTLET, A
87208-95408	YU6#,82..GEN	09/1993 - 05/1995	1
87208-95408	YU6#,71,82	08/1988 - 09/1993	1
Common parts
87241-95400
87241-95401
90179-08065
90179-08146
90201-08001
90339-13009
90339-16001
90339-16007
90460-24039
90461-08157
90461-08573
90461-10240
91611-60835
91651-40816
91651-60816
91656-60816
94110-40800
96112-30220
96112-30250
Linked diagrams
1603
