YU63LD-MDT (1988)

Toyota Dyna 200

Production Aug 1988 - May 1995
Engine 4Y
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )4Y

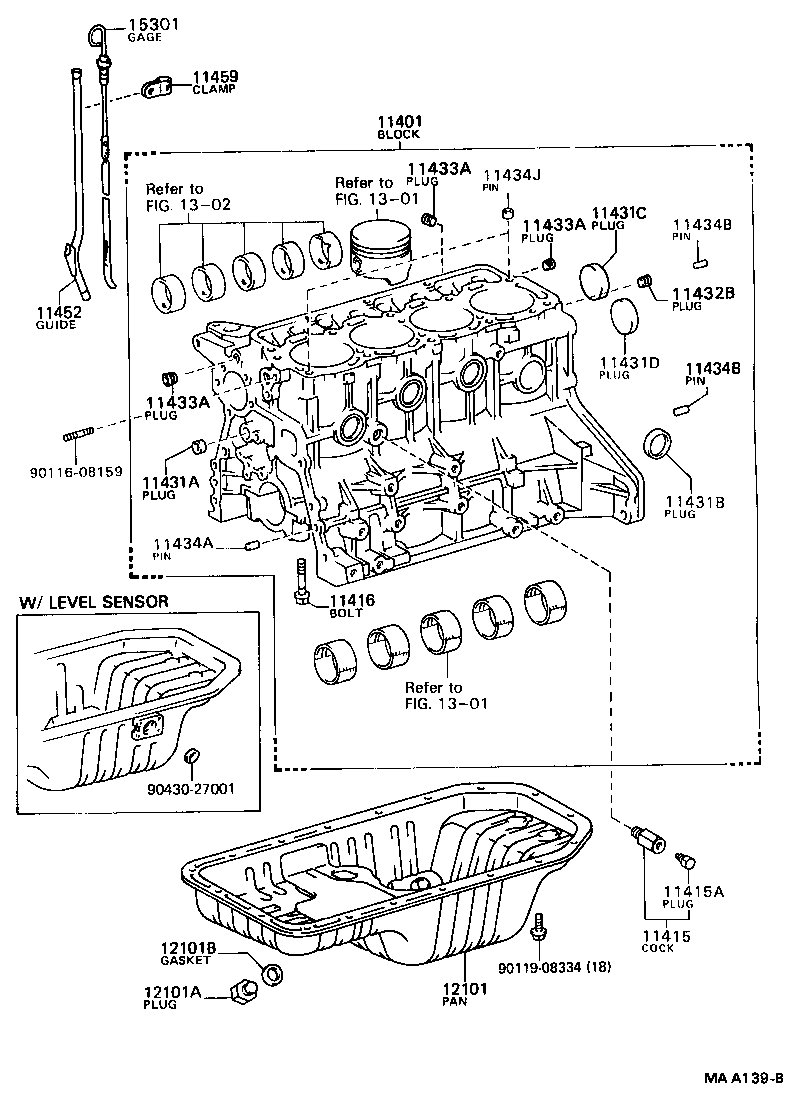

Click highlighted areas on diagram

diagram 11401 11415 11415A 11416 11431A 11431B 11431C 11431D 11432B 11433A 11433A 11433A 11434A 11434B 11434B 11434J 11452 11459 12101 12101A 12101B 1301 1301 1302 15301 9011608159 9011908334 9043027001
Part # Description Qty Price
11401 - BLOCK SUB-ASSY, CYLINDER
11401-79206

4Y..YU6#,71,8#

 1
11401-79335

4Y..YU62..TW1;4Y..YU62..WT..GEN;4Y..YU63,71,82..LHD

CHINA SPEC

 1
11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
96431-53828

4Y..YU6#,71,8#

 1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
96432-23814

4Y..YU6#,71,8#

 1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90910-02032

4Y..YU6#,71,8#

 10
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
96411-01800

4Y..YU6#,71,8#

 1
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
96411-43500

4Y..YU6#,71,8#

 5
11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)
96411-45000

4Y..YU6#,71,8#

 1
11431D - PLUG, TIGHT, NO.4(FOR CYLINDER BLOCK)
96411-45000

4Y..YU6#,71,8#

 1
11432B - PLUG, W/HEAD TAPER SCREW, NO.2
90344-53011

4Y..YU6#,71,8#

 1
11433A - PLUG, STRAIGHT, NO.1
90072-34402

4Y..YU6#,71,82

 3
90344-51005

4Y..YU6#,71,8#

 3
11433A - PLUG, STRAIGHT, NO.1
90072-34402

4Y..YU6#,71,82

 3
90344-51005

4Y..YU6#,71,8#

 3
11433A - PLUG, STRAIGHT, NO.1
90072-34402

4Y..YU6#,71,82

 3
90344-51005

4Y..YU6#,71,8#

 3
11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET)
90250-08120

4Y..YU6#,71,8#

L=18,OD=8

 2
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90250-10113

4Y..YU6#,71,8#

L=22,OD=10

 2
90250-08120

4Y..YU6#,71,8#

L=18,OD=8

 2
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90250-10113

4Y..YU6#,71,8#

L=22,OD=10

 2
90250-08120

4Y..YU6#,71,8#

L=18,OD=8

 2
11434J - PIN, RING (FOR CYLINDER HEAD SET)
90253-15016

4Y..YU6#,71,8#

 2
11452 - GUIDE, OIL LEVEL GAGE
11452-71020

4Y..YU6#,71,8#

 1
11459 - SUPPORT, OIL LEVEL GAGE GUIDE
11459-71011

4Y..YU6#,71,8#

 1
12101 - PAN SUB-ASSY, OIL
12101-73020

4Y..YU6#,71,8#

 1
12101-71021

4Y..YU6#,71,82

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-12012

4Y..YU6#,71,82

 1
90341-12012

4Y..YU6#,71,8#

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-12019

4Y..YU6#,71,82

 1
90430-12027

4Y..YU6#,71,82

 1
90430-12031

4Y..YU6#,8#

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-71020

4Y..YU6#,71,8#

 1
Common parts
90116-08159
90119-08334
90430-27001
Linked diagrams
1301
1302
