YU63LD-MDKT (1987)

Toyota Dyna 200

Production Aug 1987 - Aug 1988
Engine 4Y
Transmission LHD 5F
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )YU6#,81..LHD

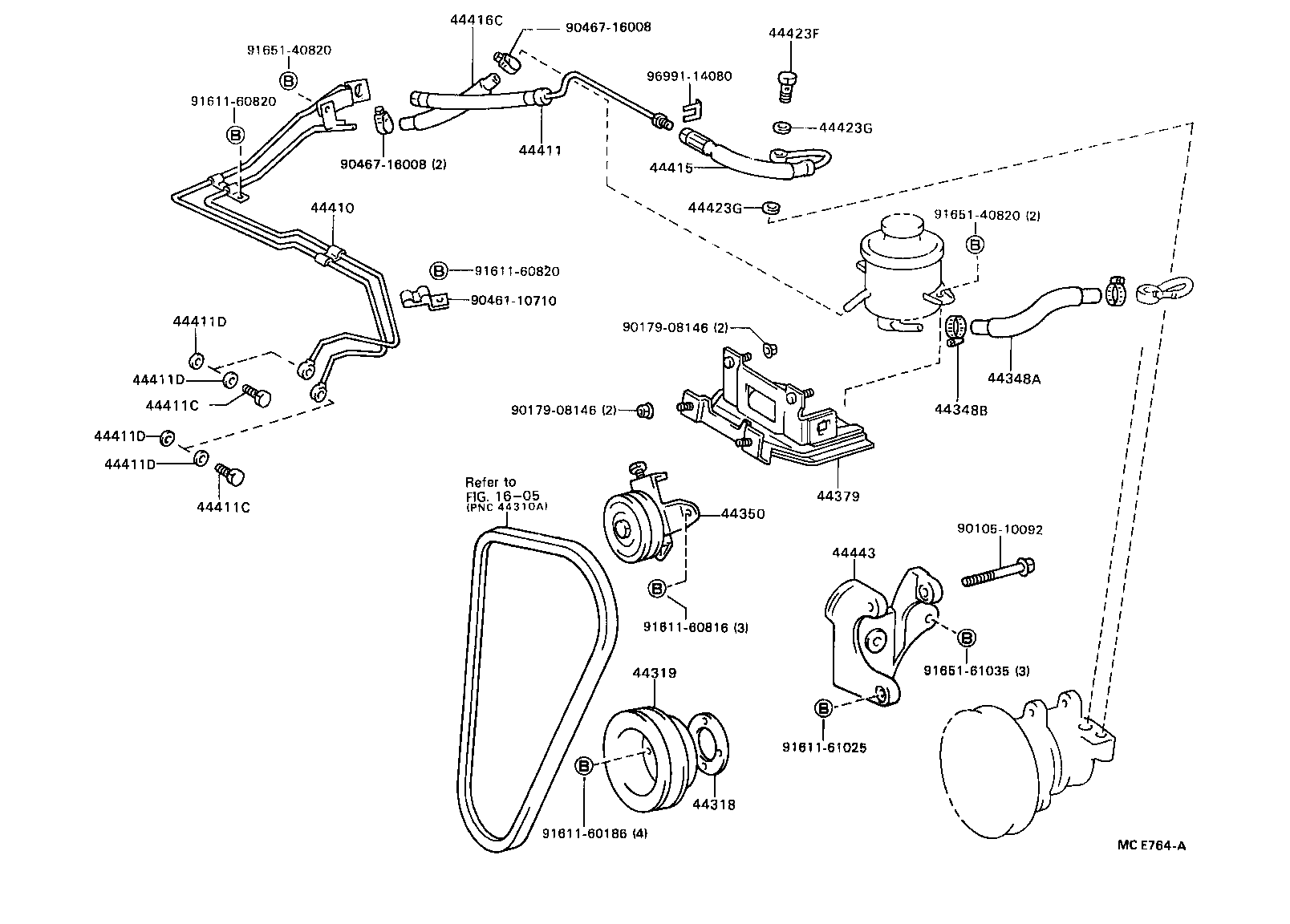

Click highlighted areas on diagram

diagram 1605 44318 44319 44348A 44348B 44350 44379 44410 44411 44411C 44411C 44411D 44411D 44411D 44411D 44415 44416C 44423F 44423G 44423G 44443 9010510092 9017908146 9017908146 9046110710 9046716008 9046716008 9161160186 9161160816 9161160820 9161160820 9161161025 9165140820 9165140820 9165161035 9699114080
Part # Description Qty Price
44318 - SPACER, VANE PUMP DRIVE PULLEY
44318-28012

YU6#,81..(L1,L2,T3)..(ARL,GEN)

 1
44319 - PULLEY, VANE PUMP DRIVE
44319-28013

YU6#,81..(L1,L2,T3)..(ARL,GEN)

 1
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-36130

YU6#,81..(L1,L2,T3)..(ARL,GEN)

 1
44348-36131

YU6#,81..(L1,L2,T3)..(ARL,GEN)

 1
44348B - CLAMP(FOR OIL RESERVOIR TO PUMP HOSE)
90460-26001

YU6#,81..(L1,L2,T3)..(ARL,GEN)

 1
90467-21005

YU6#,81..(L1,L2,T3)..(ARL,GEN)

 1
44350 - PULLEY ASSY, POWER STEERING IDLE
44350-28011

YU6#,81..(L1,L2,T3)..(ARL,GEN)

 1
44379 - BRACKET, OIL RESERVOIR, NO.2
44379-36111

YU6#,81..(L1,L2,T3)..(ARL,GEN)

 1
44410 - TUBE ASSY, PRESSURE FEED
44410-36020

YU6#,81..LHD..(L1,L2,T3)

 1
44411 - HOSE, PRESSURE FEED
44411-36200

YU6#,81..(L1,L2,T3)..(ARL,GEN)

 1
44411C - BOLT, UNION(FOR PRESSURE FEED HOSE)
90401-14003

YU62..T3;RU85,WU9#,YU63,81..GEN

W(POWER STEERING)

 2
44411C - BOLT, UNION(FOR PRESSURE FEED HOSE)
90401-14003

YU62..T3;RU85,WU9#,YU63,81..GEN

W(POWER STEERING)

 2
44411D - GASKET(FOR PRESSURE FEED HOSE)
90430-14235

YU62..T3;RU85,WU9#,YU63,81..GEN

W(POWER STEERING)

 4
44411D - GASKET(FOR PRESSURE FEED HOSE)
90430-14235

YU62..T3;RU85,WU9#,YU63,81..GEN

W(POWER STEERING)

 4
44411D - GASKET(FOR PRESSURE FEED HOSE)
90430-14235

YU62..T3;RU85,WU9#,YU63,81..GEN

W(POWER STEERING)

 4
44411D - GASKET(FOR PRESSURE FEED HOSE)
90430-14235

YU62..T3;RU85,WU9#,YU63,81..GEN

W(POWER STEERING)

 4
44415 - HOSE, PRESSURE FEED, NO.2
44415-36010

YU6#,81..(L1,L2,T3)..(ARL,GEN)

 1
44416C - HOSE(FOR RETURN TUBE TO RESERVIOR)
90447-18030

YU6#,81..(L1,L2,T3)..(ARL,GEN)

 1
44423F - BOLT, UNION
90401-16004

RU85,YU6#,81..(L1,L2,T3)..(ARL,GEN)

 1
44423G - GASKET, UNION BOLT
90430-16168

RU85,YU6#,81..(L1,L2,T3)..(ARL,GEN)

 2
44423G - GASKET, UNION BOLT
90430-16168

RU85,YU6#,81..(L1,L2,T3)..(ARL,GEN)

 2
44443 - BRACKET, PUMP
44443-36010

YU6#,81..(L1,L2,T3)..(ARL,GEN)

 1
Common parts
90105-10092
90179-08146
90461-10710
90467-16008
91611-60186
91611-60816
91611-60820
91611-61025
91651-40820
91651-61035
96991-14080
Linked diagrams
1605
