YU63LD-MDKT (1987)

Toyota Dyna 200

Production Aug 1987 - Aug 1988
Engine 4Y
Transmission LHD 5F
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(8708- )YU6#,81 ; (8708- )WU9#..RHD

Click highlighted areas on diagram

diagram 38901D 38902B 38902C 38902C 38903A 38908A 38946A 9161160616 9161160816 9161160816 9161160825 9161160825 9411040800 9451200800 9461210800
Part # Description Qty Price
38901D - LEVER SUB-ASSY, VALVE CONTROL
38901-96316

YU63

 1
38902B - BRACKET SUB-ASSY, VALVE CONTROL LEVER
38902-96313

YU63

 1
38902C - BUSH (FOR VALVE CONTROL LEVER)
90386-13007

YU63

 2
38902C - BUSH (FOR VALVE CONTROL LEVER)
90386-13007

YU63

 2
38903A - BRACKET SUB-ASSY, VALVE CONTROL LEVER LOCK
38903-96310

YU63

 1
38908A - KNOB SUB-ASSY, CONTROL LEVER
38908-96304

YU63

 1
38946A - KNOB, VALVE LOCK LEVER
38946-96302

YU63

 1
Common parts
91611-60616
91611-60816
91611-60825
94110-40800
94512-00800
94612-10800

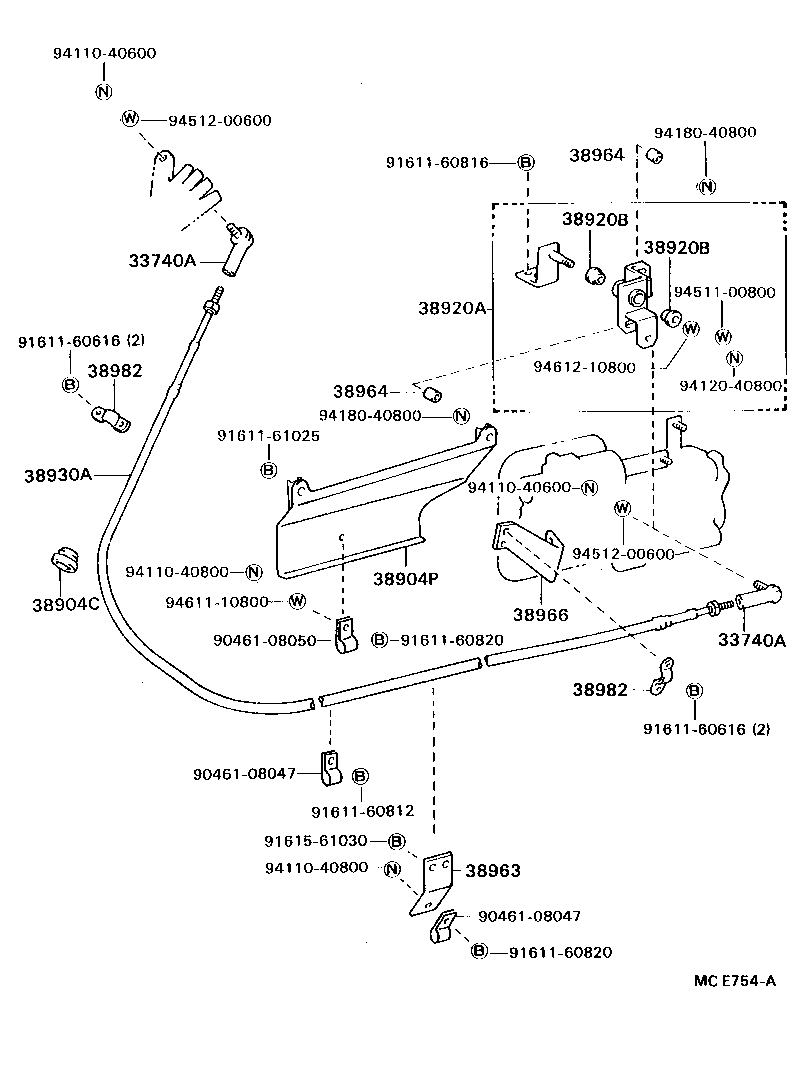

ILLUST NO. 2 OF 2(8708- )YU63

Click highlighted areas on diagram

diagram 33740A 33740A 38904C 38904P 38920A 38920B 38920B 38930A 38963 38964 38964 38966 38982 38982 9046108047 9046108047 9046108050 9161160616 9161160616 9161160812 9161160816 9161160820 9161160820 9161161025 9161561030 9411040600 9411040600 9411040800 9411040800 9412040800 9418040800 9418040800 9451100800 9451200600 9451200600 9461110800 9461210800
Part # Description Qty Price
33740A - END ASSY, PUSH-PULL CONTROL CABLE
33740-96301

YU63

 2
33740A - END ASSY, PUSH-PULL CONTROL CABLE
33740-96301

YU63

 2
38904C - GROMMET, PUSH PULL CABLE
90480-22013

YU63

 1
38904P - INSULATOR SUB-ASSY, CONTROL CABLE
38904-96312

YU63

 1
38920A - LEVER ASSY, POWER TAKE-OFF CONTROL, NO.1
38920-96302

YU63

 1
38920B - BUSH (FOR POWER TAKE-OFF CONTROL LEVER)
90386-13007

YU63

 2
38920B - BUSH (FOR POWER TAKE-OFF CONTROL LEVER)
90386-13007

YU63

 2
38930A - CABLE ASSY, PUSH PULL
38930-96319

YU63

 1
38963 - BRACKET, CABLE CLAMP, NO.3
38963-96304

YU63

 1
38964 - COLLAR, CONTROL LEVER
90560-08045

YU63

 2
38964 - COLLAR, CONTROL LEVER
90560-08045

YU63

 2
38966 - BRACKET, CABLE CLAMP, NO.6
38966-96301

YU63

 1
38982 - CLAMP, PUSH PULL CABLE, NO.1
38982-96302

YU63

 2
38982 - CLAMP, PUSH PULL CABLE, NO.1
38982-96302

YU63

 2
Common parts
90461-08047
90461-08050
91611-60616
91611-60812
91611-60816
91611-60820
91611-61025
91615-61030
94110-40600
94110-40800
94120-40800
94180-40800
94511-00800
94512-00600
94611-10800
94612-10800
