YU62R-MDBTQ3 (1987)
Toyota Dyna 200
Production
Aug 1987
-
Aug 1988
Engine
4Y
Transmission
RHD 5F
Displacement
2500cc
Power
168 HP (125 kW)
(8708- )4Y

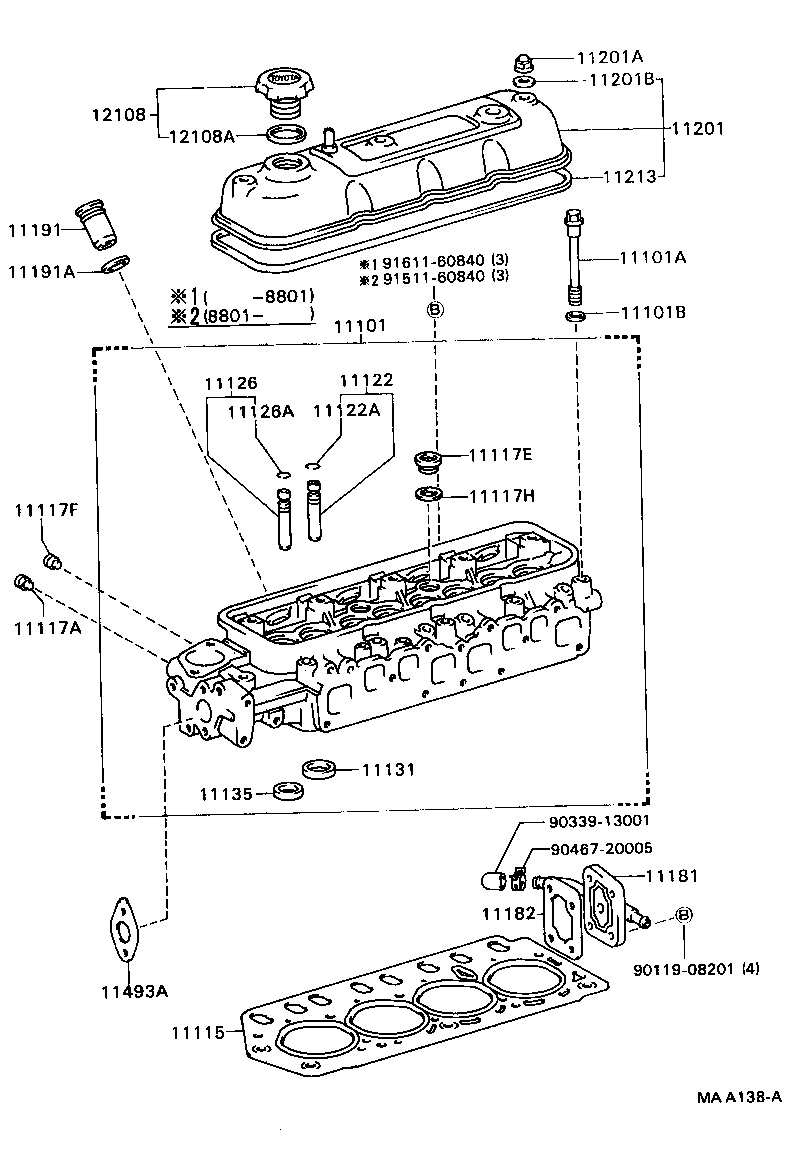

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-73020 |
4Y..YU6#,71,81 |
1 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90105-12056 |
4Y..YU6#,71,81 |
10 | ||
| 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) | ||||
| 90201-13021 |
4Y..YU6#,71,81 |
10 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-73010 |
4Y..YU6#,71,81 |
1 | ||
| 11117A - PLUG, W/HEAD TAPER SCREW, NO.1 | ||||
| 90344-53011 |
4Y..YU6#,71,81 |
2 | ||
| 11117E - PLUG, W/HEAD STRAIGHT SCREW, NO.1 | ||||
| 90341-20002 |
4Y..YU6#,71,81 |
2 | ||
| 11117F - PLUG, W/HEAD STRAIGHT SCREW, NO.2 | ||||
| 90340-16002 |
4Y..YU6#,71,81 |
1 | ||
| 11117H - GASKET(FOR WATER HOLE) | ||||
| 90430-20004 |
4Y..YU6#,71,81 |
2 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11123-71020 |
4Y..YU6#,71,81 O/S 0.05 |
4 | ||
| 11122-71020 |
4Y..YU6#,71,81 STD |
4 | ||
| 11122A - RING, SHAFT SNAP (FOR VALVE GUIDE BUSH) | ||||
| 90520-12049 |
4Y..YU6#,71,81 |
4 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11127-71020 |
4Y..YU6#,71,81 O/S 0.05 |
4 | ||
| 11126-71020 |
4Y..YU6#,71,81 STD |
4 | ||
| 11126A - RING, SHAFT SNAP(FOR VALVE GUIDE BUSH) | ||||
| 90520-12049 |
4Y..YU6#,71,81 |
4 | ||
| 11131 - SEAT, INTAKE VALVE | ||||
| 11132-63010 |
4Y..YU6#,71,81 O/S 0.03 |
4 | ||
| 11131-63010 |
4Y..YU6#,71,81 STD |
4 | ||
| 11135 - SEAT, EXHAUST VALVE | ||||
| 11136-71010 |
4Y..YU6#,71,81 O/S 0.03 |
4 | ||
| 11135-71010 |
4Y..YU6#,71,81 STD |
4 | ||
| 11181 - PLATE, CYLINDER HEAD, REAR | ||||
| 11181-73080 |
4Y..YU6#,71,81 |
1 | ||
| 11182 - GASKET, CYLINDER HEAD REAR PLATE | ||||
| 11182-71010 |
4Y..YU6#,71,81 |
1 | ||
| 11191 - TUBE, SPARK PLUG | ||||
| 11191-22010 |
4Y..YU6#,71,81 |
4 | ||
| 11191A - GASKET(FOR SPARK PLUG TUBE) | ||||
| 90430-31141 |
4Y..YU6#,71,81 |
4 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-79035 |
4Y..YU6#,71,81 |
1 | ||
| 11201A - NUT, CAP(FOR CYLINDER HEAD COVER) | ||||
| 90176-08007 |
4Y..YU6#,71,81 |
3 | ||
| 11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER) | ||||
| 90210-09001 |
4Y..YU6#,71,81 |
3 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-71020 |
4Y..YU6#,71,81 |
1 | ||
| 11493A - GASKET, WATER SEAL PLATE | ||||
| 11493-71010 |
4Y..YU6#,71,81 |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12180-61010 |
4Y..YU6#,71,81 |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 12195-71020 |
4Y..YU6#,71,81 |
1 | ||
| Common parts | ||||
| 90119-08201 | ||||
| 90339-13001 | ||||
| 90467-20005 | ||||
| 91511-60840 | ||||
| 91611-60840 | ||||
