YU62R-MDBTQ3 (1988)

Toyota Dyna 200

Production Aug 1988 - Apr 1992
Engine 4Y
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )RHD

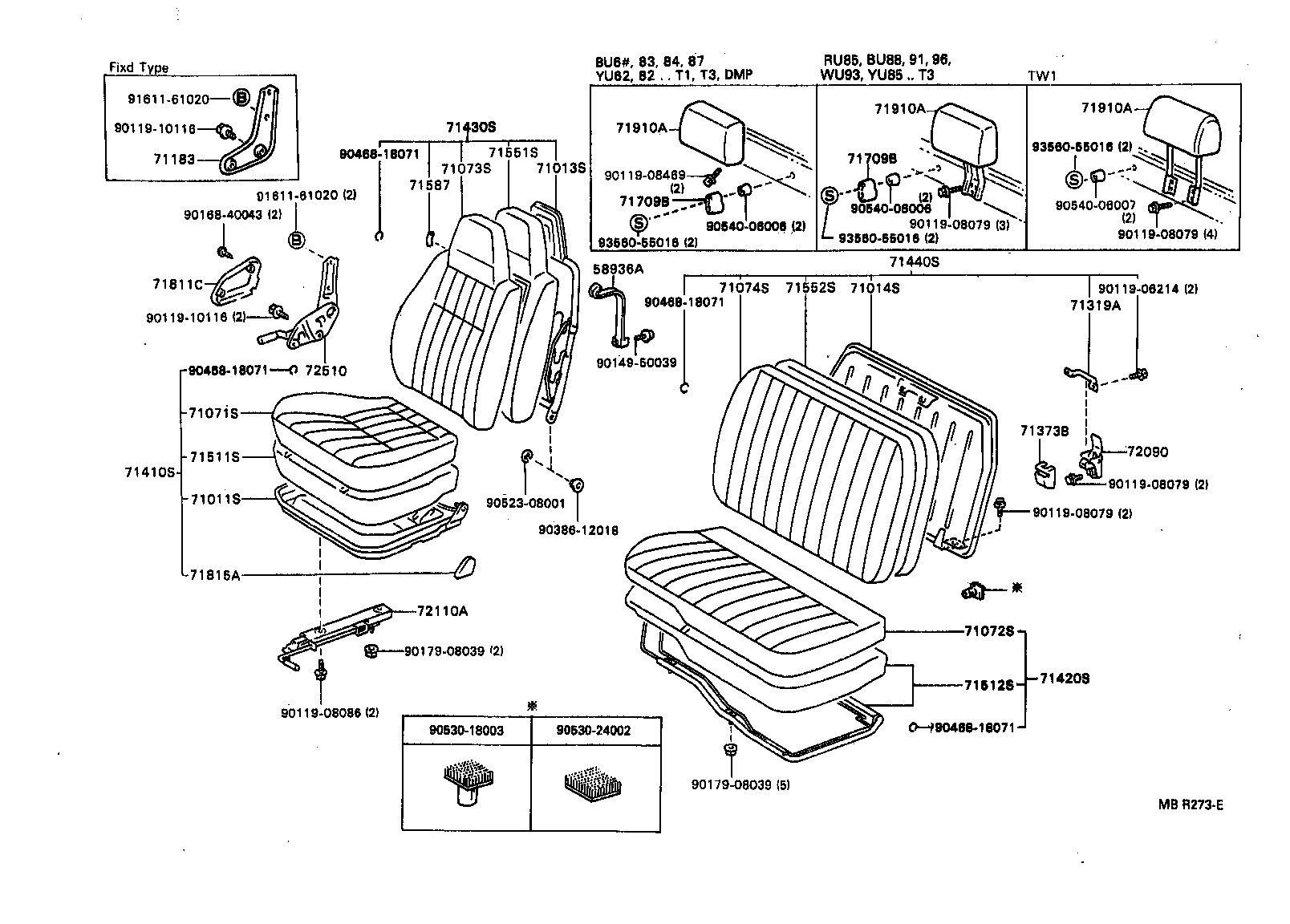

Click highlighted areas on diagram

diagram 58936A 71011S 71013S 71014S 71071S 71072S 71073S 71074S 71183 71319A 71373B 71410S 71420S 71430S 71440S 71511S 71512S 71551S 71552S 71587 71709B 71709B 71811C 71815A 71910A 71910A 71910A 72090 72110A 72510 9011906214 9011908079 9011908079 9011908079 9011908079 9011908086 9011908469 9011910116 9011910116 9014950039 9016840043 9017908039 9017908039 9038612018 9046818071 9046818071 9046818071 9046818071 9052308001 9053018003 9053024002 9054006006 9054006006 9054006007 9161161020 9161161020 9356055016 9356055016 9356055016
Part # Description Qty Price
58936A - BAND, ENGINE SERVICE HOLE COVER SUPPORT
58930-9570006

RU85,WU9#,YU6#,71,82

DARK BROWN,TRIM4#

 1
71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH
71011-95414

RU85,YU62,8#..RHD

 1
71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH
71013-95413

YU62..ARL

 1
71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH
71014-9542001

YU62,82..RHD

BLACK,TRIM4#

 1
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-95B0306

YU62..ARL

BROWN,TRIM4#

 1
71071-37100B1

YU62..ARL

GRAY,TRIM1#

 1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-95B4006

YU62..ARL

BROWN,TRIM4#

 1
71072-37080B1

YU62..ARL

GRAY,TRIM1#

 1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-9547006

YU62..ARL

BROWN,TRIM4#

 1
71073-37110B1

YU62..ARL

GRAY,TRIM1#

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-95B5006

YU62..ARL

BROWN,TRIM4#

 1
71074-37080B1

YU62..ARL

GRAY,TRIM1#

 1
71319A - STRIKER, FRONT SEAT BACK
71319-95404

YU6#,71,82

 1
71373B - COVER, FRONT SEAT BACK LOCK
71373-9540006

RU85,WU9#,YU6#,71,82

BROWN,TRIM4#

 1
71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71410-9544906

YU62..ARL

***,BROWN,TRIM4#

 1
71410-37120B0

YU62..ARL

***,GRAY,TRIM1#

 1
71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
71420-95B2606

YU62..ARL

***,BROWN,TRIM4#

 1
71420-37080B0

YU62..ARL

***,GRAY,TRIM1#

 1
71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71430-9547106

YU62..ARL

***,BROWN,TRIM4#

 1
71430-37110B0

YU62..ARL

***,GRAY,TRIM1#

 1
71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
71440-95B1506

YU62..ARL

***,BROWN,TRIM4#

 1
71440-37090B0

YU62..ARL

***,GRAY,TRIM1#

 1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71511-95402

YU62..ARL

 1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71502-95400

YU62..ARL

 1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-95404

YU62..ARL

 1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71552-95403

YU62,82..RHD

 1
71709B - CUSHION SUB-ASSY, SEAT SUPPORT
71709-95400

YU6#,82..L2,T3

 2
71709B - CUSHION SUB-ASSY, SEAT SUPPORT
71709-95400

YU6#,82..L2,T3

 2
71811C - COVER, RECLINING ADJUSTER, RH
71811-95J0106

RU85,YU62,82..RHD

BROWN,TRIM4#

 1
71815A - COVER, FRONT SEAT CUSHION HINGE, RH
71815-95J0016

RU85,YU62,82..RHD

BROWN,TRIM4#

 1
71910A - HEADREST ASSY, FRONT SEAT
71910-9540106

YU6#,82..L2,T3

BROWN,TRIM4#

 1
71910A - HEADREST ASSY, FRONT SEAT
71910-9540106

YU6#,82..L2,T3

BROWN,TRIM4#

 1
71910A - HEADREST ASSY, FRONT SEAT
71910-9540106

YU6#,82..L2,T3

BROWN,TRIM4#

 1
72090 - LOCK ASSY, FRONT SEAT BACK
72090-9540006

RU85,WU9#,YU6#,71,82

BROWN,TRIM4#

 1
72110A - TRACK ASSY, FRONT SEAT, OUTER RH
72110-95408

RU85,YU62,8#..RHD

 1
72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH
72510-95J0006

RU85,YU62,82..RHD

BROWN,TRIM4#

 1
Common parts
90119-06214
90119-08079
90119-08086
90119-08469
90119-10116
90149-50039
90168-40043
90179-08039
90386-12018
90468-18071
90523-08001
90530-18003
90530-24002
90540-06006
90540-06007
91611-61020
93560-55016

(8808- )

Click highlighted areas on diagram

diagram 72110A 72111A 72120 73800 73810A 73888 9010508075 9017908039 9017908039 9161160816
Part # Description Qty Price
72110A - TRACK ASSY, FRONT SEAT, OUTER RH
72110-95408

RU85,YU62,8#..RHD

 1
Common parts
90105-08075
90179-08039
91611-60816
