YU62R-MDBTQ3 (1988)

Toyota Dyna 200

Production Aug 1988 - Apr 1992
Engine 4Y
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

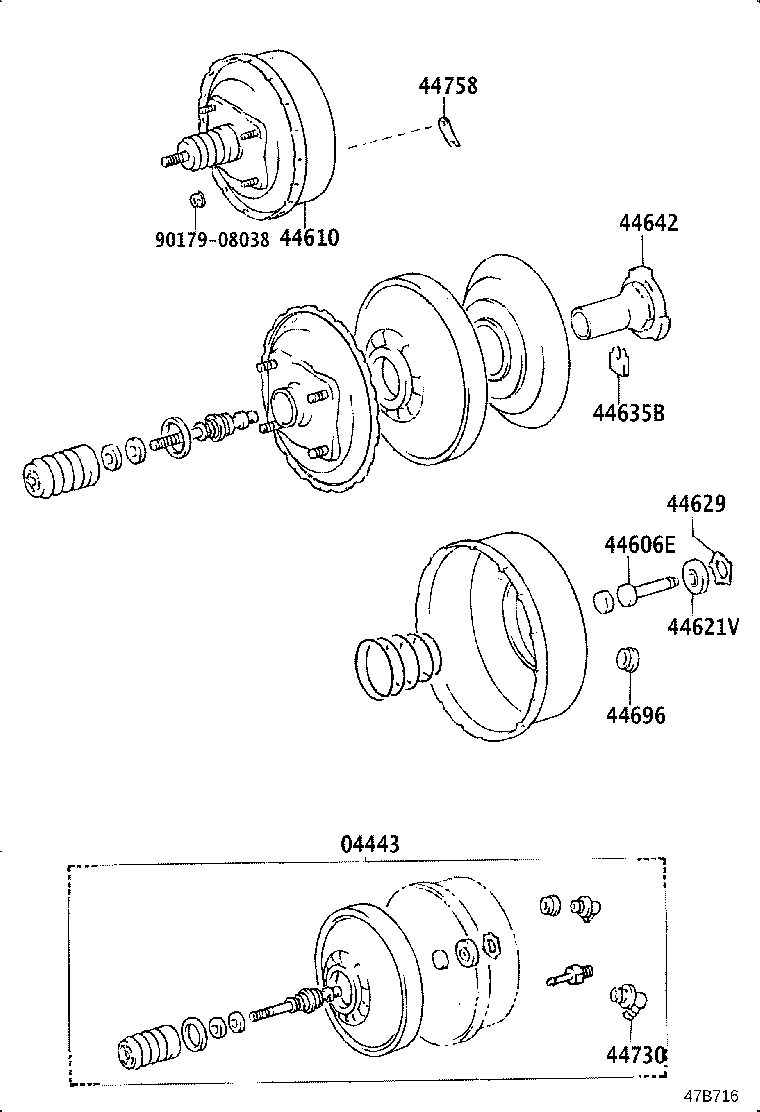

Click highlighted areas on diagram

AISIN

diagram 04443 44606E 44610 44621V 44629 44635B 44642 44696 44730 44758 9017908038
Part # Description Qty Price
04443 - BOOSTER KIT, BRAKE
04443-36070

YU6#,71,82

 1
04443-36080

YU62,82..WT..(ARL,GEN)

W(FR DISC BRAKE RR AUTO ADJUSTER)

 1
44606E - ROD SUB-ASSY, BRAKE BOOSTER PISTON
44606-36240

YU6#,71,82

 1
44610 - BOOSTER ASSY, BRAKE
44610-36280

YU62,82..RHD

 1
44610-36300

YU62,82..RHD..(ARL,GEN)

W(FR DISC BRAKE RR AUTO ADJUSTER)

 1
44621V - SEAL, BOOSTER BODY
44621-28120

YU6#,71,82

 1
44629 - RING, CIRCULAR INTERNAL
44628-28120

YU6#,71,82

 1
44635B - KEY, VALVE STOPPER
44635-36240

YU6#,71,82

 1
44642 - PISTON, BRAKE BOOSTER
44642-36240

YU6#,71,82

 1
44642-36260

YU62,82..WT..(ARL,GEN)

W(FR DISC BRAKE RR AUTO ADJUSTER)

 1
44696 - GROMMET, CHECK VALVE
90480-24439

YU6#,71,82

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-20060

YU6#,71,82

 1
44758 - BRACKET, VACUUM CHECK VALVE
44758-36030

YU62,82..RHD

 1
Common parts
90179-08038

(8808- )

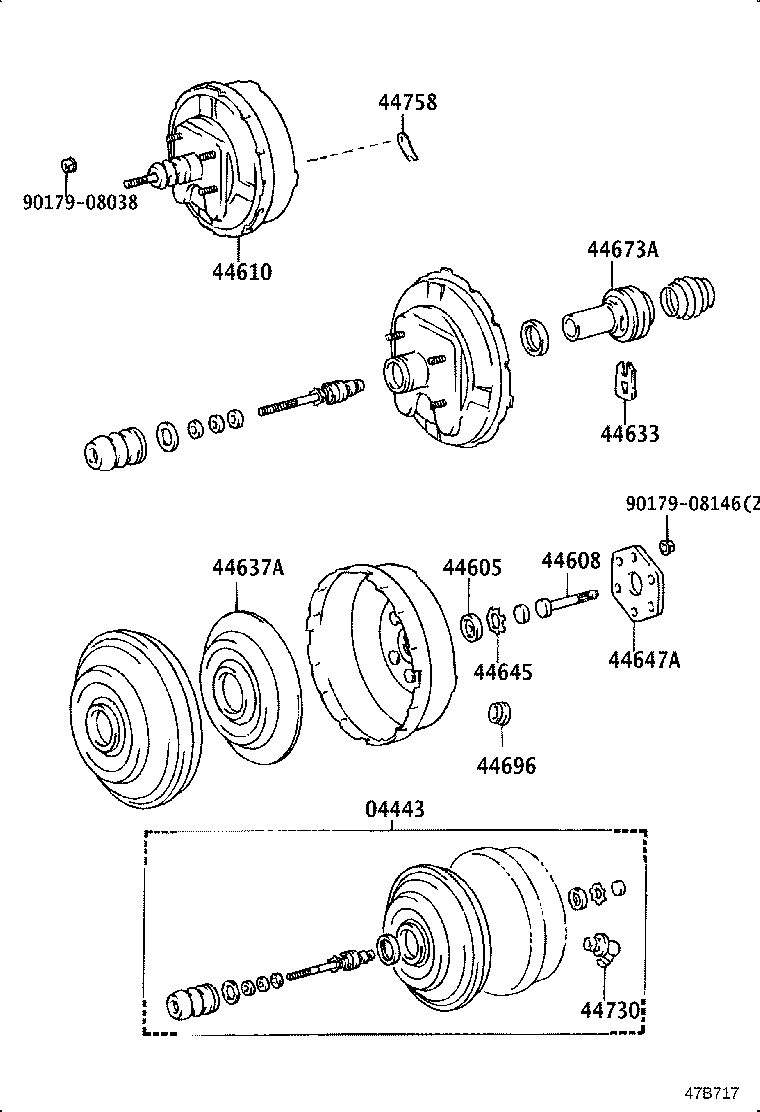

Click highlighted areas on diagram

JKC

diagram 04443 44605 44608 44610 44633 44637A 44645 44647A 44673A 44696 44730 44758 9017908038 9017908146
Part # Description Qty Price
04443 - BOOSTER KIT, BRAKE
04443-36070

YU6#,71,82

 1
04443-36080

YU62,82..WT..(ARL,GEN)

W(FR DISC BRAKE RR AUTO ADJUSTER)

 1
44610 - BOOSTER ASSY, BRAKE
44610-36280

YU62,82..RHD

 1
44610-36300

YU62,82..RHD..(ARL,GEN)

W(FR DISC BRAKE RR AUTO ADJUSTER)

 1
44696 - GROMMET, CHECK VALVE
90480-24439

YU6#,71,82

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-20060

YU6#,71,82

 1
44758 - BRACKET, VACUUM CHECK VALVE
44758-36030

YU62,82..RHD

 1
Common parts
90179-08038
90179-08146

(8808- )YU6#,71,82

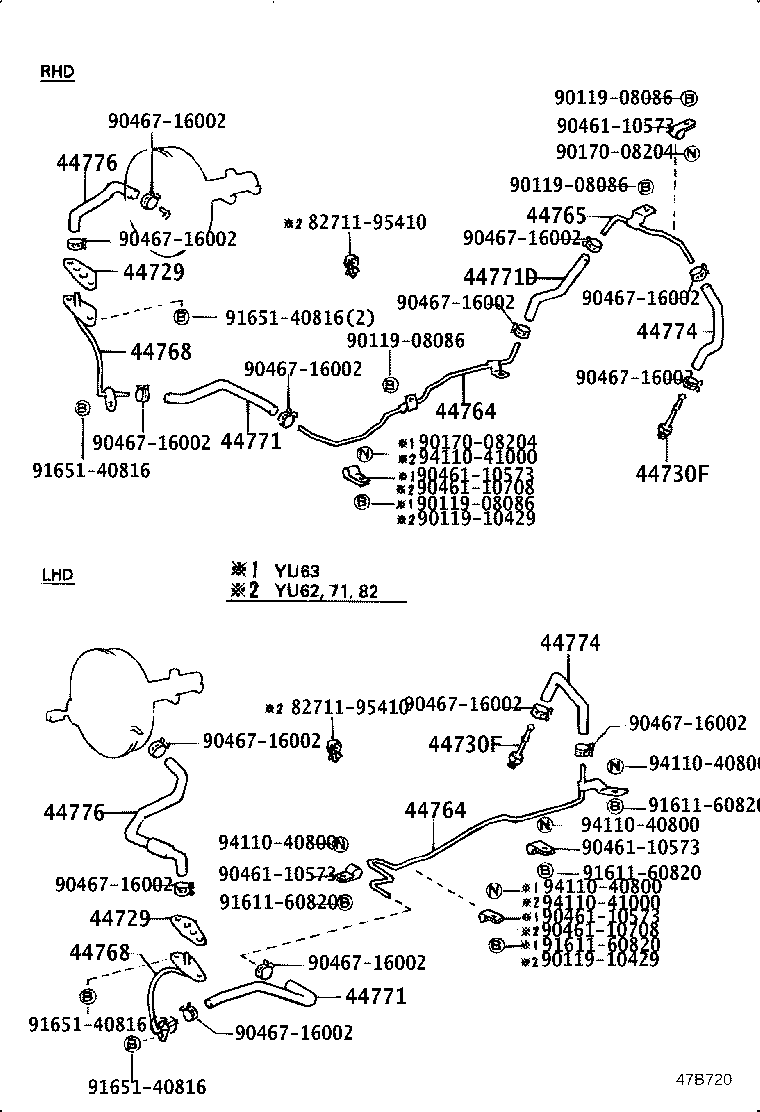

Click highlighted areas on diagram

diagram 44729 44729 44730F 44730F 44764 44764 44765 44768 44768 44771 44771 44771D 44774 44774 44776 44776 8271195410 8271195410 9011908086 9011908086 9011908086 9011908086 9011910429 9011910429 9017008204 9017008204 9046110573 9046110573 9046110573 9046110573 9046110573 9046110708 9046110708 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9161160820 9161160820 9161160820 9161160820 9165140816 9165140816 9165140816 9165140816 9411040800 9411040800 9411040800 9411040800 9411041000 9411041000
Part # Description Qty Price
44729 - GASKET, VACUUM TUBE
44729-36020

RU85,WU9#,YU6#,71,8#

 1
44729 - GASKET, VACUUM TUBE
44729-36020

RU85,WU9#,YU6#,71,8#

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51031

YU6#,71,8#

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51031

YU6#,71,8#

 1
44764 - TUBE, BOOSTER VACUUM
44764-36370

YU62,82..RHD

 1
44764 - TUBE, BOOSTER VACUUM
44764-36370

YU62,82..RHD

 1
44765 - TUBE, CONNECTOR TO BRAKE BOOSTER, NO.2
44765-36150

YU62,82..RHD

 1
44768 - TUBE, BOOSTER VACUUM
44768-36070

YU62..ARL

 1
44768 - TUBE, BOOSTER VACUUM
44768-36070

YU62..ARL

 1
44771 - HOSE, VACUUM TUBE CONNECTOR
44771-36080

RU85,YU62,8#..RHD

 1
44771 - HOSE, VACUUM TUBE CONNECTOR
44771-36080

RU85,YU62,8#..RHD

 1
44771D - HOSE, VACUUM TUBE CONNECTOR
44771-36120

YU62,82..RHD

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-36140

YU62,82..RHD

NO.1

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-36140

YU62,82..RHD

NO.1

 1
44776 - HOSE, BRAKE BOOSTER
44776-36030

YU62,82..RHD

 1
44776 - HOSE, BRAKE BOOSTER
44776-36030

YU62,82..RHD

 1
Common parts
82711-95410
90119-08086
90119-10429
90170-08204
90461-10573
90461-10708
90467-16002
91611-60820
91651-40816
94110-40800
94110-41000
