YU62R-MDBTQ3 (1988)

Toyota Dyna 200

Production Aug 1988 - Apr 1992
Engine 4Y
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

Click highlighted areas on diagram

diagram 31301 31301A 31301B 31301C 31301C 31301F 31321 31324 31324A 31453A 31453B 9046816142 9411041000 9412040800 9451201000 9461311001
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31301-36150

YU6#,71,82

 1
31301A - SPRING(FOR CLUTCH PEDAL)
90508-35004

RU85,WU9#,YU6#,71,82

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06008

RU85,WU9#,YU6#,71,82

 1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007

RU85,WU9#,YU6#,71,82

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007

RU85,WU9#,YU6#,71,82

 2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-08052

RU85,YU6#,71,82

 1
31321 - PAD, CLUTCH PEDAL
31321-36010

RU85,WU9#,YU6#,71,82

 1
31324 - SHAFT, CLUTCH PEDAL
91121-51070

RU85,WU9#,YU6#,71,82

 1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10004

RU85,WU9#,YU6#,71,82

 1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90240-08006

RU85,WU9#,YU6#,71,82

L=23.5

 1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08002

RU85,WU9#,YU6#,71,82

 1
Common parts
90468-16142
94110-41000
94120-40800
94512-01000
94613-11001

(8808- )YU6#,71,82

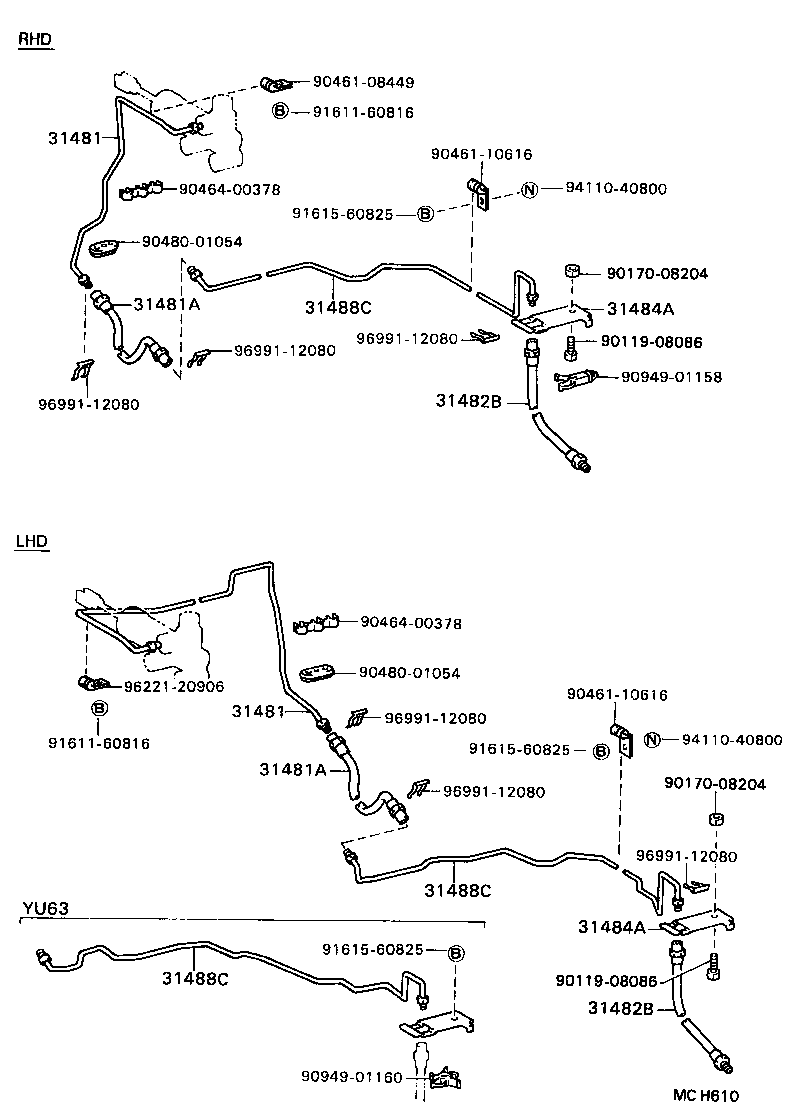

Click highlighted areas on diagram

diagram 31481 31481 31481A 31481A 31482B 31482B 31484A 31484A 31488C 31488C 31488C 9011908086 9011908086 9017008204 9017008204 9046108449 9046110616 9046110616 9046400378 9046400378 9048001054 9048001054 9094901158 9094901160 9161160816 9161160816 9161560825 9161560825 9161560825 9411040800 9411040800 9622120906 9699112080 9699112080 9699112080 9699112080 9699112080 9699112080
Part # Description Qty Price
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-36360

YU62,82..RHD

 1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-36360

YU62,82..RHD

 1
31481A - HOSE, CLUTCH, NO.1
96932-33705

YU6#,71,82

 1
31481A - HOSE, CLUTCH, NO.1
96932-33705

YU6#,71,82

 1
31482B - HOSE, CLUTCH, NO.2
90931-01010

YU62,71,82

 1
31482B - HOSE, CLUTCH, NO.2
90931-01010

YU62,71,82

 1
31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH)
31484-36121

YU6#,71,82

 1
31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH)
31484-36121

YU6#,71,82

 1
31488C - TUBE, FLEXIBLE HOSE TO FLEXIBLE HOSE
31488-36261

YU62,82..RHD

 1
31488C - TUBE, FLEXIBLE HOSE TO FLEXIBLE HOSE
31488-36261

YU62,82..RHD

 1
31488C - TUBE, FLEXIBLE HOSE TO FLEXIBLE HOSE
31488-36261

YU62,82..RHD

 1
Common parts
90119-08086
90170-08204
90461-08449
90461-10616
90464-00378
90480-01054
90949-01158
90949-01160
91611-60816
91615-60825
94110-40800
96221-20906
96991-12080
