YU62R-MDBTQ3 (1988)

Toyota Dyna 200

Production Aug 1988 - Apr 1992
Engine 4Y
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

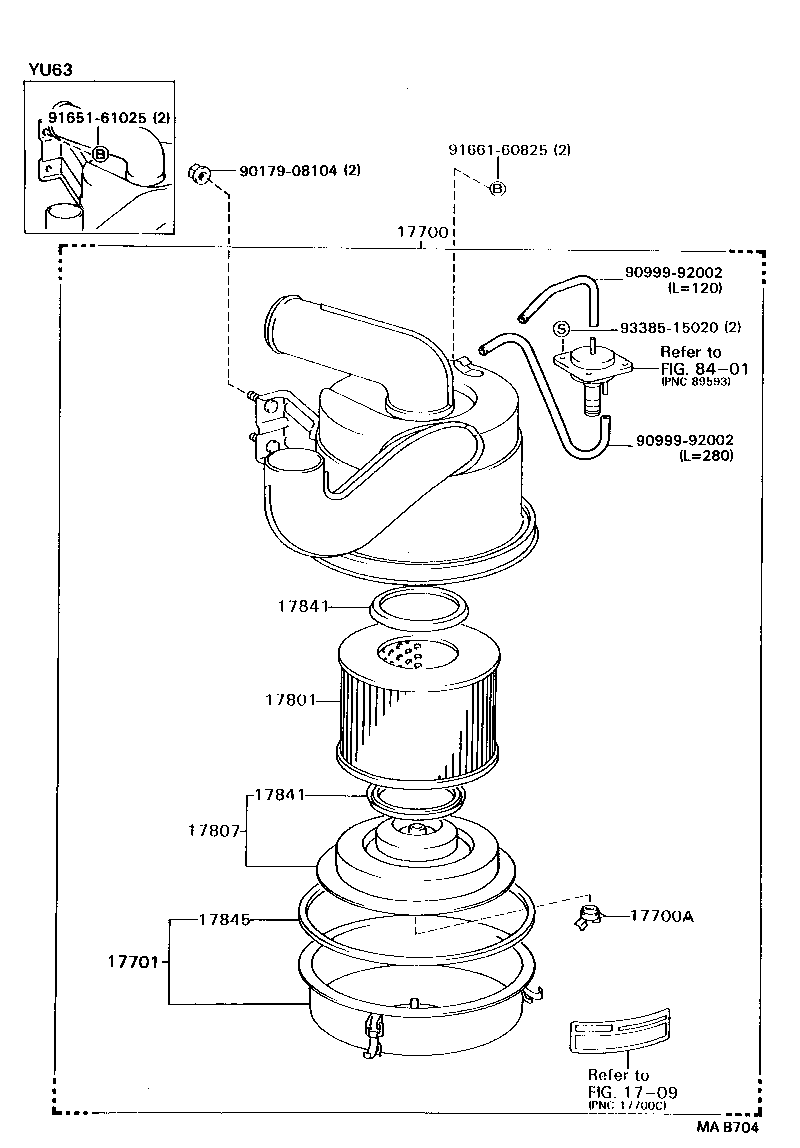

ILLUST NO. 1 OF 2(8808- )4Y

Click highlighted areas on diagram

SCHNORKEL TYPE & W(PRECLEANER)

diagram 1709 17700 17700A 17701 17801 17807 17841 17841 17845 8401 9017908104 9099992002 9099992002 9165161025 9166160825 9338515020
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-56440

4Y..YU62..ARL

 1
17700-56440

4Y..YU62..ARL

 1
17700-56440

4Y..YU62..ARL

 1
17700A - NUT, WING(FOR AIR CLEANER)
90175-08008

4Y..YU63;4Y..YU62,85..RHD

 1
90175-08008

4Y..YU63;4Y..YU62,85..RHD

 1
90175-08008

4Y..YU63;4Y..YU62,85..RHD

 1
17701 - CASE SUB-ASSY, AIR CLEANER
17701-56150

4Y..YU63;4Y..YU62,85..RHD

 1
17701-56150

4Y..YU63;4Y..YU62,85..RHD

 1
17701-56150

4Y..YU63;4Y..YU62,85..RHD

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-58010

4Y..YU6#,71,8#

 1
17801-58010

4Y..YU6#,71,8#

 1
17801-58010

4Y..YU6#,71,8#

 1
17807 - PLATE SUB-ASSY, AIR CLEANER FILTER SET
17807-56011

4Y..YU63;4Y..YU62..ARL

 1
17807-56011

4Y..YU63;4Y..YU62..ARL

 1
17807-56011

4Y..YU63;4Y..YU62..ARL

 1
17841 - GASKET, FILTER ELEMENT
17841-44030

4Y..YU6#,71,8#

 2
17841-44030

4Y..YU6#,71,8#

 2
17841-44030

4Y..YU6#,71,8#

 2
17841 - GASKET, FILTER ELEMENT
17841-44030

4Y..YU6#,71,8#

 2
17841-44030

4Y..YU6#,71,8#

 2
17841-44030

4Y..YU6#,71,8#

 2
17845 - GASKET, AIR CLEANER CAP
17845-56020

4Y..YU6#,71,8#

 1
17845-56020

4Y..YU6#,71,8#

 1
17845-56020

4Y..YU6#,71,8#

 1
Common parts
90179-08104
90999-92002
91651-61025
91661-60825
93385-15020
Linked diagrams
1709
8401

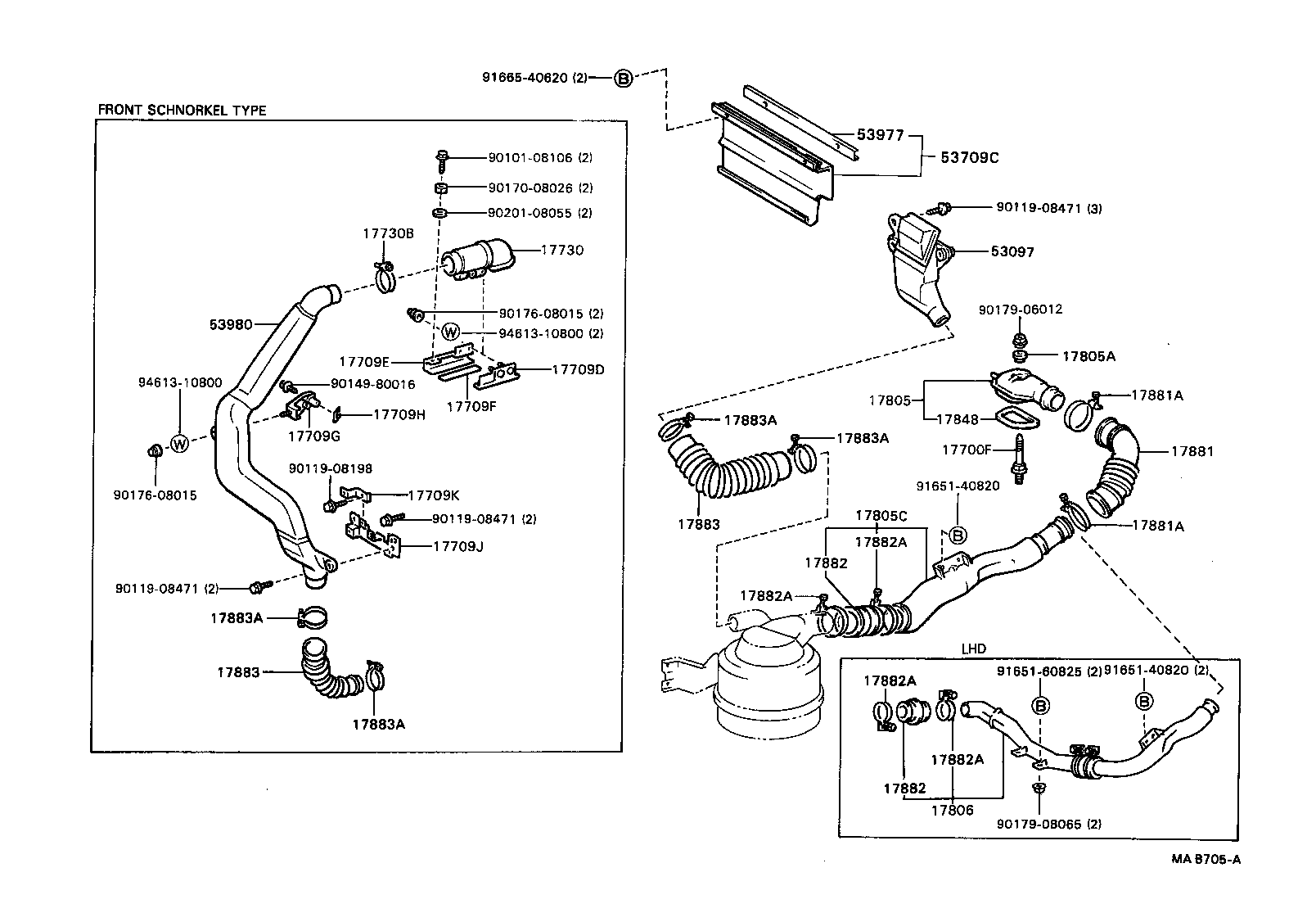

ILLUST NO. 2 OF 2(8808- )4Y..YU6#,71,82

Click highlighted areas on diagram

diagram 17700F 17709D 17709E 17709F 17709G 17709H 17709J 17709K 17730 17730B 17805 17805A 17805C 17806 17848 17881 17881A 17881A 17882 17882 17882A 17882A 17882A 17882A 17883 17883 17883A 17883A 17883A 17883A 53097 53709C 53977 53980 9010108106 9011908198 9011908471 9011908471 9011908471 9014980016 9017008026 9017608015 9017608015 9017906012 9017908065 9020108055 9165140820 9165140820 9165160825 9166540620 9461310800 9461310800
Part # Description Qty Price
17700F - BOLT, STUD(FOR AIR CLEANER SETTING)
90116-06018

4Y..YU6#,71,8#

 1
17709J - BRACKET, AIR CLEANER INLET, NO.3
53764-95406

4Y..YU6#,82..L2,T3

 1
17730 - PRECLEANER ASSY, AIR W/HOSE
17730-56040

4Y..YU6#,82..L2,T3

 1
17730B - CLAMP, HOSE(FOR PRECLEANER HOSE)
96111-10880

4Y..YU6#,71,8#

 1
17805 - CONNECTOR SUB-ASSY, INTAKE AIR
17805-73070

4Y..YU6#,71,8#

 1
17805A - GASKET & WASHER, SEAL
90210-09026

4Y..YU6#,71,8#

 1
17848 - GASKET, AIR CLEANER TO CARBURETOR
17848-35010

4Y..YU6#,71,8#

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-73050

4Y..YU63;4Y..YU62,85..RHD

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10690

4Y..YU63;4Y..YU62..ARL

 2
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10690

4Y..YU63;4Y..YU62..ARL

 2
17882 - HOSE, AIR CLEANER, NO.2
17882-56090

4Y..YU62..ARL

 1
17882 - HOSE, AIR CLEANER, NO.2
17882-56090

4Y..YU62..ARL

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10750

4Y..YU6#,71,82

 2
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10750

4Y..YU6#,71,82

 2
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10750

4Y..YU6#,71,82

 2
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10750

4Y..YU6#,71,82

 2
17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3)
96111-10780

4Y..YU63;4Y..YU62..ARL

 1
17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3)
96111-10780

4Y..YU63;4Y..YU62..ARL

 1
17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3)
96111-10780

4Y..YU63;4Y..YU62..ARL

 1
17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3)
96111-10780

4Y..YU63;4Y..YU62..ARL

 1
53097 - INLET SUB-ASSY
53097-95417

YU63;YU62..ARL

 1
Common parts
90101-08106
90119-08198
90119-08471
90149-80016
90170-08026
90176-08015
90179-06012
90179-08065
90201-08055
91651-40820
91651-60825
91665-40620
94613-10800

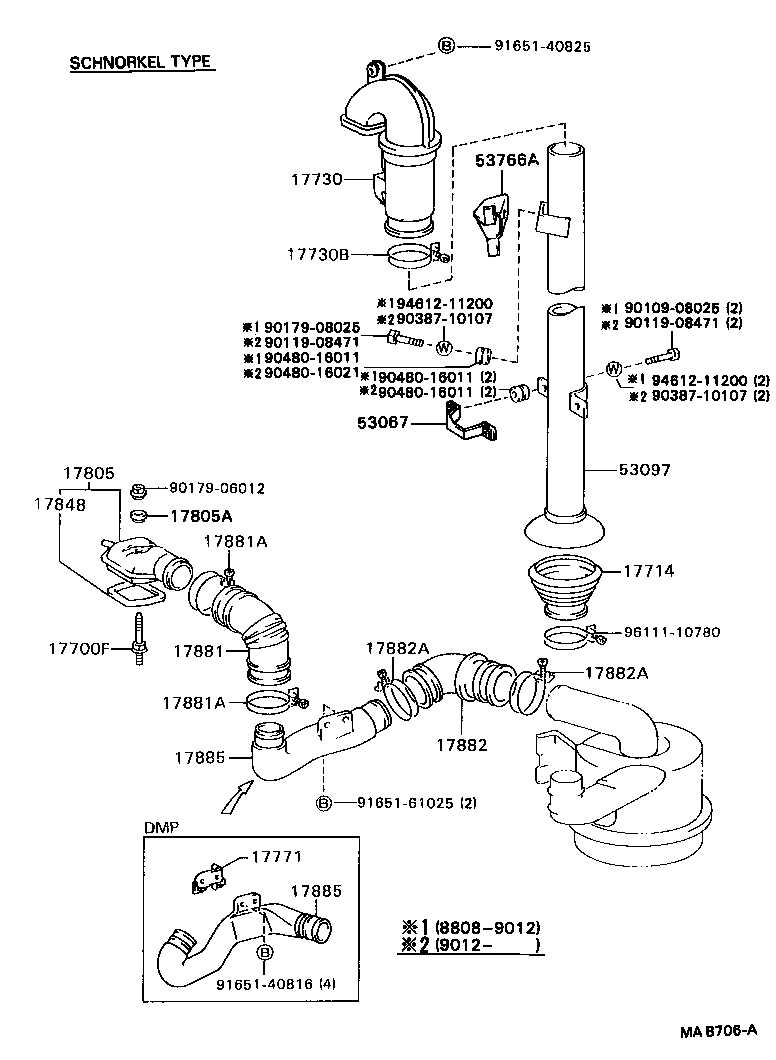

ILLUST NO. 2 OF 2(8808- )4Y..YU6#,82..L2,T3

Click highlighted areas on diagram

diagram 17700F 17714 17730 17730B 17771 17805 17805A 17848 17881 17881A 17881A 17882 17882A 17882A 17885 17885 53067 53097 53766A 9010908025 9011908471 9011908471 9017906012 9017908025 9038710107 9038710107 9048016011 9048016011 9048016011 9048016021 9165140816 9165140825 9165161025 9461211200 9461211200 9611110780
Part # Description Qty Price
17700F - BOLT, STUD(FOR AIR CLEANER SETTING)
90116-06018

4Y..YU6#,71,8#

 1
17714 - RUBBER SEAL, AIR INTAKE
17714-95401

4Y..YU6#,82..L2,T3

 1
17730 - PRECLEANER ASSY, AIR W/HOSE
17730-56040

4Y..YU6#,82..L2,T3

 1
17730B - CLAMP, HOSE(FOR PRECLEANER HOSE)
96111-10880

4Y..YU6#,71,8#

 1
17805 - CONNECTOR SUB-ASSY, INTAKE AIR
17805-73070

4Y..YU6#,71,8#

 1
17805A - GASKET & WASHER, SEAL
90210-09026

4Y..YU6#,71,8#

 1
17848 - GASKET, AIR CLEANER TO CARBURETOR
17848-35010

4Y..YU6#,71,8#

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-73050

4Y..YU63;4Y..YU62,85..RHD

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10690

4Y..YU63;4Y..YU62..ARL

 2
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10690

4Y..YU63;4Y..YU62..ARL

 2
17882 - HOSE, AIR CLEANER, NO.2
17882-56090

4Y..YU62..ARL

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10750

4Y..YU6#,71,82

 2
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10750

4Y..YU6#,71,82

 2
17885 - PIPE, AIR CLEANER
17885-73010

4Y..YU62,82..T3

 1
17885 - PIPE, AIR CLEANER
17885-73010

4Y..YU62,82..T3

 1
53067 - BRACKET SUB-ASSY, AIR CLEANER INLET
53067-95400

YU6#,82..L2,T3

 1
53097 - INLET SUB-ASSY
53097-95417

YU63;YU62..ARL

 1
53766A - BRACKET, AIR CLEANER INLET PIPE
53766-95401

YU6#,82..L2,T3

 1
Common parts
90109-08025
90119-08471
90179-06012
90179-08025
90387-10107
90480-16011
90480-16021
91651-40816
91651-40825
91651-61025
94612-11200
96111-10780
