YU62L-MDP (1988)

Toyota Dyna 200

Production Aug 1988 - May 1995
Engine 4Y
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )TW1

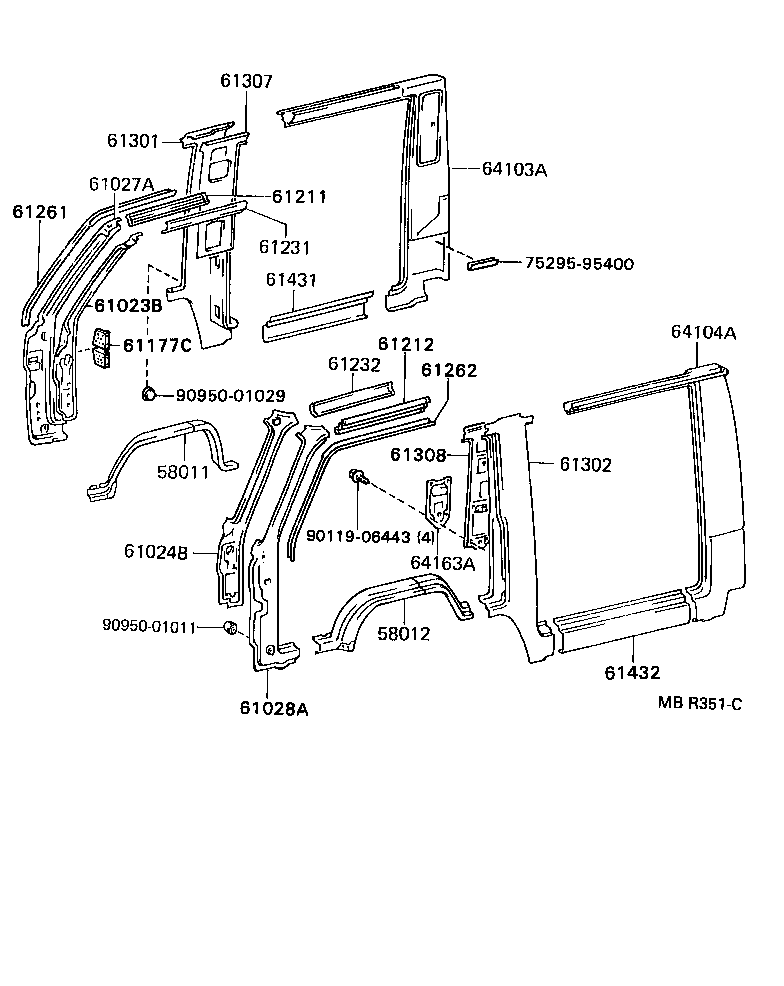

Click highlighted areas on diagram

diagram 58011 58012 61023B 61024B 61027A 61028A 61177C 61211 61212 61231 61232 61261 61262 61301 61302 61307 61308 61431 61432 64103A 64104A 64163A 7529595400 9011906443 9095001011 9095001029
Part # Description Qty Price
58011 - PANEL SUB-ASSY, FRONT FLOOR SIDE, RH
58011-95448

YU62..TW1

 1
58012 - PANEL SUB-ASSY, FRONT FLOOR SIDE, LH
58012-95445

YU62..TW1

 1
61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH
61023-95401

RU85,WU9#,YU6#,71,82..LHD

 1
61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH
61024-95401

RU85,WU9#,YU6#,71,82..LHD

 1
61027A - PILLAR SUB-ASSY, FRONT BODY, OUTER RH
61027-95401

RU85,WU9#,YU6#,71,82

 1
61027-37020

RU85,WU9#,YU6#,71,8#

 1
61027-95401

RU85,WU9#,YU6#,82

 1
61028A - PILLAR SUB-ASSY, FRONT BODY, OUTER LH
61028-95400

RU85,YU6#,71,82

 1
61028-95401

RU85,YU6#,82..LHD

W(RADIO)

 1
61028-95401

RU85,YU6#,71,82..LHD

W(RADIO)

 1
61028-37040

RU85,YU6#,71,82..LHD

W(RADIO)

 1
61028-37030

RU85,YU6#,71,8#

 1
61177C - BRACKET, DOOR CHECK ARM
61177-37010

RU85,WU9#,YU6#,8#

 1
61211 - RAIL, ROOF SIDE, OUTER RH
61211-95404

YU62..TW1

 1
61212 - RAIL, ROOF SIDE, OUTER LH
61212-95404

YU62..TW1

 1
61231 - RAIL, ROOF SIDE, INNER RH
61203-95400

YU62..TW1

 1
61232 - RAIL, ROOF SIDE, INNER LH
61204-95401

YU62..TW1

 1
61261 - CHANNEL, ROOF DRIP, RH
61261-95407

RU85,WU9#,YU6#,8#

 1
61262 - CHANNEL, ROOF DRIP, LH
61262-95407

RU85,WU9#,YU6#,8#

 1
61301 - PILLAR SUB-ASSY, CENTER BODY, RH
61301-95A08

YU62..TW1

 1
61302 - PILLAR SUB-ASSY, CENTER BODY, LH
61302-95A12

YU62..TW1

 1
61302-95401

YU62..TW1

SAUDI ARABIA & GULF SPEC

 1
61307 - PILLAR SUB-ASSY, CENTER BODY, INNER RH
61307-95401

YU62..TW1

 1
61308 - PILLAR SUB-ASSY, CENTER BODY, INNER LH
61308-95401

YU62..TW1

 1
61308-95402

YU62..TW1

W(REAR HEATER)

 1
61431 - PANEL, ROCKER, OUTER REAR RH
61431-95401

YU62..TW1

 1
61432 - PANEL, ROCKER, OUTER REAR LH
61431-95401

YU62..TW1

 1
64103A - PANEL SUB-ASSY, BACK CORNER, OUTER RH
64103-95412

YU62..TW1

 1
64103-37030

YU62..TW1

 1
64104A - PANEL SUB-ASSY, BACK CORNER, OUTER LH
64104-37030

YU62..TW1

 1
64104-95414

YU62..TW1

 1
64163A - COVER, BACK CORNER, INNER
64163-9541006

RU85,YU62,71,82..LHD

SAUDI ARABIA & GULF SPEC,BROWN,TRIM4#

 2
64163-9541106

RU85,WU9#,YU6#,71,82..GEN,SA

BROWN,TRIM4#

 2
64163-95411B0

RU85,WU9#,YU6#,71,8#..GEN,SA

GRAY,TRIM1#

 2
64163-9541013

RU85,YU62,82..LHD

SAUDI ARABIA & GULF SPEC,GRAY,TRIM1#

 2
Common parts
75295-95400
90119-06443
90950-01011
90950-01029
