YU62L-MDBT (1987)
Toyota Dyna 200
(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

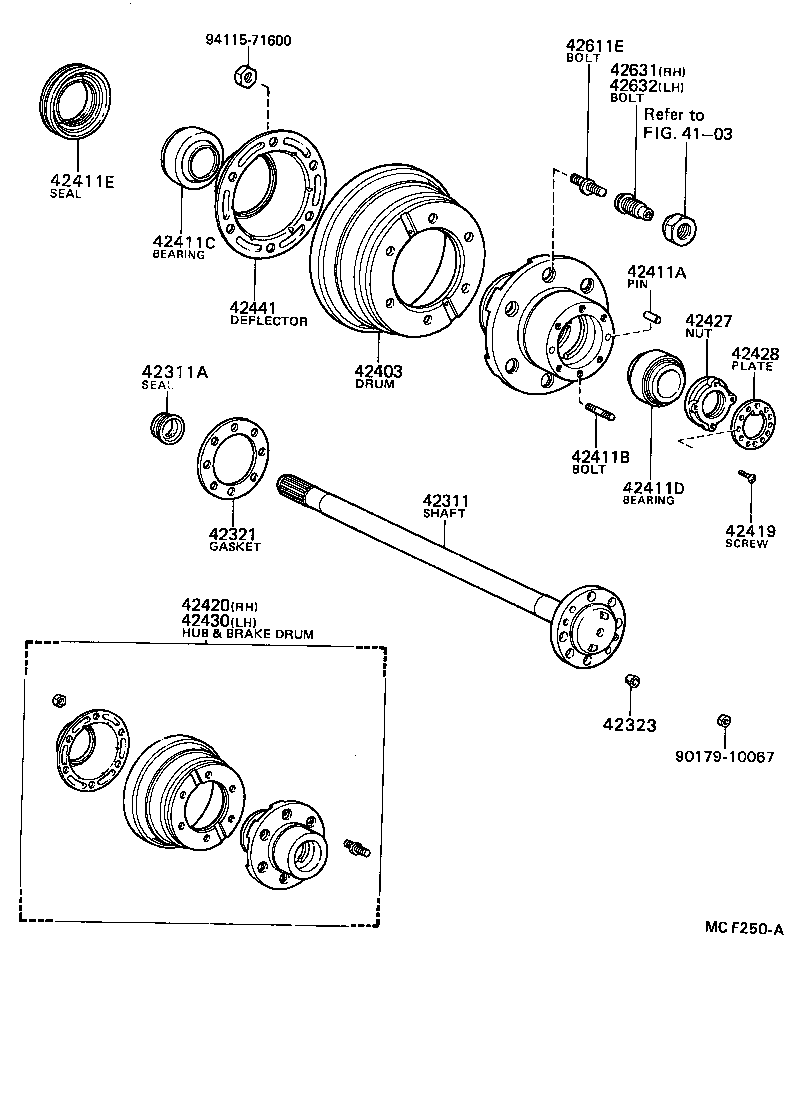

| 42311 - SHAFT, REAR AXLE | ||||
| 42311-36180 |
YU62,81..WT..GEN HEAVY DUTY SPEC |
2 | ||
| 42311-36051 |
YU62,71,81 |
2 | ||
| 42311-36050 |
YU62,71,81 |
2 | ||
| 42311-36181 |
YU62,81..WT..GEN HEAVY DUTY SPEC |
2 | ||
| 42311A - SEAL, OIL (FOR REAR AXLE SHAFT) | ||||
| 90310-38033 |
YU6#,71,81 |
2 | ||
| 90310-40001 |
YU62,81..WT..GEN HEAVY DUTY SPEC |
2 | ||
| 42321 - GASKET, REAR AXLE SHAFT | ||||
| 42321-36040 |
RU85,YU6#,71,81 |
2 | ||
| 42323 - WASHER, CONE (FOR REAR AXLE SHAFT) | ||||
| 42323-36010 |
YU62,81..WT..GEN HEAVY DUTY SPEC |
16 | ||
| 42323-36010 |
YU6#,71,81 |
12 | ||
| 42403 - DRUM SUB-ASSY, REAR BRAKE | ||||
| 42431-36120 |
RU85,YU6#,81..WT |
2 | ||
| 42403A - PIECE, BALANCE (FOR REAR BRAKE DRUM) | ||||
| 90937-01122 |
RU85,WU9#,YU6#,81..WT 60G |
1 | ||
| 42411A - PIN, STRAIGHT (FOR REAR AXLE HUB) | ||||
| 90250-10055 |
RU85,YU6#,71,81 |
2 | ||
| 42411B - BOLT, STUD (FOR REAR AXLE HUB) | ||||
| 90116-10191 |
YU62,81..WT..GEN HEAVY DUTY SPEC |
8 | ||
| 90116-10191 |
YU6#,71,81 |
6 | ||
| 42411C - BEARING, TAPERED ROLLER (FOR REAR AXLE INNER BEARING) | ||||
| 90368-57010 |
RU85,YU6#,71,81 |
1 | ||
| 42411D - BEARING, TAPERED ROLLER (FOR REAR AXLE OUTER BEARING) | ||||
| 90368-52043 |
RU85,YU6#,71,81 |
2 | ||
| 42411E - SEAL, OIL (FOR REAR AXLE HUB) | ||||
| 90311-75003 |
RU85,YU6#,71,81 |
1 | ||
| 42419 - SCREW, REAR AXLE BEARING LOCK NUT | ||||
| 93311-16012 |
RU85,YU6#,71,81 |
4 | ||
| 42420 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, RH | ||||
| 42420-36150 |
YU62,81..WT..GEN HEAVY DUTY SPEC |
1 | ||
| 42420-36130 |
YU6#,81..WT |
1 | ||
| 42427 - NUT, REAR AXLE BEARING LOCK | ||||
| 42427-36030 |
RU85,YU6#,71,81 |
2 | ||
| 42428 - PLATE, REAR AXLE LOCK NUT | ||||
| 42428-36020 |
RU85,YU6#,71,81 |
2 | ||
| 42430 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, LH | ||||
| 42430-36150 |
YU62,81..WT..GEN HEAVY DUTY SPEC |
1 | ||
| 42430-36130 |
YU6#,81..WT |
1 | ||
| 42611E - BOLT, HUB (FOR REAR AXLE) | ||||
| 90942-02045 |
RU85,WU9#,YU6#,81..WT RH |
1 | ||
| 90942-02046 |
RU85,WU9#,YU6#,81..WT LH |
1 | ||
| 42631 - BOLT, DOUBLE WHEEL STOP, RH | ||||
| 42631-55031 |
RU85,YU6#,81..WT |
5 | ||
| 42632 - BOLT, DOUBLE WHEEL STOP, LH | ||||
| 42632-55031 |
RU85,YU6#,81..WT |
5 | ||
| Common parts | ||||
| 90170-20005 | ||||
| 90179-10067 | ||||
| Linked diagrams | ||||
| 4103 | ||||
(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42311 - SHAFT, REAR AXLE | ||||
| 42311-36180 |
YU62,81..WT..GEN HEAVY DUTY SPEC |
2 | ||
| 42311-36051 |
YU62,71,81 |
2 | ||
| 42311-36050 |
YU62,71,81 |
2 | ||
| 42311-36181 |
YU62,81..WT..GEN HEAVY DUTY SPEC |
2 | ||
| 42311A - SEAL, OIL (FOR REAR AXLE SHAFT) | ||||
| 90310-38033 |
YU6#,71,81 |
2 | ||
| 90310-40001 |
YU62,81..WT..GEN HEAVY DUTY SPEC |
2 | ||
| 42321 - GASKET, REAR AXLE SHAFT | ||||
| 42321-36040 |
RU85,YU6#,71,81 |
2 | ||
| 42323 - WASHER, CONE (FOR REAR AXLE SHAFT) | ||||
| 42323-36010 |
YU62,81..WT..GEN HEAVY DUTY SPEC |
16 | ||
| 42323-36010 |
YU6#,71,81 |
12 | ||
| 42403 - DRUM SUB-ASSY, REAR BRAKE | ||||
| 42431-36120 |
RU85,YU6#,81..WT |
2 | ||
| 42411A - PIN, STRAIGHT (FOR REAR AXLE HUB) | ||||
| 90250-10055 |
RU85,YU6#,71,81 |
2 | ||
| 42411B - BOLT, STUD (FOR REAR AXLE HUB) | ||||
| 90116-10191 |
YU62,81..WT..GEN HEAVY DUTY SPEC |
8 | ||
| 90116-10191 |
YU6#,71,81 |
6 | ||
| 42411C - BEARING, TAPERED ROLLER (FOR REAR AXLE INNER BEARING) | ||||
| 90368-57010 |
RU85,YU6#,71,81 |
1 | ||
| 42411D - BEARING, TAPERED ROLLER (FOR REAR AXLE OUTER BEARING) | ||||
| 90368-52043 |
RU85,YU6#,71,81 |
2 | ||
| 42411E - SEAL, OIL (FOR REAR AXLE HUB) | ||||
| 90311-75003 |
RU85,YU6#,71,81 |
1 | ||
| 42419 - SCREW, REAR AXLE BEARING LOCK NUT | ||||
| 93311-16012 |
RU85,YU6#,71,81 |
4 | ||
| 42420 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, RH | ||||
| 42420-36150 |
YU62,81..WT..GEN HEAVY DUTY SPEC |
1 | ||
| 42420-36130 |
YU6#,81..WT |
1 | ||
| 42427 - NUT, REAR AXLE BEARING LOCK | ||||
| 42427-36030 |
RU85,YU6#,71,81 |
2 | ||
| 42428 - PLATE, REAR AXLE LOCK NUT | ||||
| 42428-36020 |
RU85,YU6#,71,81 |
2 | ||
| 42430 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, LH | ||||
| 42430-36150 |
YU62,81..WT..GEN HEAVY DUTY SPEC |
1 | ||
| 42430-36130 |
YU6#,81..WT |
1 | ||
| 42611E - BOLT, HUB (FOR REAR AXLE) | ||||
| 90942-02045 |
RU85,WU9#,YU6#,81..WT RH |
1 | ||
| 90942-02046 |
RU85,WU9#,YU6#,81..WT LH |
1 | ||
| 42631 - BOLT, DOUBLE WHEEL STOP, RH | ||||
| 42631-55031 |
RU85,YU6#,81..WT |
5 | ||
| 42632 - BOLT, DOUBLE WHEEL STOP, LH | ||||
| 42632-55031 |
RU85,YU6#,81..WT |
5 | ||
| Common parts | ||||
| 90179-10067 | ||||
| 94115-71600 | ||||
| Linked diagrams | ||||
| 4103 | ||||
