Toyota Dyna 200 YU62 HEATING & AIR CONDITIONING - VACUUM PIPING

YU62L-MDBT (1988)

Toyota Dyna 200

Production Aug 1988 - May 1995

Engine 4Y

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

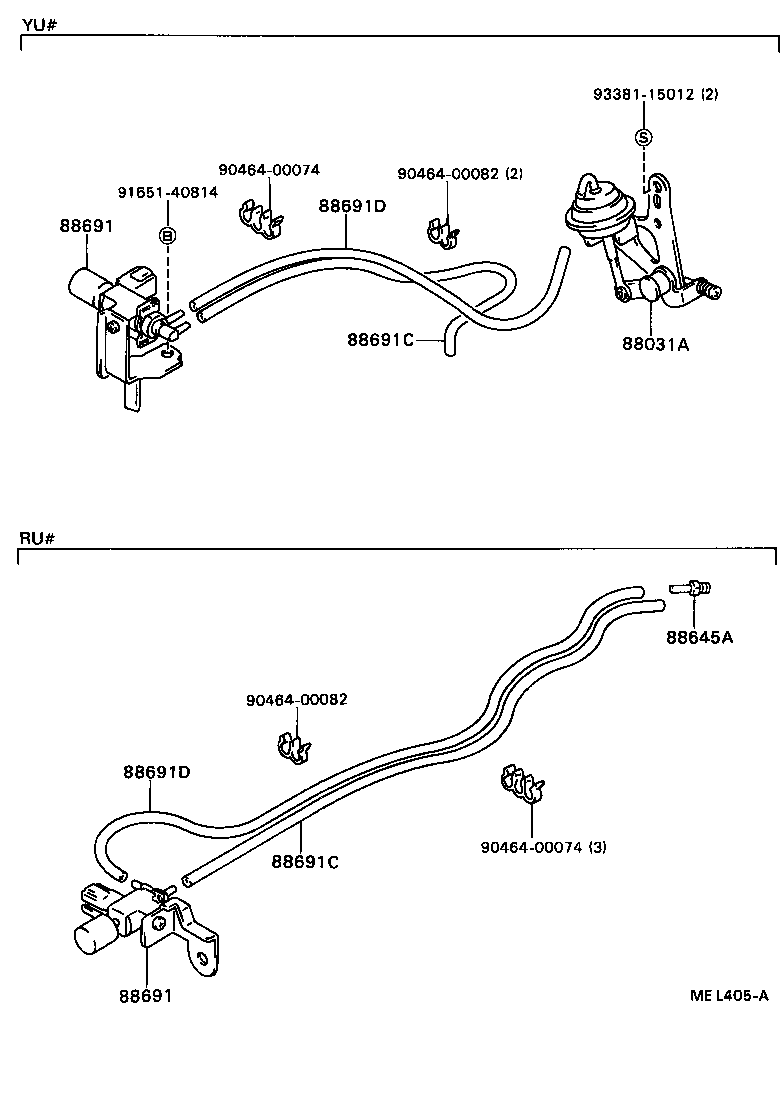

Click highlighted areas on diagram

Part #	Description	Period	Qty
88031A - DIAPHRAGM SUB-ASSY, IDLE-UP ACTUATOR
21099-71030	YU85;YU6#,82..GEN	09/1993 - 05/1995	1
21099-71030	YU6#,71,82..GEN,SA	08/1988 - 09/1993	1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-95022	YU6#,71,82..GEN,SA	08/1988 - 09/1993	1
88690-95022	YU6#,82..GEN	09/1993 - 05/1995	1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-95022	YU6#,71,82..GEN,SA	08/1988 - 09/1993	1
88690-95022	YU6#,82..GEN	09/1993 - 05/1995	1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90999-92002	YU6#,82..GEN *H,L=300	09/1993 - 05/1995	1
90999-92002	YU6#,71,82..GEN,SA *H,L=300	08/1988 - 09/1993	1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90999-92002	YU6#,82..GEN *H,L=300	09/1993 - 05/1995	1
90999-92002	YU6#,71,82..GEN,SA *H,L=300	08/1988 - 09/1993	1
88691D - HOSE, VACUUM (FOR IDLE UP DIVICE), NO.2
90999-92002	YU6#,82..GEN *H,L=300	09/1993 - 05/1995	1
90999-92002	YU6#,71,82..GEN,SA *H,L=300	08/1988 - 09/1993	1
88691D - HOSE, VACUUM (FOR IDLE UP DIVICE), NO.2
90999-92002	YU6#,82..GEN *H,L=300	09/1993 - 05/1995	1
90999-92002	YU6#,71,82..GEN,SA *H,L=300	08/1988 - 09/1993	1
Common parts
90464-00074
90464-00082
91651-40814
93381-15012

Click highlighted areas on diagram

Part #	Description	Period	Qty
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-95022	YU6#,71,82..GEN,SA	08/1988 - 09/1993	1
88690-95022	YU6#,82..GEN	09/1993 - 05/1995	1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-95022	YU6#,71,82..GEN,SA	08/1988 - 09/1993	1
88690-95022	YU6#,82..GEN	09/1993 - 05/1995	1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90999-92002	YU6#,82..GEN *H,L=300	09/1993 - 05/1995	1
90999-92002	YU6#,71,82..GEN,SA *H,L=300	08/1988 - 09/1993	1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90999-92002	YU6#,82..GEN *H,L=300	09/1993 - 05/1995	1
90999-92002	YU6#,71,82..GEN,SA *H,L=300	08/1988 - 09/1993	1
88691D - HOSE, VACUUM (FOR IDLE UP DIVICE), NO.2
90999-92002	YU6#,82..GEN *H,L=300	09/1993 - 05/1995	1
90999-92002	YU6#,71,82..GEN,SA *H,L=300	08/1988 - 09/1993	1
88691D - HOSE, VACUUM (FOR IDLE UP DIVICE), NO.2
90999-92002	YU6#,82..GEN *H,L=300	09/1993 - 05/1995	1
90999-92002	YU6#,71,82..GEN,SA *H,L=300	08/1988 - 09/1993	1
Common parts
82711-32360
90464-00082
90464-00139
90929-01060
91611-60616
91611-61014

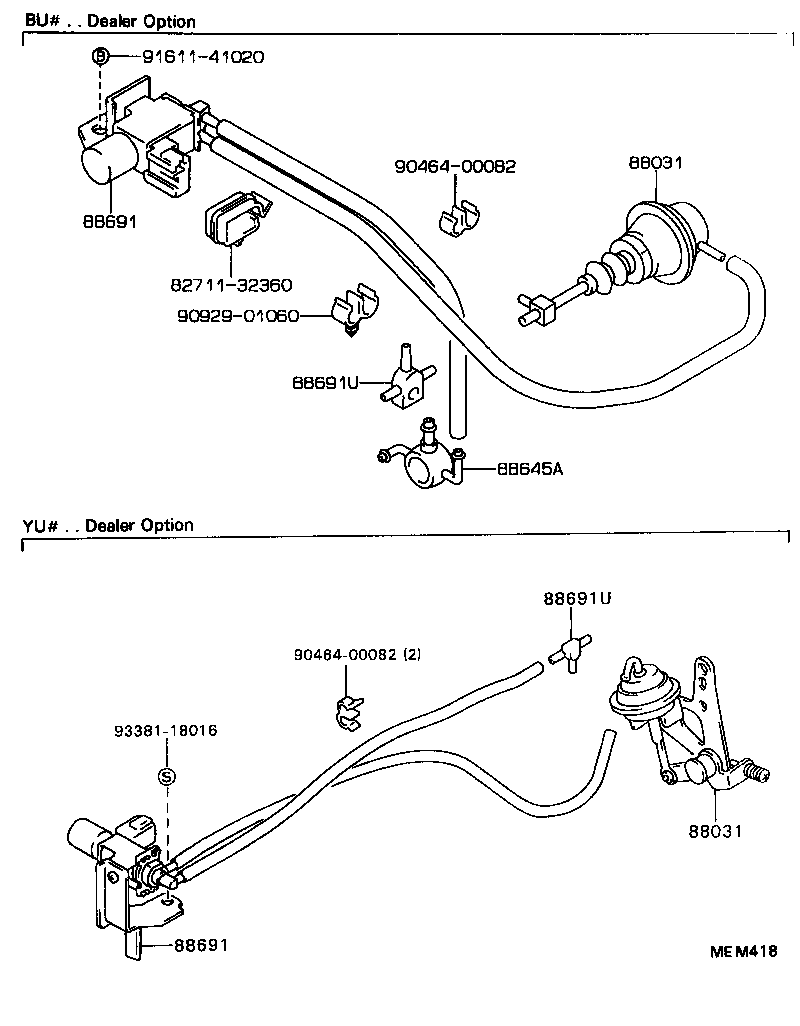

Click highlighted areas on diagram

Part #	Description	Period	Qty
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-95022	YU6#,71,82..GEN,SA	08/1988 - 09/1993	1
88690-95022	YU6#,82..GEN	09/1993 - 05/1995	1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-95022	YU6#,71,82..GEN,SA	08/1988 - 09/1993	1
88690-95022	YU6#,82..GEN	09/1993 - 05/1995	1
Common parts
82711-32360
90464-00082
90929-01060
91611-41020
93381-18016
