YU62L-MDBT (1988)
Toyota Dyna 200
ILLUST NO. 3 OF 3(8808- )
| Part # | Description | Qty | Price |
|---|

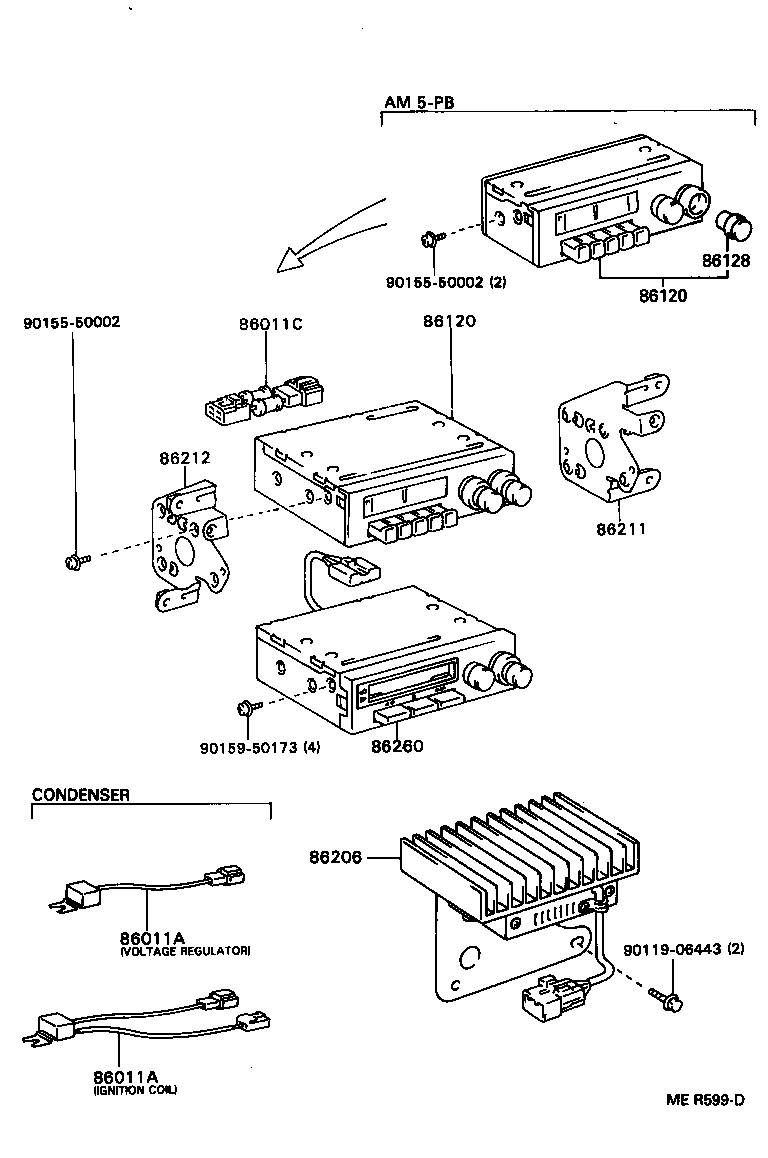

ILLUST NO. 2 OF 3(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

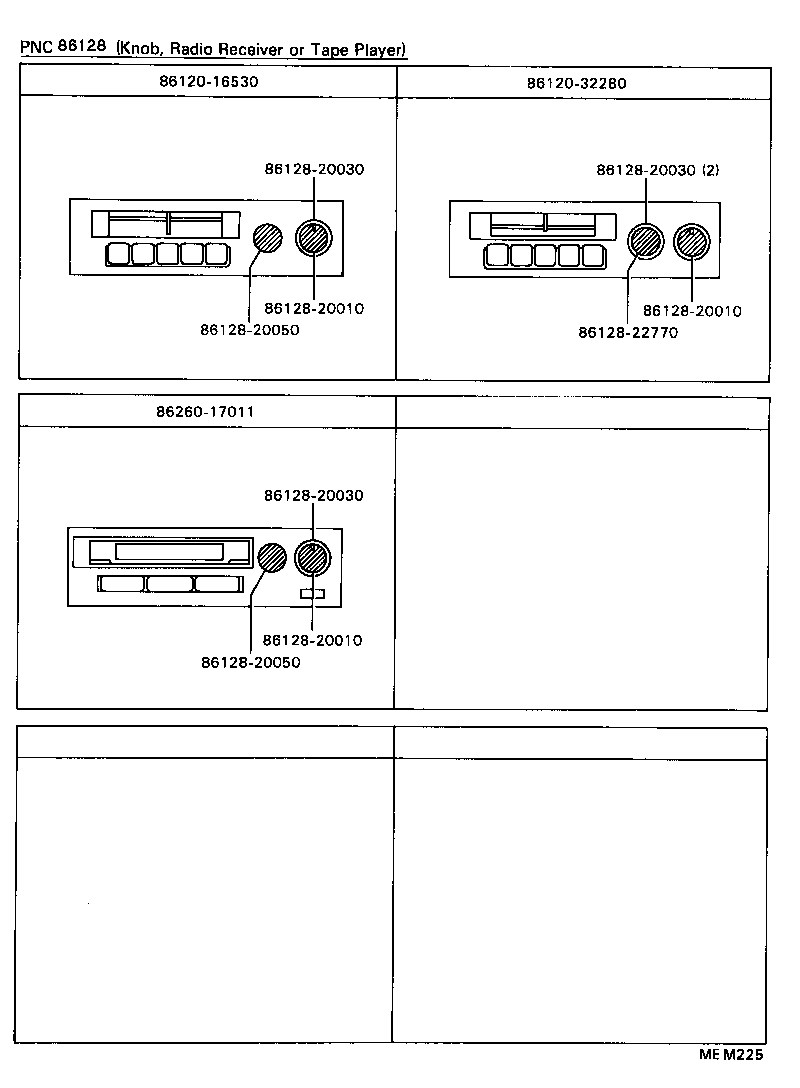

| 86128 - KNOB, RADIO RECEIVER | ||||
| 86128-20010 |
RU85,YU6#,71,82..GEN *89 |
1 | ||
| 86128-20030 |
RU85,YU6#,71,82..GEN *89 |
2 | ||
| 86128-22770 |
RU85,YU6#,71,82..GEN *89 |
1 | ||
| 86128-20050 |
RU85,YU6#,71,82..ARL,GEN *89 |
1 | ||
| 86128-20010 |
RU85,YU6#,71,82..ARL,GEN *89 |
1 | ||
| 86128-20030 |
RU85,YU6#,71,82..ARL,GEN *89 |
1 | ||
| 86128-20050 |
RU85,YU6#,71,82..ARL,GEN *89 |
1 | ||
| 86128-20030 |
RU85,YU6#,71,82..ARL,GEN *89 |
1 | ||
| Common parts | ||||
| 86120-16530 | ||||
| 86120-32280 | ||||
| 86128-20010 | ||||
| 86128-20030 | ||||
| 86128-20050 | ||||
| 86128-22770 | ||||
| 86260-17011 | ||||
ILLUST NO. 1 OF 3(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04052 |
RU85,YU6#,71,82 IGNITION COIL |
1 | ||
| 90980-04050 |
YU6#,71,82 IGNITION COIL |
1 | ||
| 90980-04040 |
YU85;RU85,YU6#,82..GEN VOLTAGE REGULATOR |
1 | ||
| 90980-04040 |
RU85,YU6#,71,82 VOLTAGE REGULATOR |
1 | ||
| 90980-04050 |
YU85;YU6#,82..GEN IGNITION COIL |
1 | ||
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04052 |
RU85,YU6#,71,82 IGNITION COIL |
1 | ||
| 90980-04050 |
YU6#,71,82 IGNITION COIL |
1 | ||
| 90980-04040 |
YU85;RU85,YU6#,82..GEN VOLTAGE REGULATOR |
1 | ||
| 90980-04040 |
RU85,YU6#,71,82 VOLTAGE REGULATOR |
1 | ||
| 90980-04050 |
YU85;YU6#,82..GEN IGNITION COIL |
1 | ||
| 86011C - FILTER, NOISE | ||||
| 90980-05049 |
RU85,YU6#,71,82..ARL,GEN |
1 | ||
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-16460 |
RU85,YU6#,71,82..GEN MATSUSHITA,ID=5108,MW/SW 5-PB |
1 | ||
| 86120-32280 |
RU85,YU6#,71,82..ARL,GEN MATSUSHITA,AM/FM MPX 5-PB/2-AMP |
1 | ||
| 86120-1A010 |
RU85,YU6#,71,82..GEN MATSUSHITA,MW/SW 5-PB |
1 | ||
| 86120-16530 |
RU85,YU6#,71,82..ARL,GEN MATSUSHITA,ID=5010,AM 5-PB |
1 | ||
| 86120-2A070 |
RU85,YU6#,71,82..GEN MATSUSHITA,AM/FM MPX ETR (AM=5KHZ STEP) |
1 | ||
| 86120-1A020 |
RU85,YU6#,82..ARL,GEN FUJITSU TEN,ID=12201,AM/FM MPX ETR (AM=9KHZ STEP) |
1 | ||
| 86120-35110 |
RU85,YU6#,71,82..GEN MATSUSHITA,ID=52101,AM ETR (5KHZ STEP) |
1 | ||
| 86120-35080 |
RU85,YU6#,82..ARL,GEN MATSUSHITA,ID=52100,AM ETR |
1 | ||
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-16460 |
RU85,YU6#,71,82..GEN MATSUSHITA,ID=5108,MW/SW 5-PB |
1 | ||
| 86120-32280 |
RU85,YU6#,71,82..ARL,GEN MATSUSHITA,AM/FM MPX 5-PB/2-AMP |
1 | ||
| 86120-1A010 |
RU85,YU6#,71,82..GEN MATSUSHITA,MW/SW 5-PB |
1 | ||
| 86120-16530 |
RU85,YU6#,71,82..ARL,GEN MATSUSHITA,ID=5010,AM 5-PB |
1 | ||
| 86120-2A070 |
RU85,YU6#,71,82..GEN MATSUSHITA,AM/FM MPX ETR (AM=5KHZ STEP) |
1 | ||
| 86120-1A020 |
RU85,YU6#,82..ARL,GEN FUJITSU TEN,ID=12201,AM/FM MPX ETR (AM=9KHZ STEP) |
1 | ||
| 86120-35110 |
RU85,YU6#,71,82..GEN MATSUSHITA,ID=52101,AM ETR (5KHZ STEP) |
1 | ||
| 86120-35080 |
RU85,YU6#,82..ARL,GEN MATSUSHITA,ID=52100,AM ETR |
1 | ||
| 86128 - KNOB, RADIO RECEIVER | ||||
| 86128-20010 |
RU85,YU6#,71,82..GEN *89 |
1 | ||
| 86128-20030 |
RU85,YU6#,71,82..GEN *89 |
2 | ||
| 86128-22770 |
RU85,YU6#,71,82..GEN *89 |
1 | ||
| 86128-20050 |
RU85,YU6#,71,82..ARL,GEN *89 |
1 | ||
| 86128-20010 |
RU85,YU6#,71,82..ARL,GEN *89 |
1 | ||
| 86128-20030 |
RU85,YU6#,71,82..ARL,GEN *89 |
1 | ||
| 86128-20050 |
RU85,YU6#,71,82..ARL,GEN *89 |
1 | ||
| 86128-20030 |
RU85,YU6#,71,82..ARL,GEN *89 |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-95406 |
RU85..SA;YU6#,71,82 |
1 | ||
| 86211-37020 |
RU85..SA;YU6#,71,82 |
1 | ||
| 86211-37020 |
YU85;YU6#,82..GEN |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-95406 |
YU82;RU85,WU9#,YU6#,71..ARL,GEN |
1 | ||
| 86212-37010 |
RU85,YU6#,82..GEN |
1 | ||
| 86212-37010 |
YU82;RU85,WU9#,YU6#,71..ARL,GEN |
1 | ||
| 86260 - TAPE PLAYER ASSY | ||||
| 86260-17012 |
RU85,YU6#,71,82..ARL,GEN |
1 | ||
| 86260-17011 |
RU85,YU6#,71,82..ARL,GEN |
1 | ||
| Common parts | ||||
| 90119-06443 | ||||
| 90155-50002 | ||||
| 90159-50173 | ||||
