YU62L-MDB3 (1988)

Toyota Dyna 200

Production Aug 1988 - May 1995
Engine 4Y
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )YU62

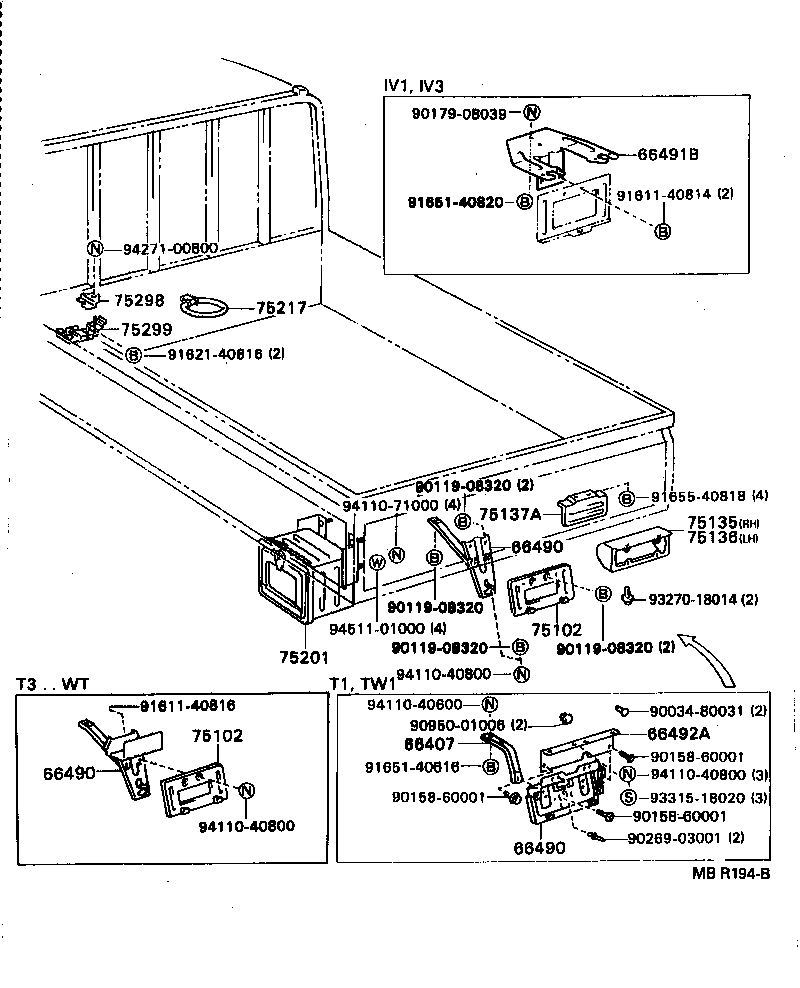

Click highlighted areas on diagram

diagram 66407 66490 66490 66490 66491B 66492A 75102 75102 75135 75136 75137A 75201 75217 75298 75299 9003480031 9011908320 9011908320 9011908320 9011908320 9015860001 9015860001 9015860001 9017908039 9026903001 9095001006 9161140814 9161140816 9162140816 9165140616 9165140820 9165540818 9327018014 9331518020 9411040600 9411040800 9411040800 9411040800 9411071000 9427100800 9451101000
Part # Description Qty Price
66491B - HANGER, LICENSE PLATE BRACKET
66491-95412

YU62,82..IV3

 1
75102 - BRACKET SUB-ASSY, REAR LICENSE PLATE
75102-25020

YU62..T3;YU82..IV3

 1
75102 - BRACKET SUB-ASSY, REAR LICENSE PLATE
75102-25020

YU62..T3;YU82..IV3

 1
75201 - BOX SUB-ASSY, TOOL W/STAY
75210-92704

YU62..T3..GEN

 1
75217 - BAND, TOOL BAG
58705-95A01

RU85,WU9#,YU6#,8#

 1
75298 - PLATE, JACK HOLDER
75298-95400

YU62..T3..GEN;RU85,YU63,71,8#

 1
75299 - BASE, JACK HOLDER
75299-95401

YU62..T3..ST

 1
Common parts
90034-80031
90119-08320
90158-60001
90179-08039
90269-03001
90950-01006
91611-40814
91611-40816
91621-40816
91651-40616
91651-40820
91655-40818
93270-18014
93315-18020
94110-40600
94110-40800
94110-71000
94271-00800
94511-01000
