YU62L-MDB3 (1987)

Toyota Dyna 200

Production Aug 1987 - Aug 1988
Engine 4Y
Transmission LHD 5F
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(8708- )

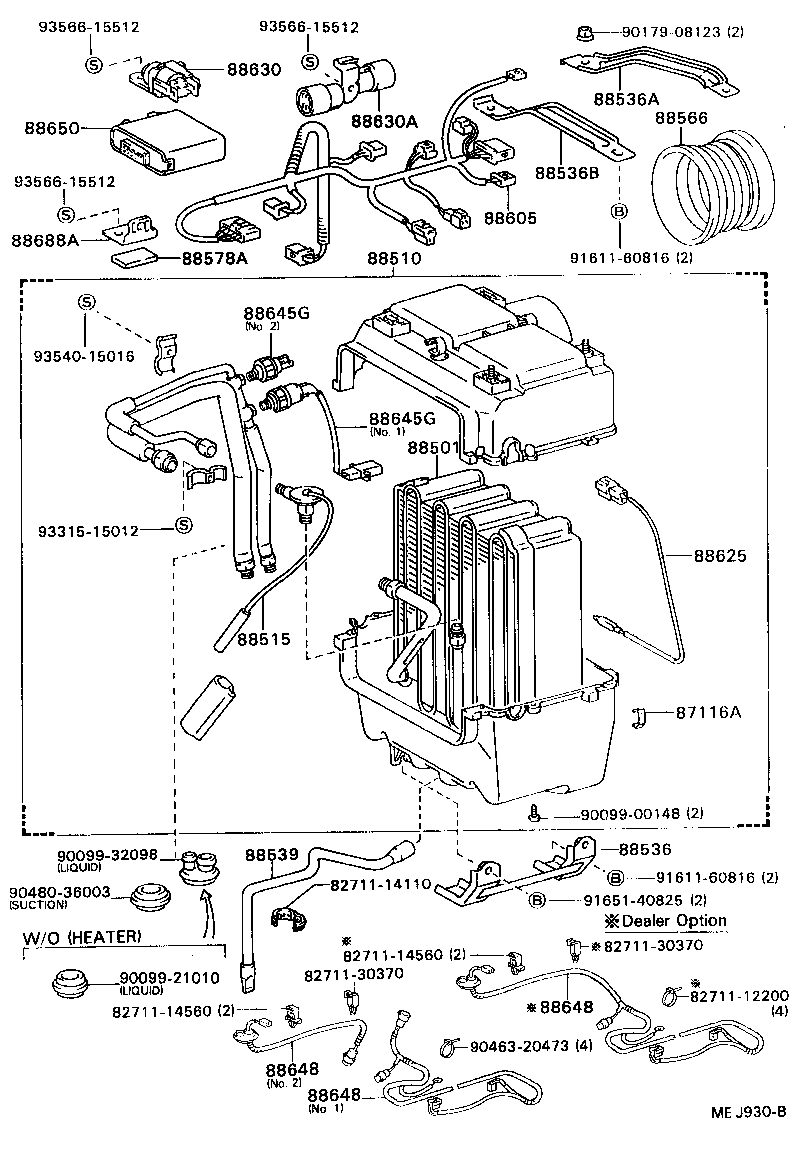

Click highlighted areas on diagram

diagram 8271112200 8271114110 8271114560 8271114560 8271130370 8271130370 87116A 88501 88510 88515 88536 88536A 88536B 88539 88566 88578A 88605 88625 88630 88630A 88645G 88645G 88648 88648 88648 88650 88688A 9009900148 9009921010 9009932098 9017908123 9046320473 9048036003 9161160816 9161160816 9165140825 9331515012 9354015016 9356615512 9356615512 9356615512
Part # Description Qty Price
88510 - UNIT ASSY, COOLER
88510-95402

RU85,YU6#,81..LHD

 1
88536 - BRACKET, COOLING UNIT, NO.1
88536-95403

RU85,YU6#,81..GEN

 1
88536A - BRACKET, COOLING UNIT, NO.2
88536-95404

YU6#,81..GEN

 1
88536B - BRACKET, COOLING UNIT, NO.3
88536-95406

YU6#,81..LHD

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-95410

YU6#,81..LHD

 1
88566 - DUCT, COOLER AIR, NO.1
88566-95407

YU6#,81..GEN

 1
88578A - PACKING, COOLER STABILIZER AMPLIFIER
88578-95400

RU85,YU6#,81..GEN

 2
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-95404

YU6#,81..GEN

 1
88630 - RELAY ASSY, COOLER
88630-60020

RU85,YU6#,81..GEN

 1
88630A - RELAY ASSY, COOLER
88630-95403

RU85,YU6#,81..LHD

 1
88648 - WIRING, COOLER, NO.1
88648-95404

YU6#,81..GEN

NO.1

 1
88648-95409

YU6#,81..GEN

NO.2

 1
88648 - WIRING, COOLER, NO.1
88648-95404

YU6#,81..GEN

NO.1

 1
88648-95409

YU6#,81..GEN

NO.2

 1
88648 - WIRING, COOLER, NO.1
88648-95404

YU6#,81..GEN

NO.1

 1
88648-95409

YU6#,81..GEN

NO.2

 1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-87101

RU85,YU6#,81..GEN

 1
Common parts
82711-12200
82711-14110
82711-14560
82711-30370
90099-00148
90099-21010
90099-32098
90179-08123
90463-20473
90480-36003
91611-60816
91651-40825
93315-15012
93540-15016
93566-15512

ILLUST NO. 2 OF 2(8708- )

Click highlighted areas on diagram

diagram 88568B
Part # Description Qty Price
88568B - FILTER, AIR
88568-95400

RU85,YU6#,81..GEN

 1
