YU62L-MDB3 (1987)

Toyota Dyna 200

Production Aug 1987 - Aug 1988
Engine 4Y
Transmission LHD 5F
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(8708- )

Click highlighted areas on diagram

diagram 87810 87810 87810B 87827 87827 87834 87834 9015260008 9015260008
Part # Description Qty Price
87810 - MIRROR ASSY, INNER REAR VIEW
87810-9541801

YU6#,71,81..ARL,GEN

BLACK,TRIM4#

 1
87810 - MIRROR ASSY, INNER REAR VIEW
87810-9541801

YU6#,71,81..ARL,GEN

BLACK,TRIM4#

 1
87810B - BULB, INNER REAR VIEW MIRROR LAMP
90981-11027

RU85,WU9#,YU6#,71,81

12V 10W

 1
87827 - ABSORBER, INNER REAR VIEW MIRROR
87828-32010

RU85,WU9#,YU6#,71,81

L=46.5

 1
87828-23010

RU85,WU9#,YU6#,71,81

L=38.5

 1
87828-30010

RU85,WU9#,YU6#,71,81

L=43.5

 1
87827 - ABSORBER, INNER REAR VIEW MIRROR
87828-32010

RU85,WU9#,YU6#,71,81

L=46.5

 1
87828-23010

RU85,WU9#,YU6#,71,81

L=38.5

 1
87828-30010

RU85,WU9#,YU6#,71,81

L=43.5

 1
87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER
81243-95701

RU85,WU9#,YU6#,71,81

 1
87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER
81243-95701

RU85,WU9#,YU6#,71,81

 1
Common parts
90152-60008

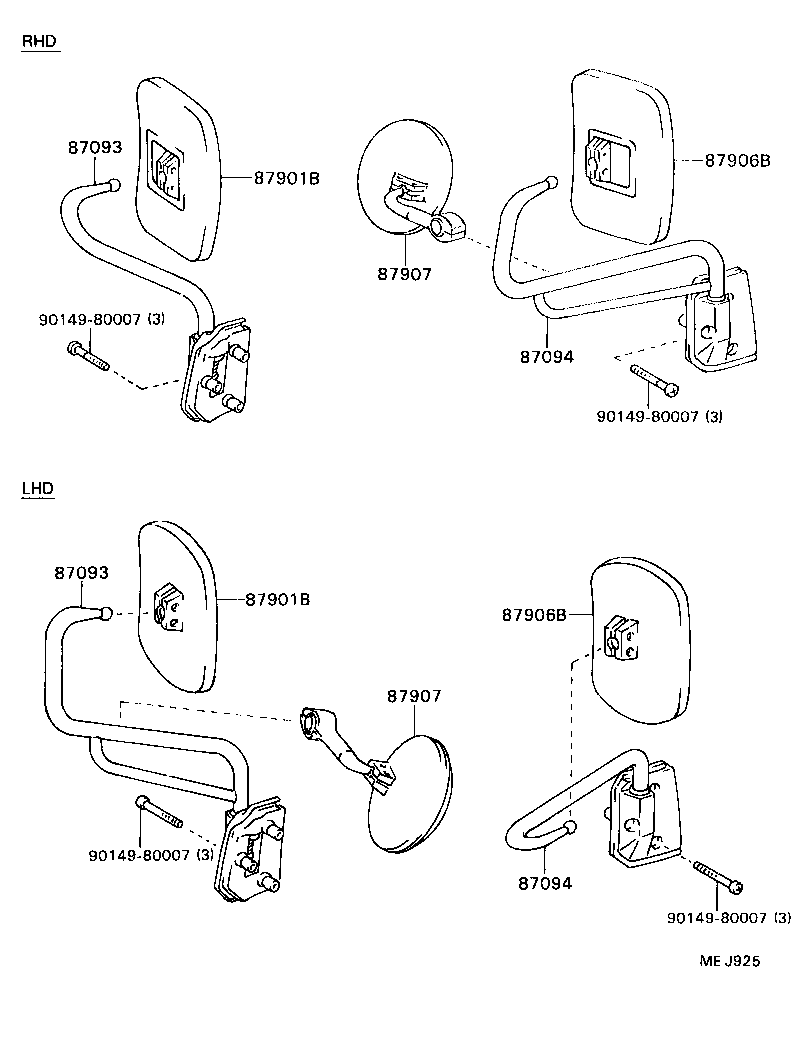

ILLUST NO. 2 OF 2(8708- )

Click highlighted areas on diagram

diagram 87093 87093 87094 87094 87901B 87901B 87906B 87906B 87907 87907 9014980007 9014980007 9014980007 9014980007
Part # Description Qty Price
87093 - STAY SUB-ASSY, OUTER REAR VIEW MIRROR, UPPER RH
87093-95403

YU63;YU62,71..ST

 1
87093 - STAY SUB-ASSY, OUTER REAR VIEW MIRROR, UPPER RH
87093-95403

YU63;YU62,71..ST

 1
87094 - STAY SUB-ASSY, OUTER REAR VIEW MIRROR, UPPER LH
87094-95404

YU62..ST;RU85,WU9#,YU63,71..LHD

 1
87094 - STAY SUB-ASSY, OUTER REAR VIEW MIRROR, UPPER LH
87094-95404

YU62..ST;RU85,WU9#,YU63,71..LHD

 1
87901B - MIRROR SUB-ASSY, OUTER REAR VIEW, RH
87901-95412

YU6#,71,81..GEN

 1
87901B - MIRROR SUB-ASSY, OUTER REAR VIEW, RH
87901-95412

YU6#,71,81..GEN

 1
87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH
87901-95412

YU6#,71,81..GEN

 1
87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH
87901-95412

YU6#,71,81..GEN

 1
87907 - MIRROR SUB-ASSY, OUTER UNDER VIEW
87906-95403

RU85,WU9#,YU6#,71,81..LHD

 1
87907 - MIRROR SUB-ASSY, OUTER UNDER VIEW
87906-95403

RU85,WU9#,YU6#,71,81..LHD

 1
Common parts
90149-80007
